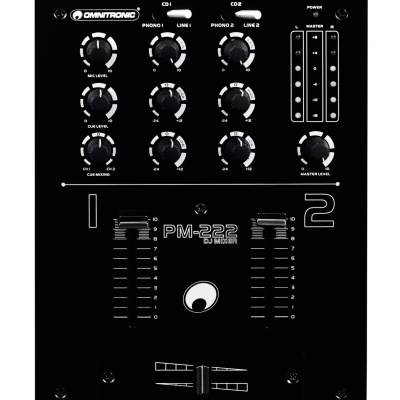

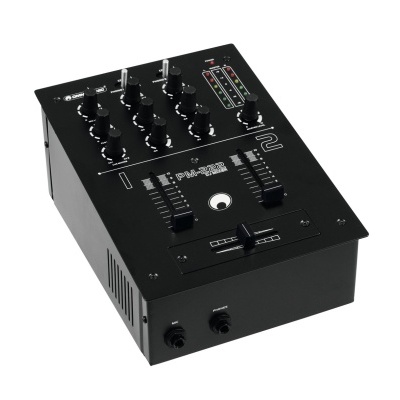

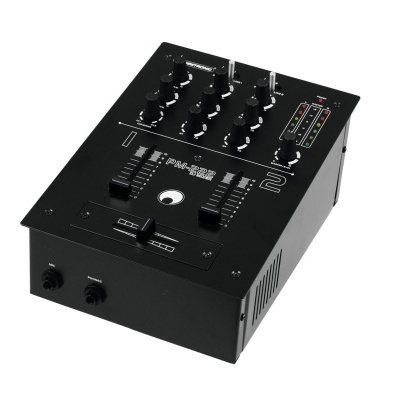

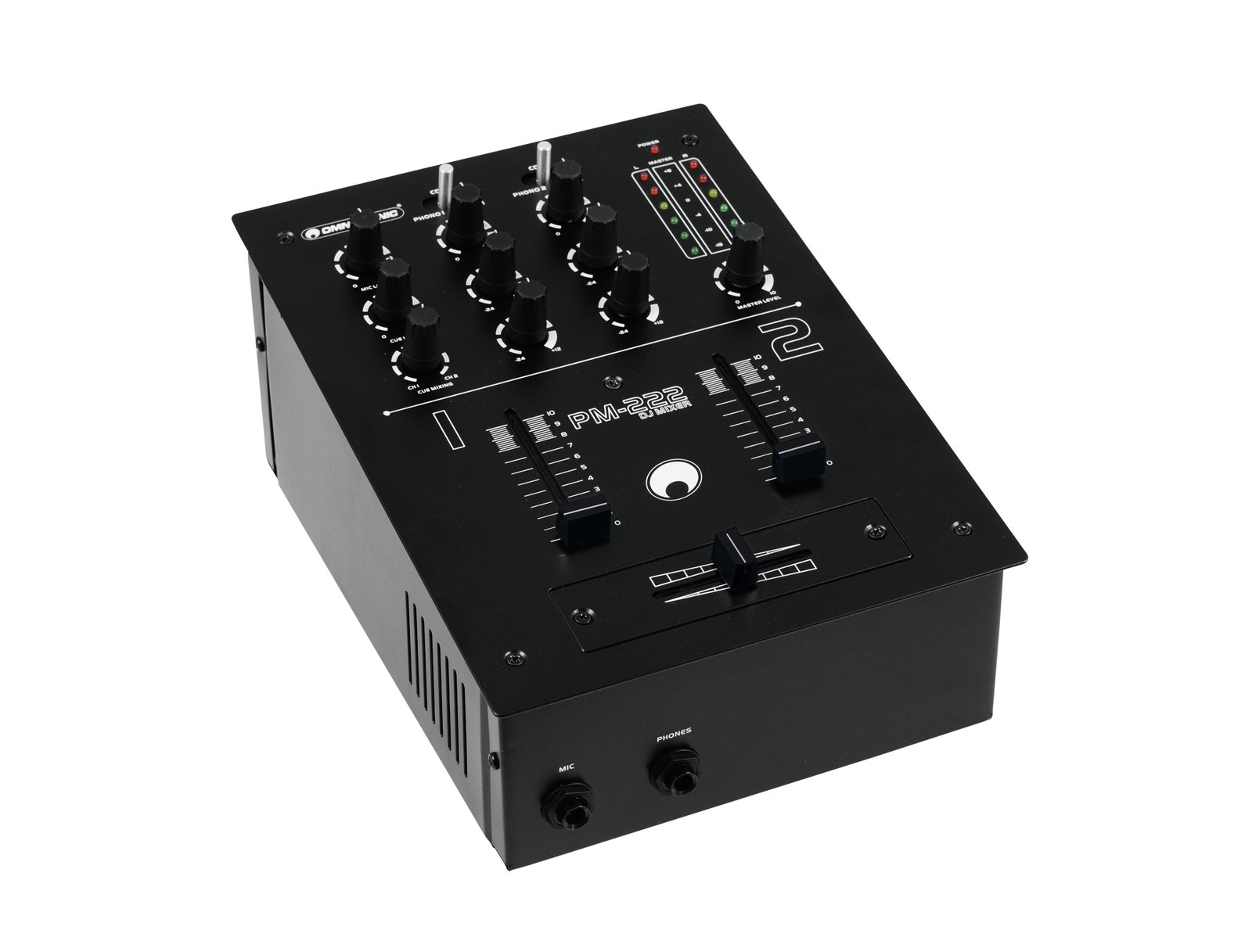

OMNITRONIC PM-222 2-Channel DJ Mixer
SKU: 10006819
2-channel DJ mixer
- 2 input channels with gain control, 2-way equalizer and phono/line switching
- DJ microphone input with separate level control
- Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
- Replaceable crossfader for crossfading between both channels
- 6-digit stereo LED level meter and master level control
- Outputs: master and record (stereo RCA)
- Desktop console housing
Package contents
- 1 x user manual, 1 x power cord, 1 x mixer
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30,00 W |
| Protection class: | Protection class II |
| Power connection: | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >70 dB |
| THD: | <0,025 % at 1 kHz |
| Impedance: | Input: Microphone 47 kOhm Input: line 47 kOhm Input: phono 47 kOhm |
| Gain: | Input: variable |
| Control elements: | Power switch, source selector, Crossfader |
| Status LED: | Master level meter, power |

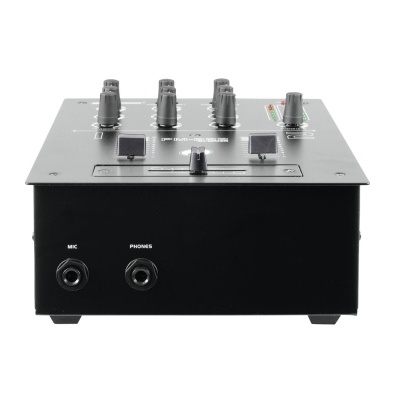

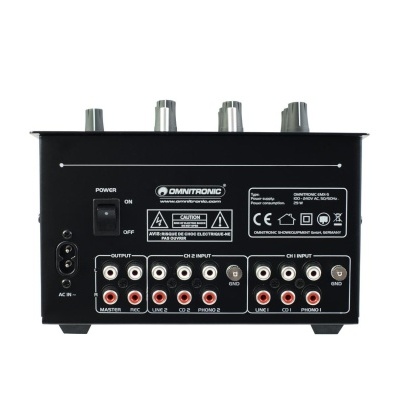

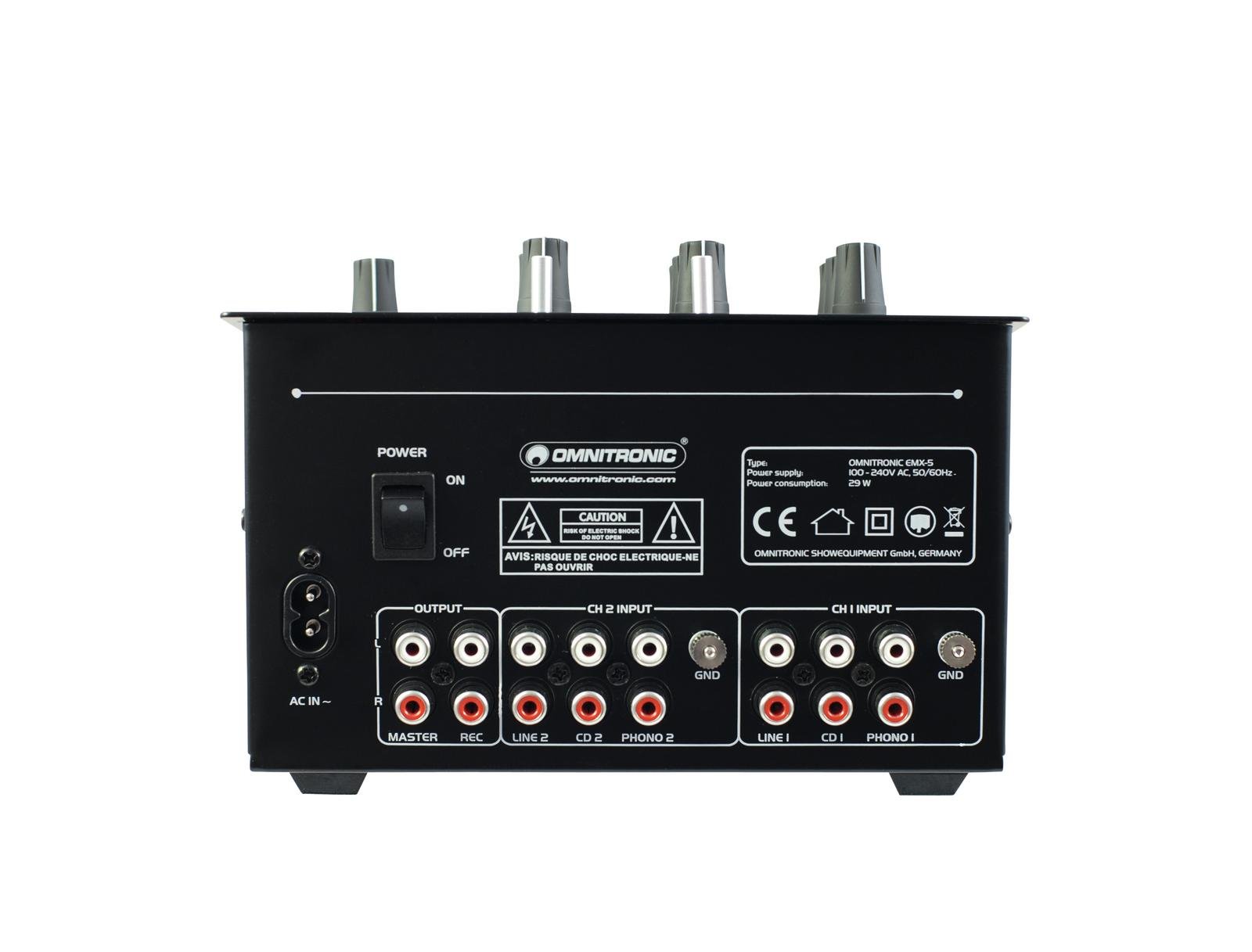

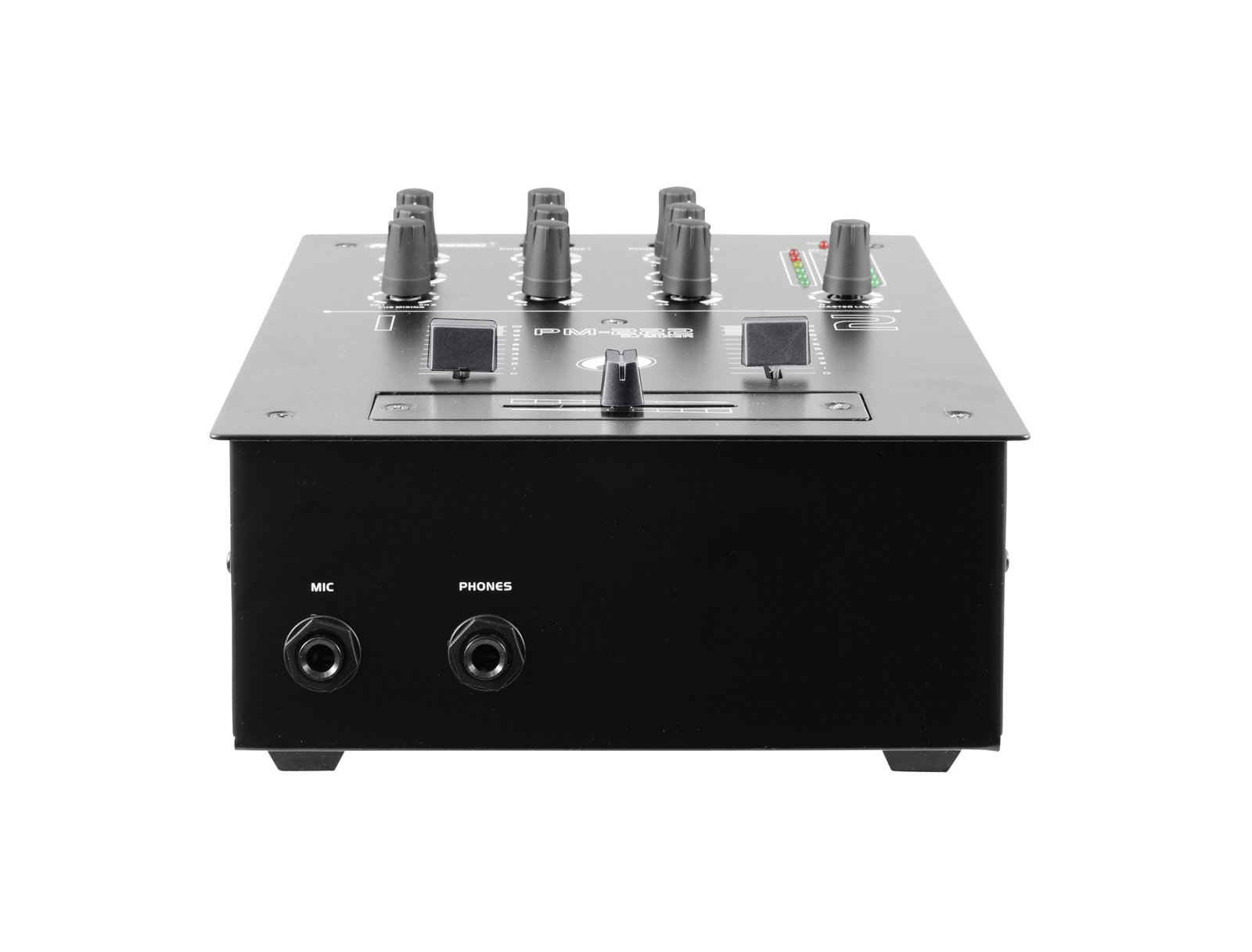

| Connections: | Input: Microphone via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 4 x stereo RCA Input: phono via 2 x stereo RCA Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: | Input chanel: 2 x stereo with Line-Line-Phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control, Microphon chanal: 1 x mono via Jack, channel control via Rotary dial, Cue-mix-function, Master output: 1 x stereo via RCA, channel control via Rotary dial Headphones output: 1 x stereo via Jack, channel control via Rotary dial |
| Max. level: | Output: master +19 dBu |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 19 cm Depth: 26 cm Height: 13,7 cm |
| Weight: | 2,00 kg |
