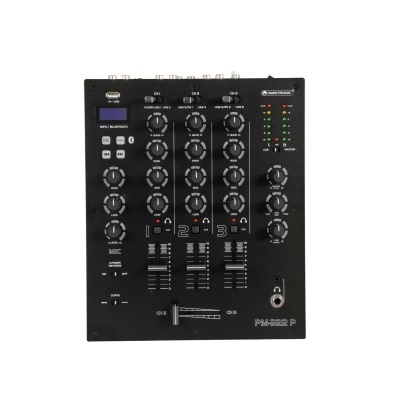

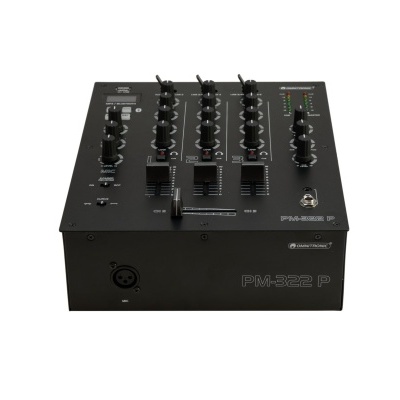

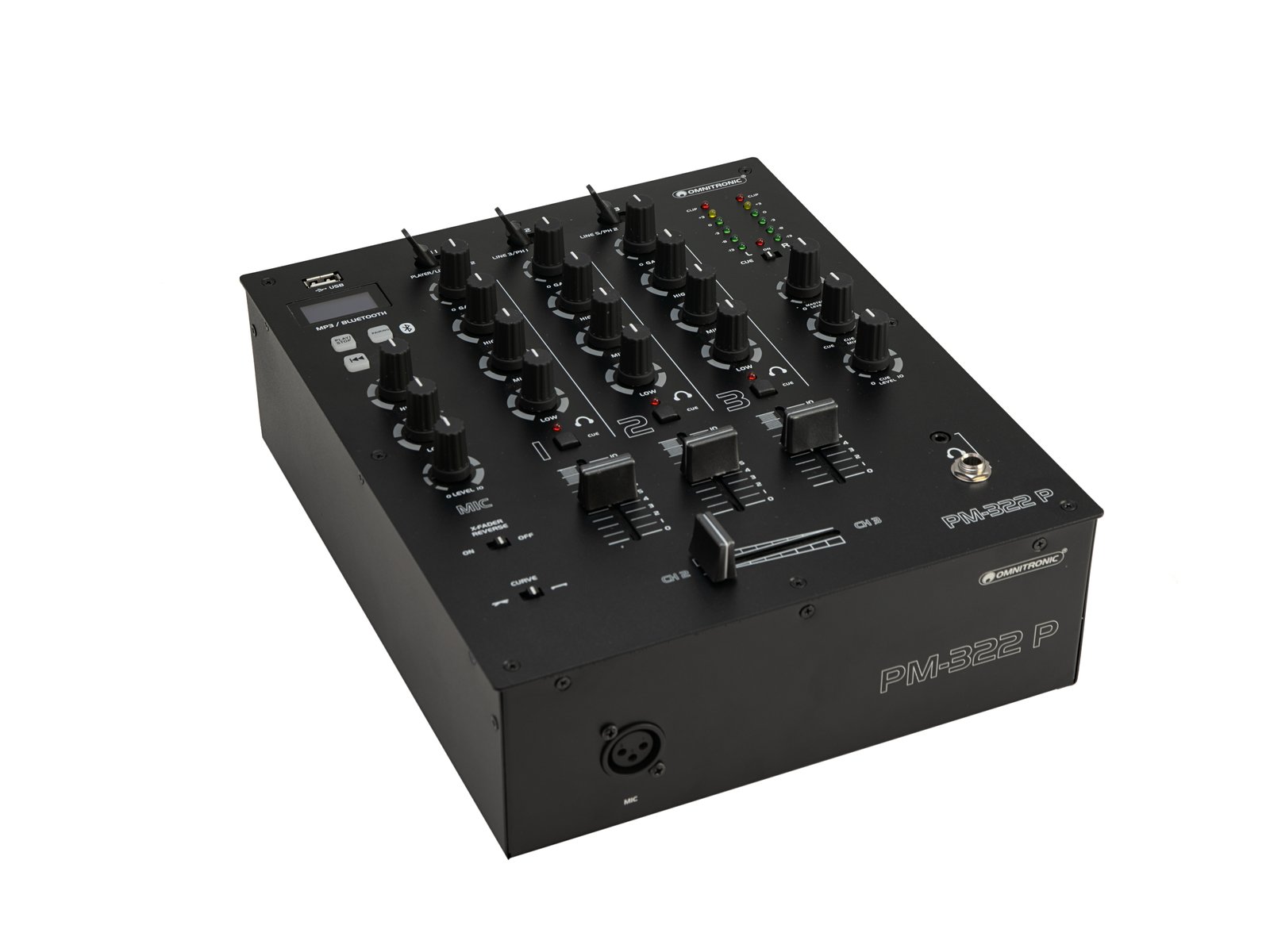

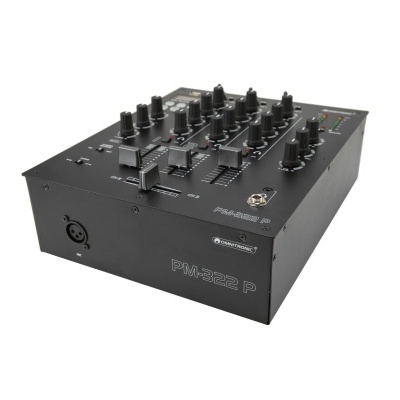

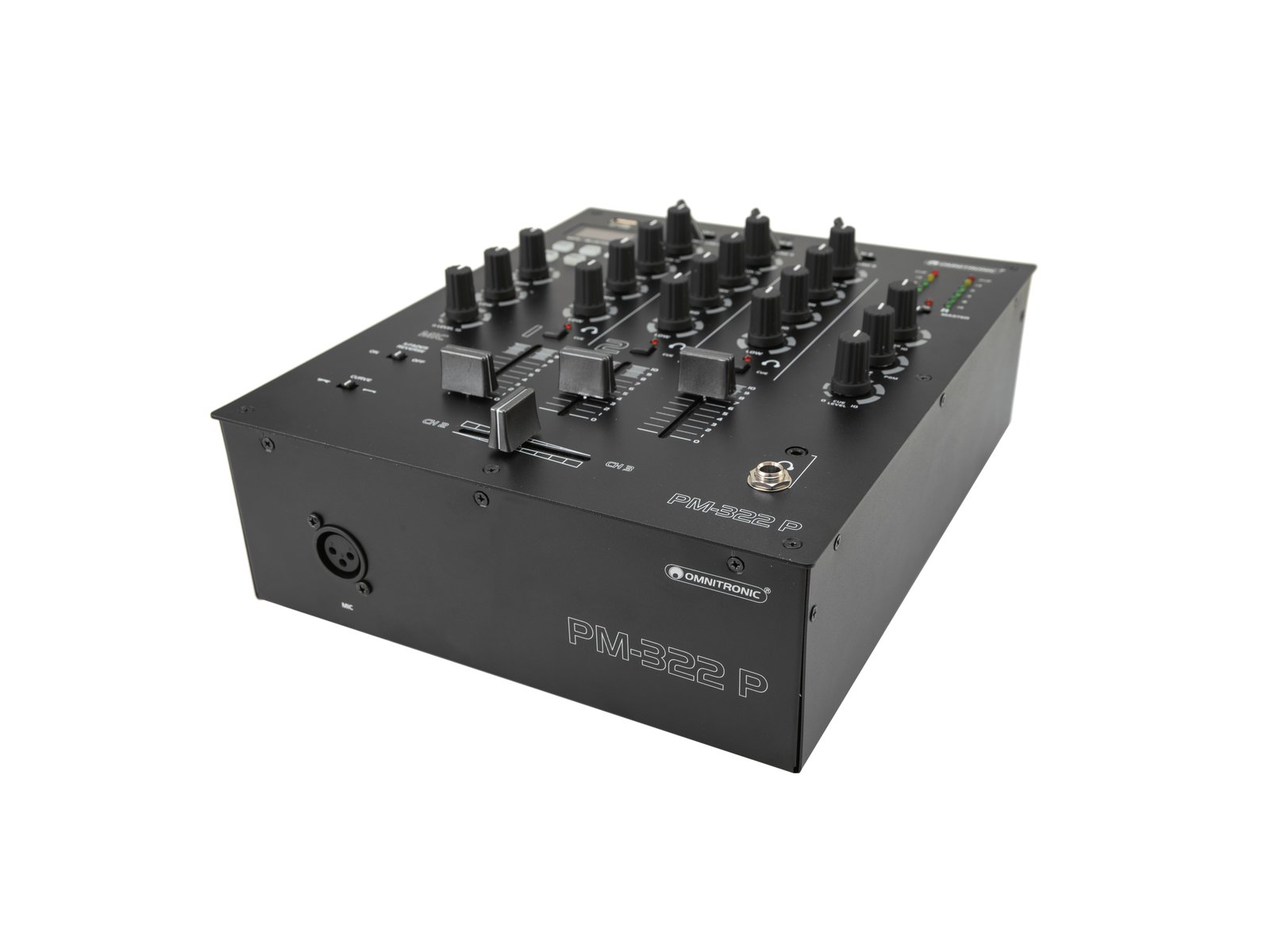

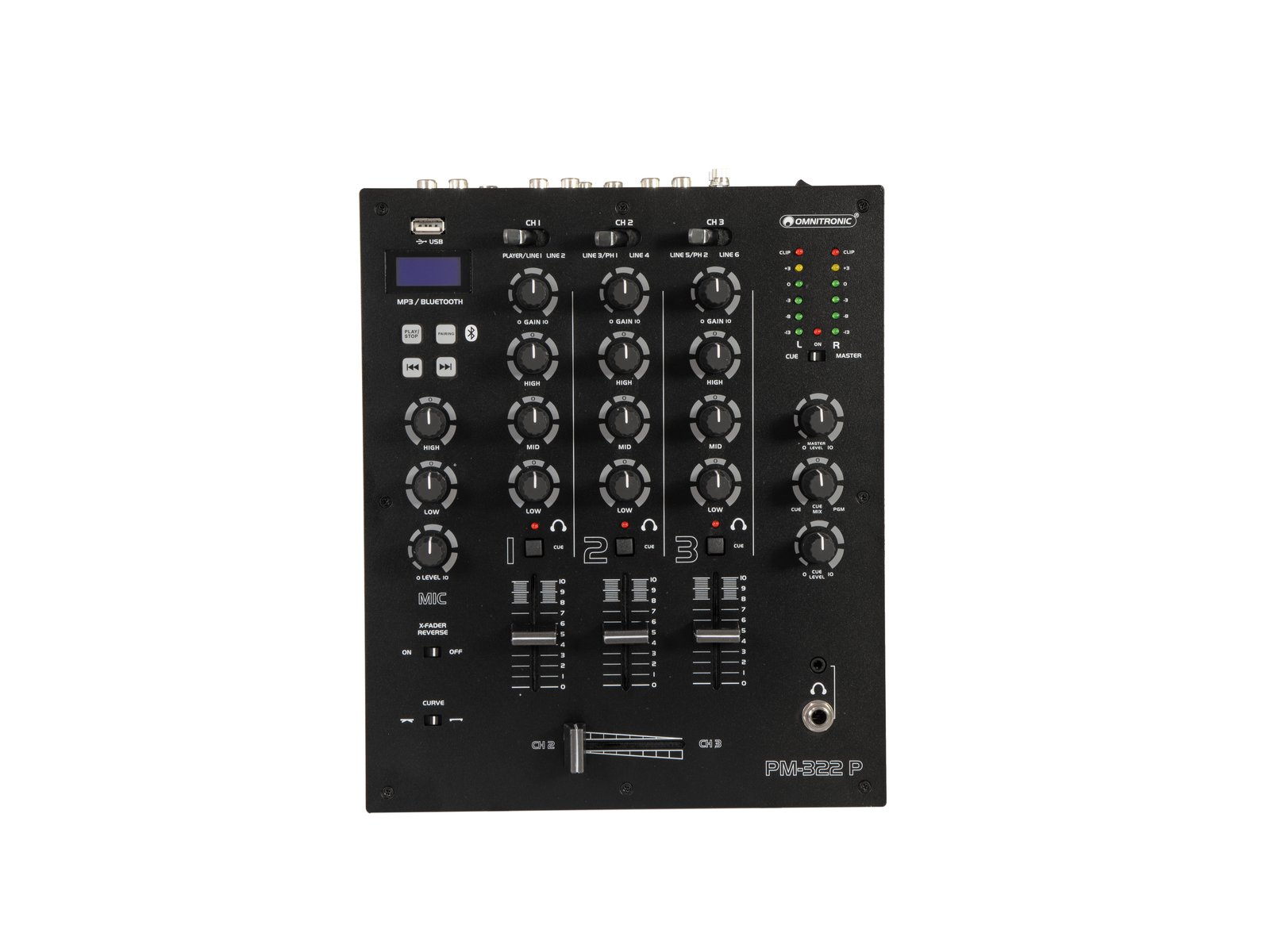

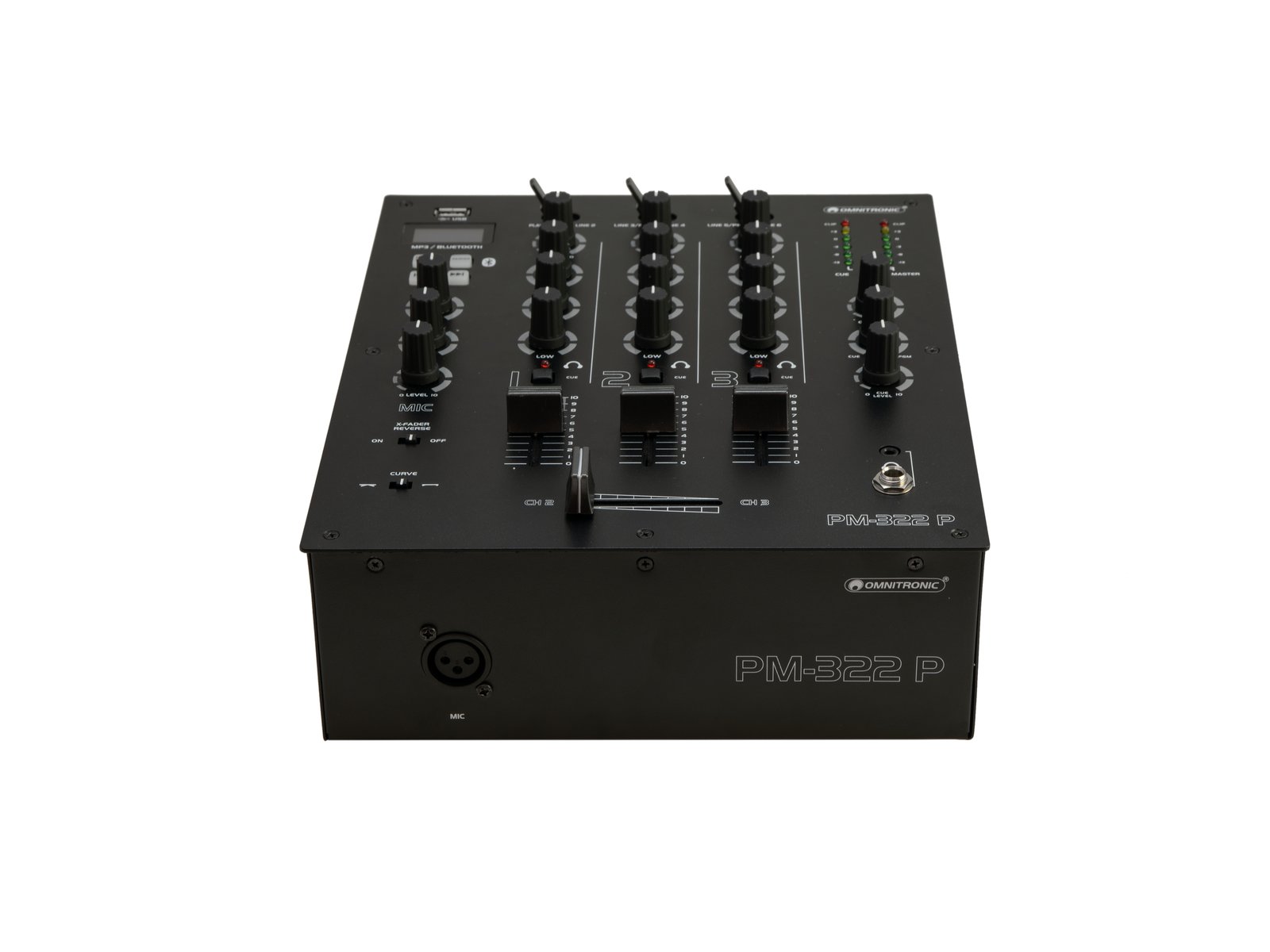

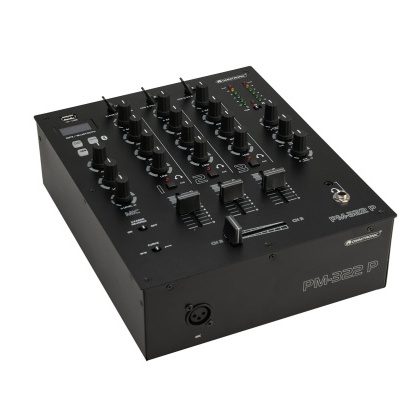

OMNITRONIC PM-322P 3-Channel DJ Mixer with Bluetooth & USB Player
SKU: 10006874
3-channel DJ mixer with Bluetooth and MP3 player
- 3 input channels with gain control, 3-band equalizer, cue button and channel fader
- DJ microphone channel with level control and 2-band equalizer
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with adjustable curve and reverse function
- Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
- 6-digit stereo LED level meter
- 6 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Record output, independent of the master
- Control via Bluetooth
- LCD display
- Operating range up to 10m with line-of-sight
- Desktop console housing
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x rCA cable, 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| Protection class: | Protection class II |
| Power connection: | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Control: | Bluetooth |
| Bluetooth: | Version: 4,2 + EDR Profiles: A2DP, AVRCP |
| Bluetooth device name: | PM-322P |
| Audio player: | USB + Bluetooth, |
| Display type: | LCD display |
| Control elements: | Audio player, Crossfader, Cue-mix-function, source selector, Crossfade curve switch; Crossfade reverse switch |
| Status LED: | Switchable master level meter, clip, CUE, power |

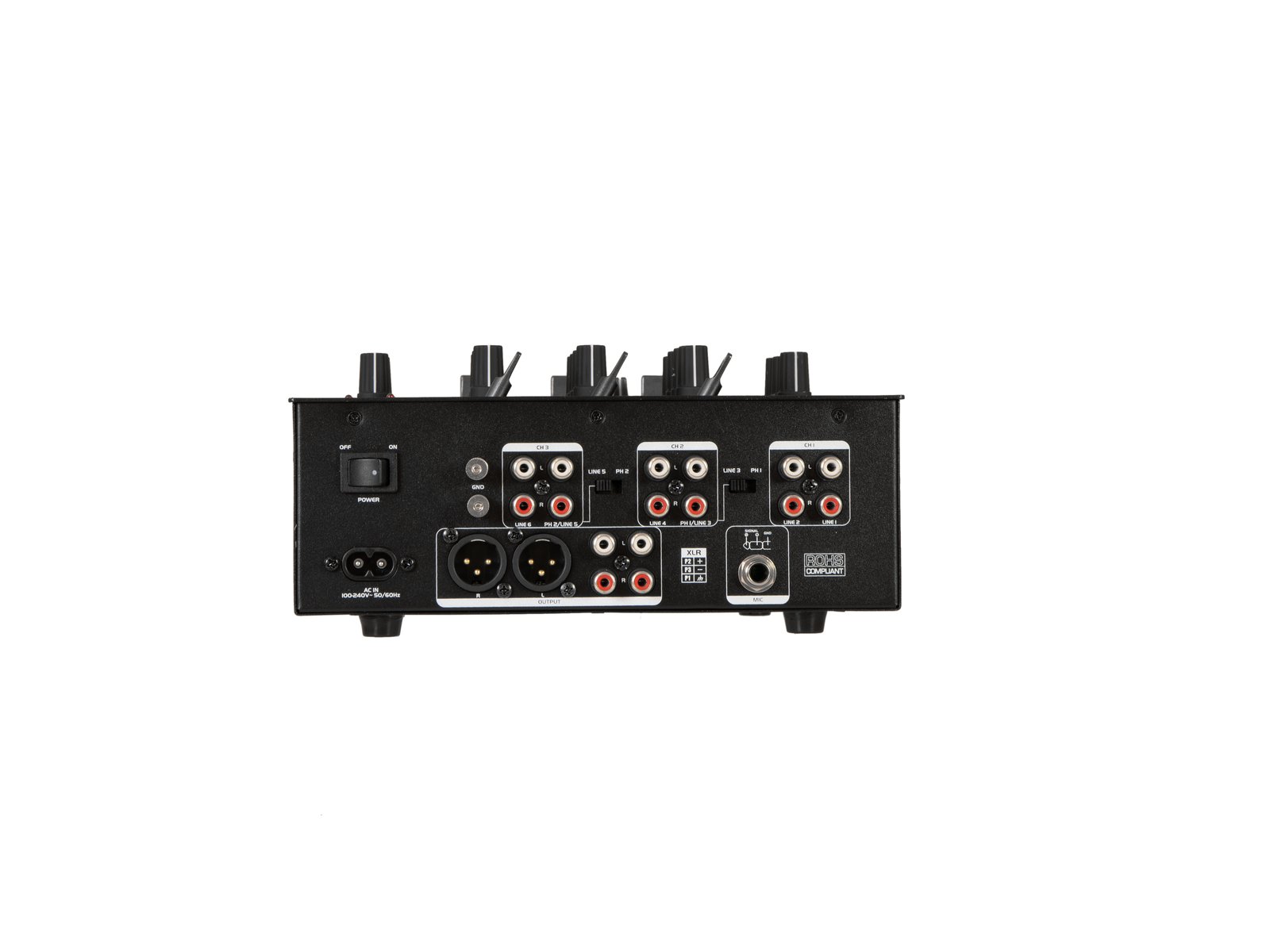

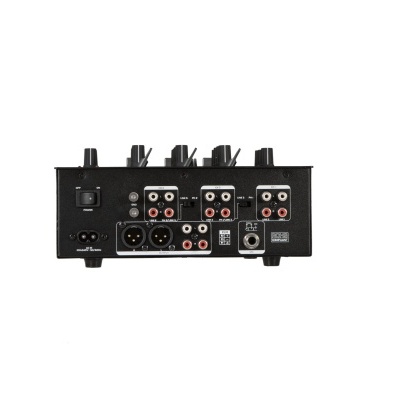

| Connections: | Input: line via 4 x stereo RCA Input: line/phono via 2 x stereo RCA Input: Audio player via 1 x USB A (F) mounting version Input: Microphone via 1 x 6.3 mm jack socket (mono) mounting version Output: master via 2 x 3-pin XLR Output: master via 2 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: | Input chanel: 1 x stereo with Line-line-player switch via RCA or player, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Microphon chanal: 1 x mono via Jack, channel control via Rotary dial, 2-band tone control EQ, Cue-mix-function, Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial Headphones output: 1 x stereo via Jack, channel control via Rotary dial |
| Music format: | MP3, WAV; WMA |
| Carrier frequency: | 2,4 GHz |
| USB port: | Typ A |
| Range: | Range up to 10m with line-of-sight |
| Housing design: | Desktop console housing |
| Dimensions: | Length: 28,3 cm Width: 23 cm Height: 10,7 cm |
| Weight: | 2,58 kg |
| Audio player | |
| Available storage media: | USB devices max. 32GB (FAT 32) |
