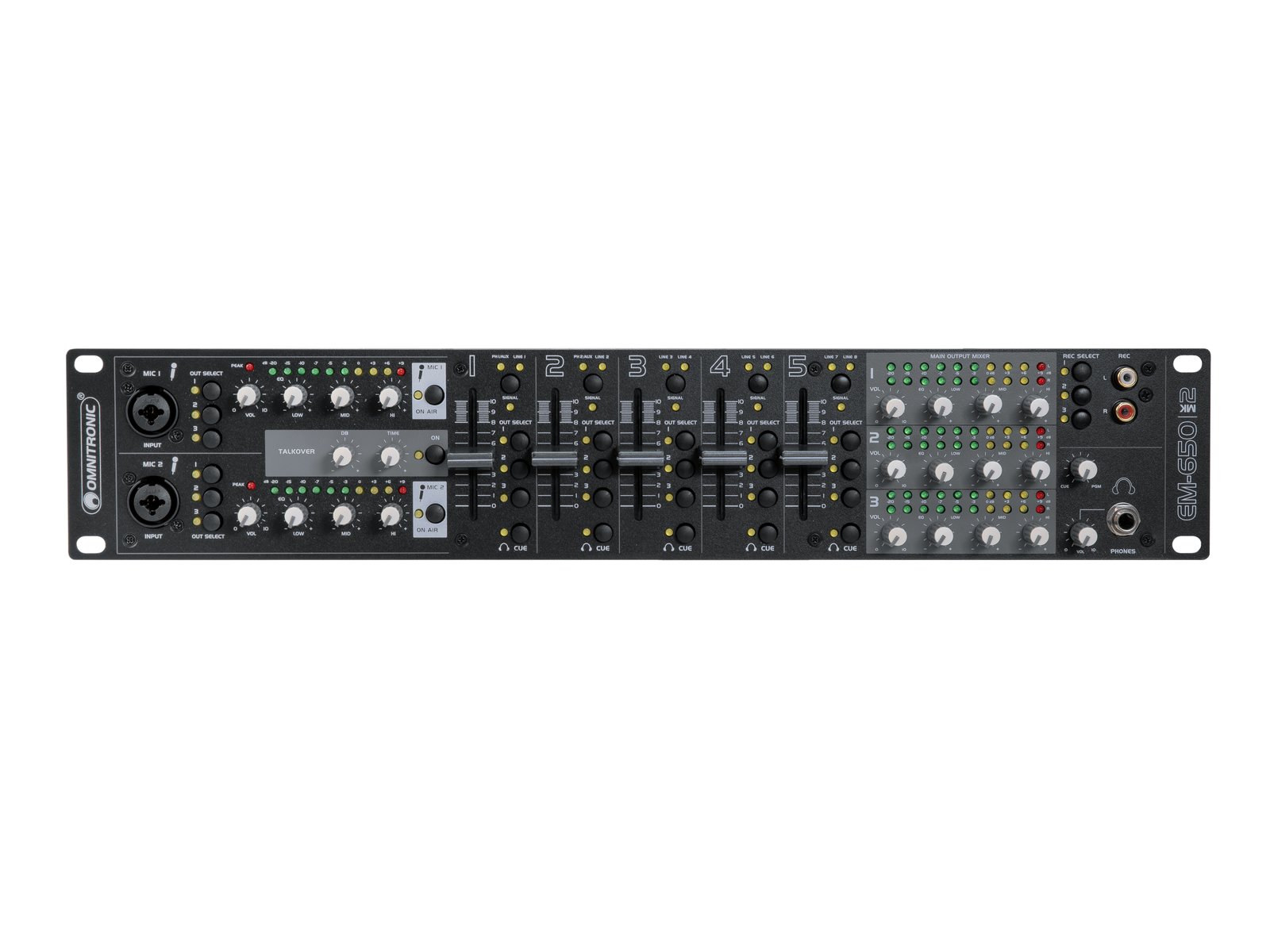

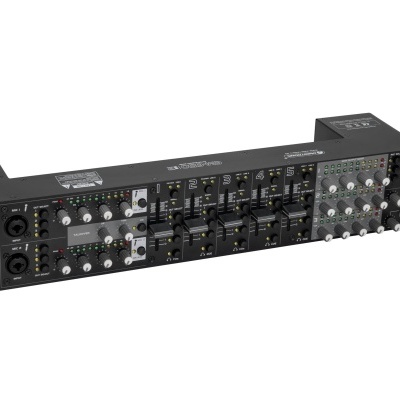

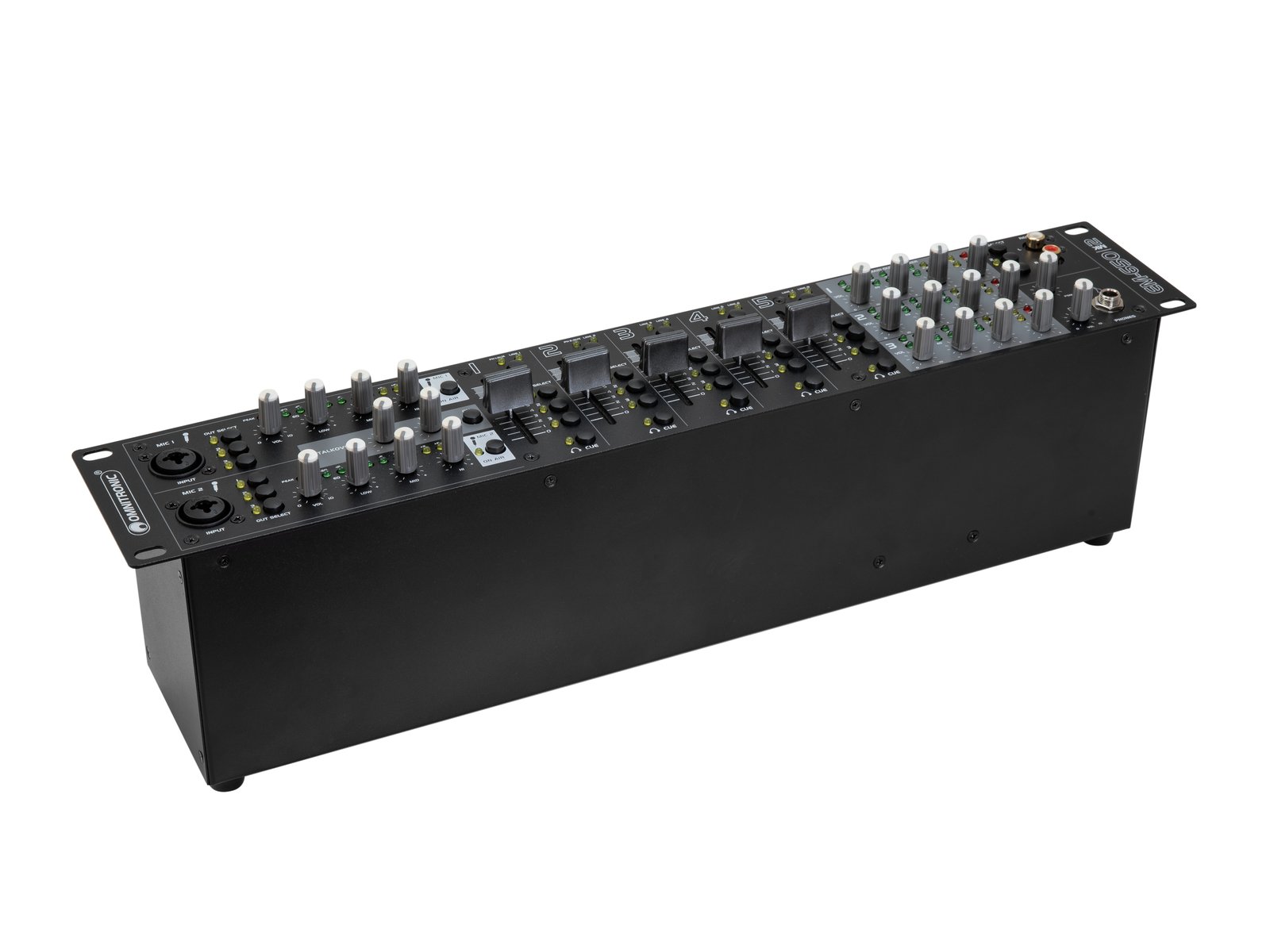

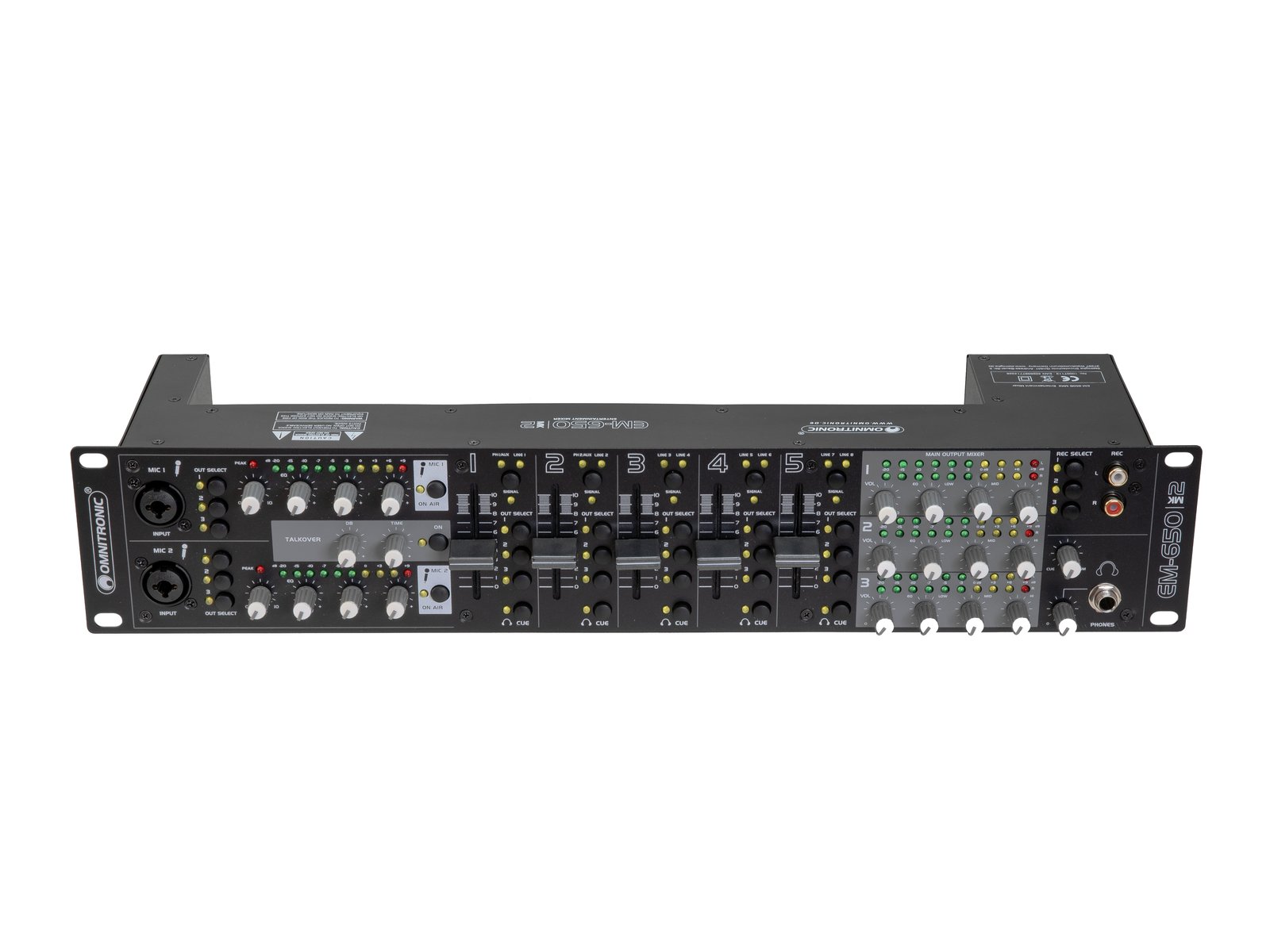

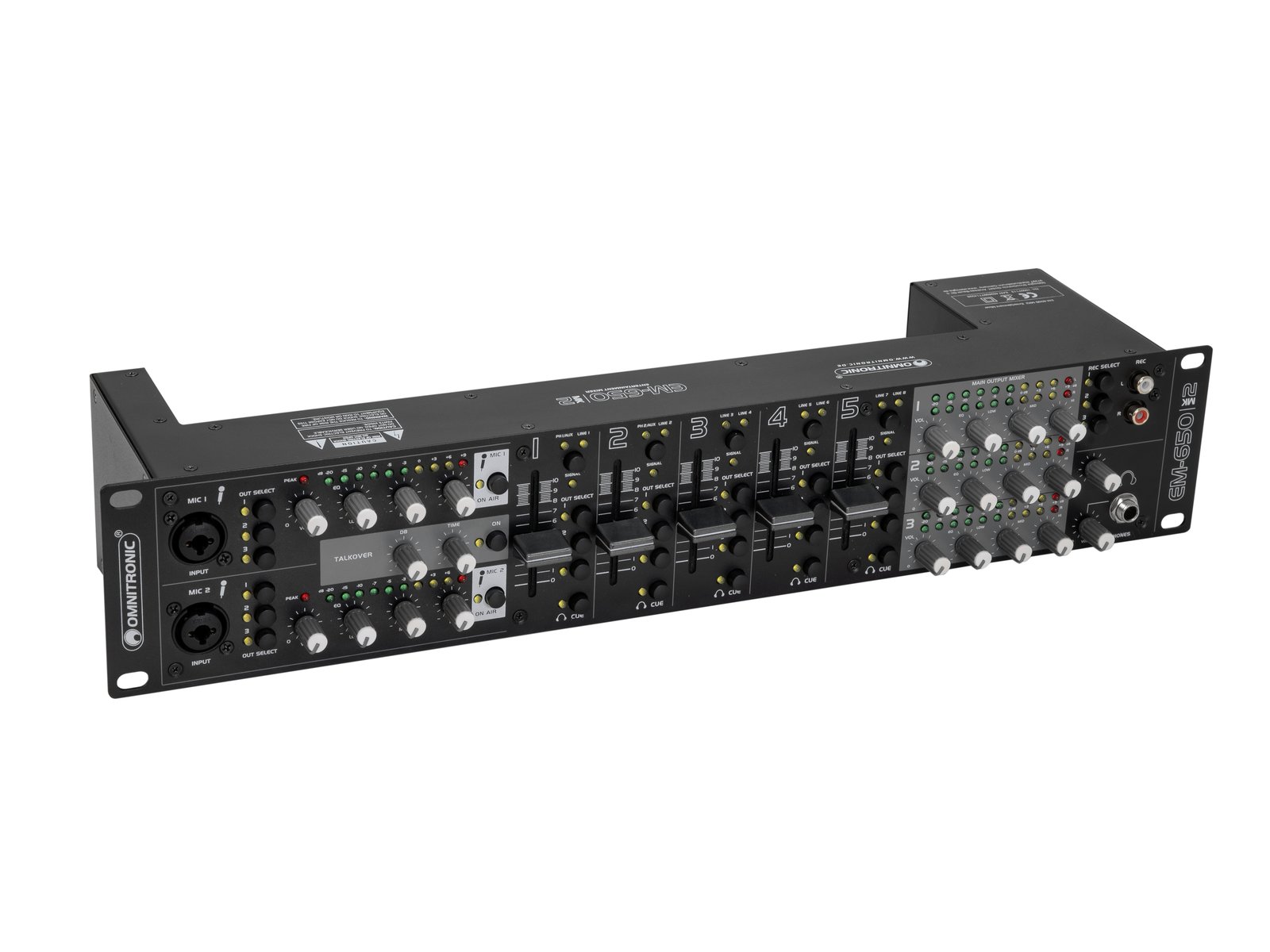

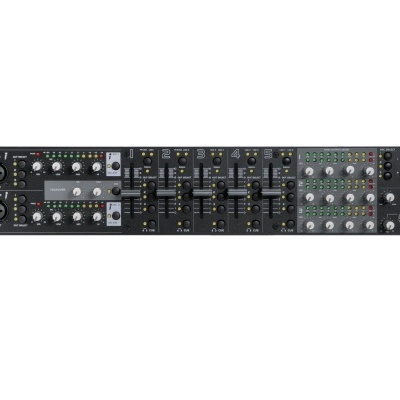

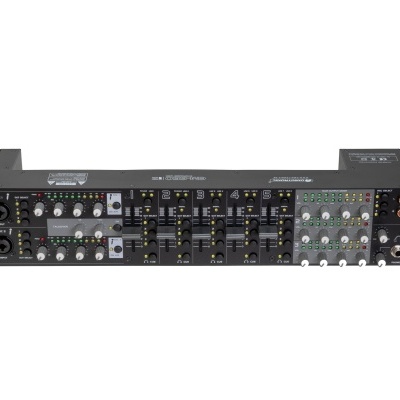

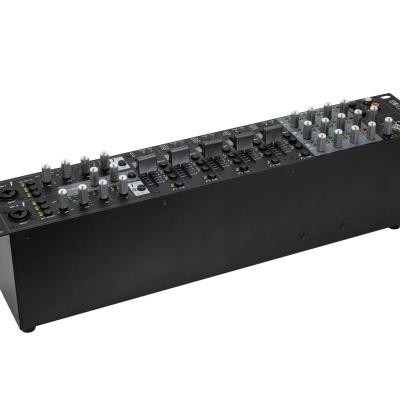

OMNITRONIC EM-650B MK2 Entertainment Mixer
SKU: 10007113
Multifunctional 5+2-channel mixer with 3 zones, black
- 5 input channels with recessed gain controls on the rear panel, signal LED and smooth channel faders
- 3 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x rCA cable
| Power supply: | 230 V AC, 50 Hz |
| Protection class: | Protection class II |
| Power connection: | Power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >60 dB line >70 dB phono |
| THD: | Line/phono <0,02 % at 1 kHz |
| Gain: | Microphone 52 dB Line 17 dB Phono 53 dB |
| Housing color: | Black |
| Zone output: | 3 adjustable zones |
| Control elements: | Power switch, regular talkover, source selector |
| Status LED: | Signal, chanal level meter, master level meter, peak, chanal source; CUE, Talkover, ON AIR, Routing |

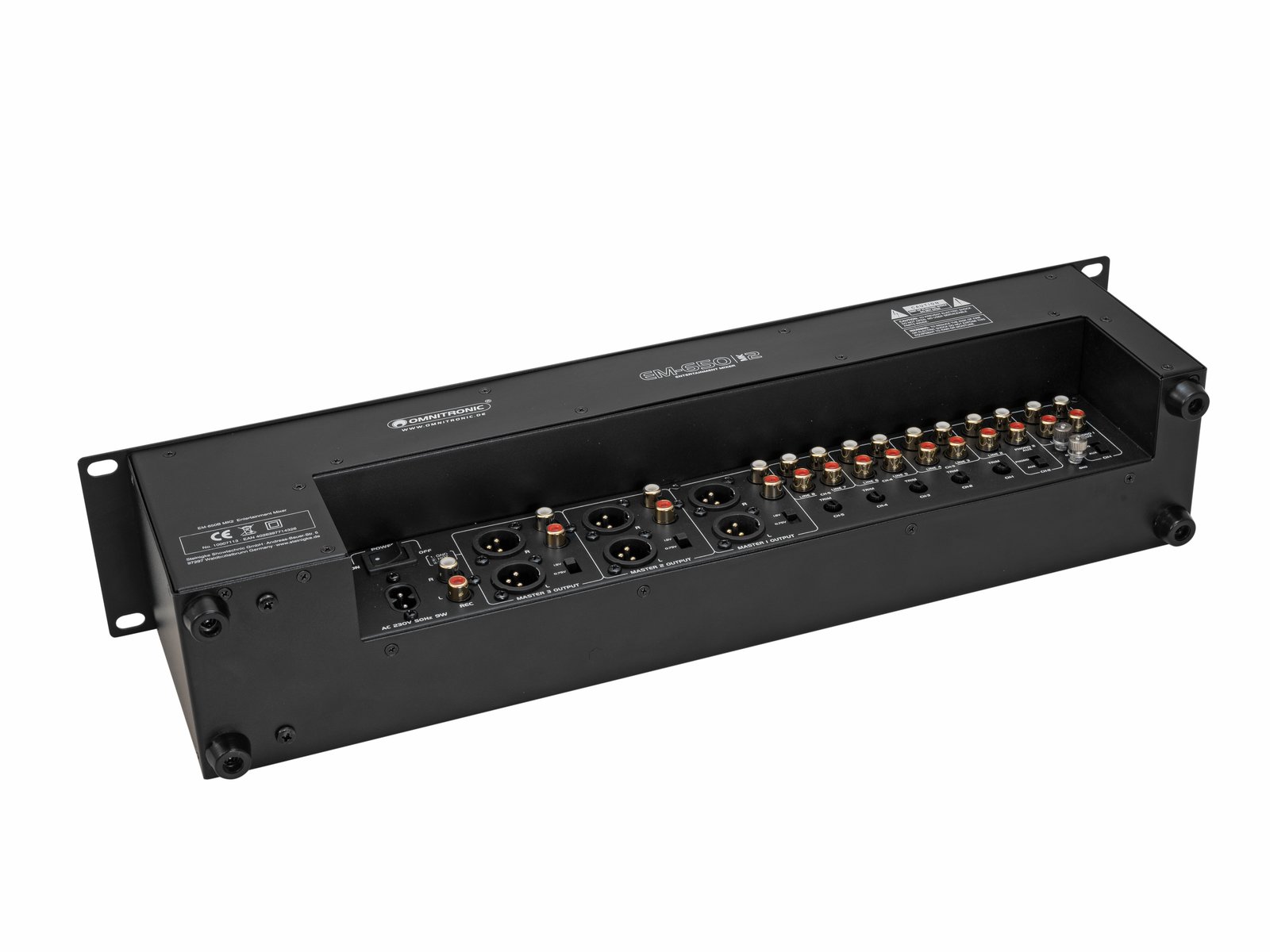

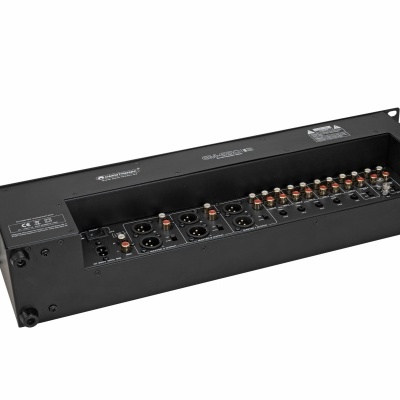

| Connections: | Input: Microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line/phono via 2 x stereo RCA Input: line via 8 x stereo RCA Output: master via 3 x 3-pin XLR Output: master via 3 x stereo RCA Output: rec. via 2 x stereo RCA Output: headphones via 1 x 6.3-mm-jack (bal.) |
| Channels: | Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via fader, 3-band tone control EQ, Routing master bus switch, gain control, source selector, CUE switch Input chanel: 3 x stereo with Line-line switch via RCA, channel control via fader, Routing master bus switch, gain control, source selector, CUE switch Microphon chanal: 2 x mono via Combination socket (XLR/jack), channel control via Rotary dial, ON AIR switch, Routing master bus switch, Talkover switch, Master output: 3 x stereo via XLR or RCA, channel control via Rotary dial, 3-band tone control EQ Rec. output: 1 x stereo via RCA, Routing master bus switch, Headphones output: 1 x stereo via Jack, channel control via Rotary dial, Cue-mix-function, |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 14,8 cm Height: 8,9 cm |
| Weight: | 3,10 kg |
| Marca | Omnitronic |
|---|---|
