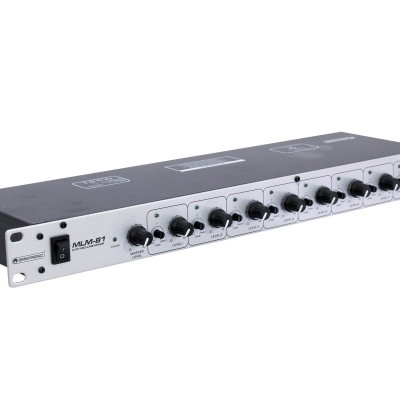

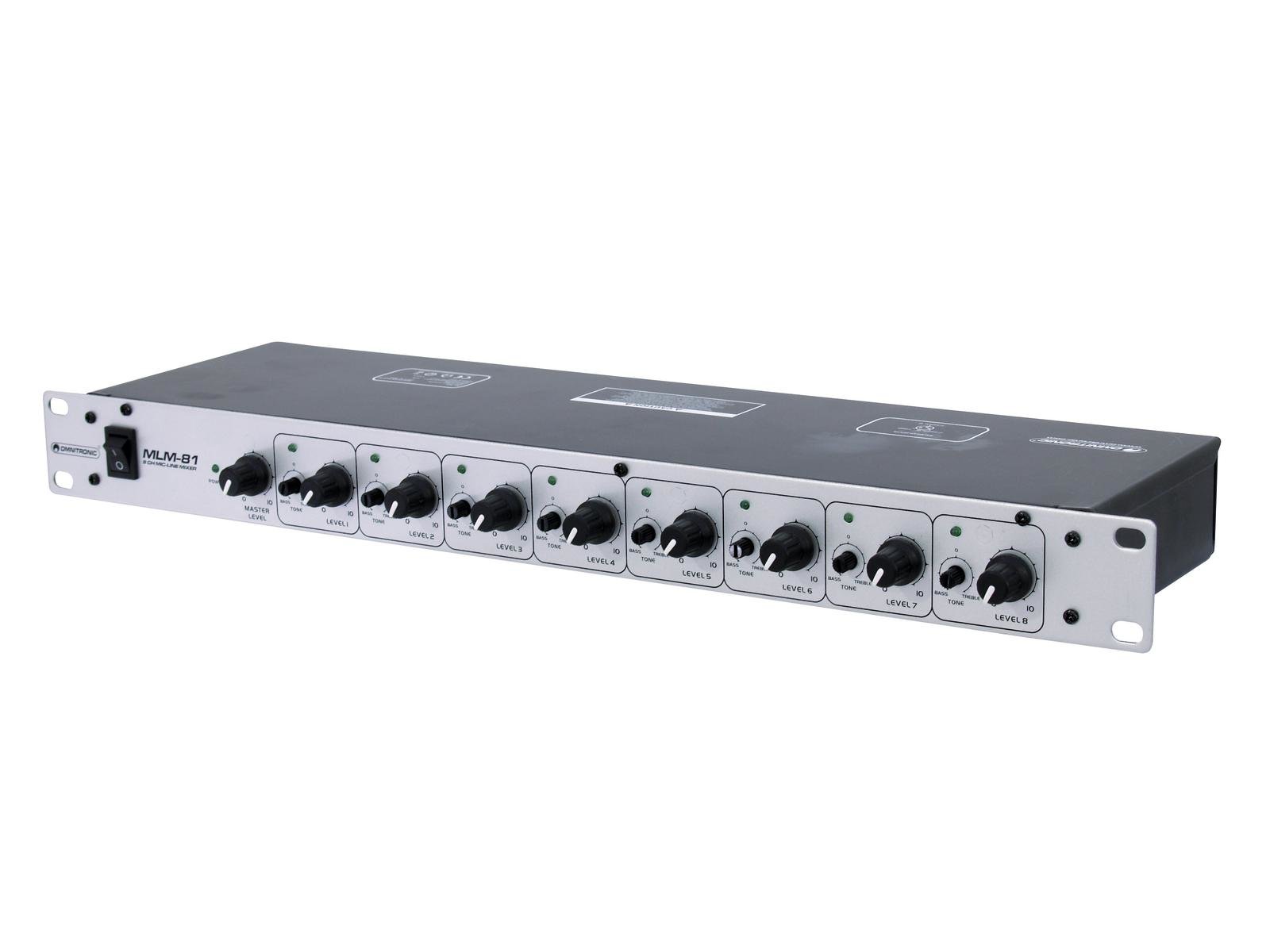

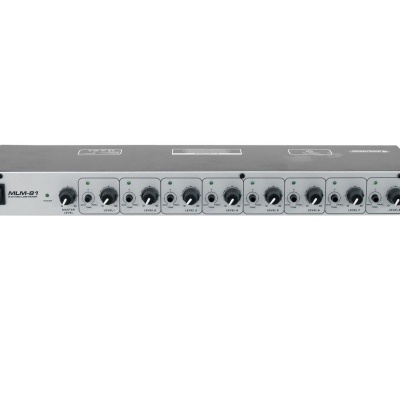

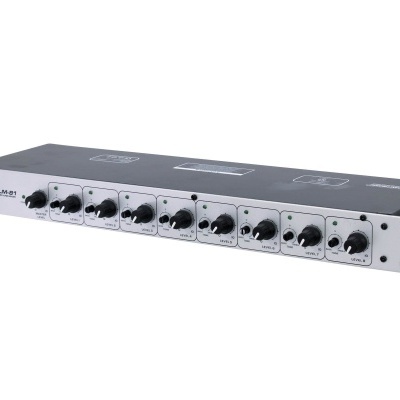

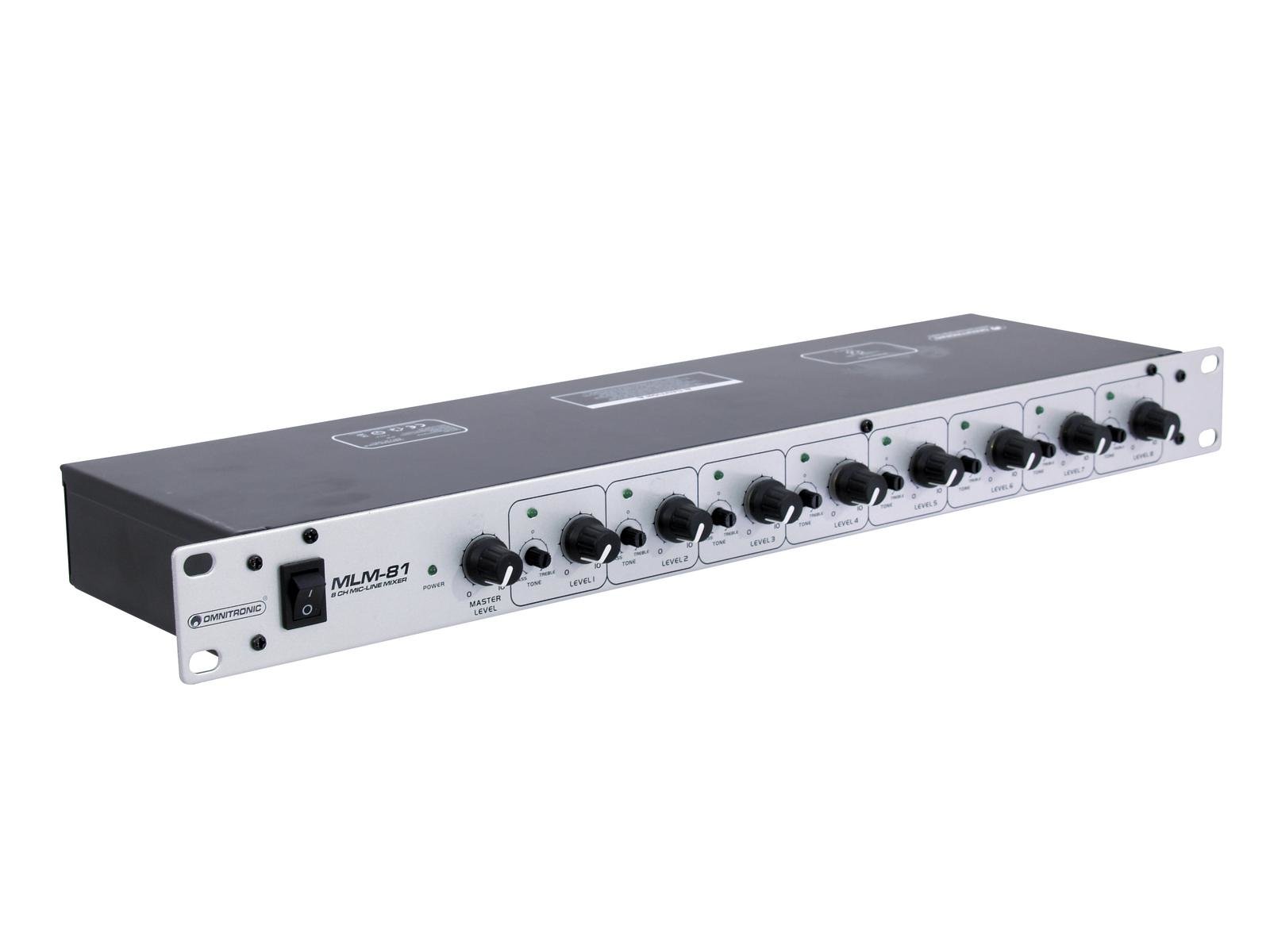

OMNITRONIC MLM-81 Microphone/Line Mixer
SKU: 10304150
OMNITRONIC MLM-81 mixes up to 8 mono input signals to one output. Via individual level and tone controls, the different sources can be controlled and perfectly dovetailed. The MLM-81 is not only suited for panel discussions or symposiums but for press conferences as well and - due to its compact design - occupies almost no space.
Microphone line mixer, 8 channels
- For mixing up to 8 mono input signals to 1 mono output
- 8 mic/line channels with separate level and tone controls and signal LEDs
- Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input
- Each microphone input with optional 12 V phantom power
- Feed-through output (independent of master control) for connecting a further MLM-81
- Each 6.3 mm line input can be separately converted to a line output via internal jumpers
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 10,00 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| S/N ratio: | >106 dB |
| THD: | <0,003 % at 1 kHz |
| Phantom power: | 12 V DC |
| Impedance: | Input: Microphone 600 Ohm Input: line 18 kOhm Input: AUX 10 kOhm Output: 51 Ohm |
| Gain: | Input: Microphone 69 dB Input: line 26 dB |
| Housing color: | Silver |
| Status LED: | Power, signal |

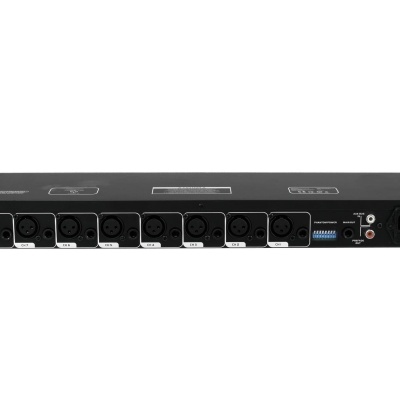

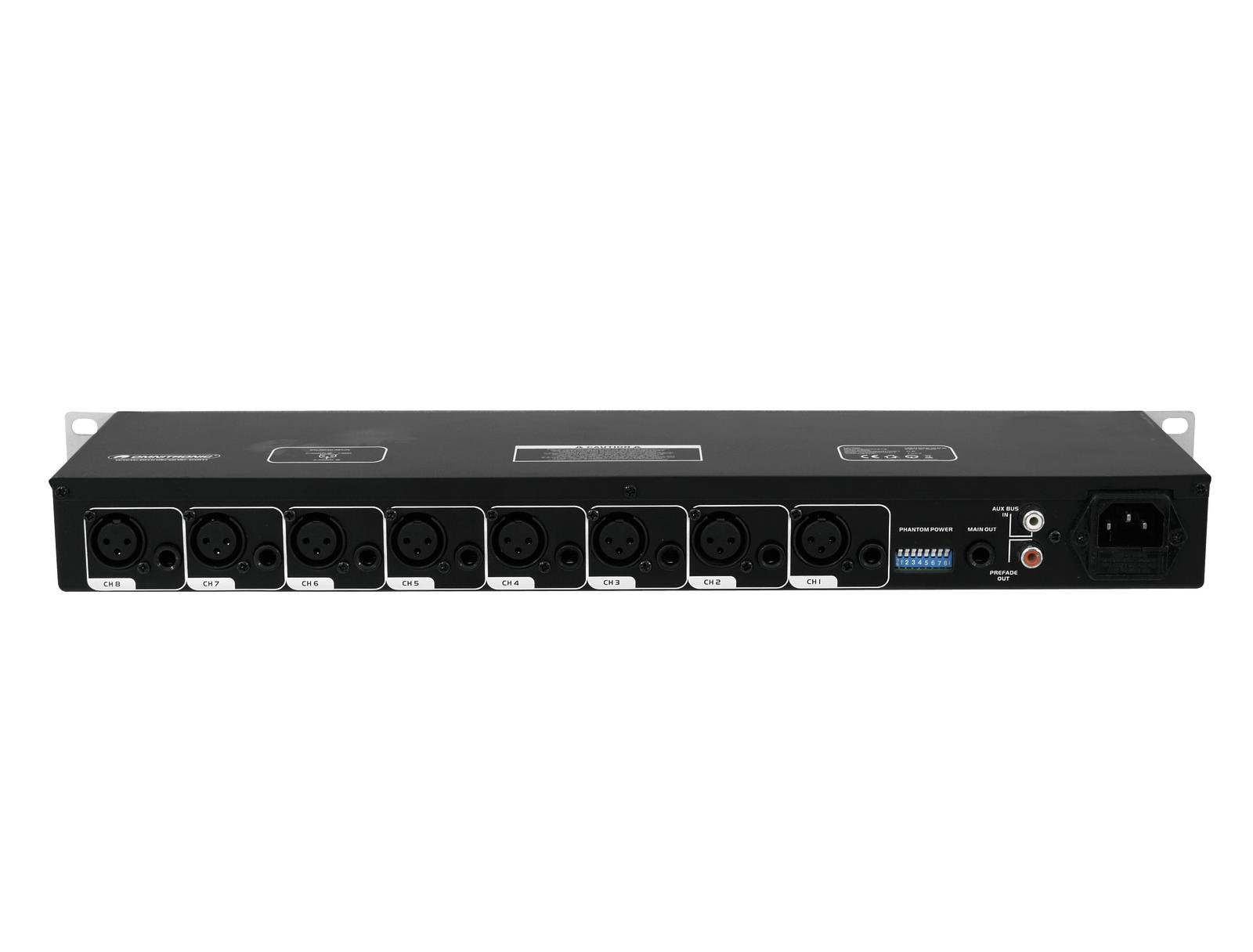

| Connections: | Input: Microphone via 8 x 3-pin XLR Input: line via 8 x 6.3 mm jack socket (mono) mounting version Input: AUX via 1 x RCA (F) mounting version Output: line via 1 x 6.3 mm jack socket (mono) mounting version Output: AUX via 1 x RCA (F) mounting version |
| Channels: | Input chanel: 8 x mono via XLR or jack, channel control via Rotary dial, tone control EQ Master output: 1 x mono via Jack, channel control via Rotary dial |
| Max. level: | Input: Microphone -23 dBV Input: line +22 dBV Output: +17 dBV |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 15,2 cm Height: 4,45 cm |
| Weight: | 2,30 kg |
