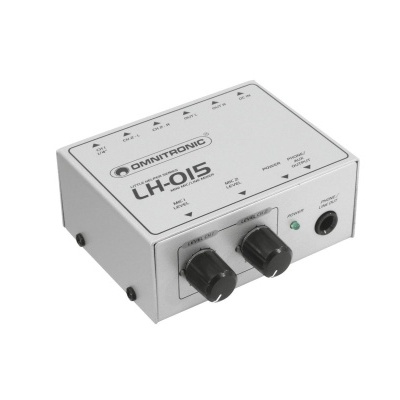

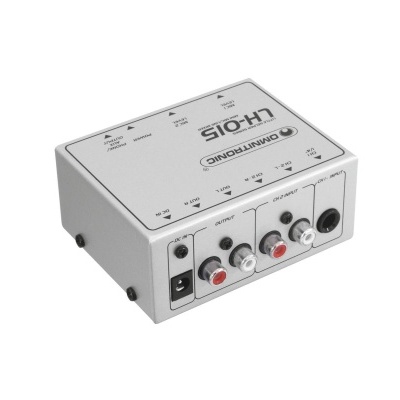

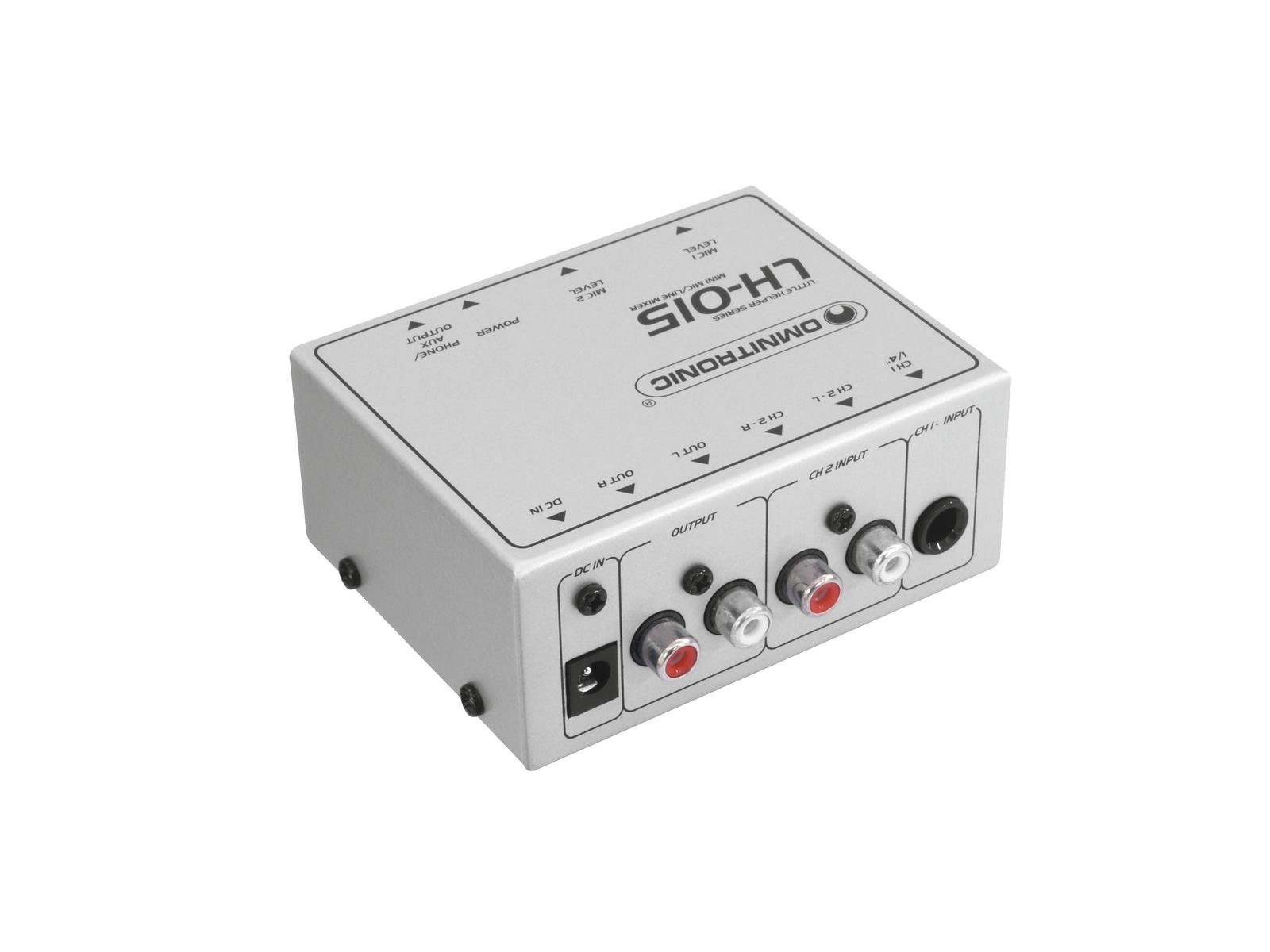

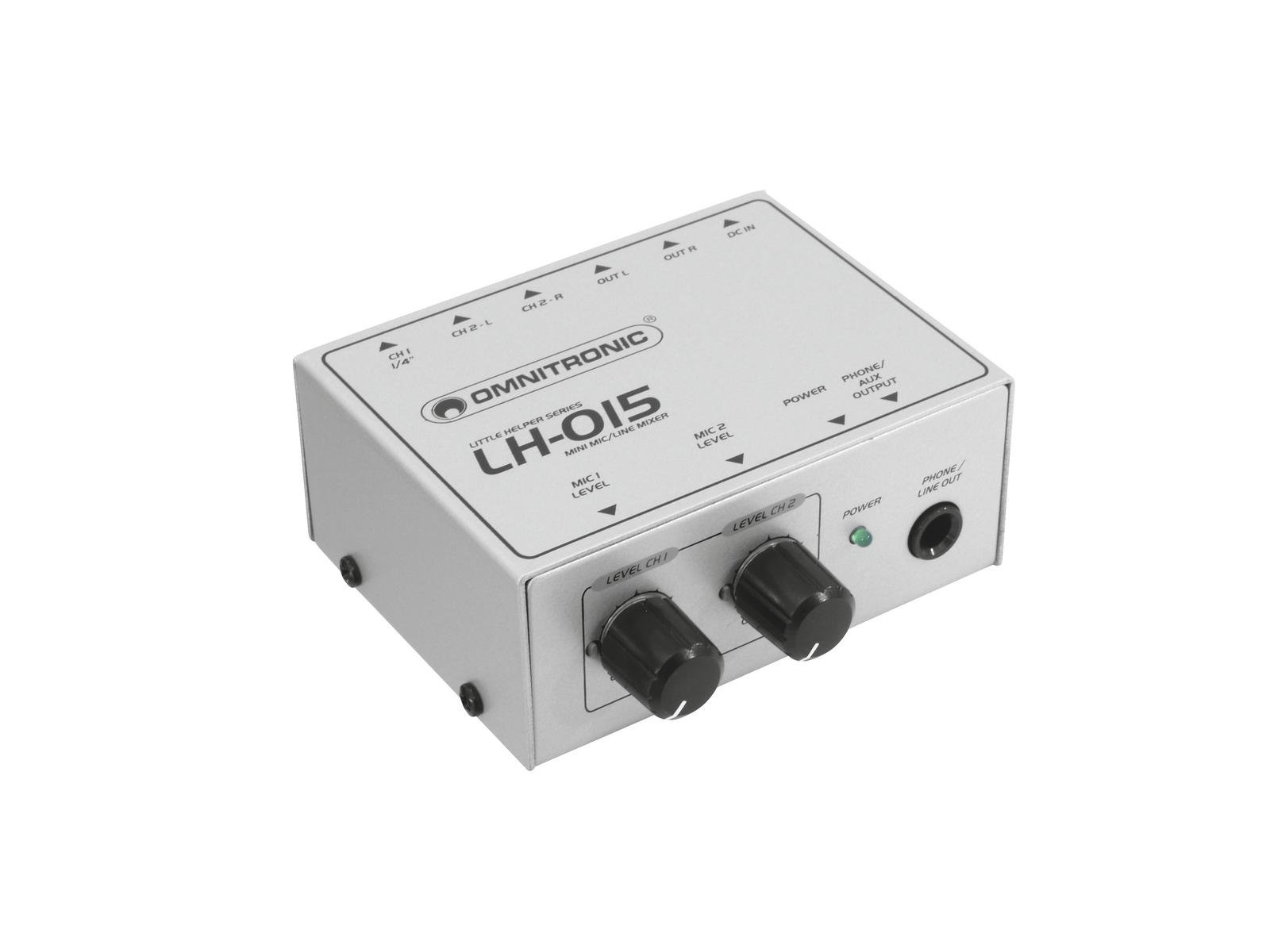

OMNITRONIC LH-015 2-Channel Mic/Line Mixer
OMNITRONIC LH-015 2-Channel Mic/Line Mixer
OMNITRONIC LH-015 2-Channel Mic/Line Mixer
OMNITRONIC LH-015 2-Channel Mic/Line Mixer

OMNITRONIC LH-015 2-Channel Mic/Line Mixer

SKU: 10355015

68,19 €
IVA included.
Contact

Add to wishlist



2-channel miniature mic/line mixer

  • Distributes the signal of 2 audio sources (microphones, instruments or line level units) to 1 mono output
  • 1 mono mic/line input (6.3 mm jack) with separate level control
  • 1 stereo line input (RCA) input with separate level control
  • 2 mono master outputs (RCA and 6.3 mm jack) e.g. for PA amplifier, mixer and headphones

Package contents

  • 1 x user manual, 1 x external mains adapter, 4 x foot, 1 x mixer


Power supply:12 V 150 mA
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:20 - 20000 Hz
S/N ratio:>100 dB
Impedance:Input: Microphone 10 kOhm
Input: line 20 kOhm
Output: 50 Ohm
Gain:Microphone 32 dB
Line 20 dB
Dimensions:Width: 9,5 cm
Depth: 7,3 cm
Height: 4 cm
Weight:500 g
Brand Omnitronic
