SKU: 10355020

146,83 €
IVA included.
Product is out of stock.

Add to wishlist



3-channel microphone mixer

  • Compact mixer to mix 3 microphones to 1 line output, with individual level control
  • 3 microphone input channels with separate level controls, switchable phantom power and low cut
  • 1 master output with line level, clip LED
  • 1 headphones output (6.3 mm jack)
  • Inputs and output via balanced XLR connectors

Package contents

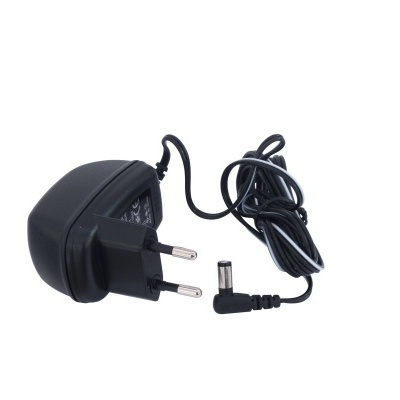

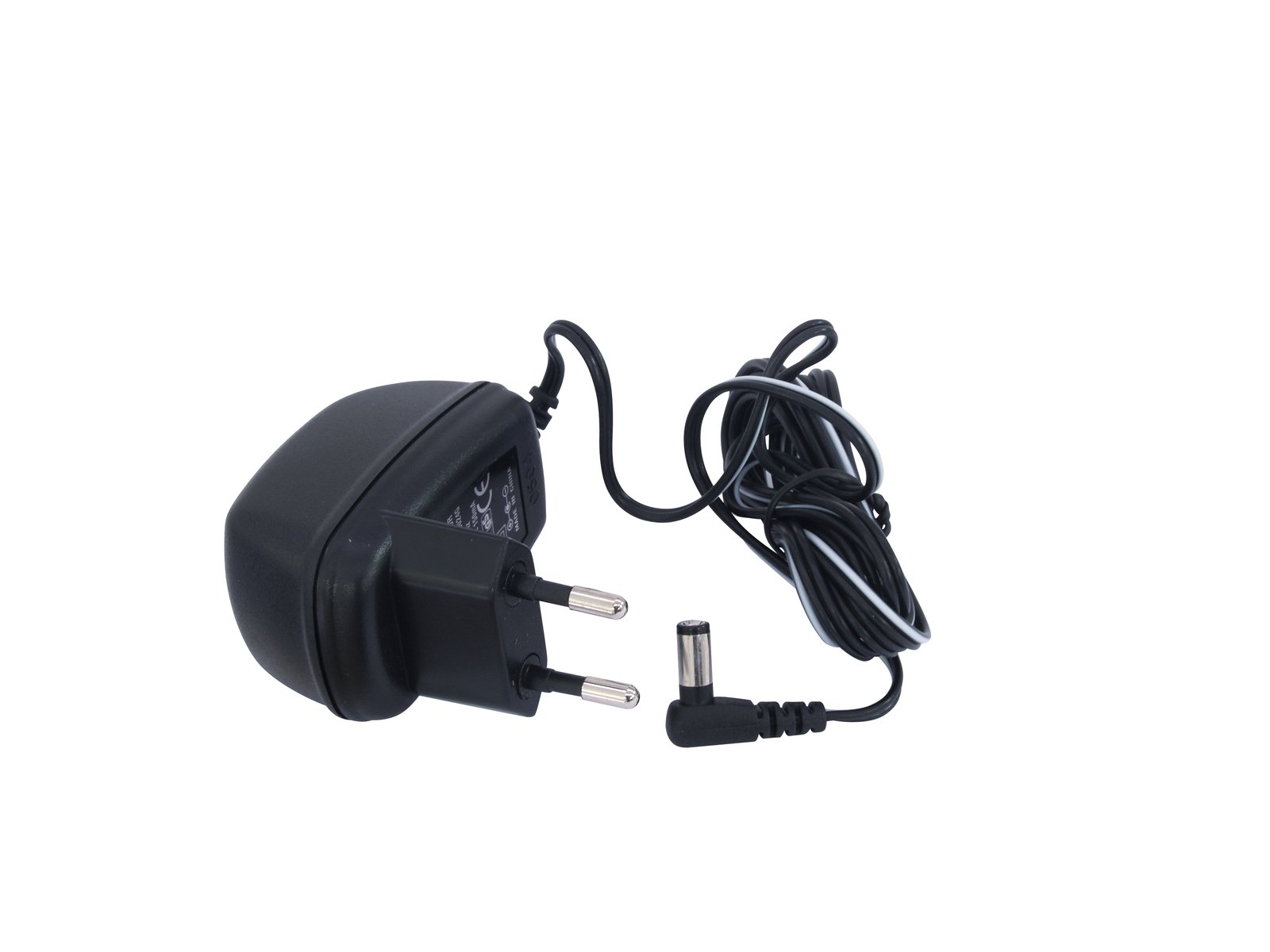

  • 1 x user manual, 1 x external mains adapter, 4 x foot, 1 x mixer


Power supply:12 V 150 mA
Pin configuration:Inside - / outside +
Protection class:Protection class III
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:25 - 16000 Hz
S/N ratio:>75 dB
THD:<0,02 % at 1 kHz
Phantom power:18 V DC
Impedance:Input: 600 Ohm
600 Ohm
Gain:60 dB
Status LED:Power, clip
Connections:Input: Microphone via 3 x 3-pin XLR
Output: Microphone via 1 x 3-pin XLR
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Input channels:3 x mono via XLR, channel control via Rotary dial
Switch:Low cut switch,
Max. level:Input: -14 dB
Output: +14 dB
Dimensions:Width: 14,3 cm
Depth: 9,3 cm
Height: 4,5 cm
Weight:760 g
Brand Omnitronic
