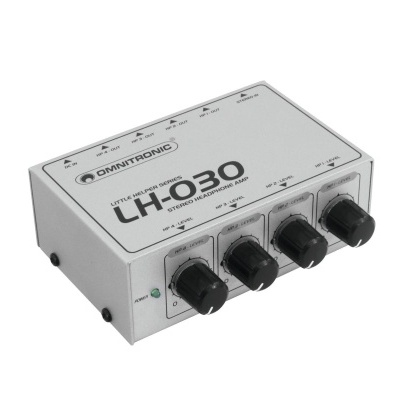

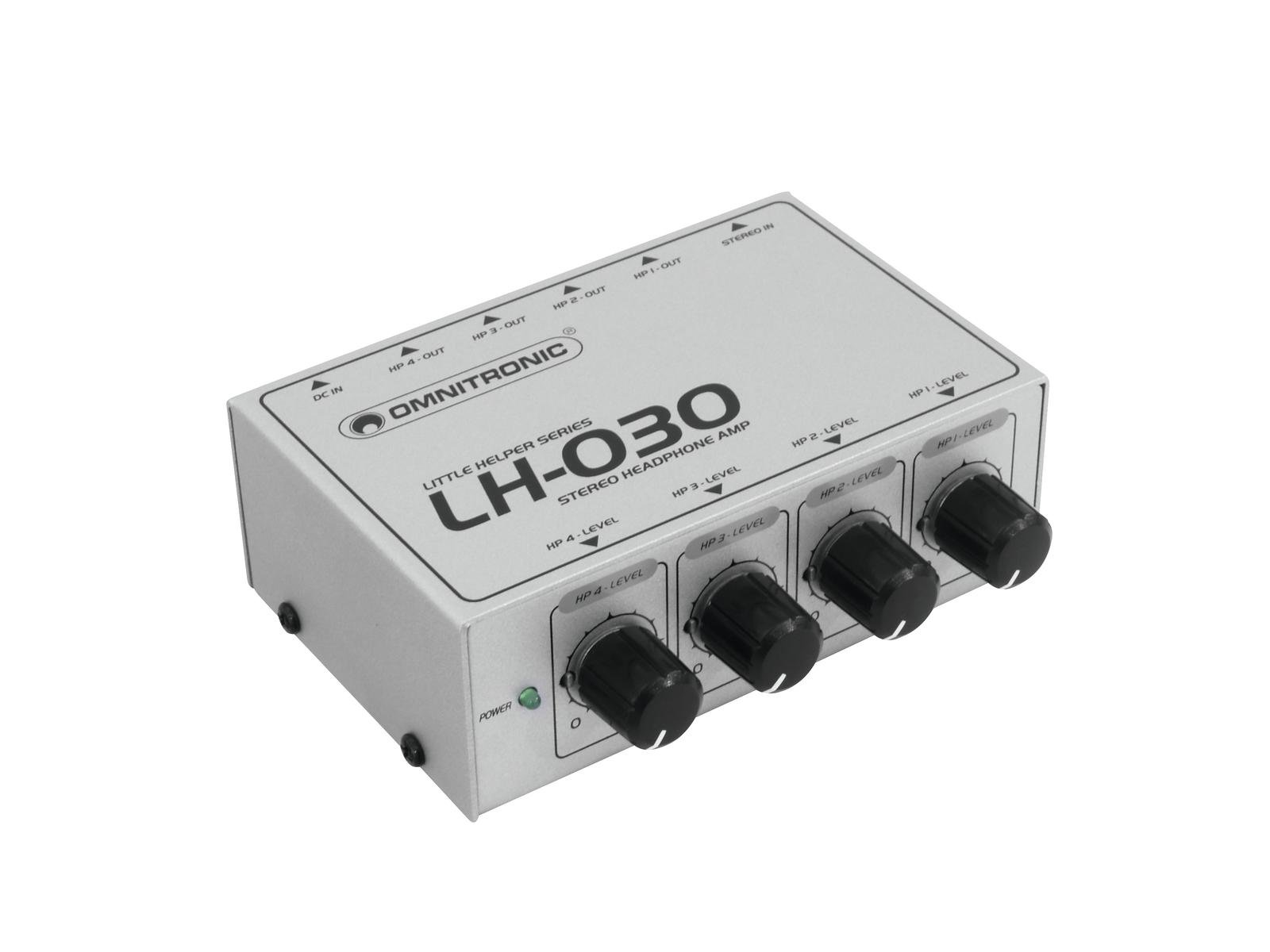

OMNITRONIC LH-030 Headphone Amplifier
OMNITRONIC LH-030 Headphone Amplifier
OMNITRONIC LH-030 Headphone Amplifier
OMNITRONIC LH-030 Headphone Amplifier

OMNITRONIC LH-030 Headphone Amplifier

SKU: 10355030



4-channel headphone amplifier, 6.3 mm jack

  • Distributes the signal of 1 audio source to 4 sets of headphones
  • 4 channels with separate level controls and headphone outputs

Package contents

  • 1 x device, 1 x user manual, 1 x external mains adapter, 4 x foot


Power supply:230 V AC, 50 Hz
12 V 150 mA
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:20 - 20000 Hz
S/N ratio:>90 dB
THD:<0,008 % at 1 kHz
Impedance:Input: 100 kOhm , unbal.
Output: 51 Ohm
Gain:20 dB
Connections:Input: line via 1 x 6.3 mm jack socket (stereo) mounting version

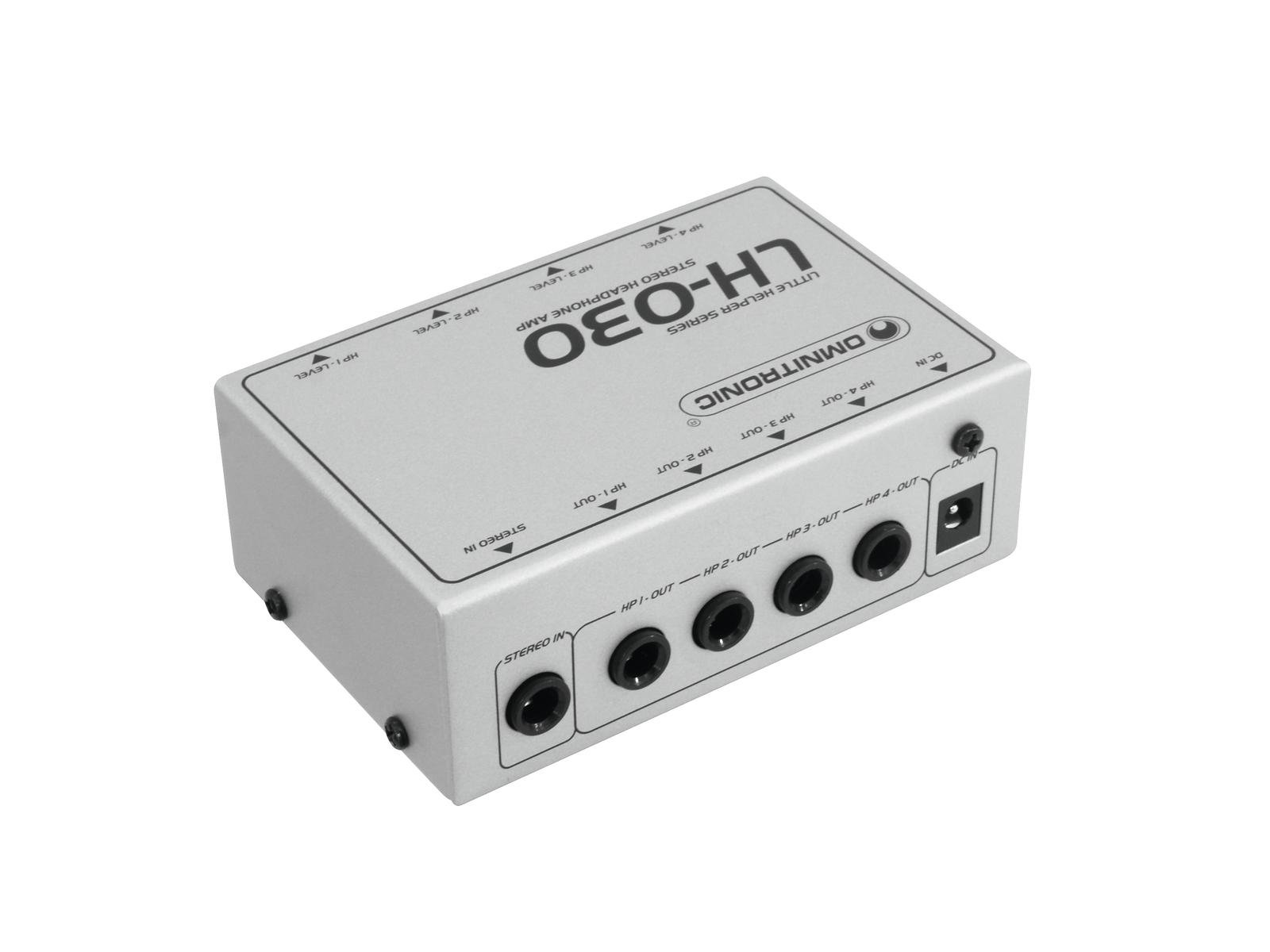

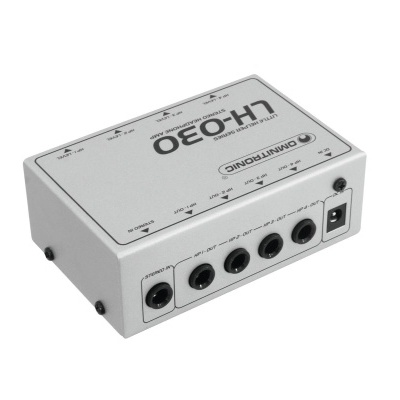

Output: headphones via 4 x 6.3 mm jack socket (stereo) mounting version
Max. level:Input: +14 dBV
Dimensions:Width: 11,3 cm
Depth: 7,3 cm
Height: 4 cm
Weight:580 g
