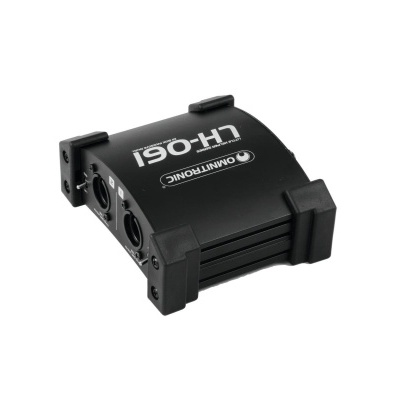

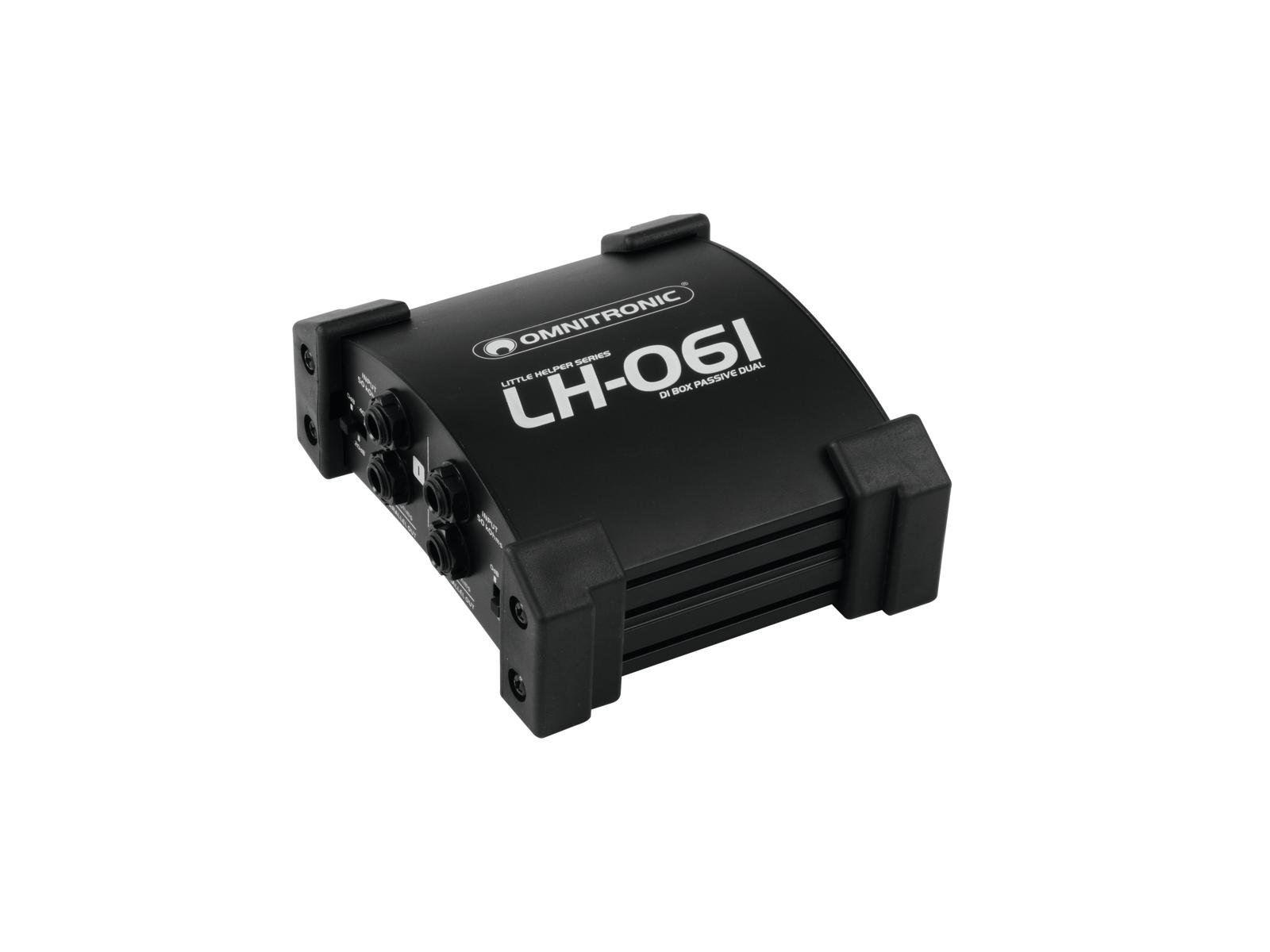

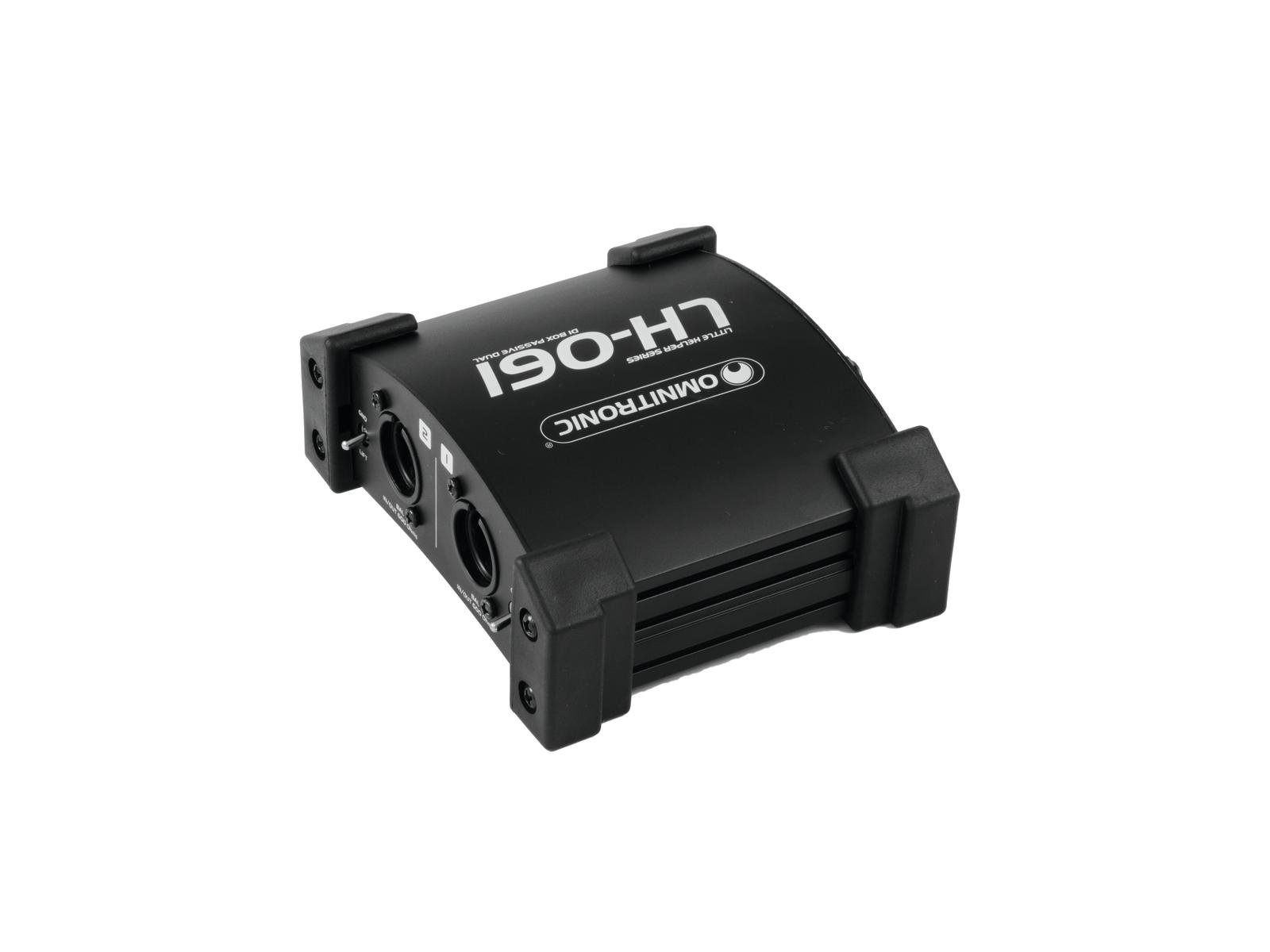

OMNITRONIC LH-061 PRO Passive Dual DI Box
OMNITRONIC LH-061 PRO Passive Dual DI Box
OMNITRONIC LH-061 PRO Passive Dual DI Box
OMNITRONIC LH-061 PRO Passive Dual DI Box
OMNITRONIC LH-061 PRO Passive Dual DI Box

OMNITRONIC LH-061 PRO Passive Dual DI Box

SKU: 10355061

58,27 €
IVA included.
Contact

Add to wishlist



Passive 2-channel DI box/splitter, black

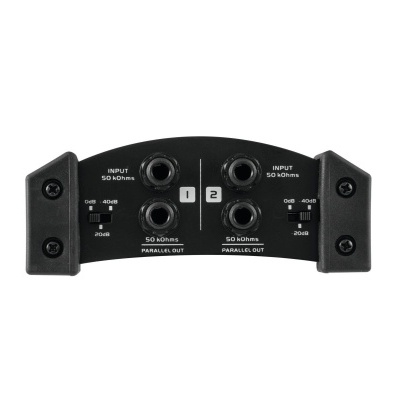

  • 2 high-impedance signal inputs via two 6.3 mm jacks

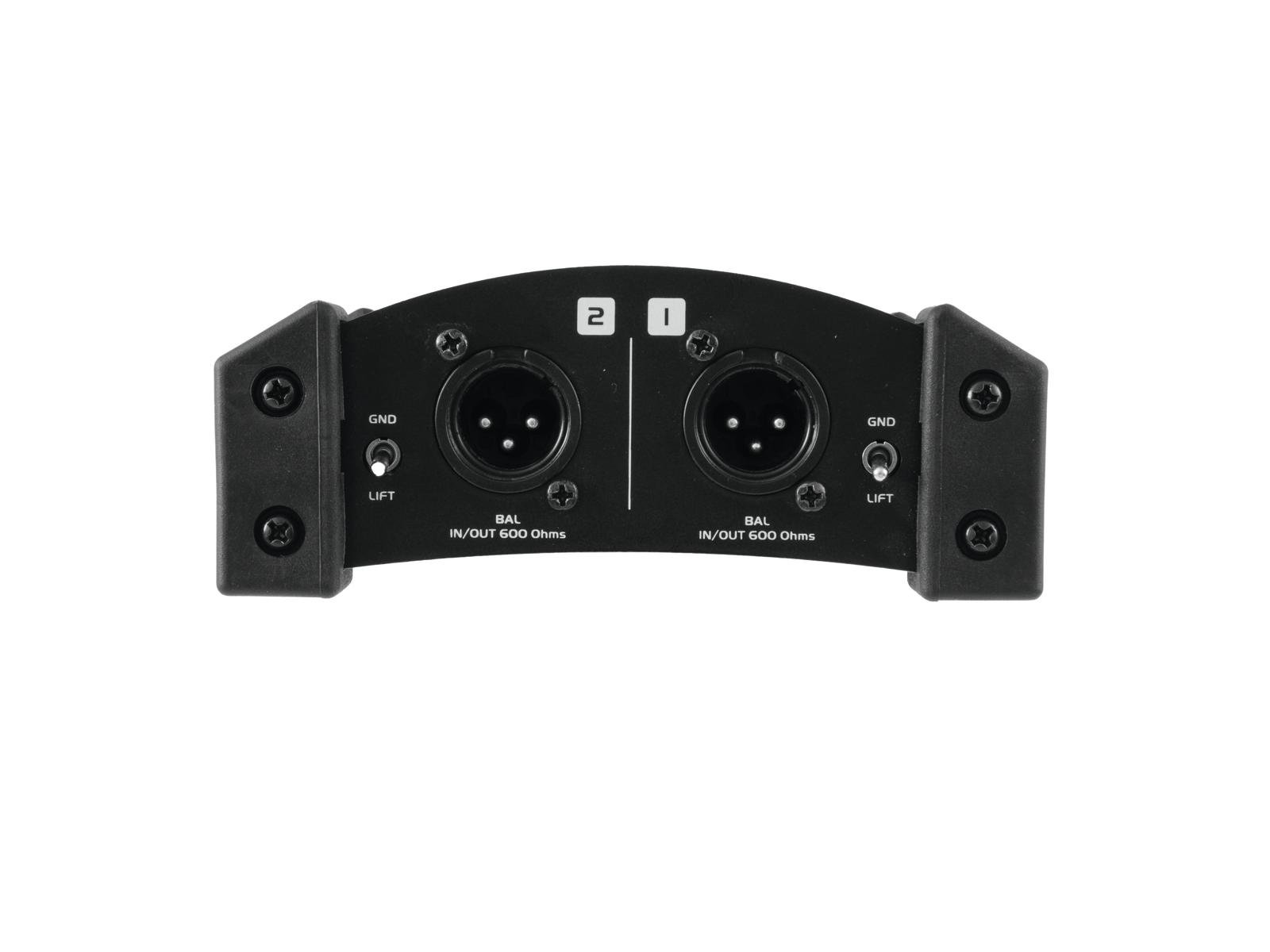

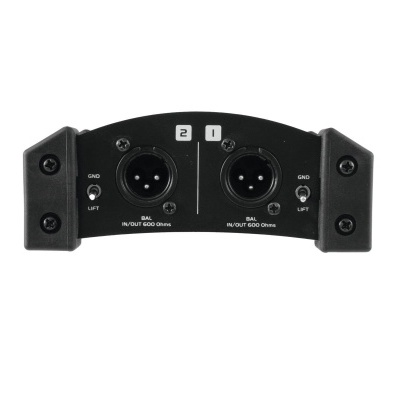

  • 2 low-impedance XLR outputs
  • Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer
  • Switchable input attenuation: 0 dB, -20 dB, -40 dB
  • Cables can be routed under the housing

Package contents

  • 1 x user manual, 1 x device


Frequency range:15 - 30000 Hz
Impedance:Input: 50 kOhm
Output: 600 Ohm
Input attenuation:0 dB, -20 dB, -40 dB; switchable
Control elements:Groundlift selector
Connections:Input: 2 x 6.3 mm jack socket (mono) mounting version
Output: line via 2 x 3-pin XLR
Link: 2 x 6.3 mm jack socket (mono) mounting version
Max. level:Output: +6 dBu
Dimensions:Width: 13,3 cm
Depth: 11,5 cm
Height: 5,4 cm
Weight:610 g
Brand Omnitronic
