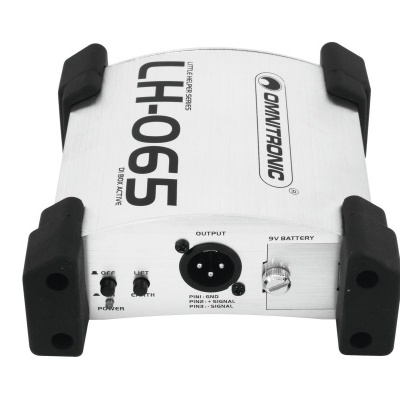

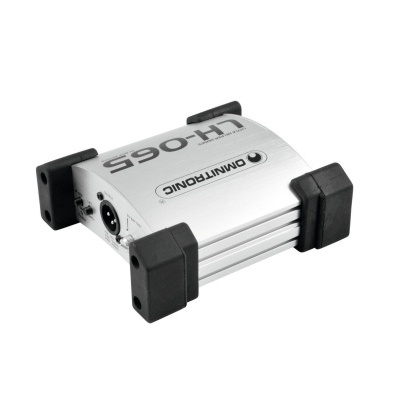

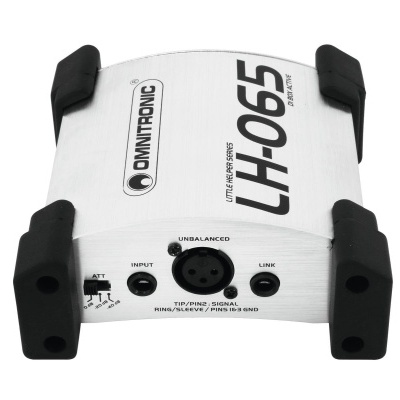

OMNITRONIC LH-065 Active DI Box
OMNITRONIC LH-065 Active DI Box
OMNITRONIC LH-065 Active DI Box
OMNITRONIC LH-065 Active DI Box
OMNITRONIC LH-065 Active DI Box

OMNITRONIC LH-065 Active DI Box

SKU: 10355065

82,36 €
IVA included.
Contact

Add to wishlist



1-channel DI box, active

  • 1 high-impedance signal input via XLR or 6.3 mm jack connectors
  • 1 low-impedance XLR output
  • 6.35 mm jack input, and output
  • Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
  • Switchable input attenuation: 0 dB, -20 dB, -40 dB
  • Cables can be routed under the housing

Package contents

  • 1 x device, 1 x user manual, 1 x battery


Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Battery:1 x 9.0 V E block 6F22 zinc carbon included
Frequency range:10 - 30000 Hz
THD:<0,5 % at 1 kHz
Impedance:Input: 470 kOhm
Output: 600 Ohm
Input attenuation:0 dB, -20 dB, -40 dB; switchable
Control elements:Groundlift selector
Connections:Input: 1 x 3-pin XLR
Input: 1 x 6.3 mm plug (unbal.)
Link: 1 x 6.3 mm plug (unbal.)
Output: line via 1 x 3-pin XLR
Max. level:Output: +6 dBu
Dimensions:Width: 15 cm
Depth: 13 cm
Height: 6 cm
Weight:540 g
Brand Omnitronic
