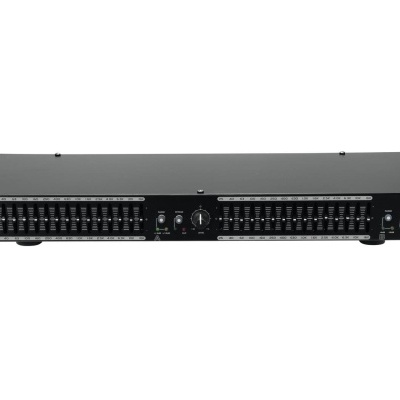

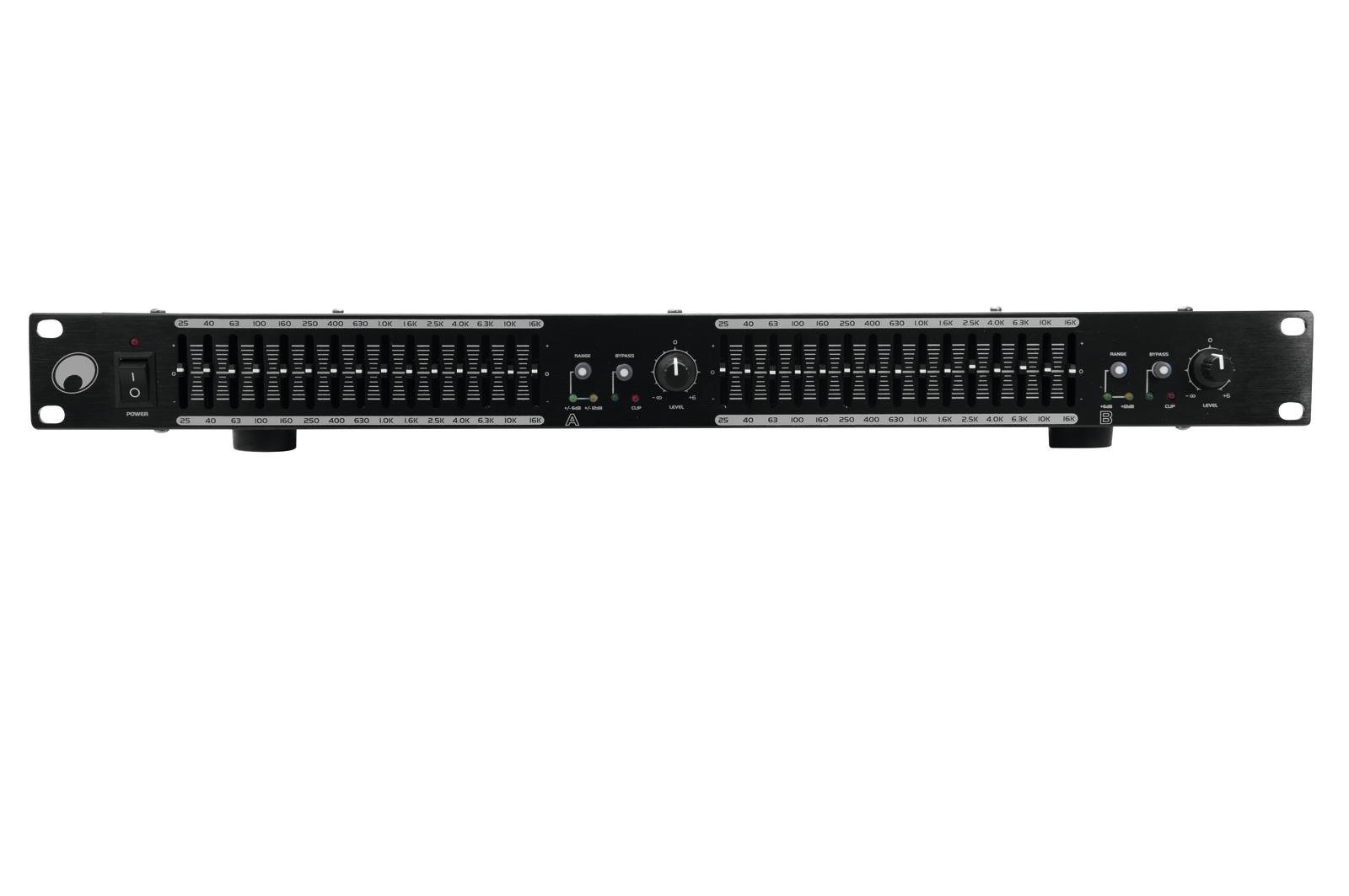

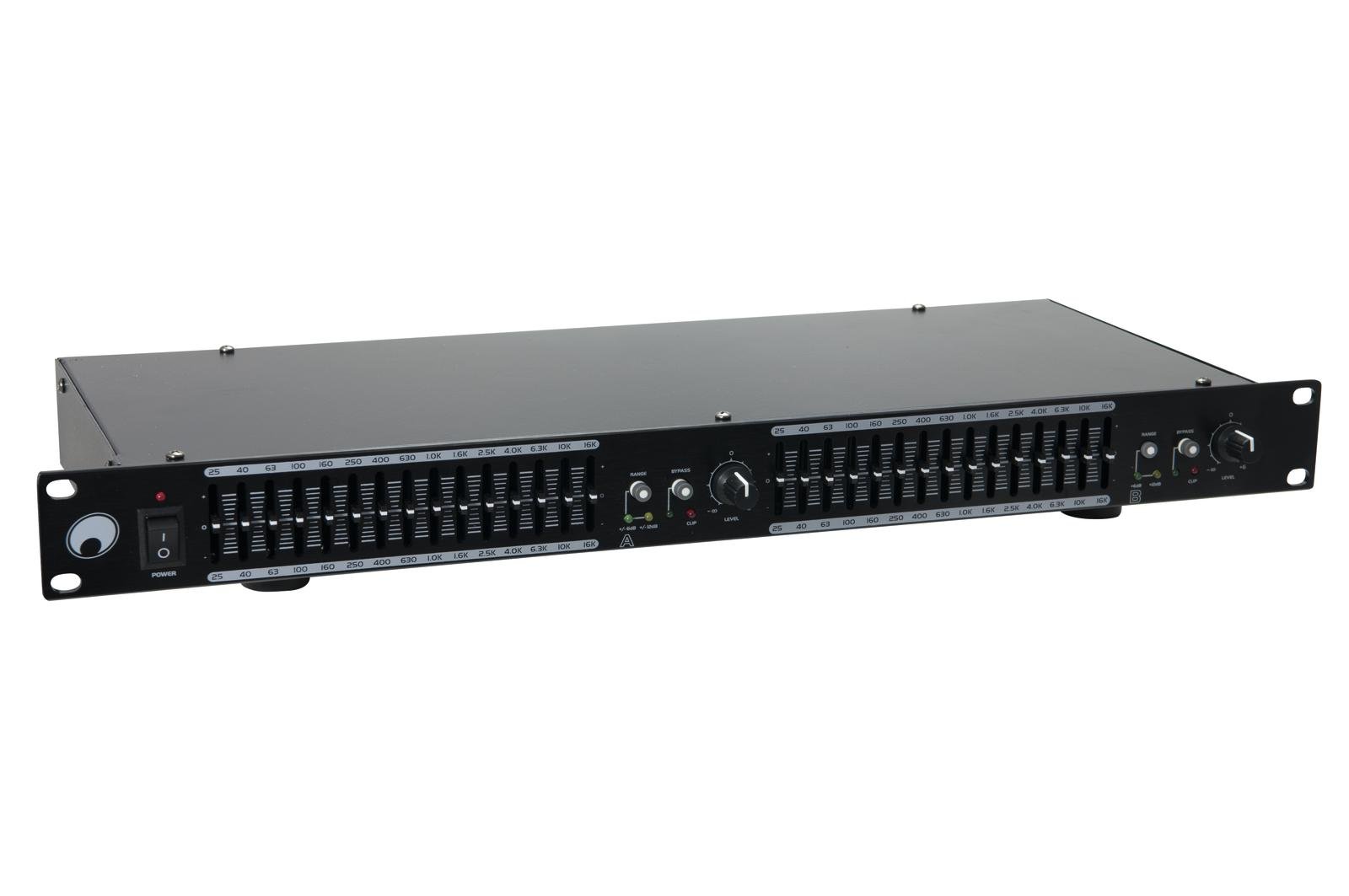

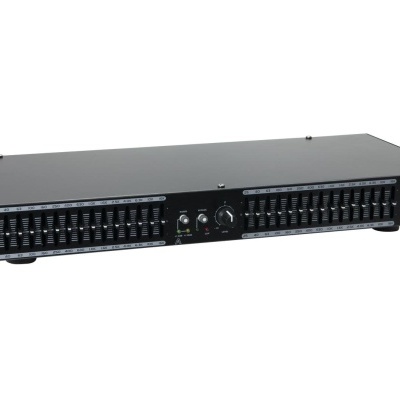

OMNITRONIC GEQ-2150 Equalizer 2x15-Band
SKU: 10355522
2 x 15-band equalizer
- 2-channel version, 2 x 15 frequency controls with 2/3 octave steps
- Short sliding frequency controls with center click
- EQ gain switchable ±6 dB to ±12 dB
- Separate level control per channel
- Bypass switch allows instant comparison of original sound with processed sound
- Inputs and outputs via 6.3 mm jack sockets and XLR sockets
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x user manual, 1 x power cord, 1 x device
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 13 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >96 dB |
| THD: | <0,05 % at 1 kHz |
| Impedance: | Input: 20 kOhm , bal. Input: 15 kOhm , unbal. Output: 300 kOhm , bal. Output: 150 kOhm , unbal. |
| Gain: | Output: - ? to + 6 dB |
| Control range: | ±6dB, ±12dB, switchable |
| Control elements: | Groundlift selector |
| Status LED: | Clip |

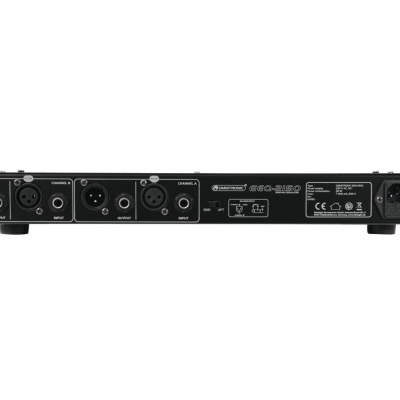

| Connections: | Input: line via 2 x 3-pin XLR Input: line via 2 x 6.3 mm plug (unbal.) Output: line via 2 x 3-pin XLR Output: line via 2 x 6.3 mm plug (unbal.) |
| Equalizer: | Master: 2 x Graphic equalizer 15-band Centre frequency: ISO standard, 2/3 octave, 25/40/63/100/160/250/400/630 Hz, 1/1,6/2,5/4/6,3/10/16 kHz |
| Max. level: | Input: +24 dBu, bal. Input: +18 dBu, unbal. Output: +24 dBu, bal. Output: +18 dBu, unbal. |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 22 cm Height: 4,45 cm |
| Weight: | 2,40 kg |
