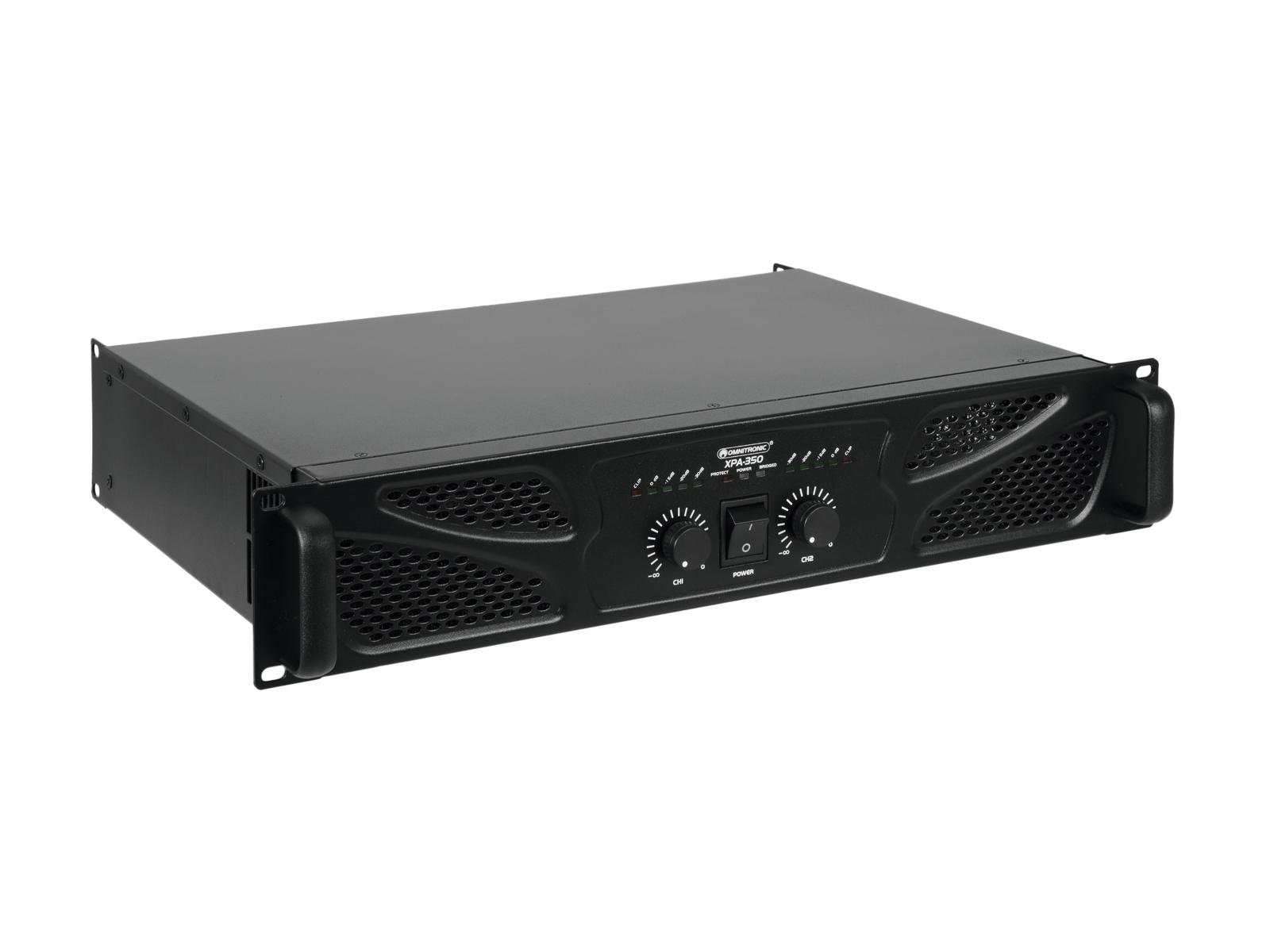

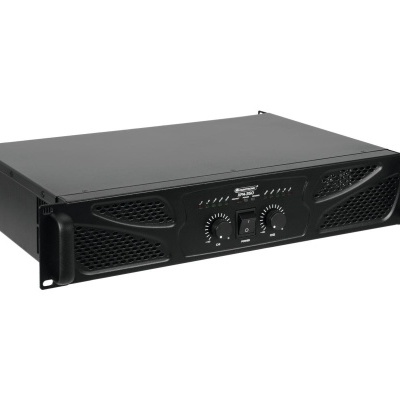

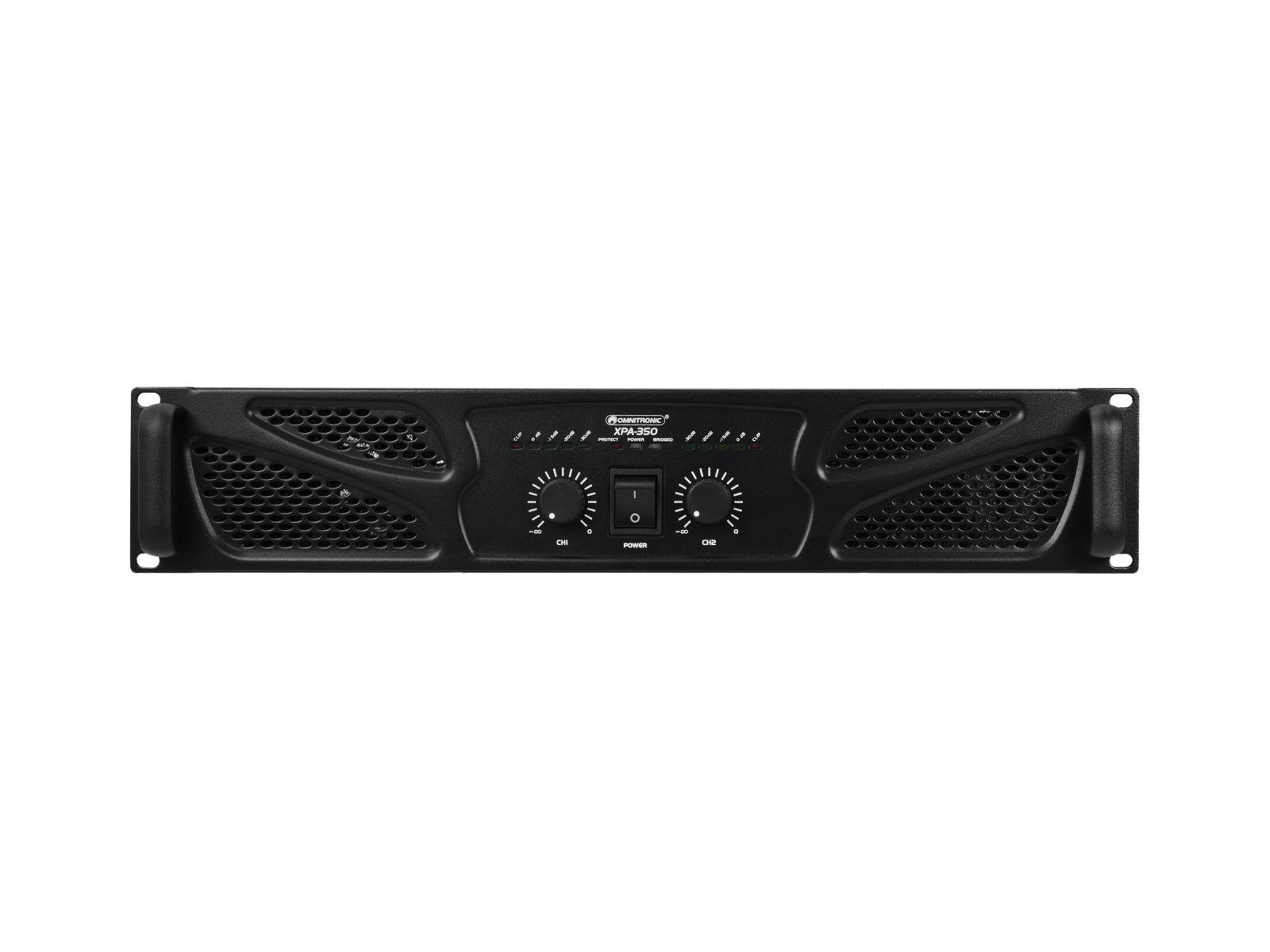

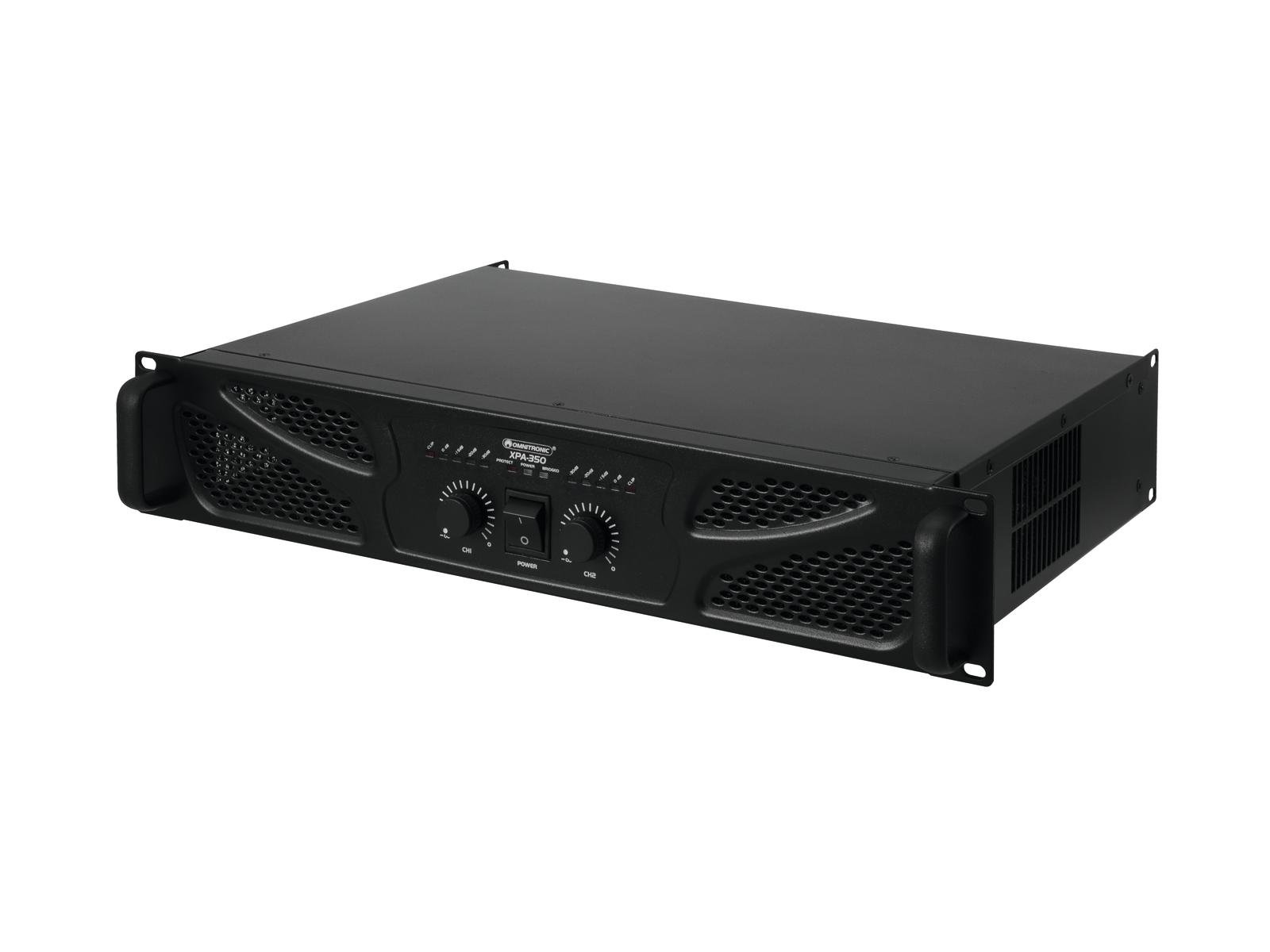

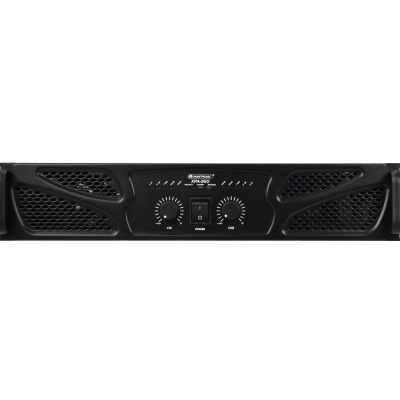

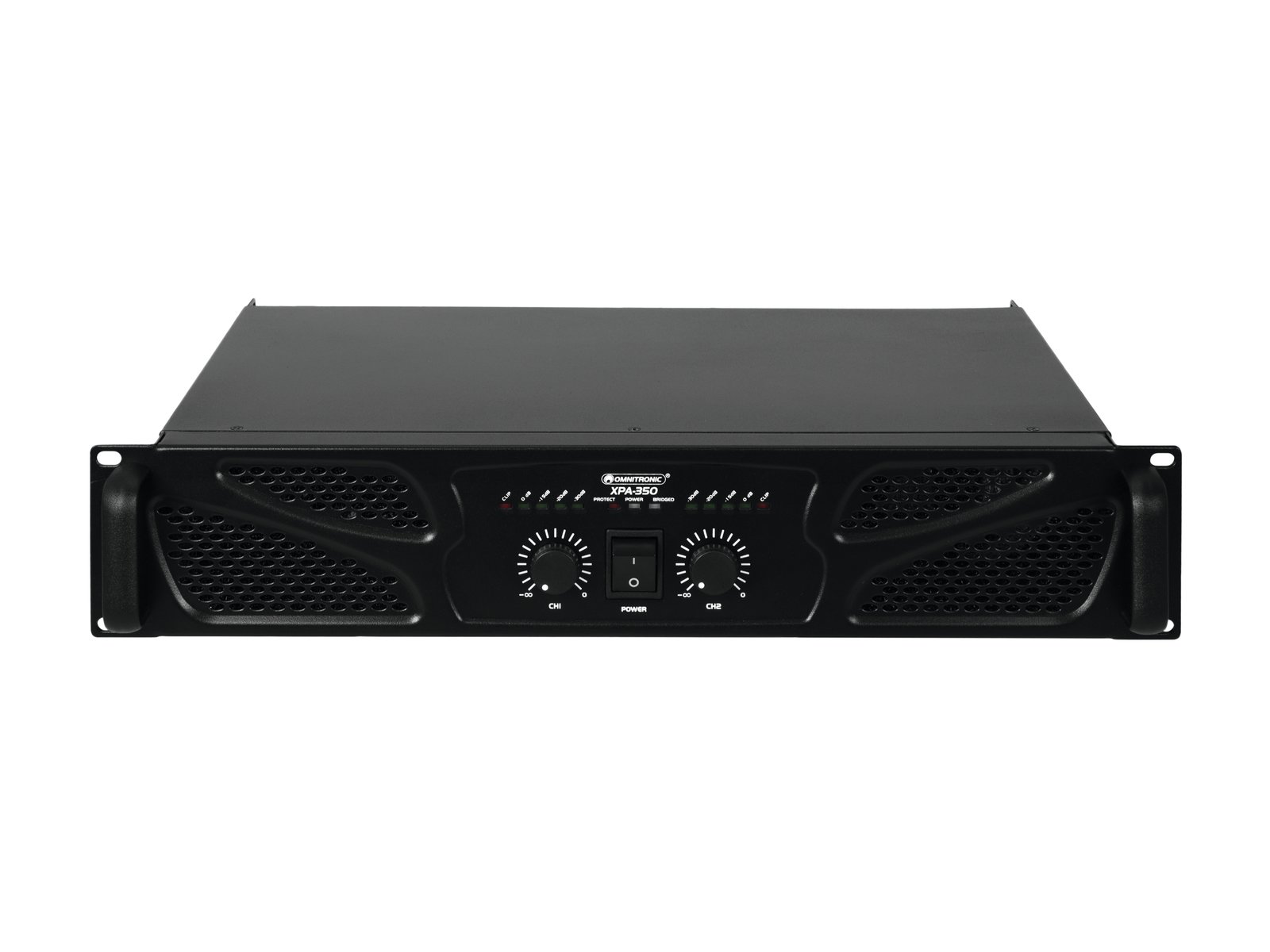

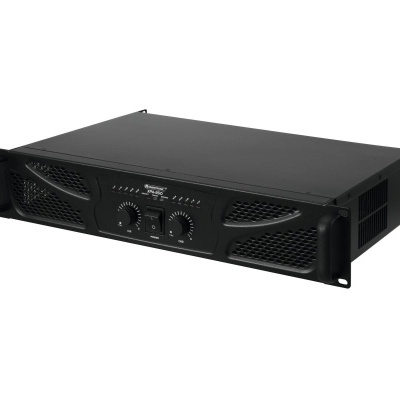

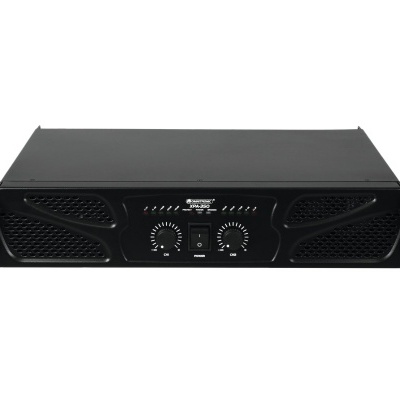

OMNITRONIC XPA-350 Amplifier
SKU: 10451031
Class AB PA amplifier with limiter, 2 x 175 W RMS (4 ohms), 2 x 130 W RMS (8 ohms)
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Signal inputs via XLR or 6.3mm jack connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Additional Speaker plug for 8-ohm bridge operation
- Class AB circuitry
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x user manual, 1 x power cord, 4 x foot, 4 x screw
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 280 W 1/8 power |
| Output power: | 2 x 175 W RMS (4 ohms) 2 x 130 W RMS (8 ohms) 350 W RMS bridged (8 ohms) |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >95 dB |
| THD: | <0,5 % at 1 kHz |
| Cooling: | 1 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Circuitry: | Class AB |
| Slew rate: | >20 V/µs |
| Damping factor: | >350 |
| Control elements: | Power switch, level control per channel, groundlift selector, limiter selector, mode switch (stereo/bridged) |
| Controls: | Short-circuit; overheat; DC voltage; softstart; power on/off transients; limiter |
| Status LED: | Power, level meter, clip, bridged, protect |

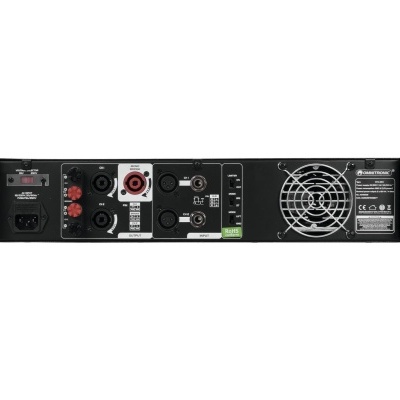

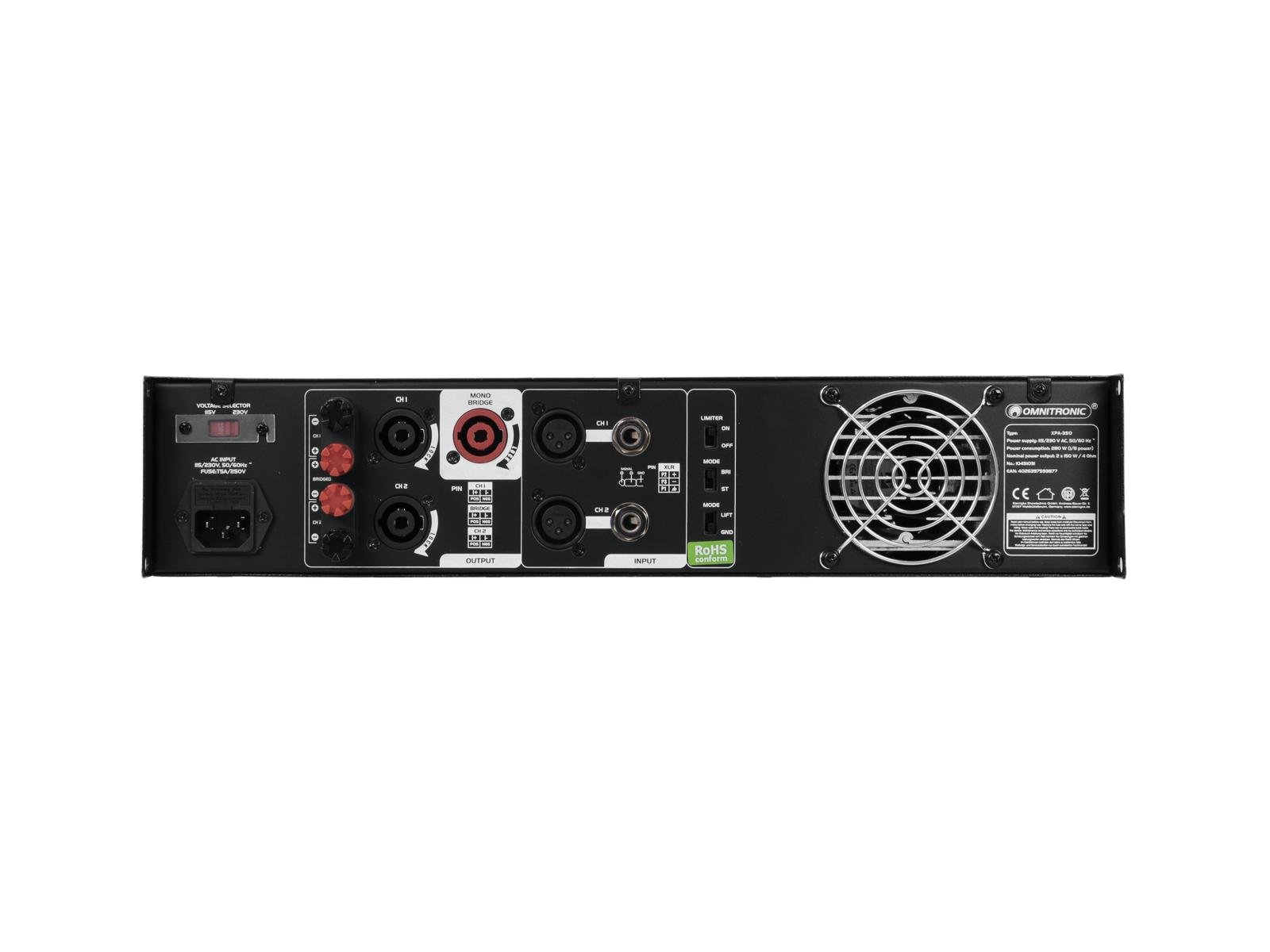

| Connections: | Input: line via 2 x 3-pin XLR Input: line via 2 x 6.3 mm jack socket (stereo) mounting version Output: speaker via 2 x speaker built-in socket (F) Output: speaker via screw terminal Output: Speaker (bridge) via 1 x speaker built-in socket (F) Output: Speaker (bridge) via screw terminal |
| Input sensitivity: | 1,4 V |
| Max. level: | Input: +21 dBV Input: +9 V |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 35,4 cm Height: 8,9 cm |
| Weight: | 7,35 kg |
