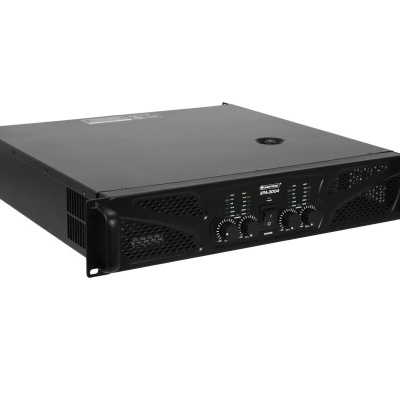

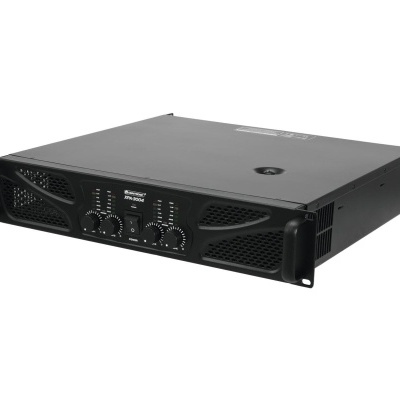

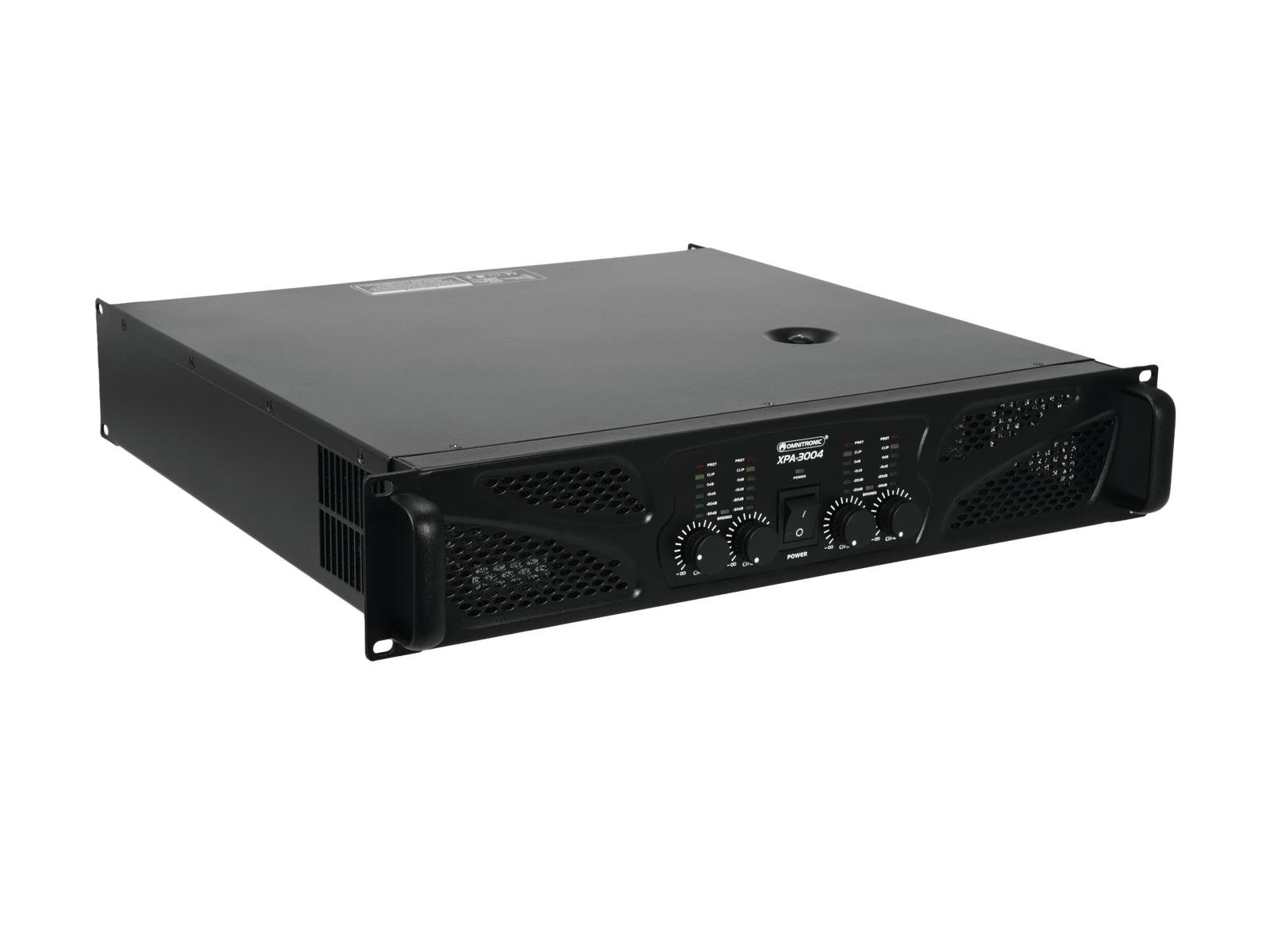

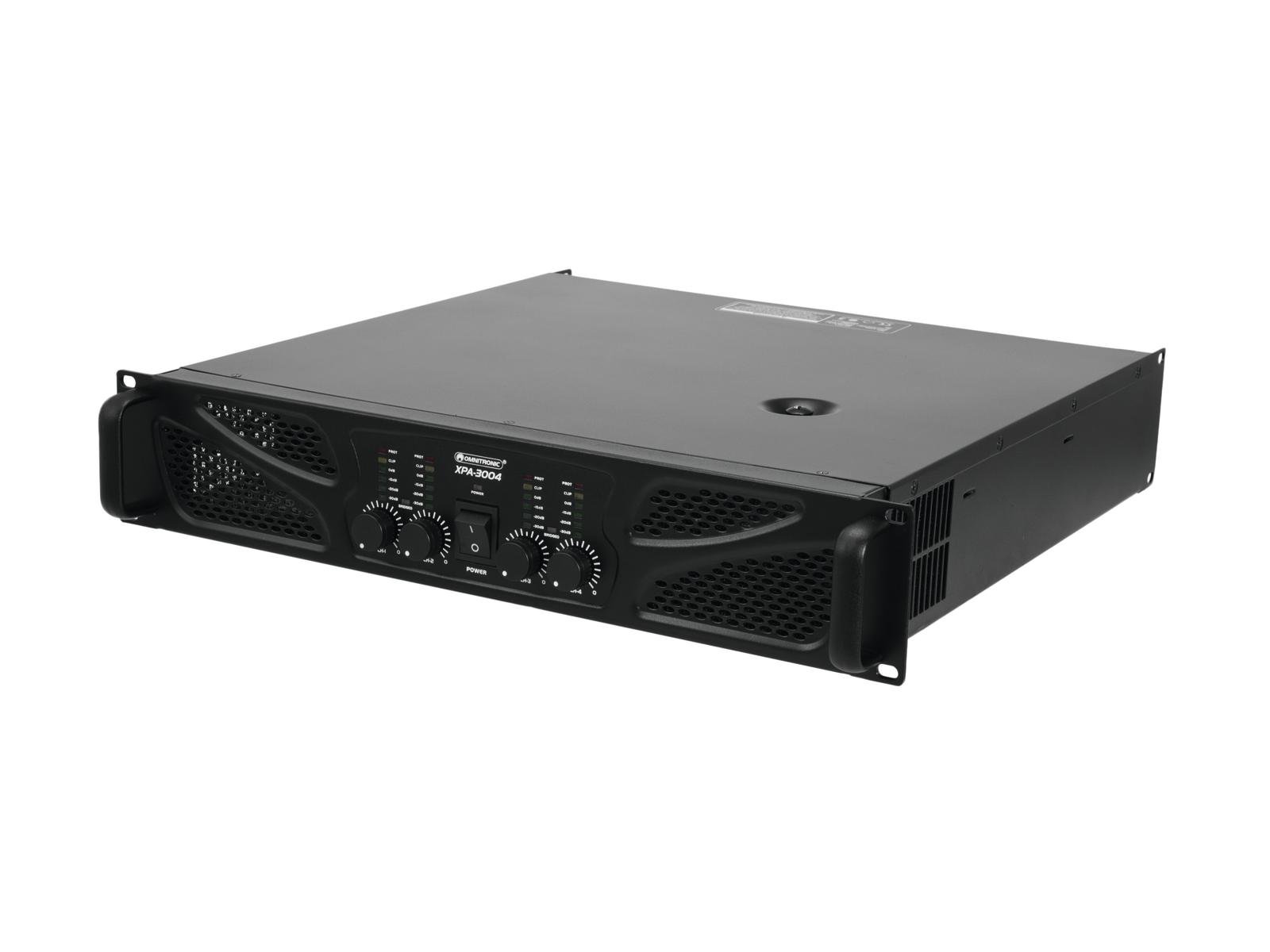

OMNITRONIC XPA-3004 Amplifier
SKU: 10451038
4-channel PA amplifier with integrated limiter, 4 x 750 W / 4 ohms, 4 x 500 W / 8 ohms
- 3 operating modes can be selected (stereo, parallel or bridged)
- Input sensitivity adjustable
- Level control per channel
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Signal inputs via XLR connectors
- Speaker outputs via lockable Speaker plugs
- Class H circuitry
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x user manual, 4 x foot, 4 x screw, 1 x power cord
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 700 W 1/8 power |
| Output power: | 4 x 750 W RMS (4 ohms) 4 x 500 W RMS (8 ohms) 2 x 1500 W RMS bridged (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,5 % at 1 kHz |
| Cooling: | 2 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Circuitry: | Class H |
| Slew rate: | >10 V/µs |
| Damping factor: | >200 |

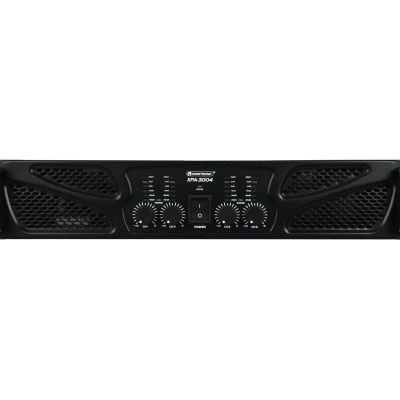

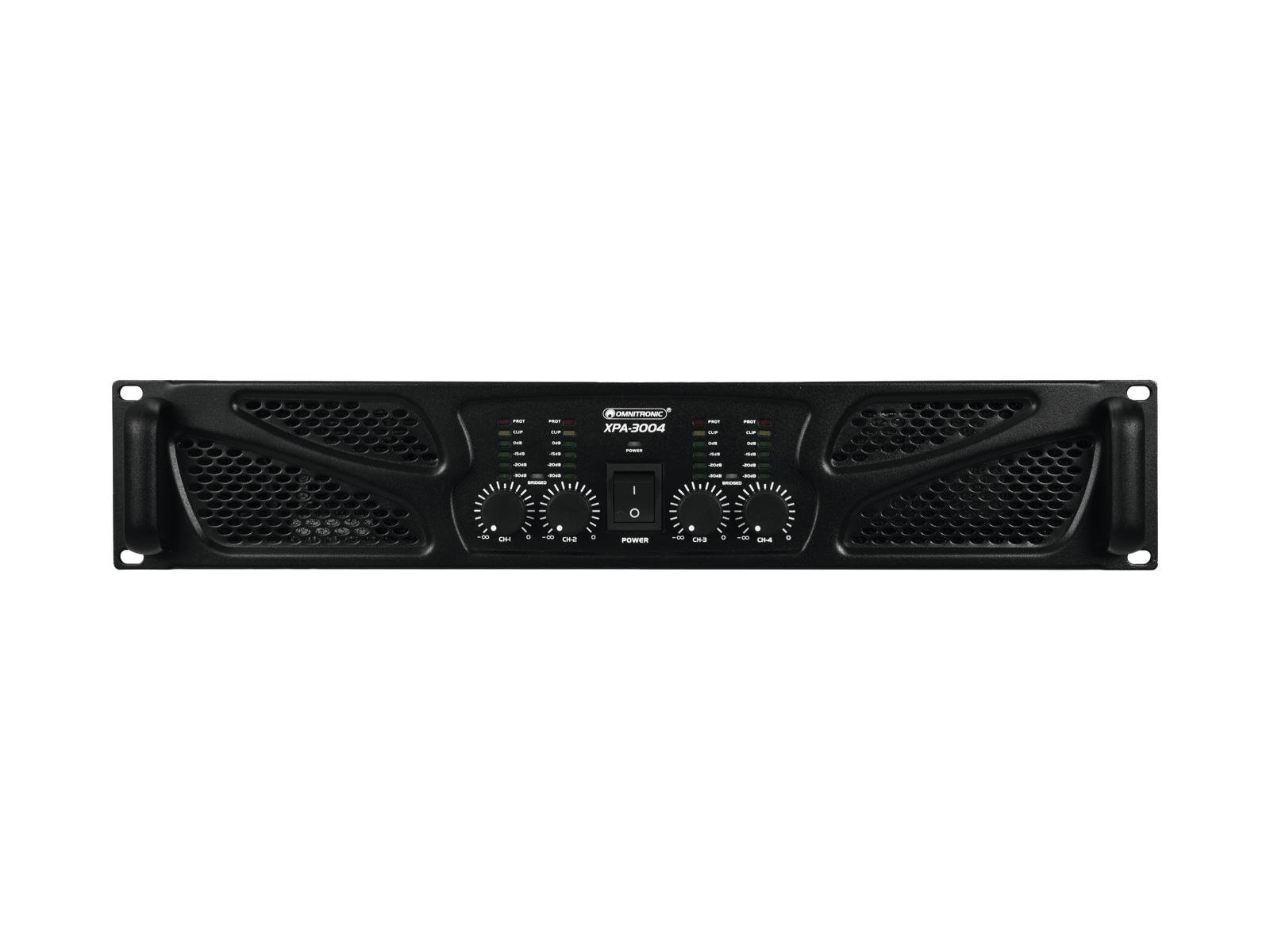

| Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch |
| Controls: | Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient |
| Status LED: | Power, level meter, clip, bridged, protect |

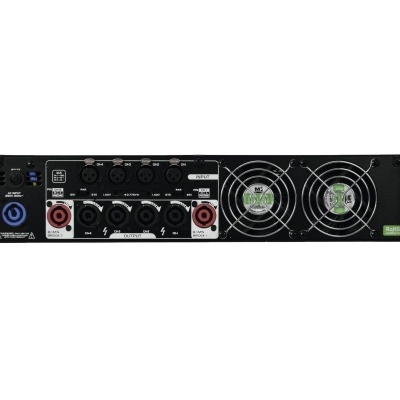

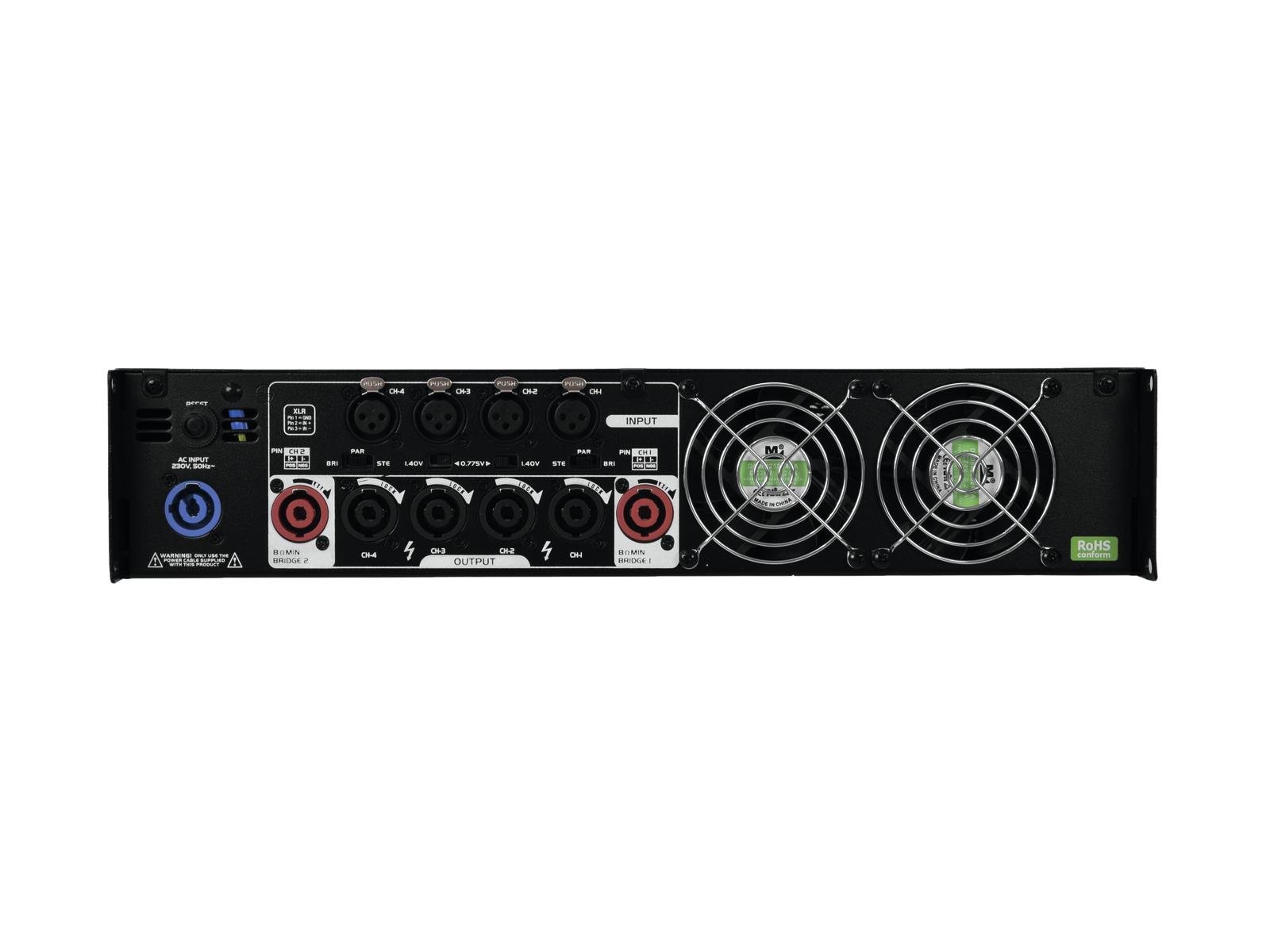

| Connections: | Input: line via 4 x 3-pin XLR Output: speaker via 4 x speaker built-in socket (F) Output: Speaker (bridge) via 2 x speaker built-in socket (F) |
| Input sensitivity: | 0,775 V; 1,4 V , switchable |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 41,5 cm Height: 8,9 cm |
| Weight: | 19,20 kg |
