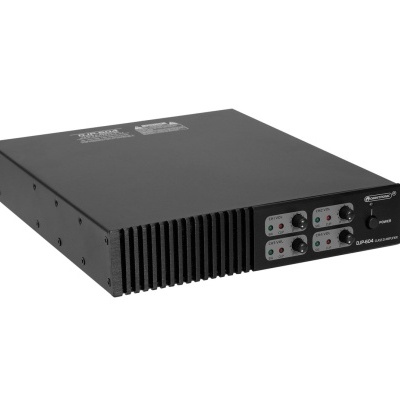

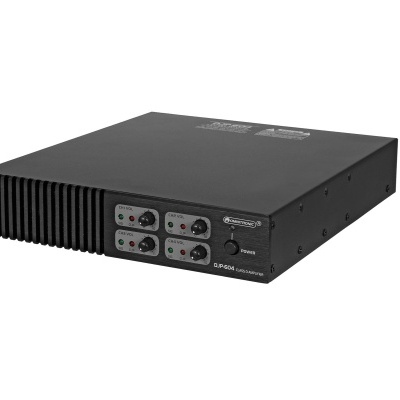

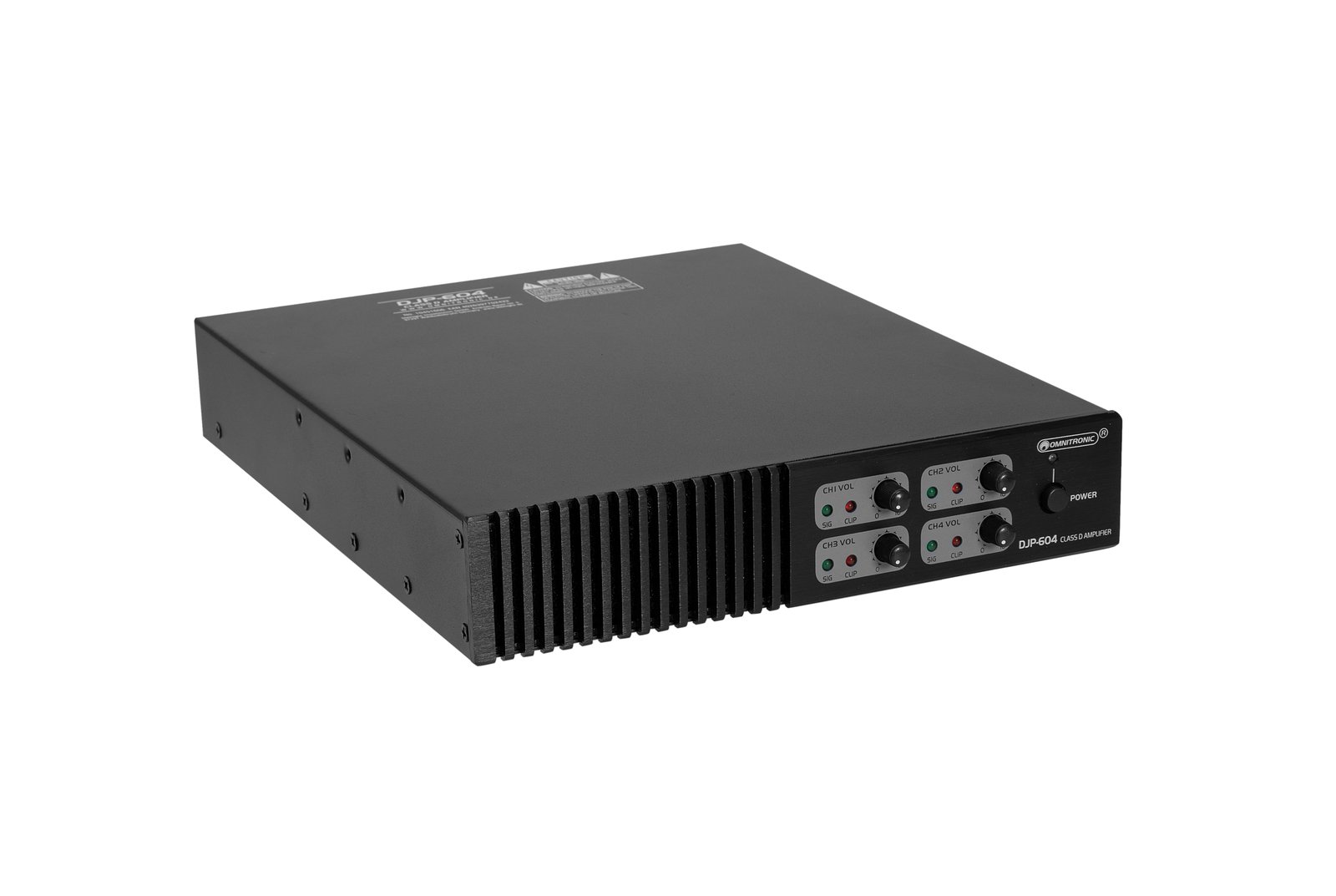

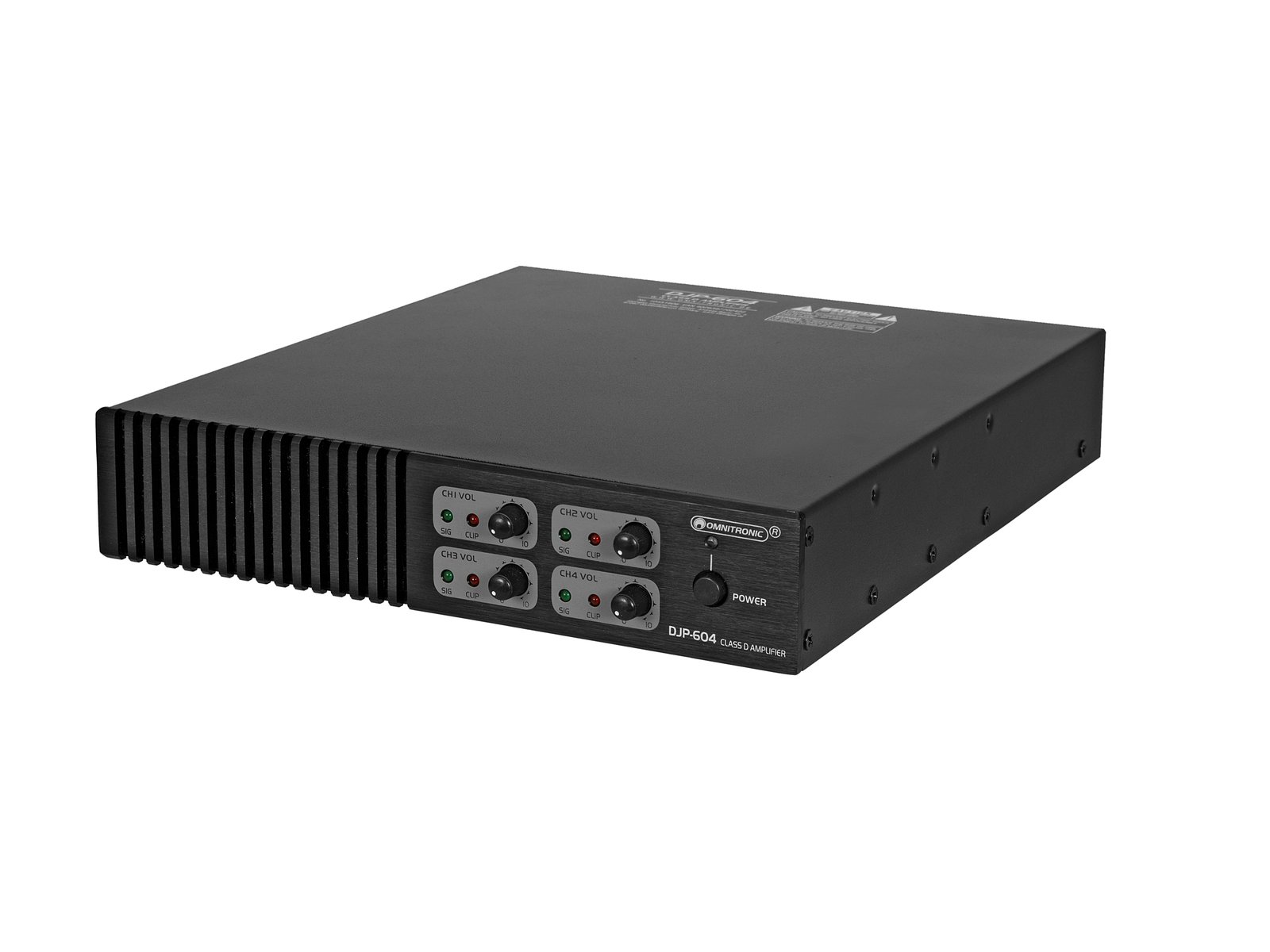

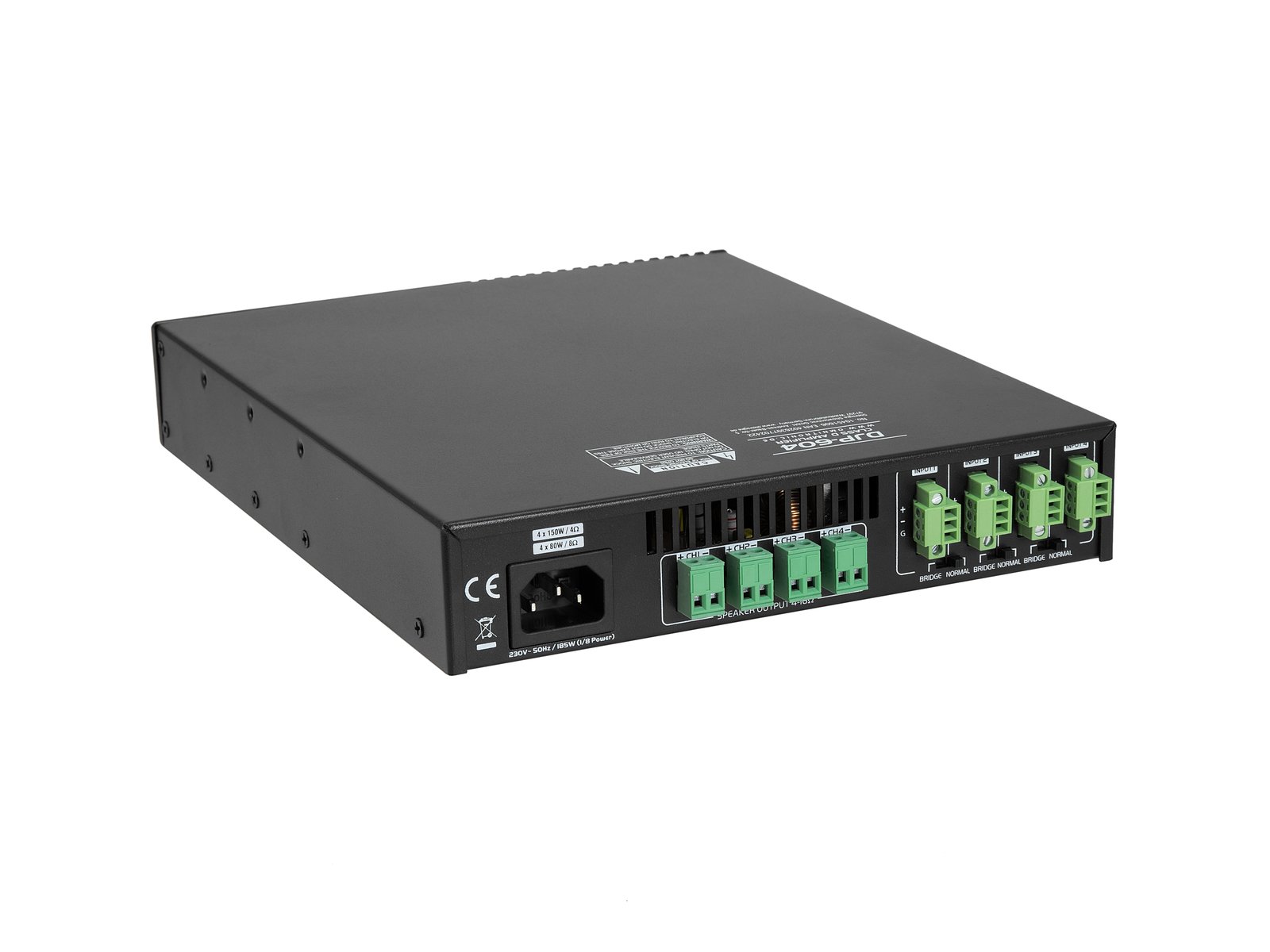

OMNITRONIC DJP-604 4-Channel Class D Amplifier
OMNITRONIC DJP-604 4-Channel Class D Amplifier
OMNITRONIC DJP-604 4-Channel Class D Amplifier
OMNITRONIC DJP-604 4-Channel Class D Amplifier
OMNITRONIC DJP-604 4-Channel Class D Amplifier
OMNITRONIC DJP-604 4-Channel Class D Amplifier

OMNITRONIC DJP-604 4-Channel Class D Amplifier

SKU: 10451606



4-channel class D amplifier in 9.5" housing, 4 x 150 W / 4 ohms, 4 x 80 W / 8 ohms

  • Extremely low weight and height due to integrated switch mode power supply
  • Level control per channel
  • Inputs linkable for flexible configuration
  • Rugged steel chassis with aluminum front panel
  • Desktop console housing
  • (19") 48.3 cm rack installation possible

Package contents

  • 1 x user manual, 1 x amplifier, 4 x foot, 6 x angle, 8 x screw, 1 x power cord


Power supply:230 V AC, 50 Hz
Power consumption:185 W 1/8 power
Output power:4 x 150 W RMS (4 ohms)
4 x 80 W RMS (8 ohms)
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:20 - 20,000 Hz
S/N ratio:>105 dB
Impedance:Input: 20 kOhm , bal.
Input: 10 kOhm , unbal.
Housing color:Black
Circuitry:Class D
Slew rate:20 V/µs
Damping factor:>300

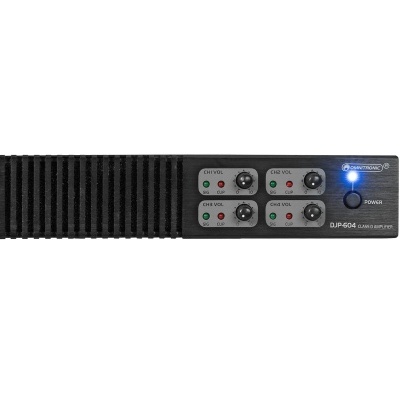

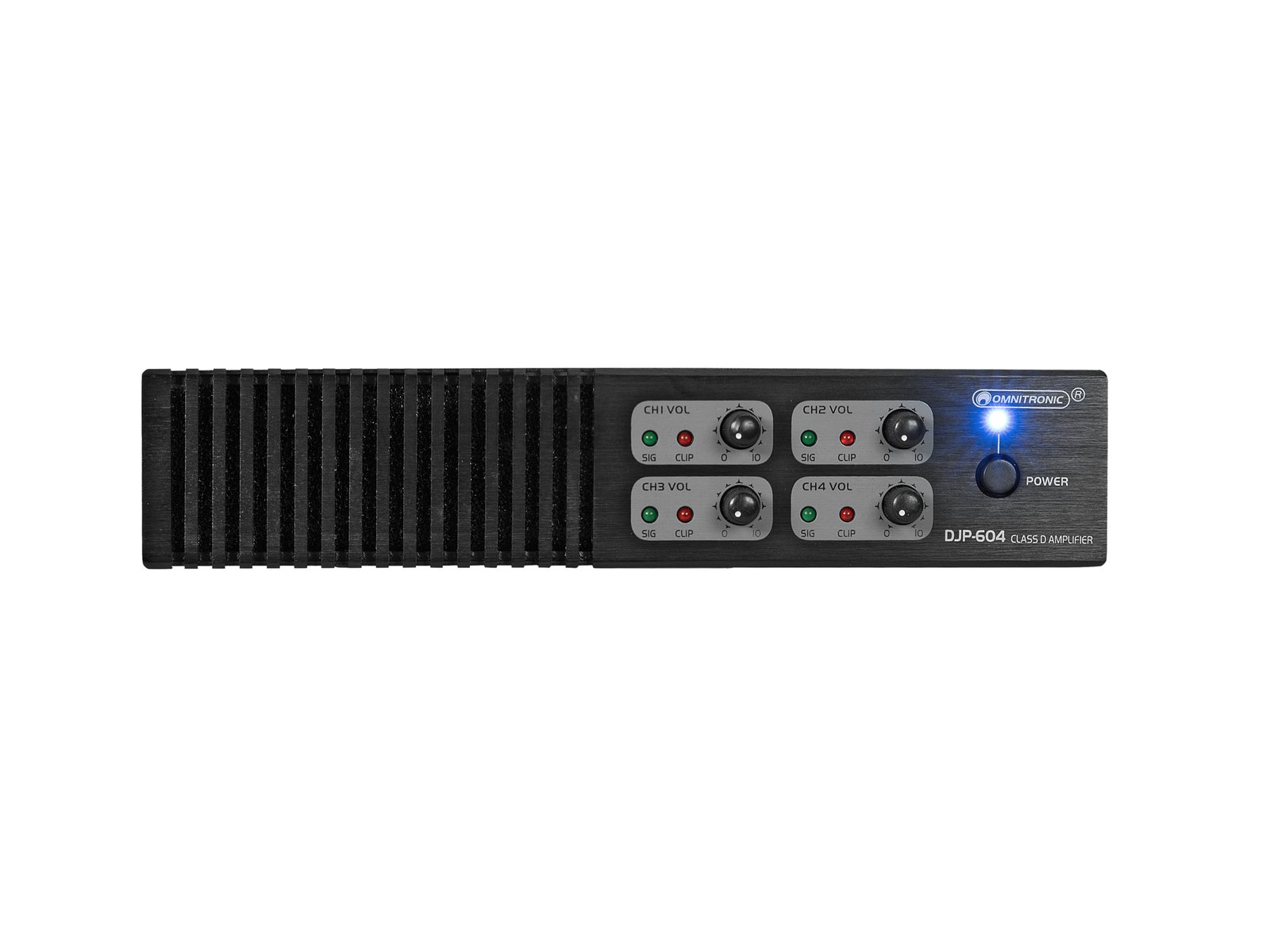

Control elements:Power switch, level control per channel
Controls:Softstart; short-circuit; overheat; overload; VHF; DC voltage
Status LED:Power, signal, clip

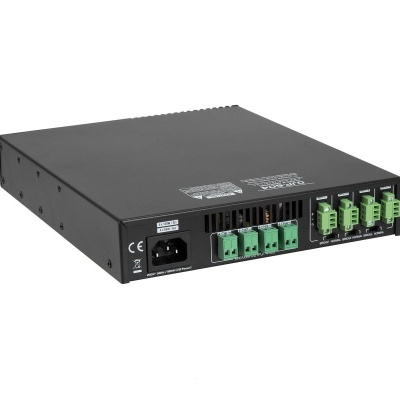

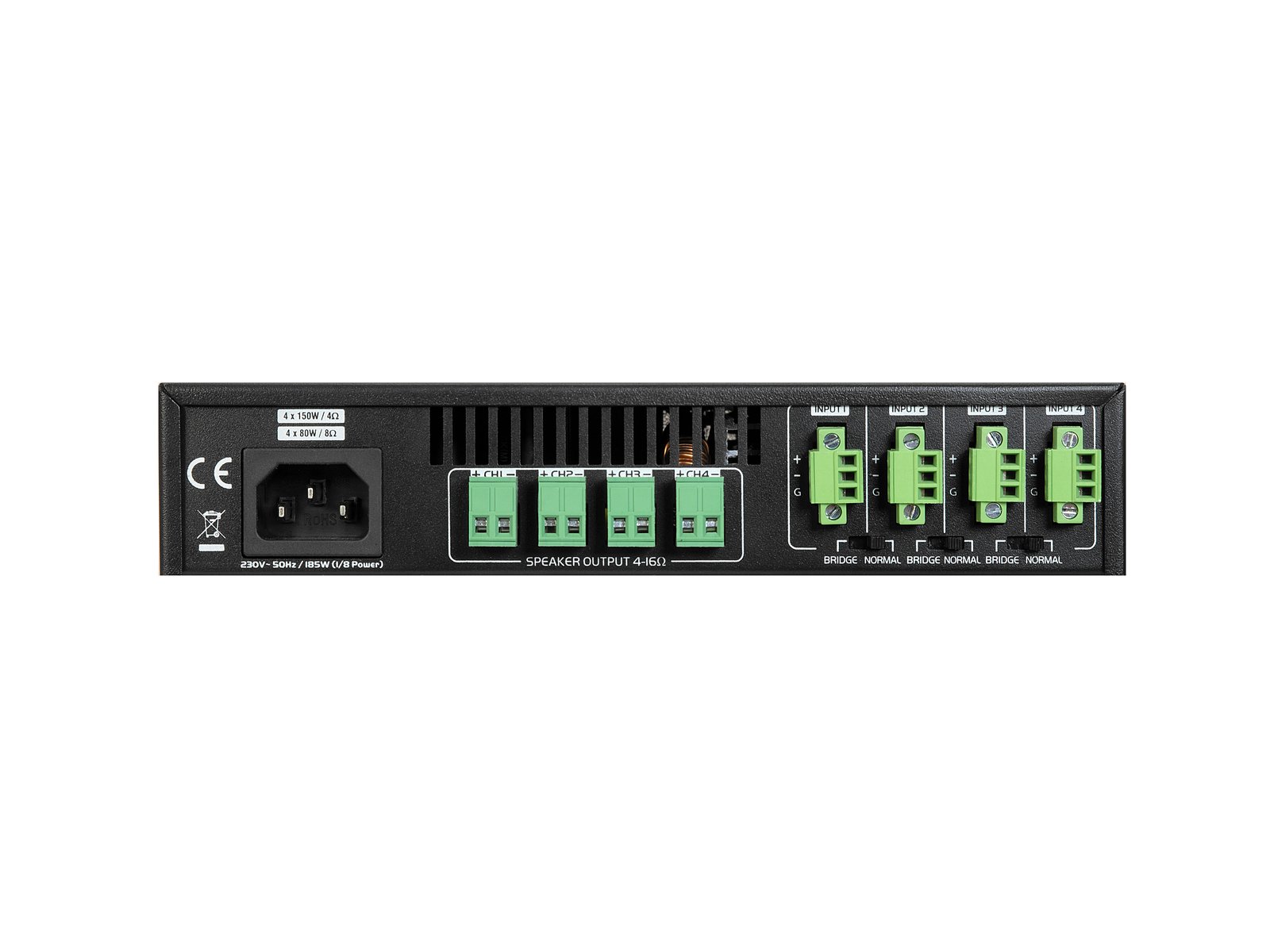

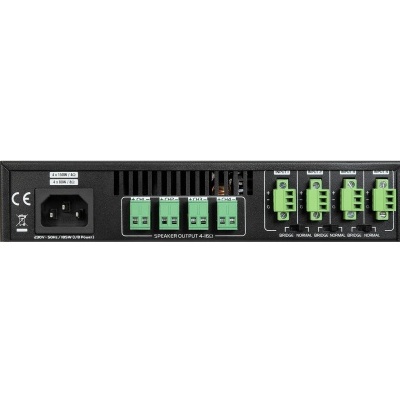

Connections:Input: line via 4 x screw plug-in terminal
Output: speaker via 4 x screw plug-in terminal
Material:Metal
Housing design:Desktop console housing
(19") 48.3 cm rack installation possible
Dimensions:Width: 26,5 cm
Depth: 21,4 cm
Height: 4,4 cm
Weight:2,46 kg
