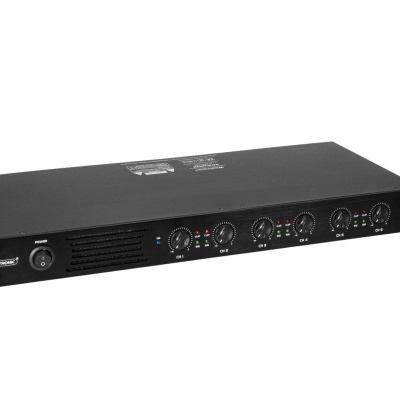

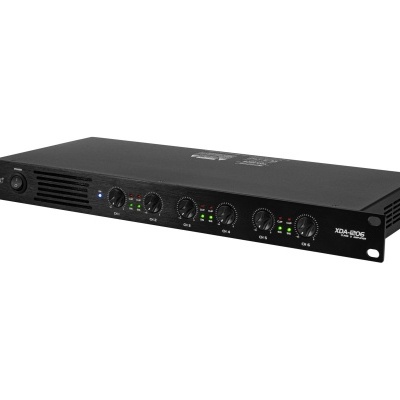

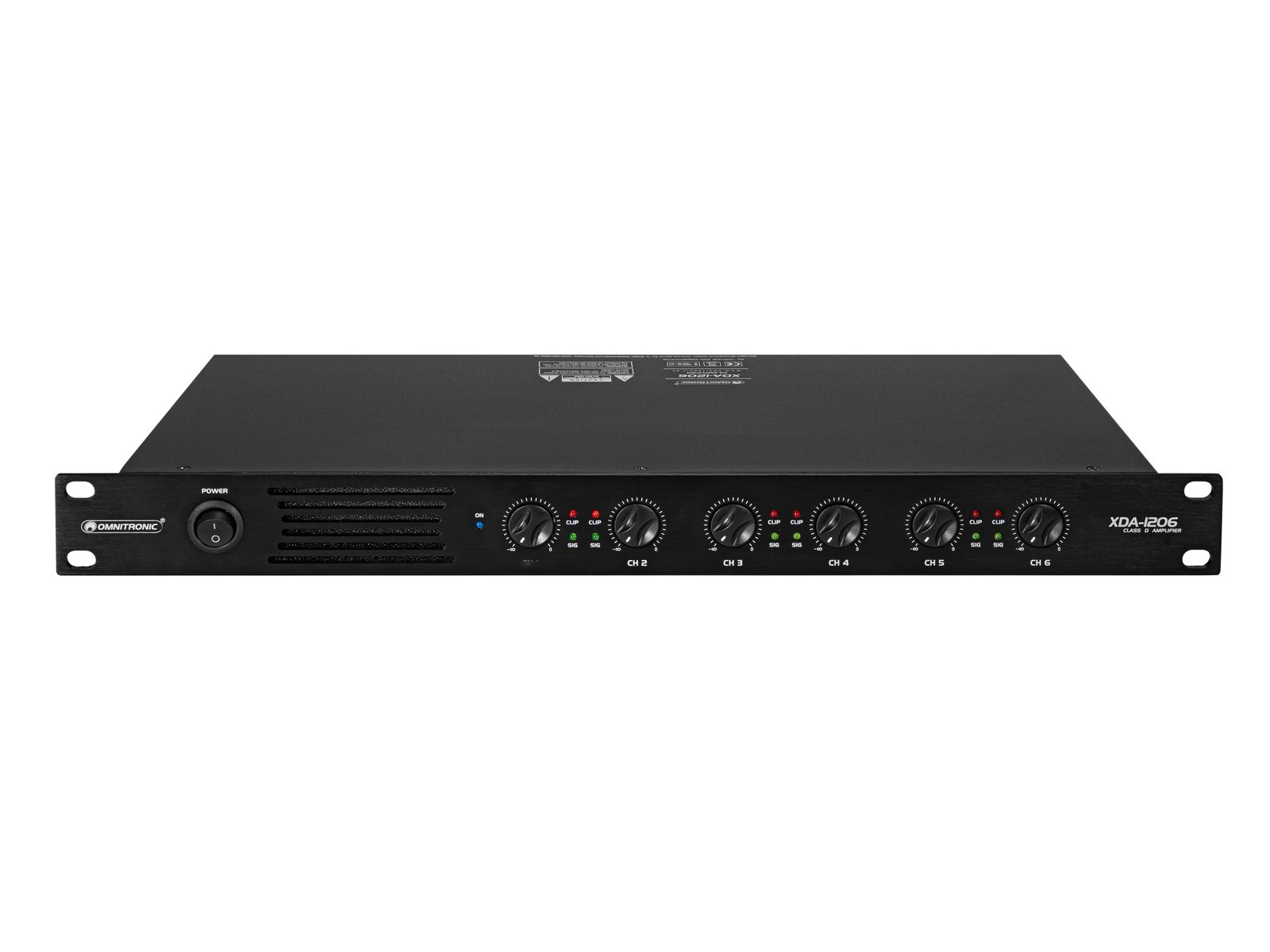

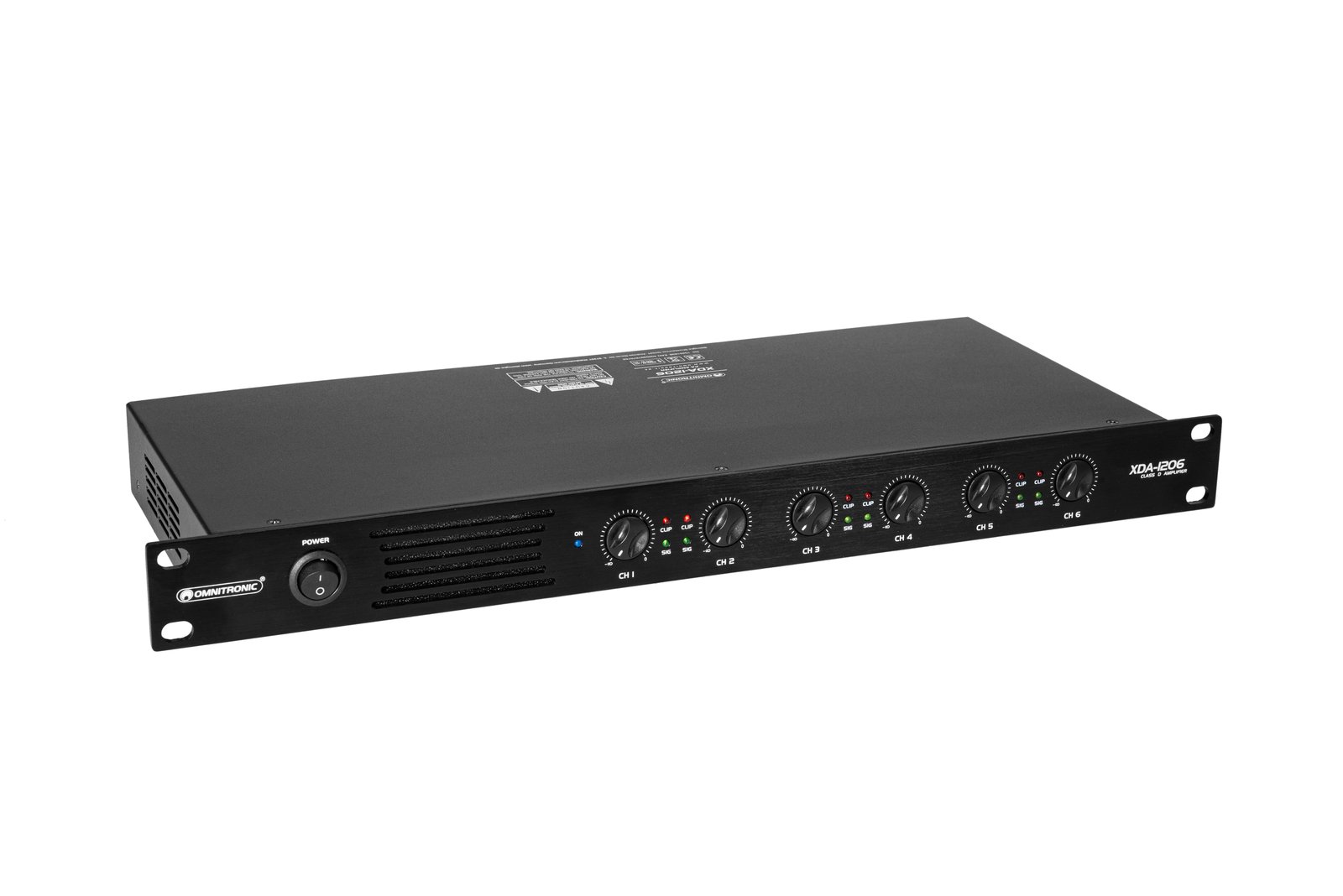

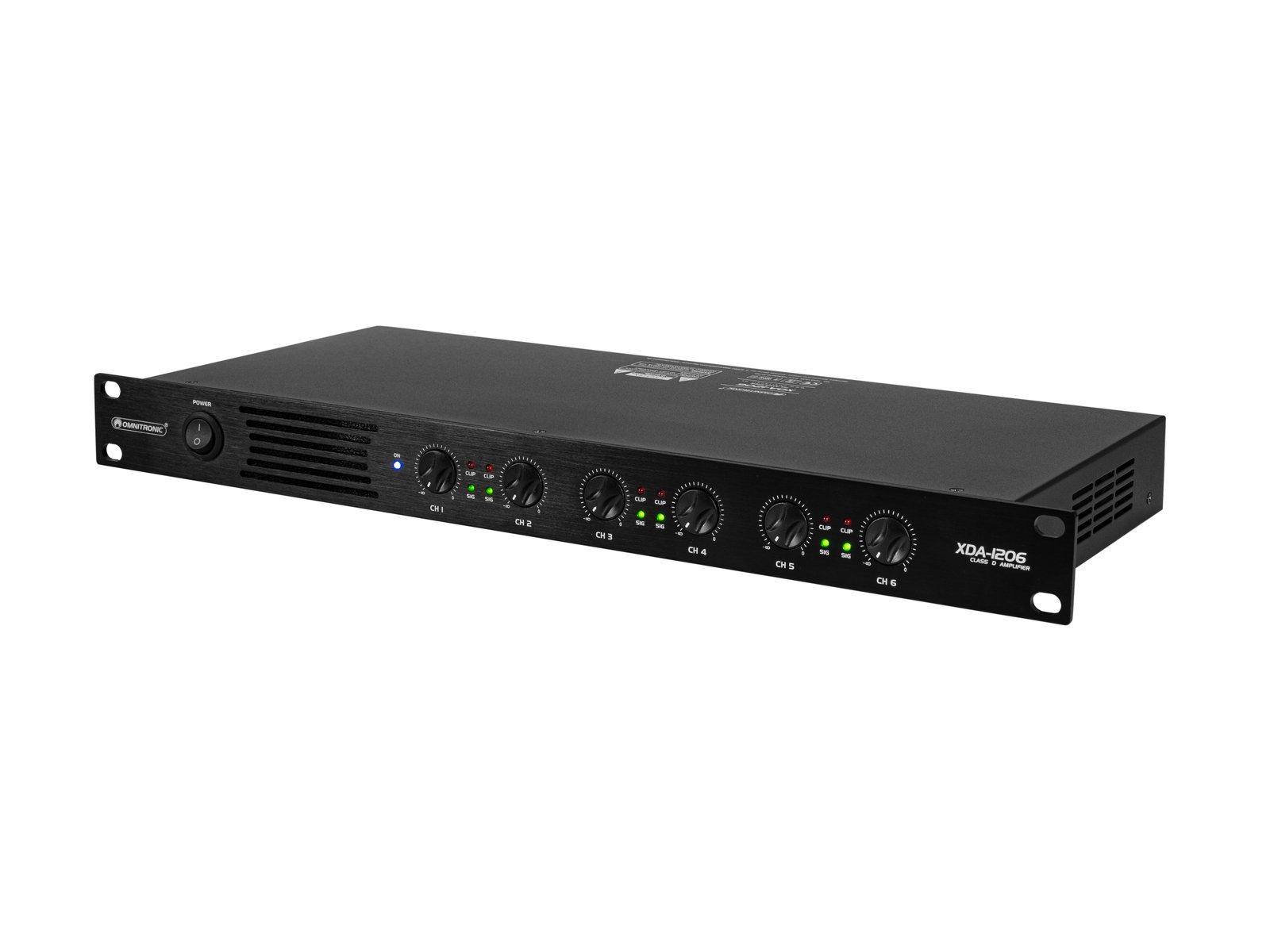

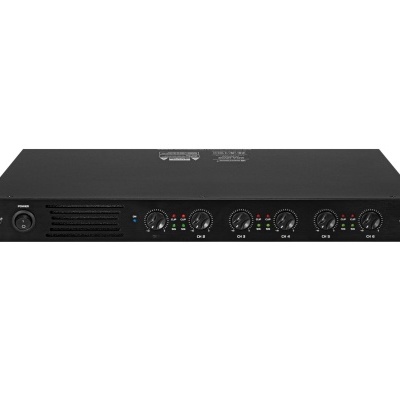

Class D multi-channel PA amplifier with SMPS, 6 x 200 W RMS (4 ohms), 6 x 150 W RMS (8 ohms)
Extremely low weight and height due to integrated switch mode power supply
Level control per channel
(19") 48.3 cm rack installation 1 U
Package contents
1 x amplifier, 1 x user manual, 1 x power cord, 6 x screw plug-in terminal, 4 x foot
Power supply:
230 V AC, 50 Hz
Power consumption:
1440 W
Protection class:
Protection class I
Output power:
6 x 200 W RMS (4 ohms) 6 x 150 W RMS (8 ohms)
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>100 dB
THD:
<0,05 % at 1 kHz
Impedance:
Input: 20 kOhm , bal. Input: 10 kOhm , unbal.
Circuitry:
Class D

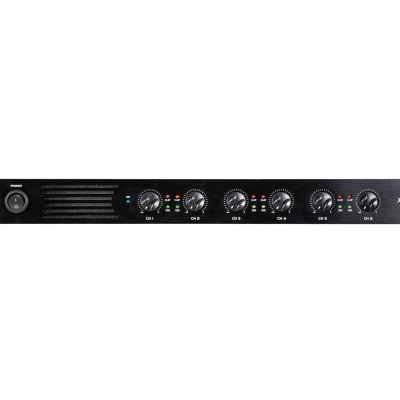

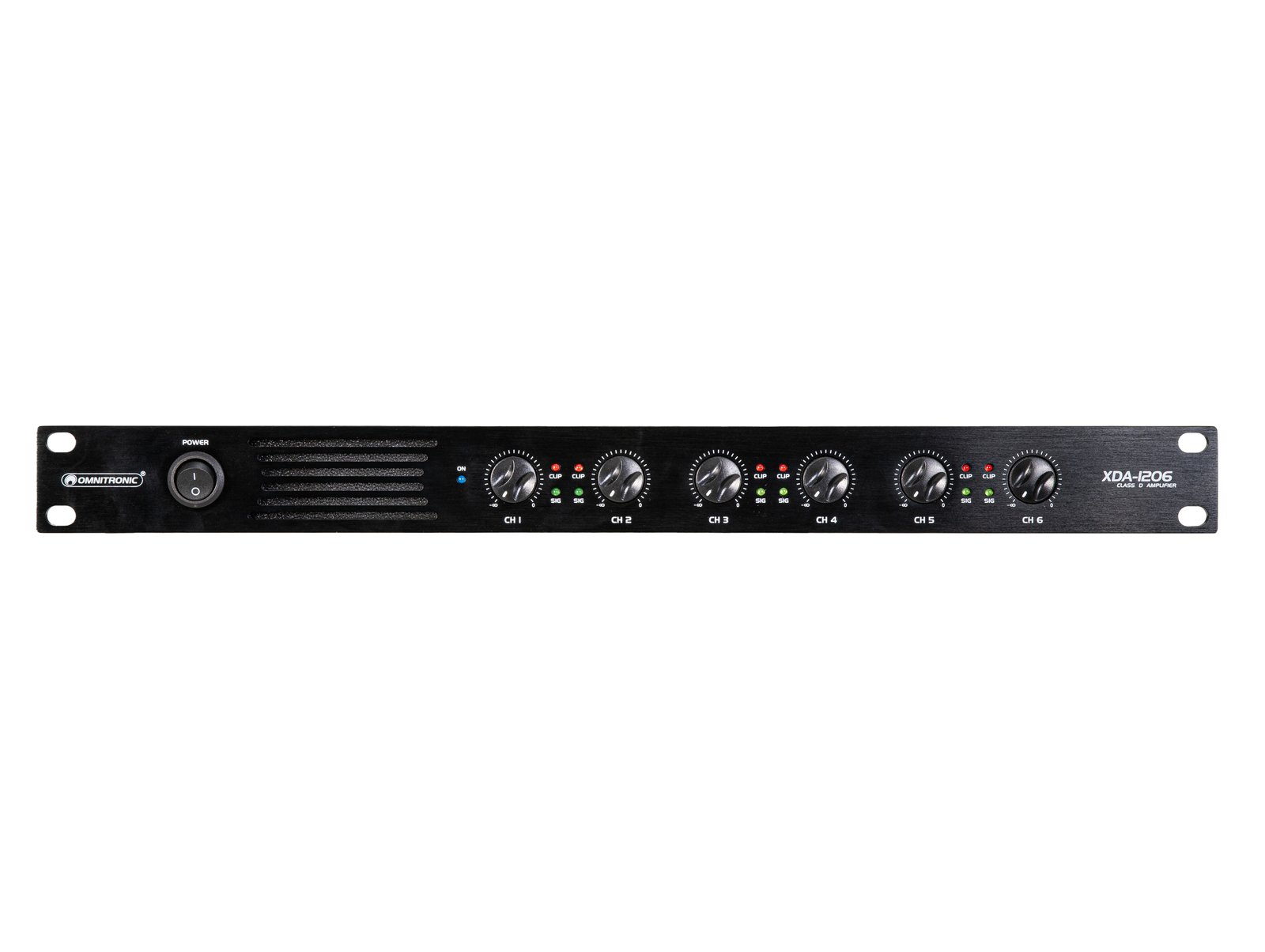

Control elements:
Power switch, level control per channel
Controls:
Softstart; overheat; overload; short-circuit; DC voltage
Status LED:
Power, signal, clip

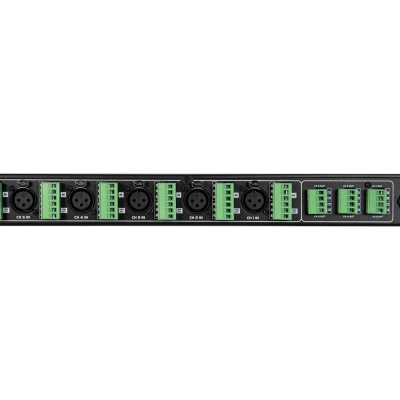

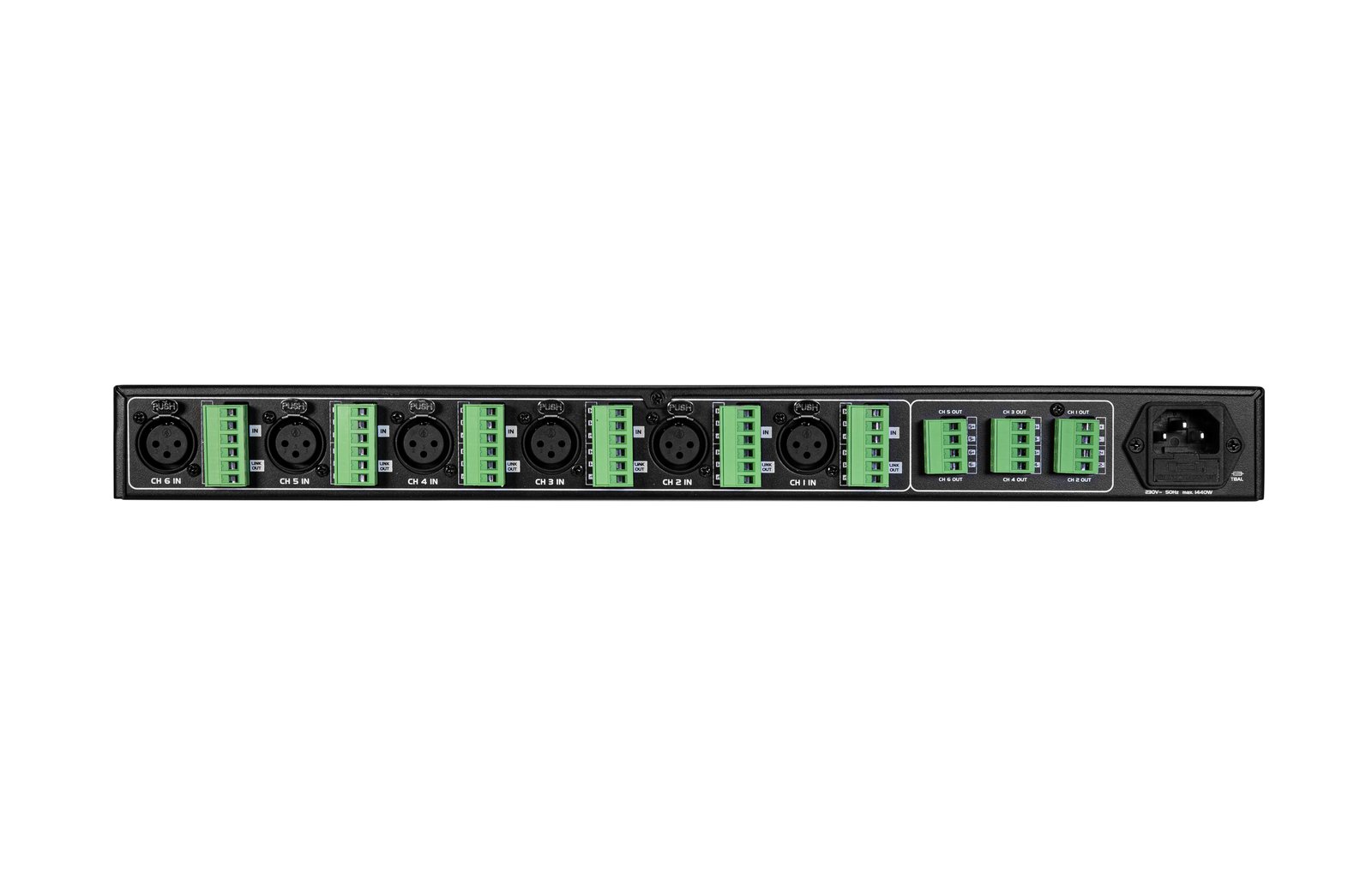

Connections:
Input: line via 6 x 3-pin XLR Input: 6 x screw plug-in terminal Link: line via 6 x screw plug-in terminal Output: speaker via 6 x screw plug-in terminal
