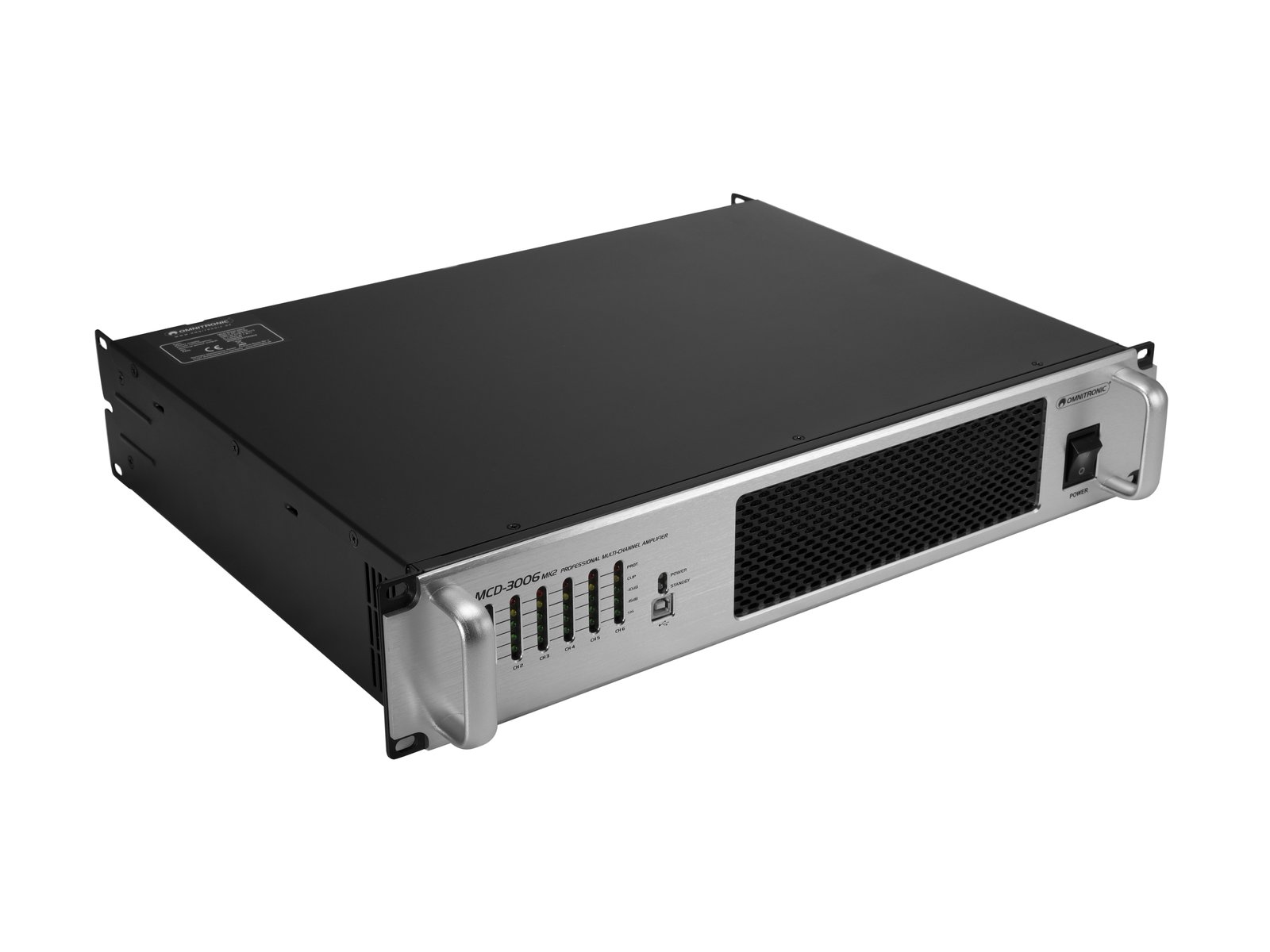

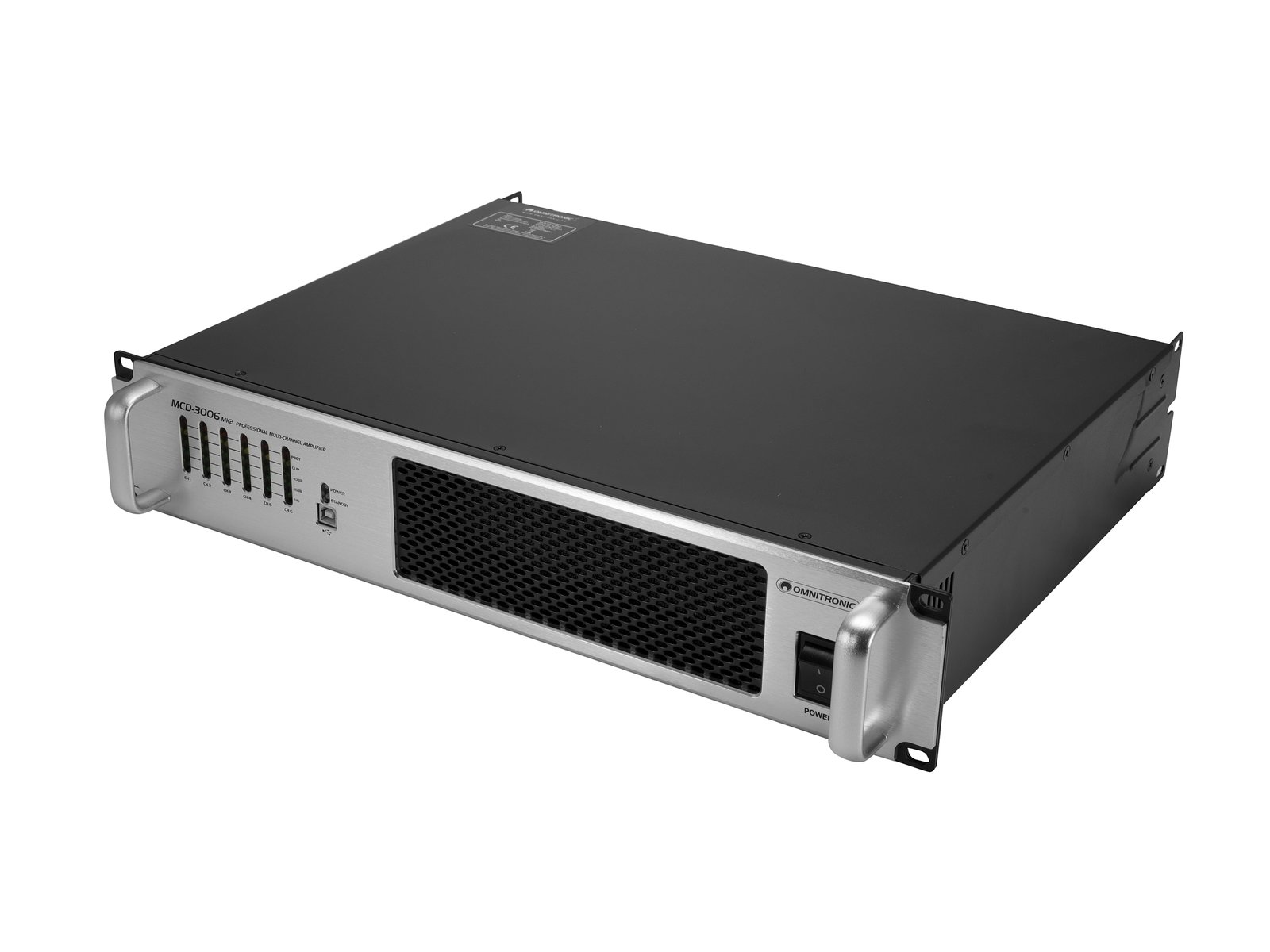

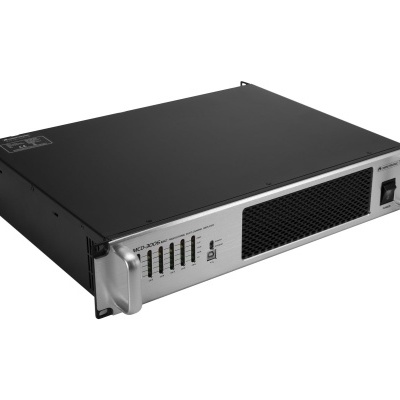

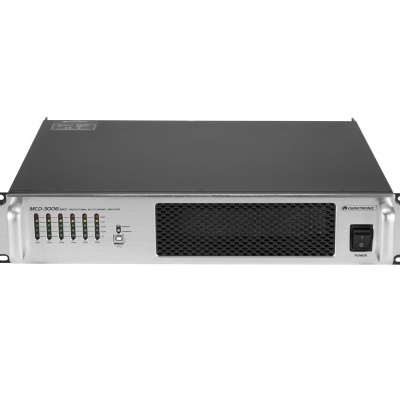

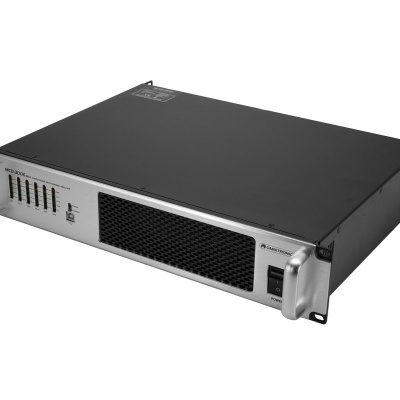

OMNITRONIC MCD-3006 MK2 6-Channel Installation Amplifier
SKU: 10452415
Class D multi-channel PA amplifier with SMPS, 6 x 500 W RMS (4 ohms), 6 x 250 W RMS (8 ohms)
- PA amplifier with integrated limiter for multi-zone applications
- Signal inputs via balanced XLR mounting jacks and terminal blocks
- Tamper-proof level adjustment on the rear panel

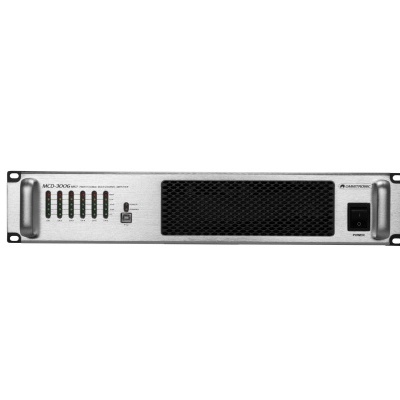

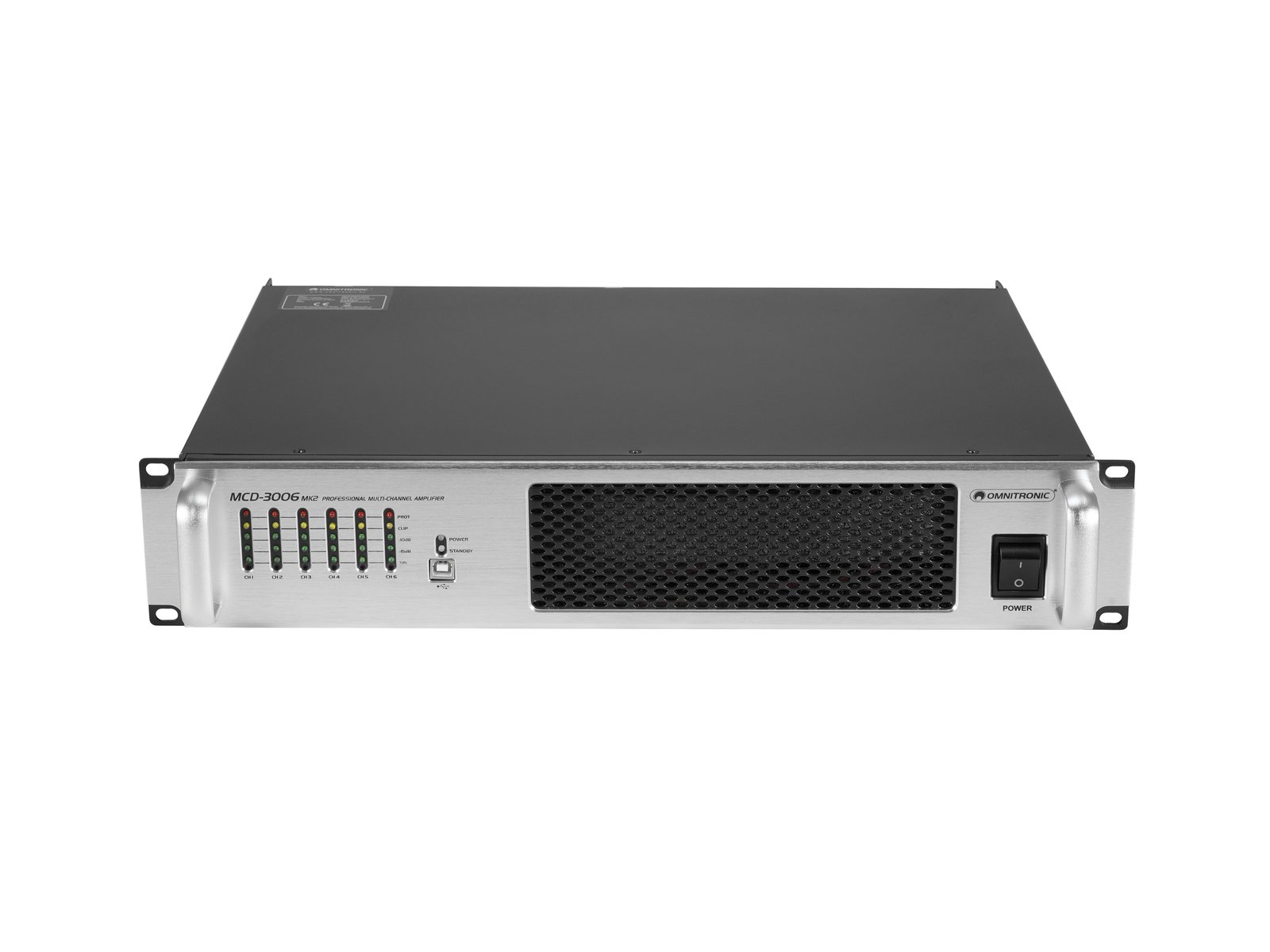

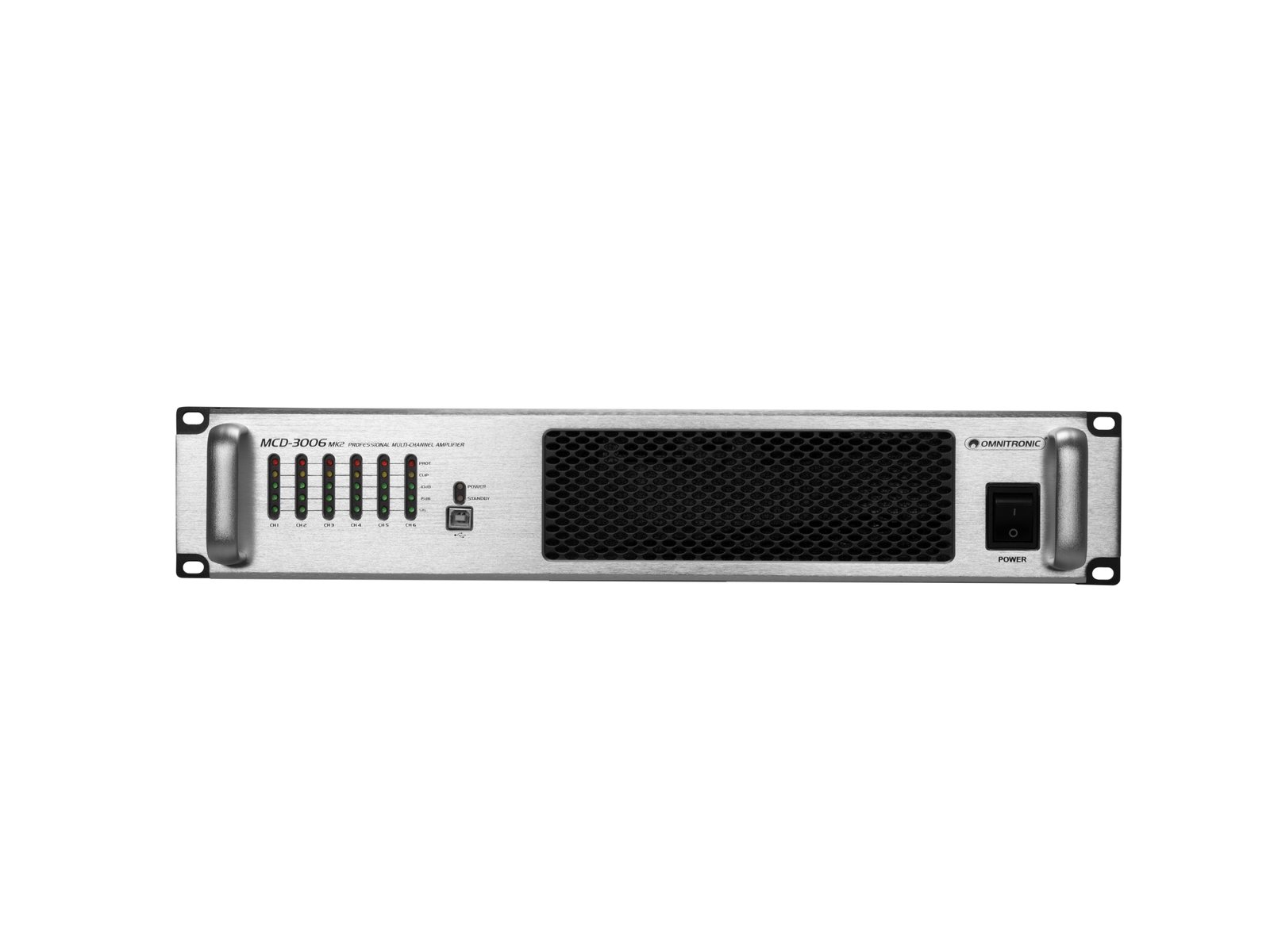

- 3-fold output meter with clip LED per channel
- Rugged steel chassis with aluminum front panel
- Highly efficient Air flow from front to rear
- The device is cooled by cooling fan
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x power cord, 6 x screw plug-in terminal, 4 x foot, 4 x screw, 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 525 W 1/8 power |
| Output power: | 6 x 500 W RMS (4 ohms) 6 x 250 W RMS (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 22 - 25000 Hz |
| S/N ratio: | >120 dB |
| THD: | <0,003 % at 1 kHz |
| Cooling: | 2 x cooling fan , Air flow from front to rear |
| Impedance: | Input: 22 kOhm , bal. Input: 12 kOhm , unbal. |
| Gain: | 26 dB |
| Circuitry: | Class D |
| Slew rate: | >10 V/µs |
| Damping factor: | >500 |
| Control elements: | Power switch, level control per channel |
| Controls: | Softstart; short-circuit; overheat; overload; DC voltage; power on/off transient |
| Status LED: | Power, level meter, clip, protect, Standby |

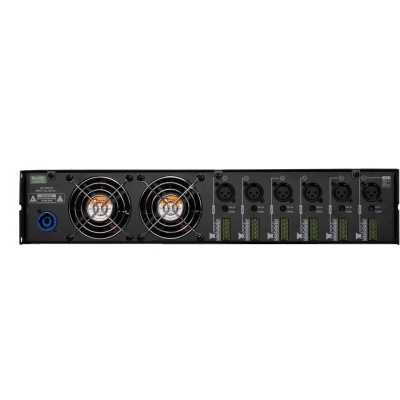

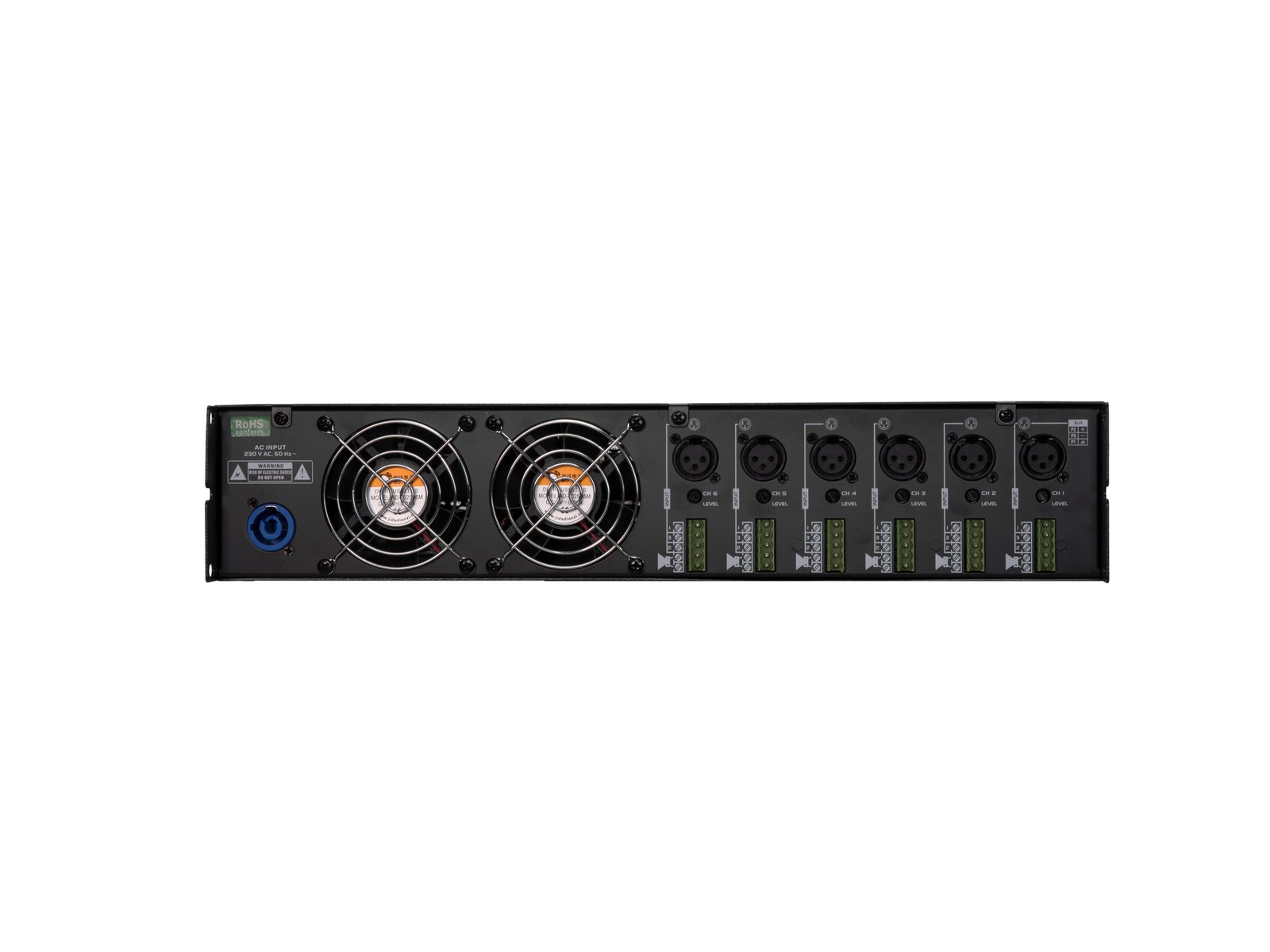

| Connections: | Input: line via 6 x 3-pin XLR Input: line via 6 x screw plug-in terminal Link: speaker via 6 x screw plug-in terminal |
| Max. level: | Input: +2 V |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 38,8 cm Height: 8,9 cm |
| Weight: | 9,05 kg |
