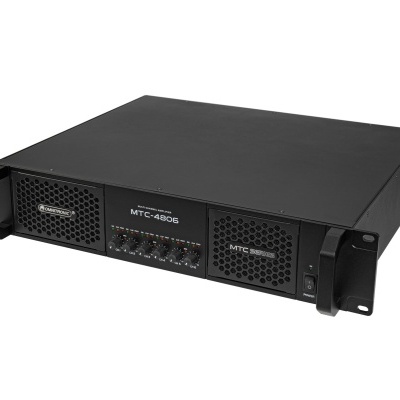

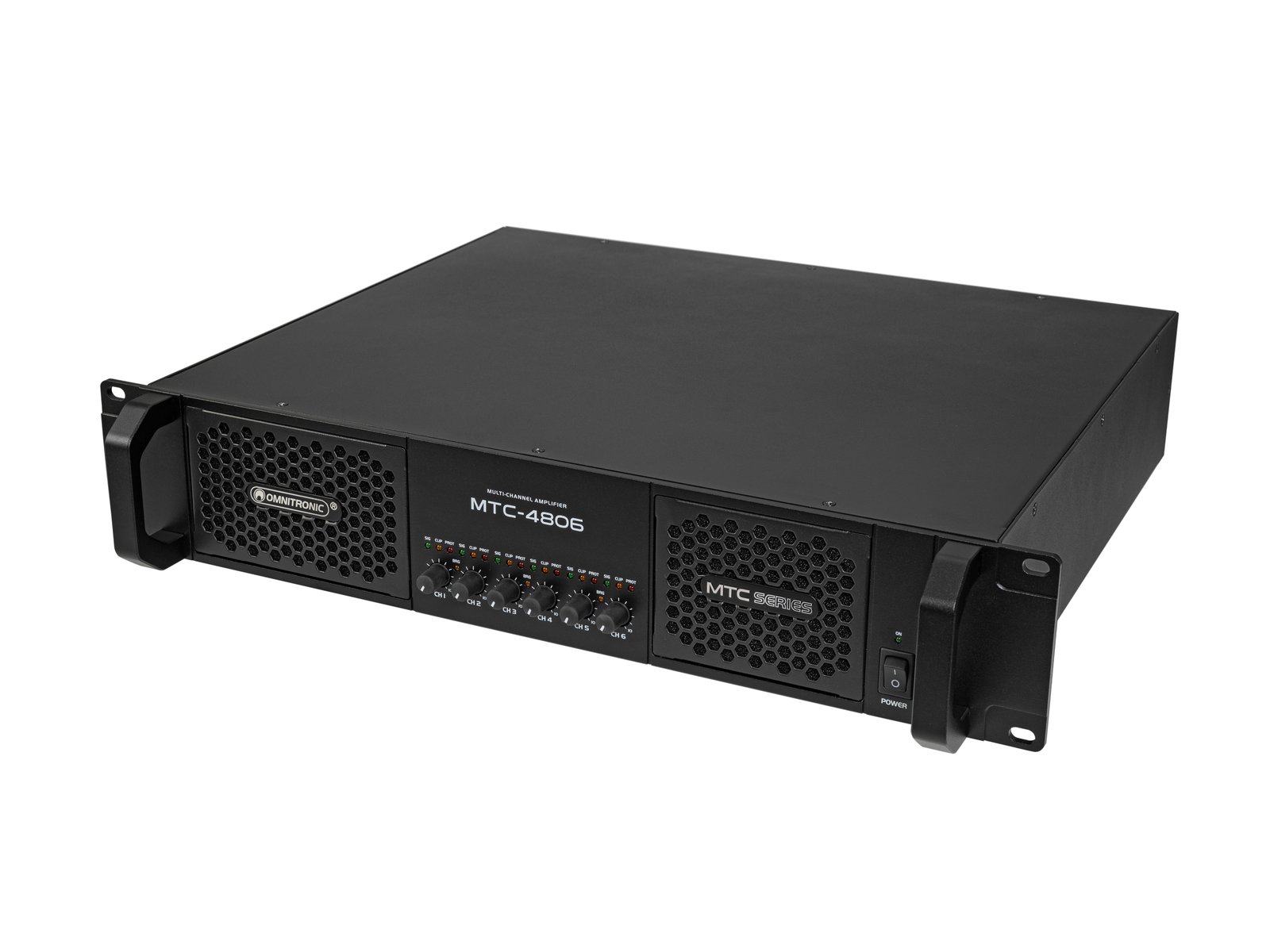

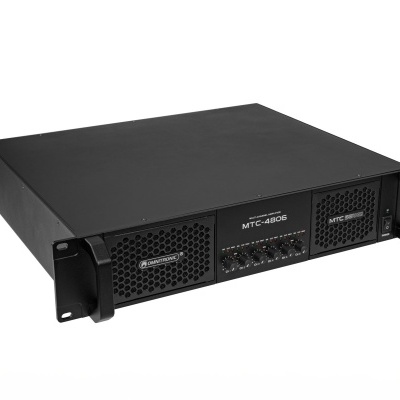

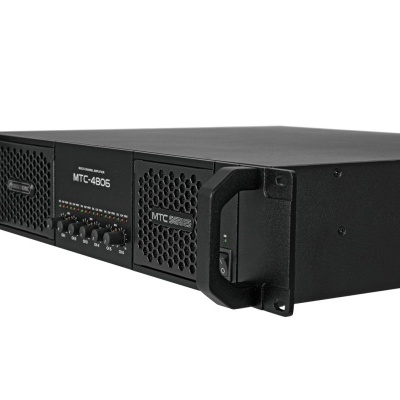

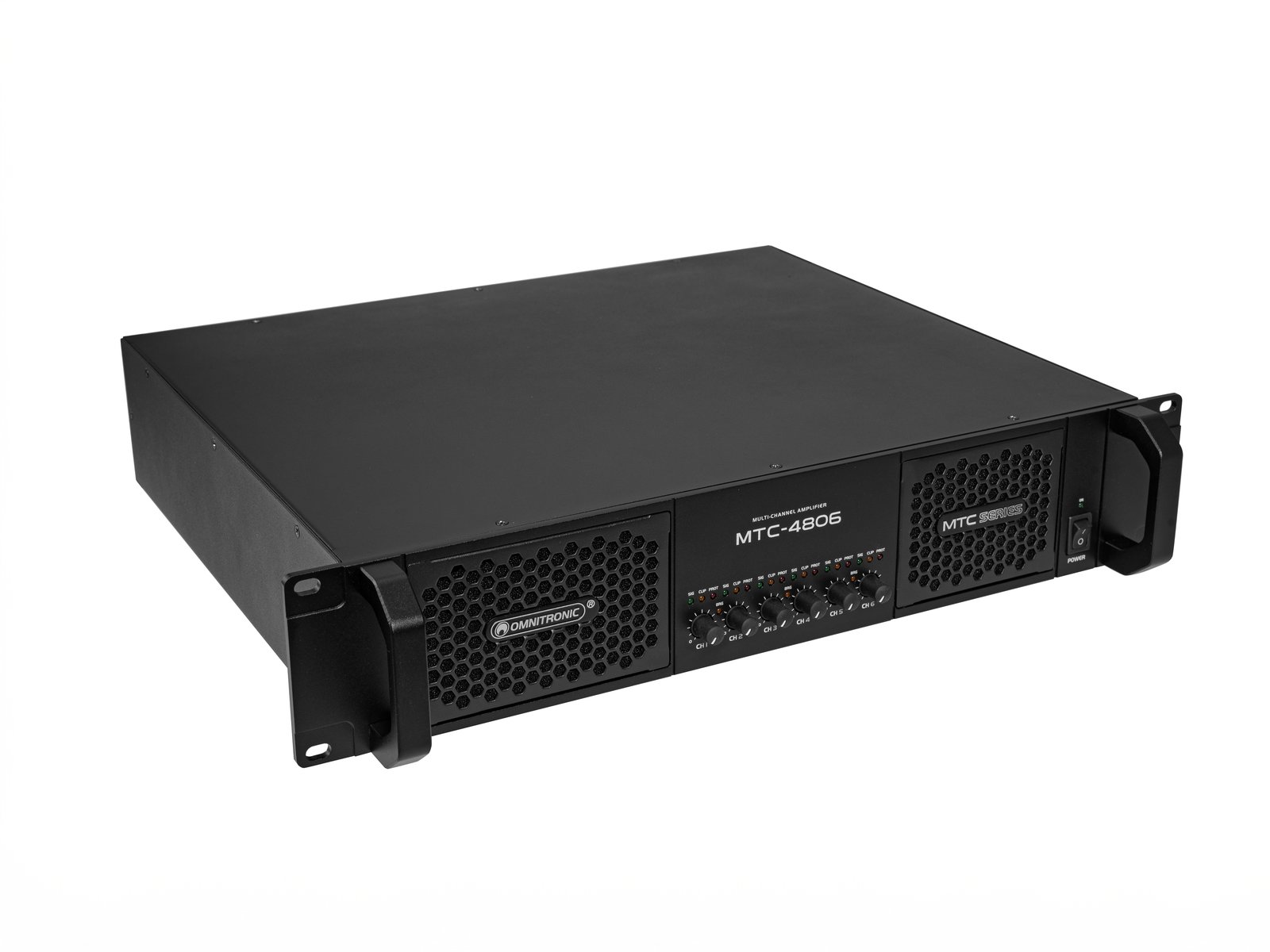

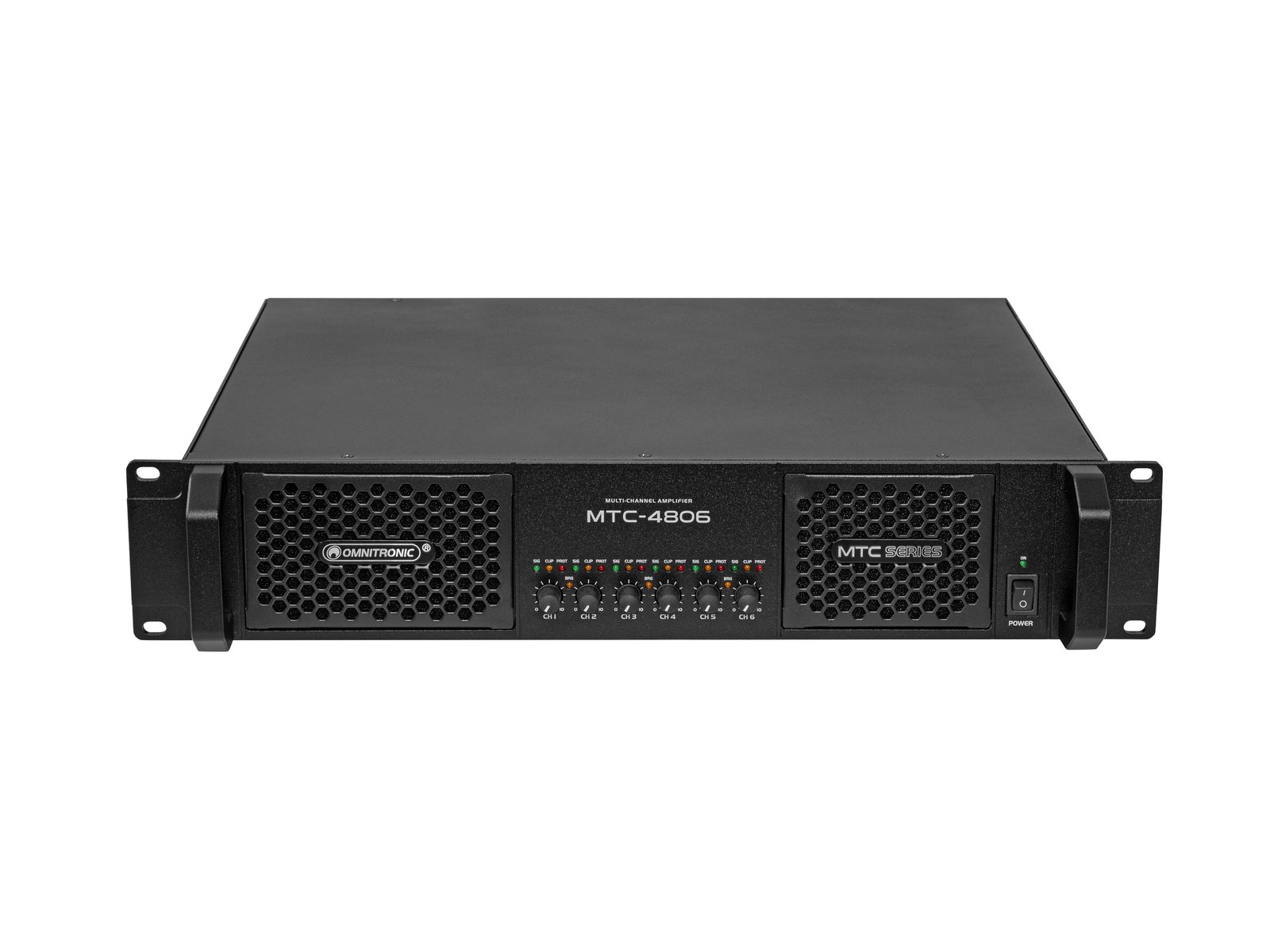

OMNITRONIC MTC-4806 6-Channel Amplifier
SKU: 10452433
Class D multi-channel PA amplifier with SMPS, 6 x 800 W RMS (4 ohms), 6 x 400 W RMS (8 ohms)
- Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Level control per channel
- (19") 48.3 cm rack installation 2 U
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 900 W 1/8 power |
| Protection class: | Protection class I |
| Output power: | 6 x 800 W RMS (4 ohms) 6 x 400 W RMS (8 ohms) Bridged (8 ohms) 3 x 1500 W RMS 6 x 200 W RMS (100 V) 3 x 1500 W RMS bridged (100 V) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 1 m detachable |
| Device fuse: | 5 x 20 mm, T 10 A Fuse fix on board |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >119 dB |
| THD: | <0,05 % at 1 kHz |
| Cooling: | 2 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Gain: | 28,2 dB Bridged 34,2 dB |
| Housing color: | Black |
| Circuitry: | Class D |
| Damping factor: | 350 |

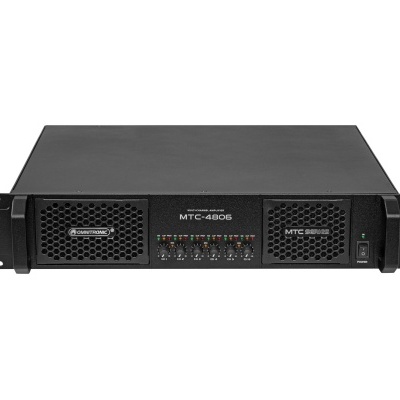

| Control elements: | Power switch, level control per channel, mode switch (stereo/bridged) |
| Controls: | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: | Power, signal, clip, bridged, protect |

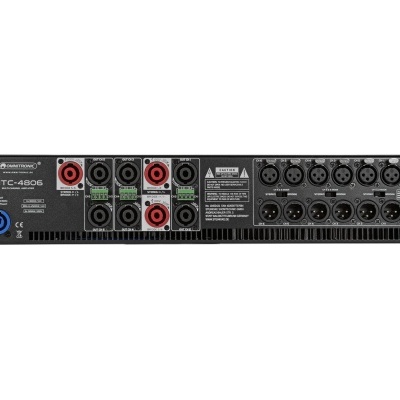

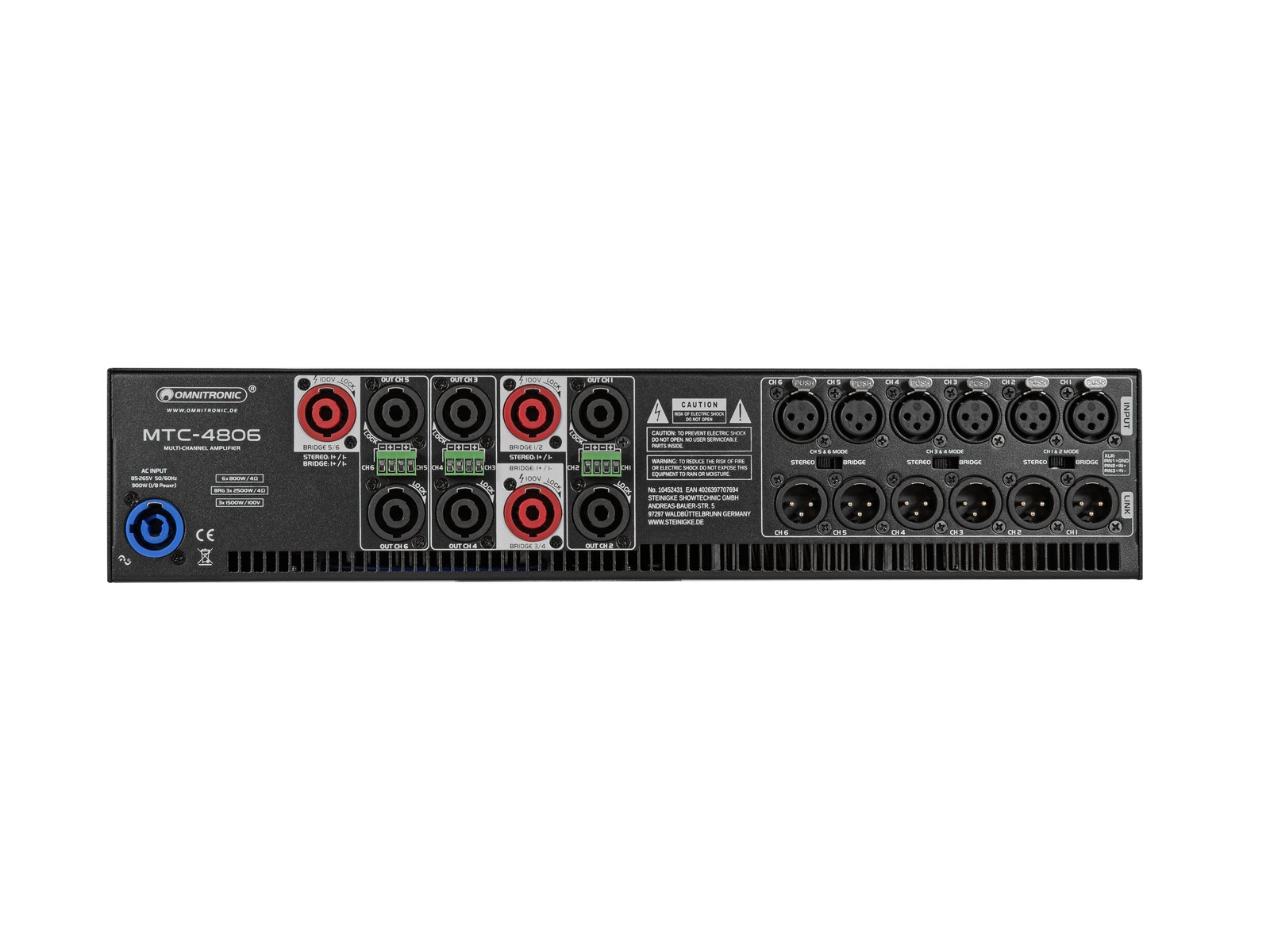

| Connections: | Input: line via 6 x 3-pin XLR Link: line via 6 x 3-pin XLR Output: speaker via 6 x screw plug-in terminal Output: 6 x speaker built-in socket (F) |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 40,8 cm Height: 8,8 cm |
| Weight: | 8,72 kg |
