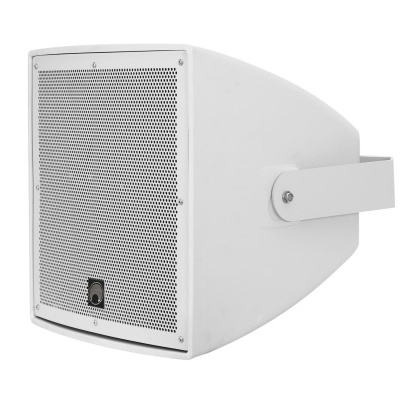

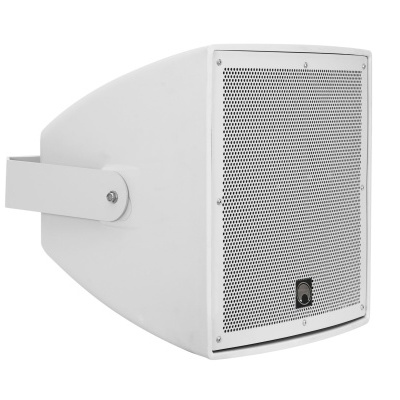

OMNITRONIC ODX-212T Installation Speaker 100V white
SKU: 11036964

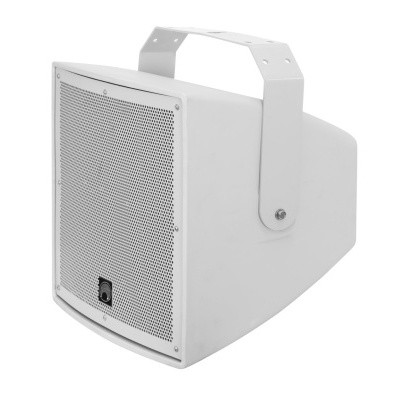

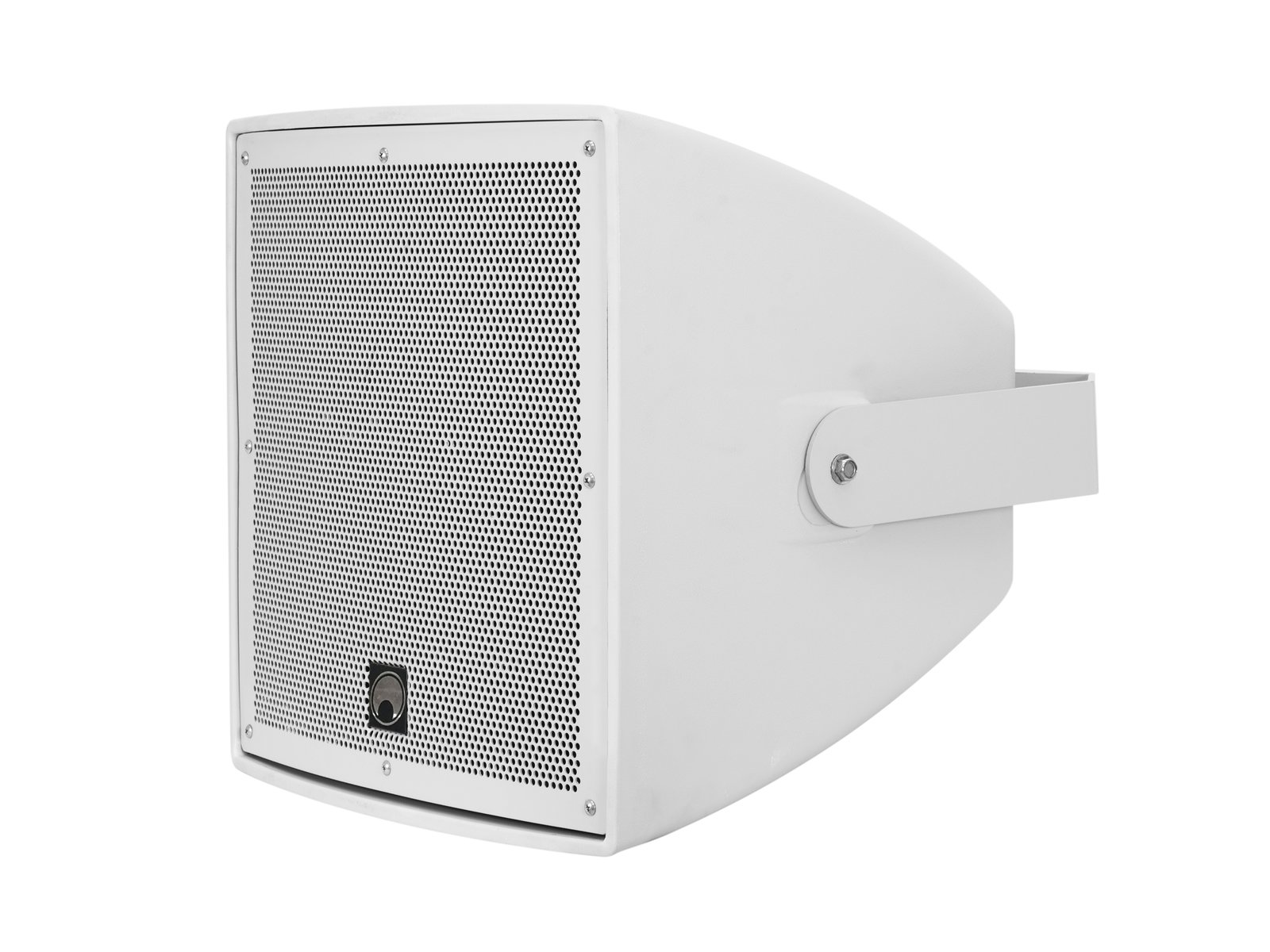

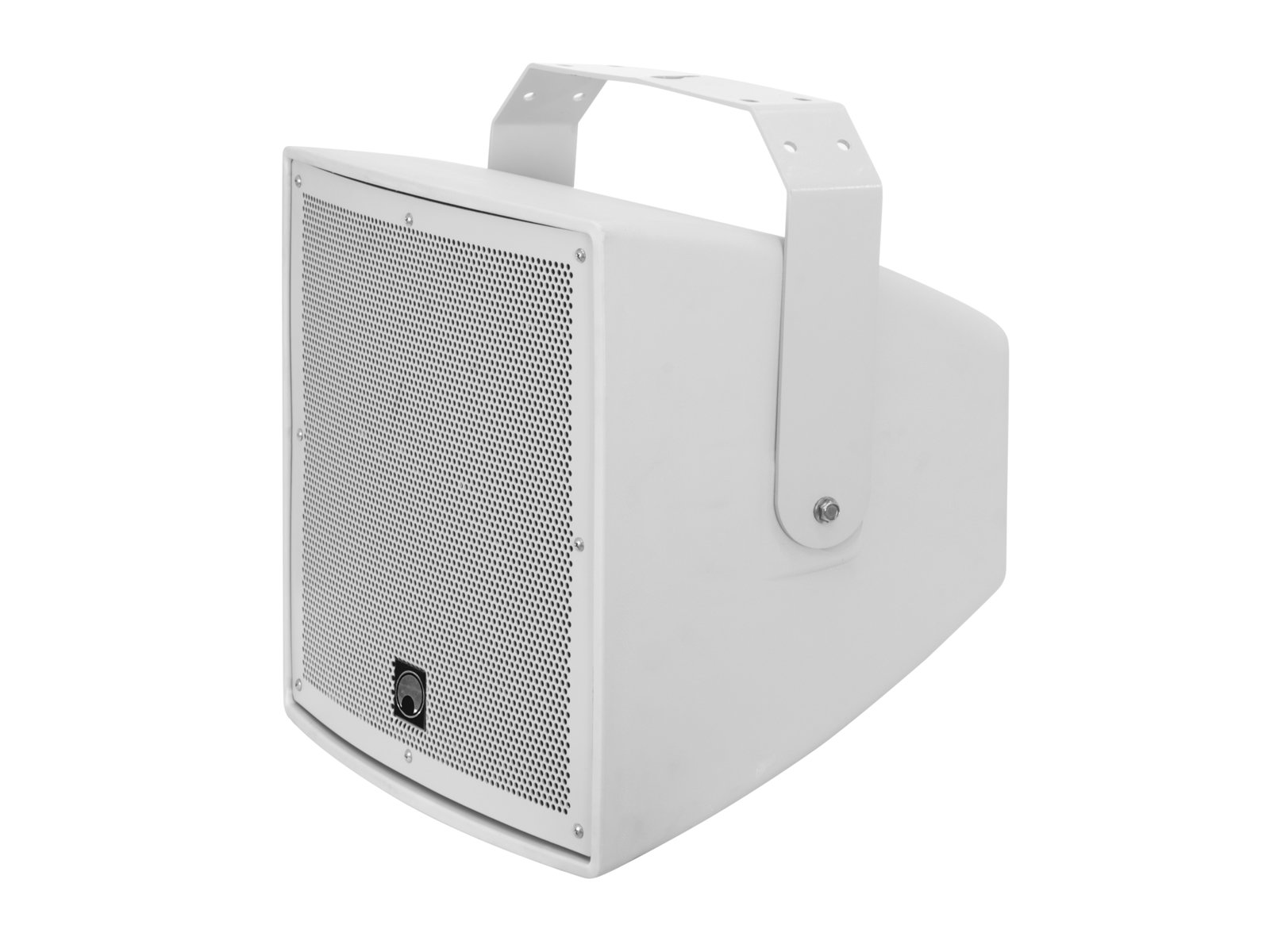

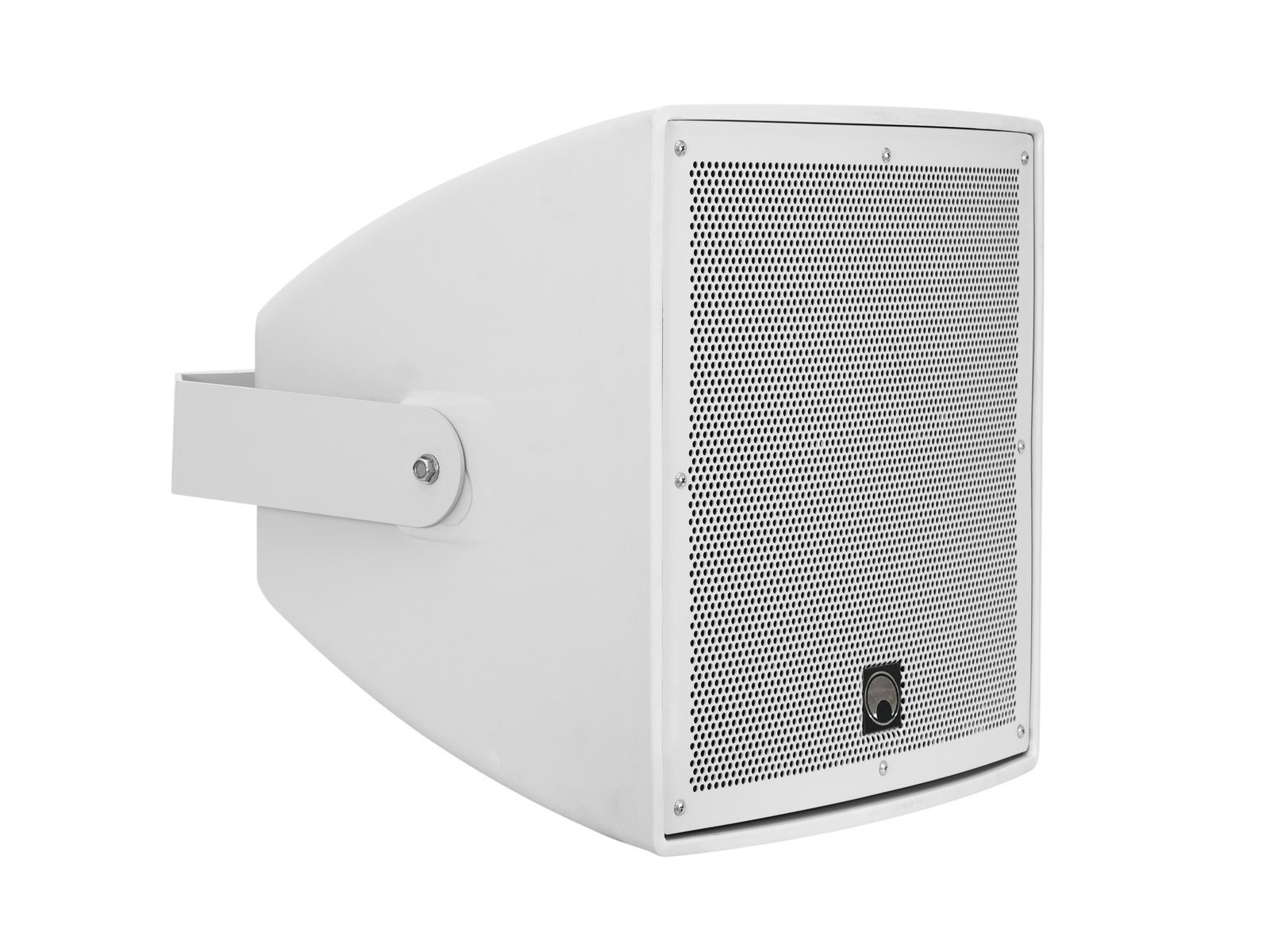

Weatherproof 12" wall speaker with mountThe ODX-212T 100 V sound reinforcement box by OMNITRONIC offers excellent sound and is ideally suited for outdoor use with its protection class IP56.The 2-way coaxial system is equipped with a 30 cm woofer and a 2.5 cm tweeter and a 100 V transformer with 3 power taps. In addition, the wall-mounted speaker has a power switch with an 8-ohm operating setting.The weatherproof, white plastic housing with the swivel mounting bracket can be mounted at variable angles.
Weather-proof 12" wall speaker with mount, 300 W RMS

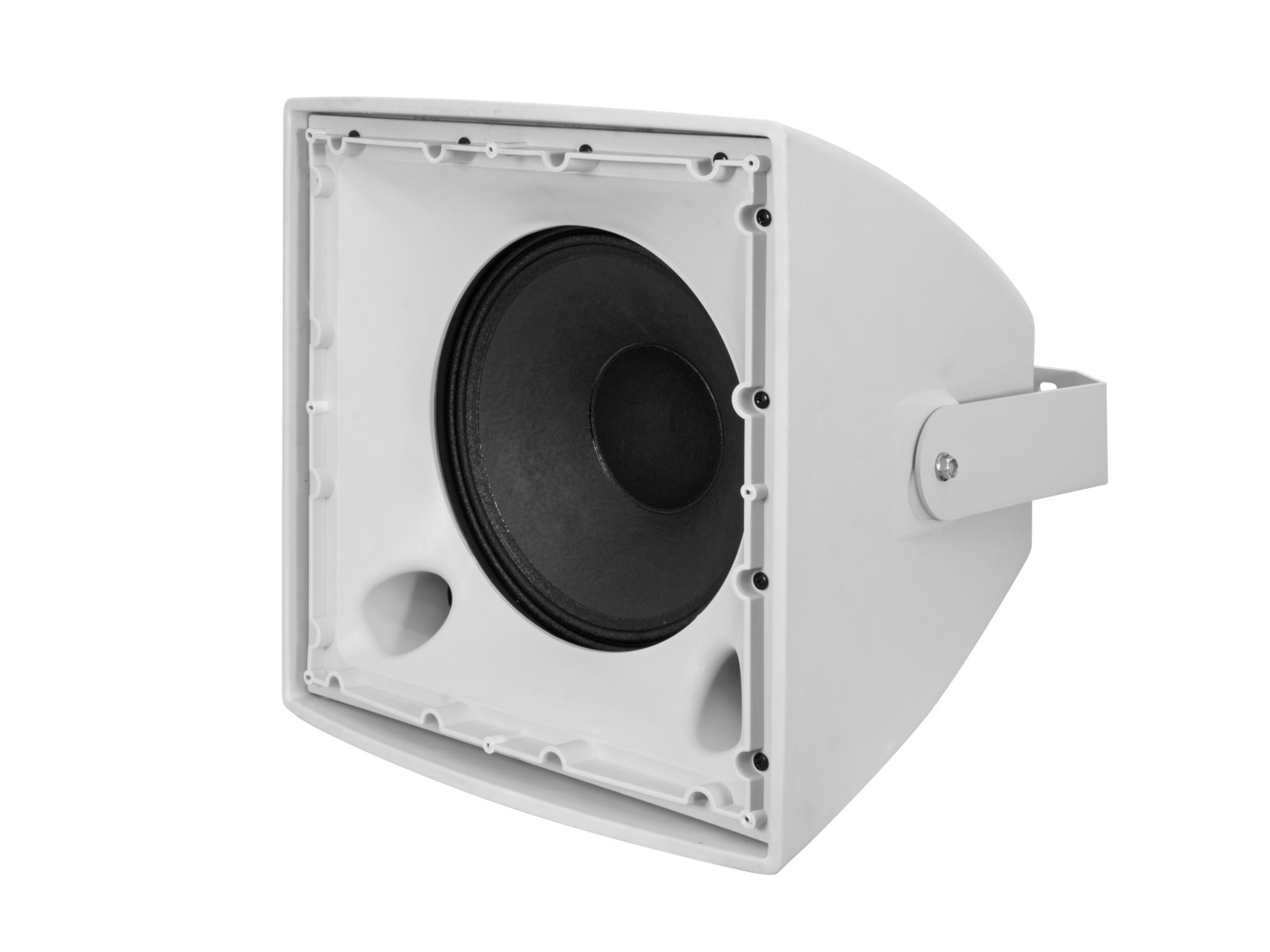

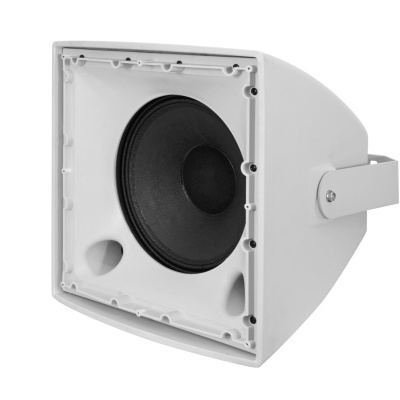

- 2-way coaxial system with 30 cm woofer (12") and 2.5 cm tweeter (1")
- Durable plastic cabinet with metal grille
- Power selector switch with 8 ohms operating position
- Screw terminals for parallel connection

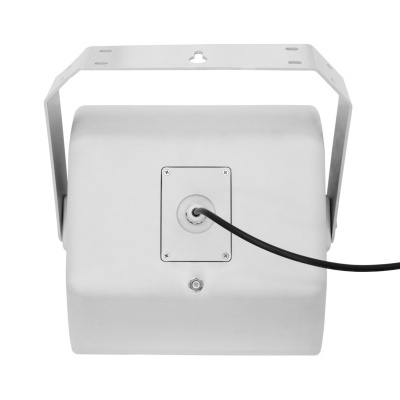

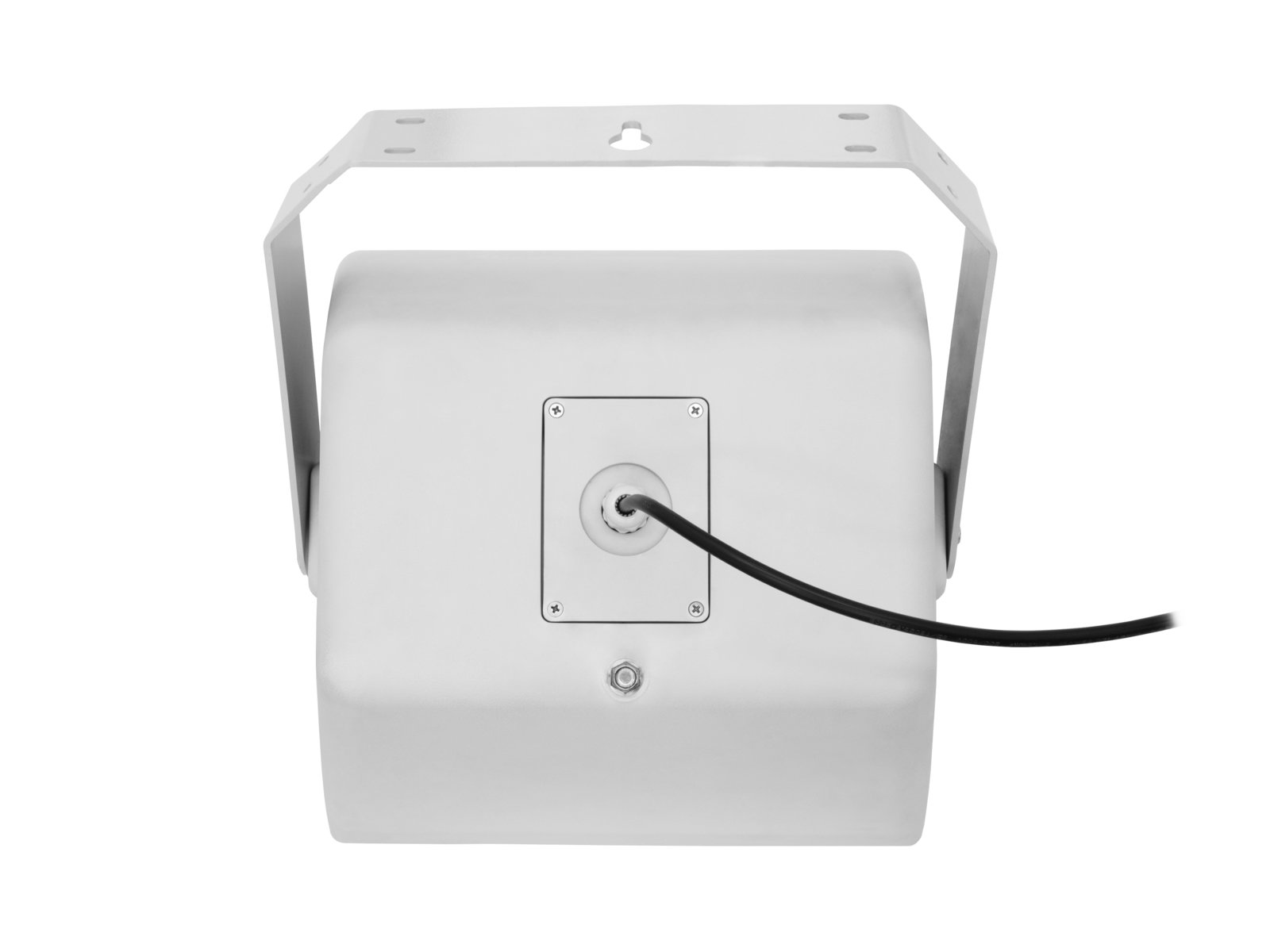

- With Mounting bracket
- Suitable for outdoor use IP56
Package contents
- 1 x top, 1 x mounting bracket, 1 x user manual, 6 x screw, 1 x safety eyelet, 1 x lid, 8 x washer
| IP classification: | IP56 |
| Power: | Program: 600W Rated: 300W RMS |
| Frequency range: | 55 - 18000 Hz |
| Sensitivity: | 98 dB (1W/1m) |
| Max. SPL: | 122 dB |
| Dispersion angle: | 80° x 80° |
| Impedance: | 8 ohms; Public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 50W; 100W; 200W RMS via Selector switch switchable |
| Connections: | Input: speaker via screw terminal |
| Crossover frequency: | 2200 Hz |
| Speaker: | 1 x woofer (12") approx. 30 cm 1 x Calottes highs (1") approx. 2.5 cm |
| Type of speaker: | On-ceiling/on-wall speaker |
| Color: | White |
| Dimensions: | Width: 45 cm Depth: 41,5 cm Height: 42 cm |
| Weight: | 19,95 kg |
