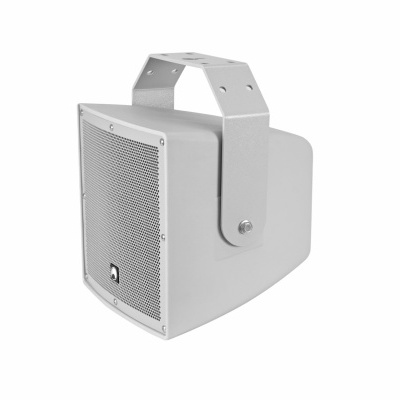

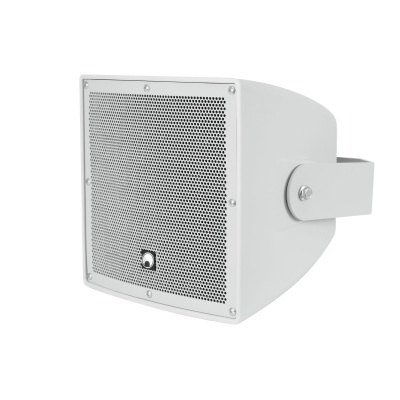

OMNITRONIC ODX-206T Installation Speaker 100V white
OMNITRONIC ODX-206T Installation Speaker 100V white
SKU: 11036972
Weather-proof 6.5" wall speaker with mount, 100 W RMS
2-way coaxial system
Durable plastic cabinet with metal grille
Power selector switch with 8 ohms operating position
Screw terminals for parallel connection
With Mounting bracket
Suitable for outdoor use IP56
White metal grille
Package contents
1 x user manual, 1 x top, 1 x mounting bracket, 5 x screw, 1 x safety eyelet, 1 x lid, 2 x washer, 1 x screwing, 1 x screw plug-in terminal
IP classification:
IP56
Power:
Rated: 100W RMS (8 ohms) Program: 200W (8 ohms)
Frequency range:
100 - 18000 Hz
Sensitivity:
93 dB (1W/1m)
Max. SPL:
116 dB
Dispersion angle:
100° x 100° conical
Impedance:
8 ohms; Public address systems 100V
Attachment system:
Mounting bracket
Power tapping:
25W; 50W; 100W RMS via Selector switch switchable

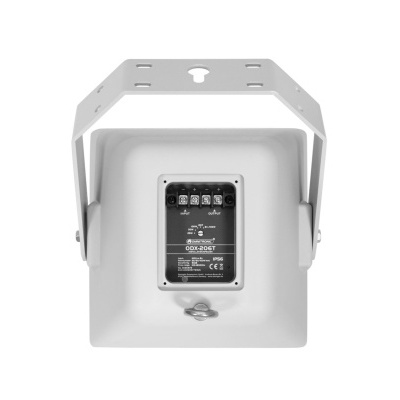

Connections:
Screw terminal
Crossover frequency:
2800 Hz
Speaker:
1 x woofer (6.5") approx. 17 cm with ferrit magnet Voice coil lows (1.4") approx. 3.6 cm 1 x compression tweeter highs (0,8") ca. 2 cm Voice coil compression tweeter highs (1") approx. 2.5 cm
