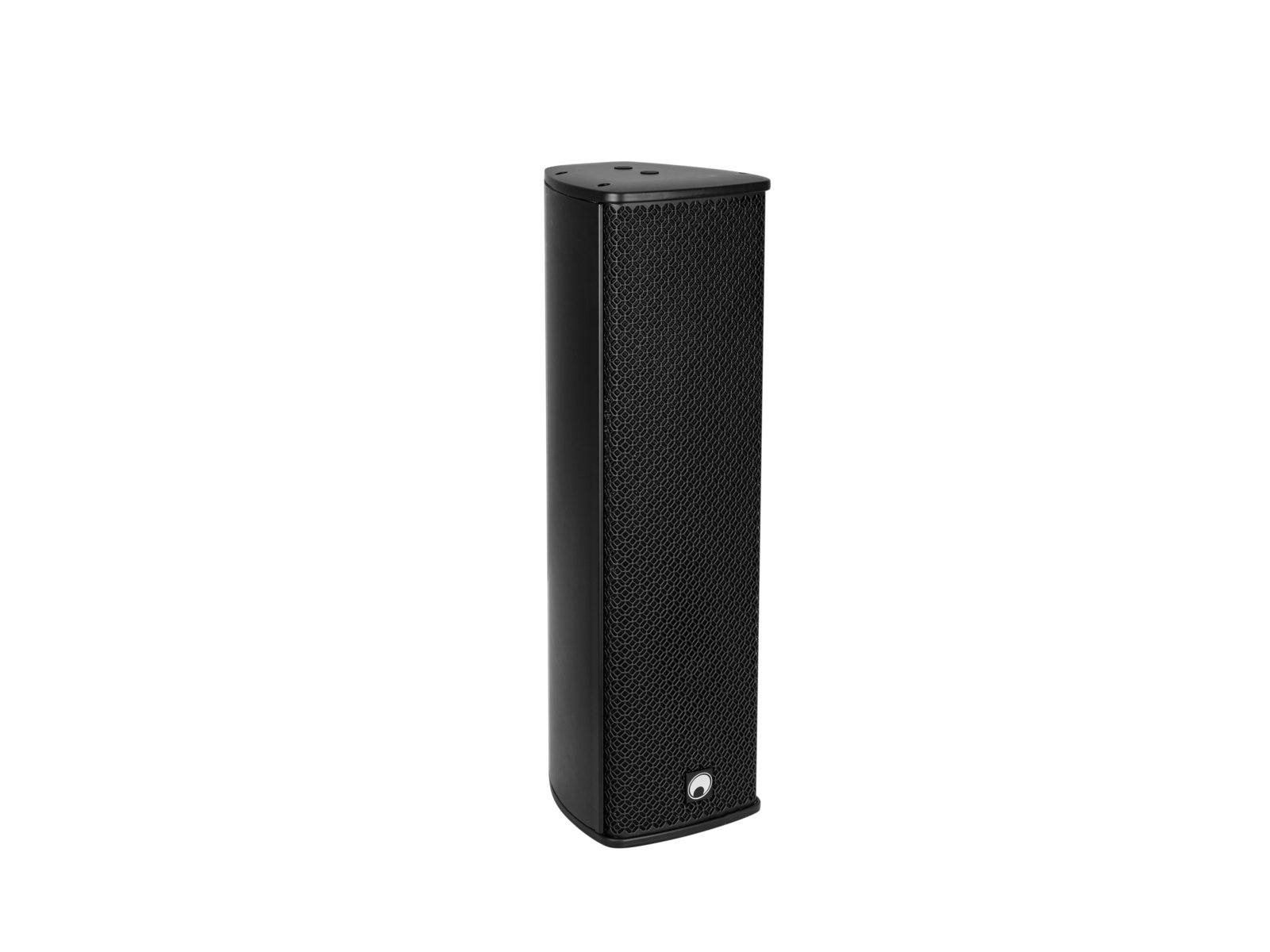

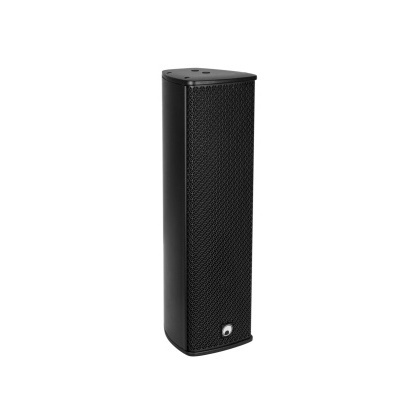

OMNITRONIC ODC-224T Outdoor Column Speaker black
SKU: 11036975
Weather-proof column speaker in aluminium cabinet (2 x 4"), with mount, 65 W RMS
- Intelligible voice and superior sound reproduction

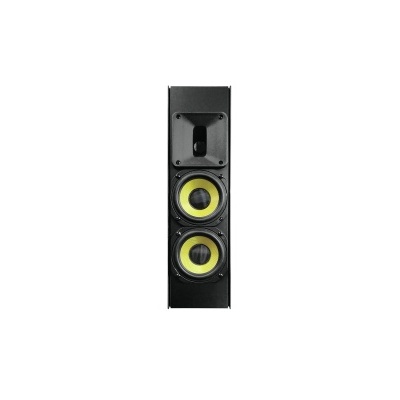

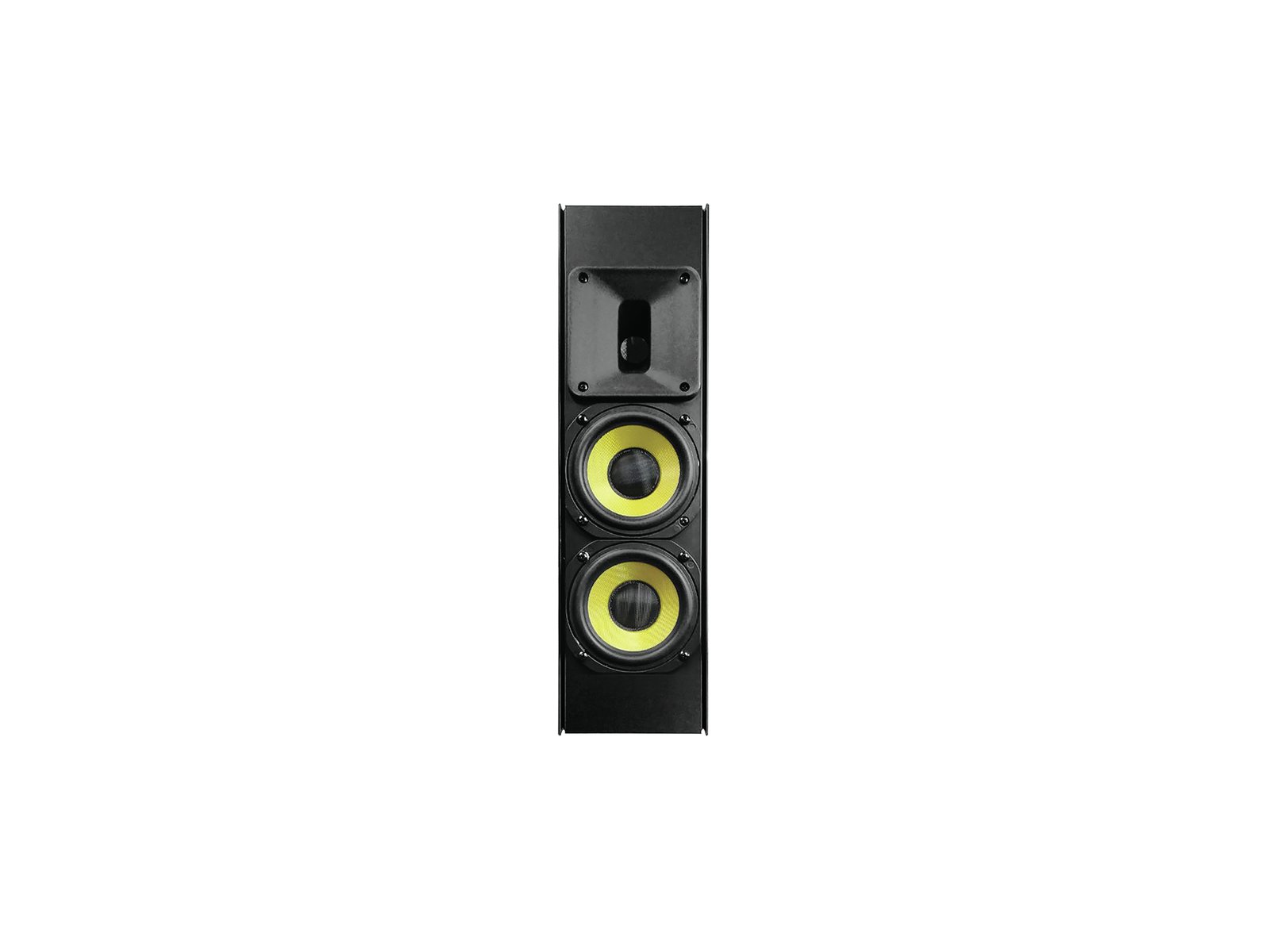

- 2-way system with 2 x 10 cm mid-woofer (4")
- Durable aluminum cabinet with grille

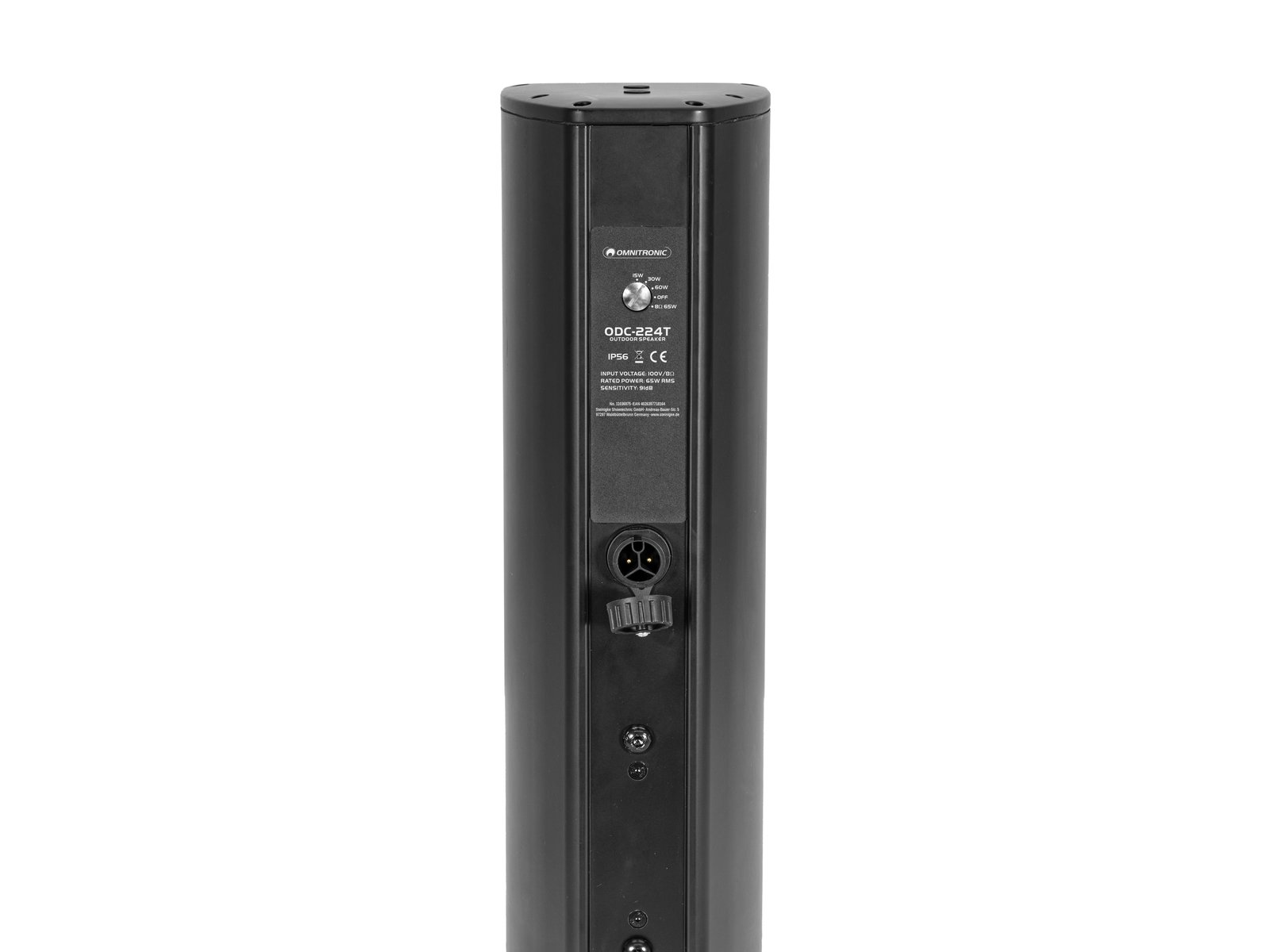

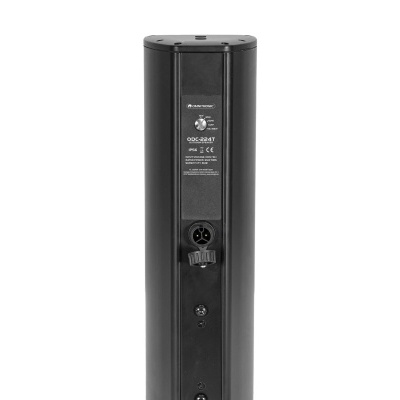

- Power selector switch with 8 ohms operating position
- With Mounting bracket
- Suitable for outdoor use IP56

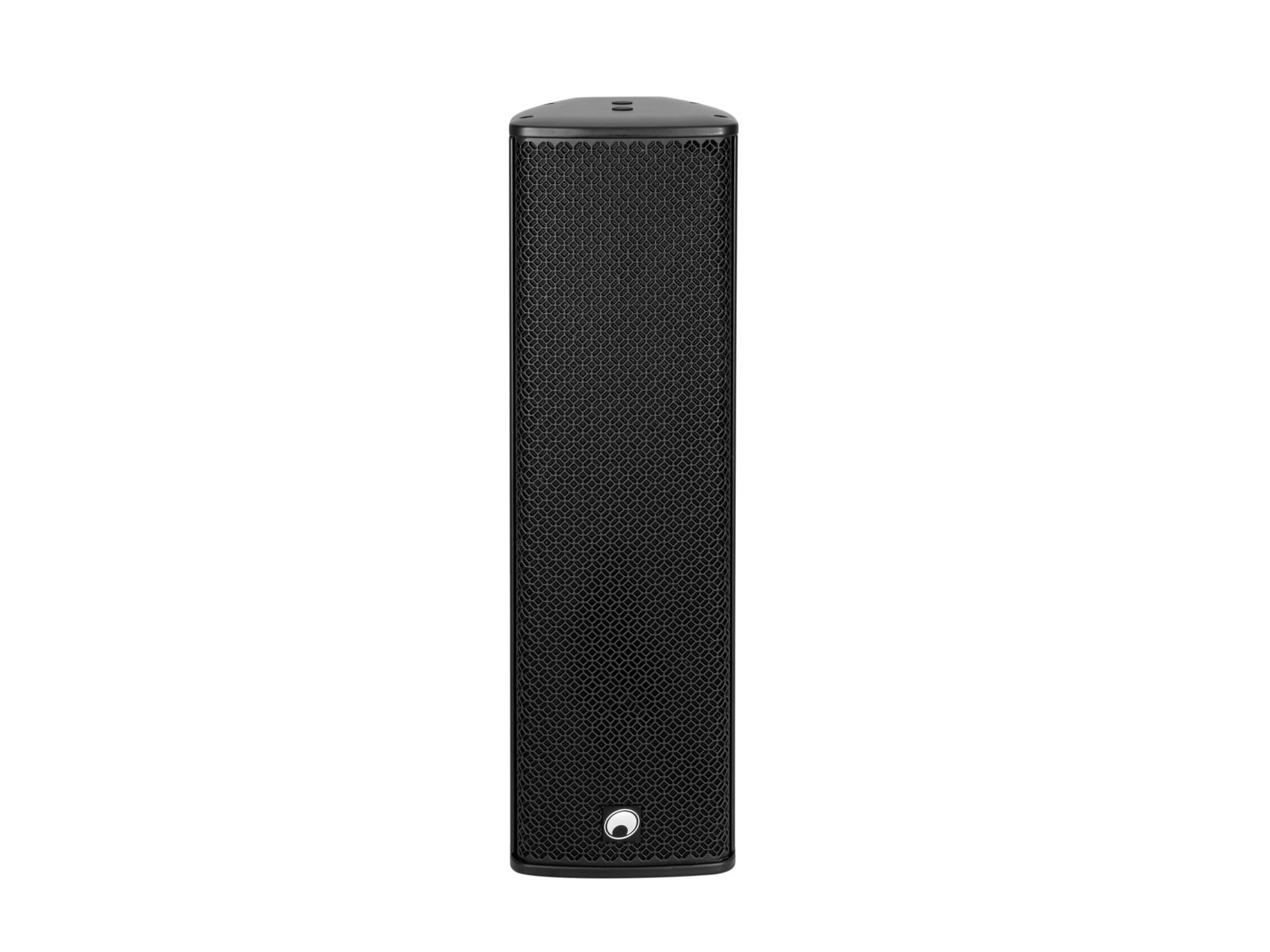

- Black aluminum grille with acoustic foam
- For application areas such as: Installation; Trade fair and shop fitting
- Application possibility: Wall mounting
Package contents
- 1 x top, 2 x angle, 1 x plug (male), 10 x washer, 4 x screw, 1 x user manual
| IP classification: | IP56 |
| Power: | Program: 130W Rated: 65W RMS (8 ohms) Rated: 60W RMS (100V PA) |
| Frequency range: | 120 - 18000 Hz |
| Sensitivity: | 91 dB (1W/1m) |
| Max. SPL: | 115 dB |
| Dispersion angle: | 100° x 60° |
| Impedance: | 8 ohms; Public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 15W; 30W; 60W RMS via Selector switch switchable |

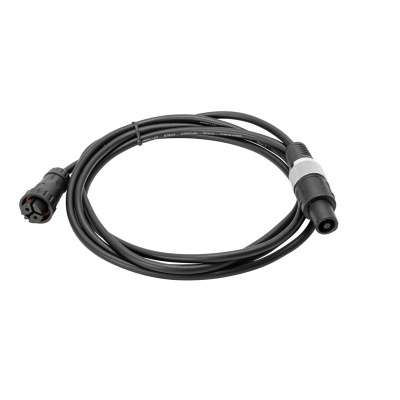

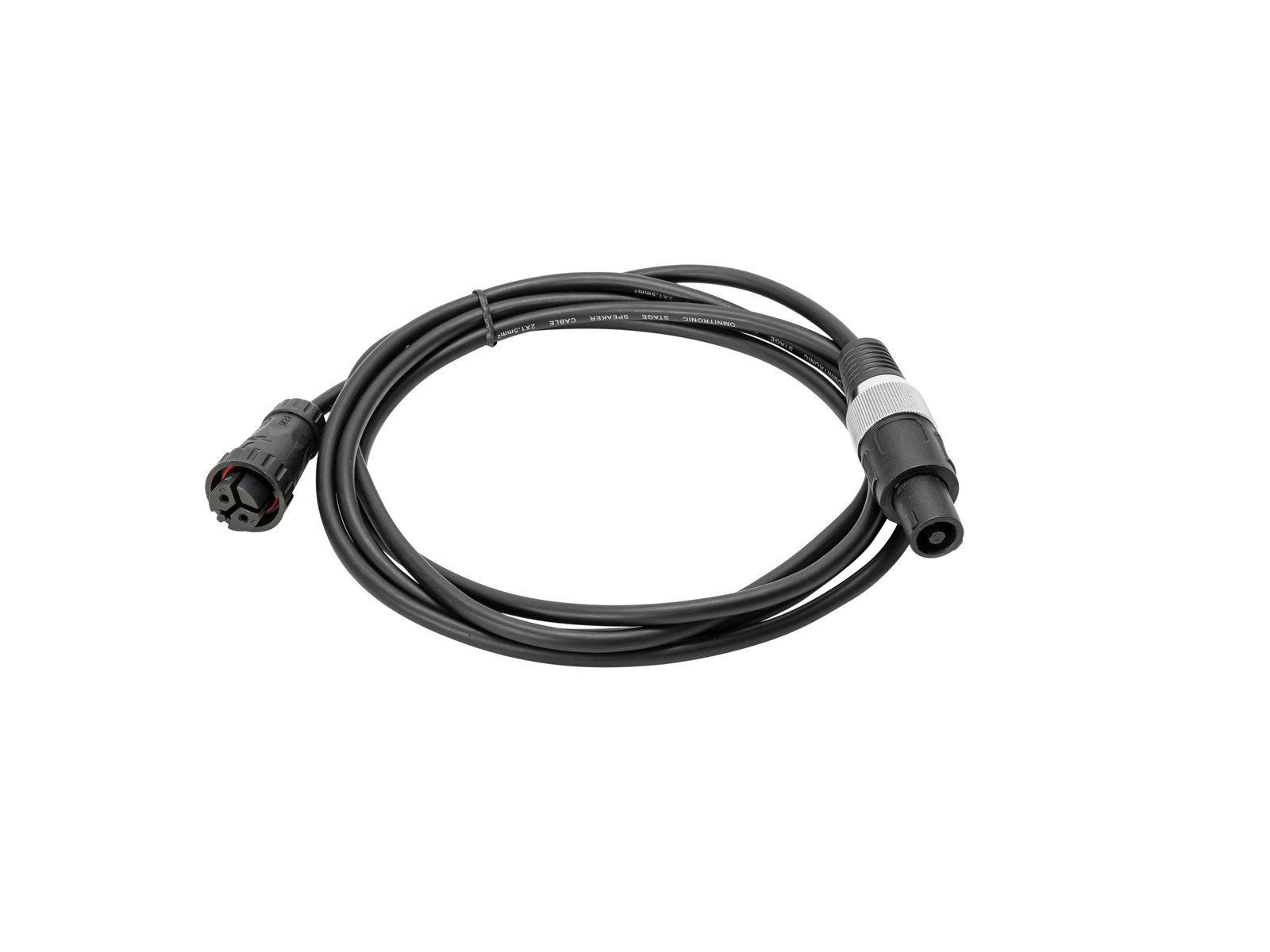

| Connections: | 2-pin screw plug connector (M) mounting version IP |
| Crossover frequency: | 1800 Hz |
| Speaker: | 2 x woofer (4") approx. 10 cm with ferrit magnet Basket material: aluminum Voice coil lows (1") approx. 2.5 cm Diaphragmmaterial: mylar 1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet Voice coil compression tweeter highs (1.4") approx. 3.6 cm |
| Type of speaker: | Column speaker |
| Type of construction: | Closed Box |
| Material: | Aluminum |
| Color: | Black |
| Dimensions: | Width: 12,7 cm Depth: 14,4 cm Height: 44,6 cm |
| Weight: | 7,40 kg |
