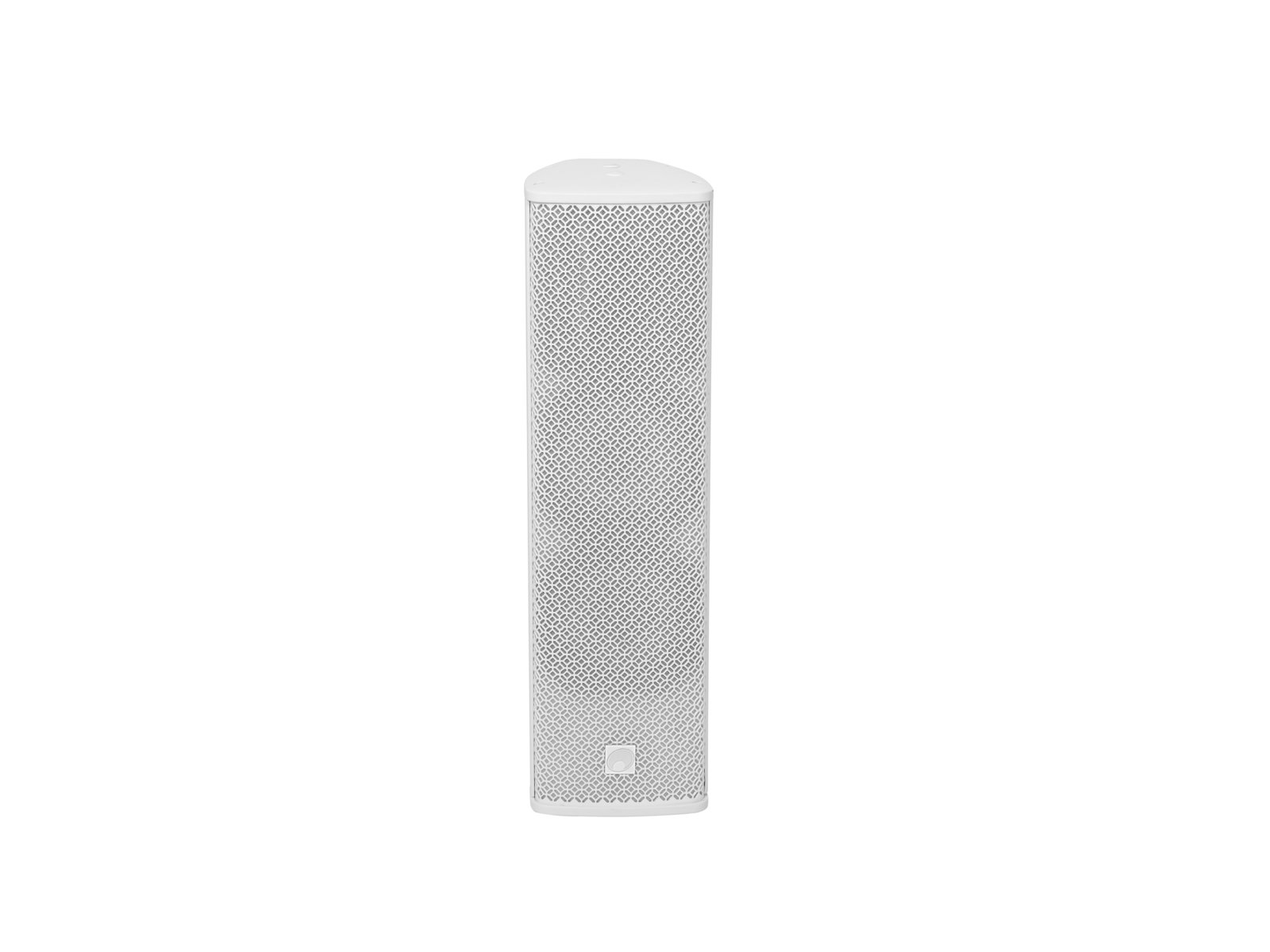

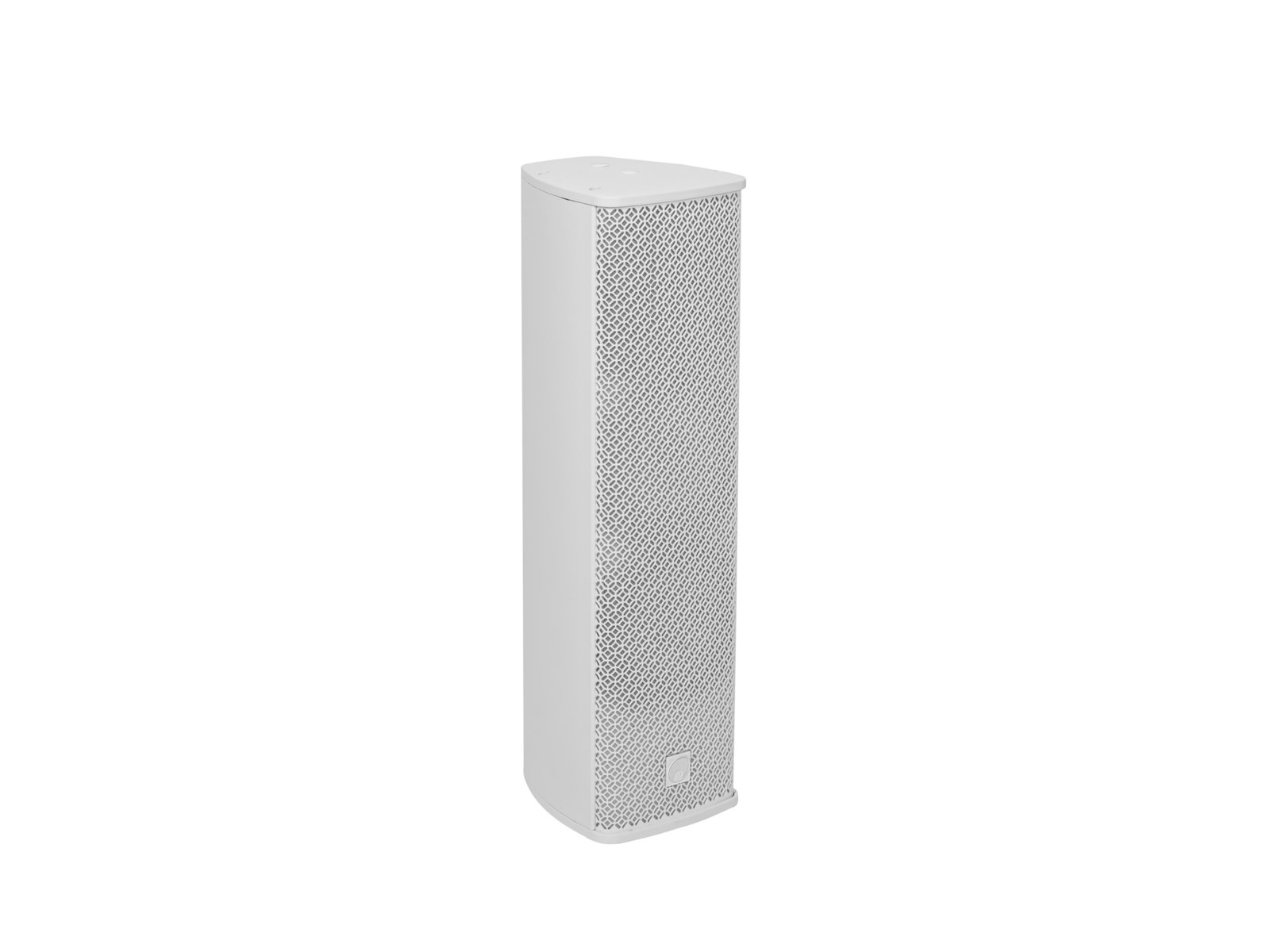

OMNITRONIC ODC-224T Outdoor Column Speaker white
OMNITRONIC ODC-224T Outdoor Column Speaker white
OMNITRONIC ODC-224T Outdoor Column Speaker white
OMNITRONIC ODC-224T Outdoor Column Speaker white
OMNITRONIC ODC-224T Outdoor Column Speaker white
OMNITRONIC ODC-224T Outdoor Column Speaker white

OMNITRONIC ODC-224T Outdoor Column Speaker white

SKU: 11036976



Weather-proof column speaker in aluminium cabinet (2 x 4"), with mount, 65 W RMS

  • Intelligible voice and superior sound reproduction
  • 2-way system with 2 x 10 cm mid-woofer (4")
  • Durable aluminum cabinet with grille
  • Power selector switch with 8 ohms operating position

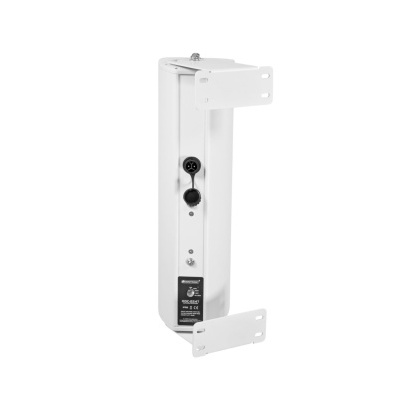

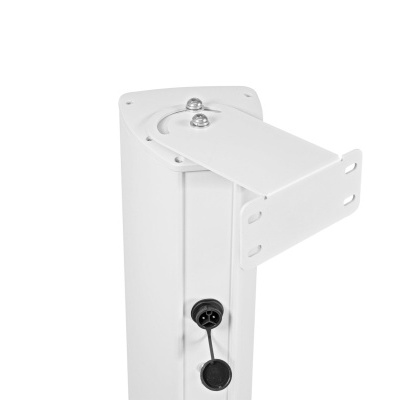

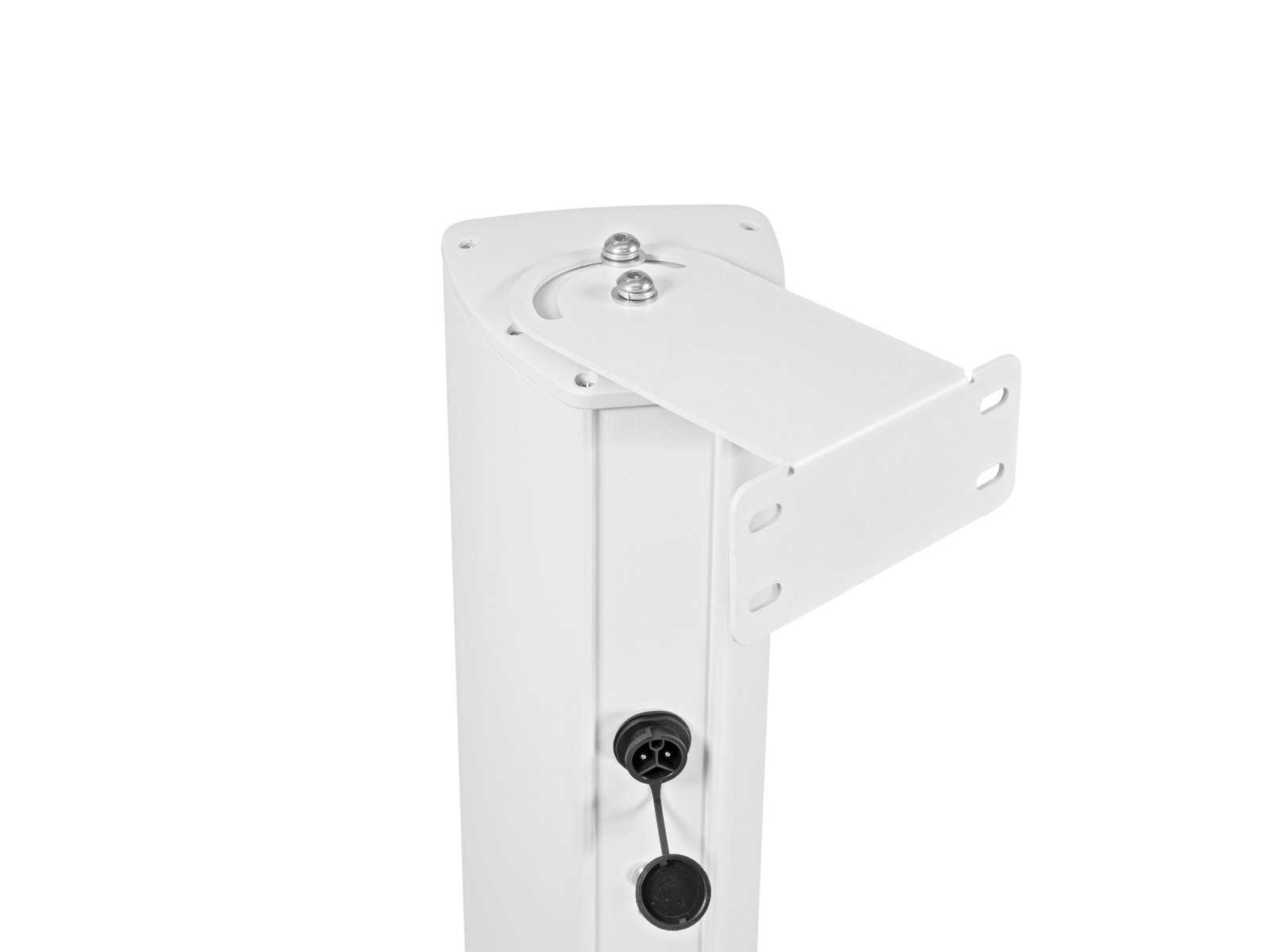

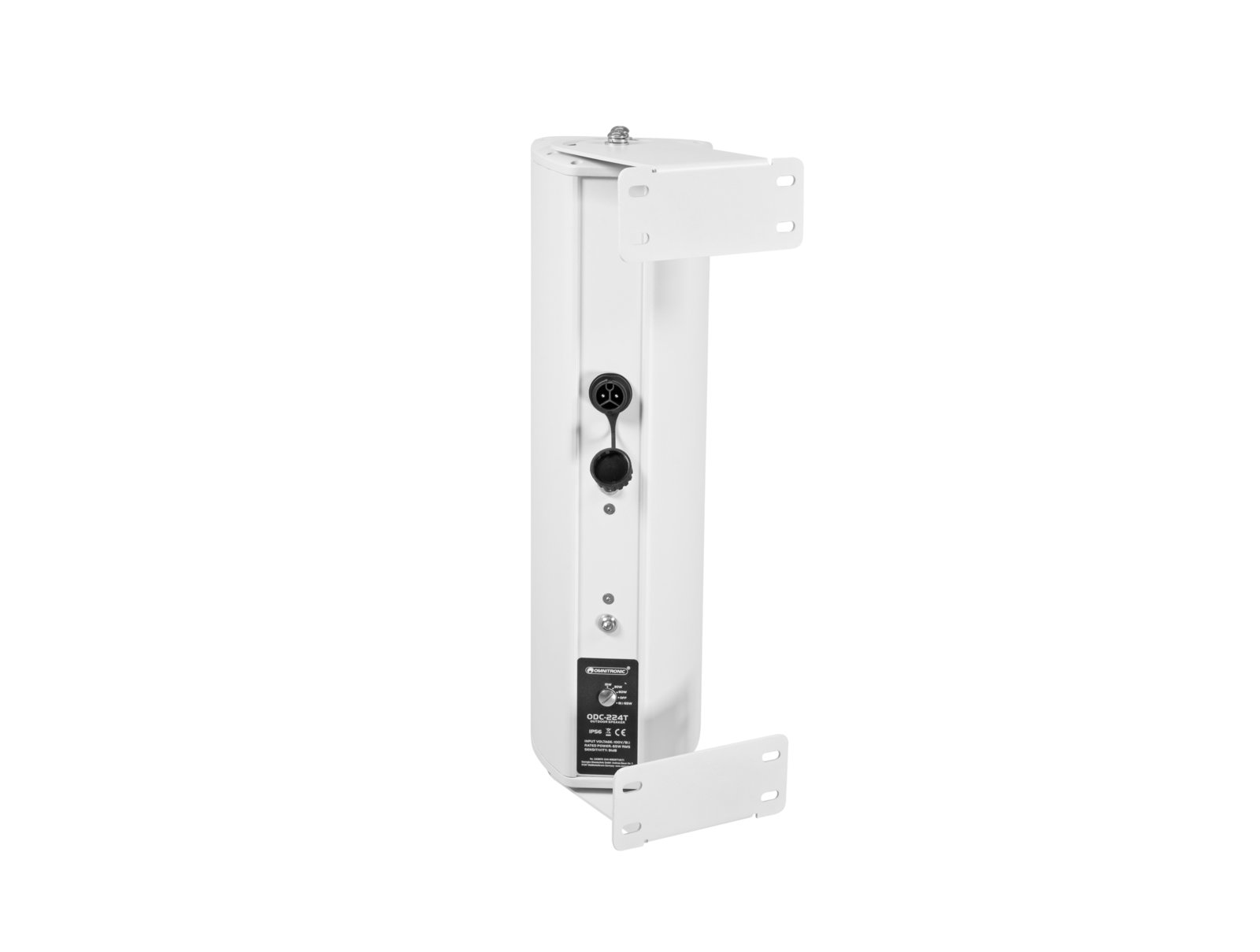

  • With Mounting bracket
  • Suitable for outdoor use IP56
  • White aluminum grille with acoustic foam
  • For application areas such as: Installation; Trade fair and shop fitting
  • Application possibility: Wall mounting

Package contents

  • 1 x top, 2 x angle, 1 x plug (male), 10 x washer, 4 x screw, 1 x user manual


IP classification:IP56
Power:Program: 130W
Rated: 65W RMS (8 ohms)
Rated: 60W RMS (100V PA)
Frequency range:120 - 18000 Hz
Sensitivity:91 dB (1W/1m)
Max. SPL:115 dB
Dispersion angle:100° x 60°
Impedance:8 ohms; Public address systems 100V
Attachment system:Mounting bracket
Power tapping:15W; 30W; 60W RMS via Selector switch switchable

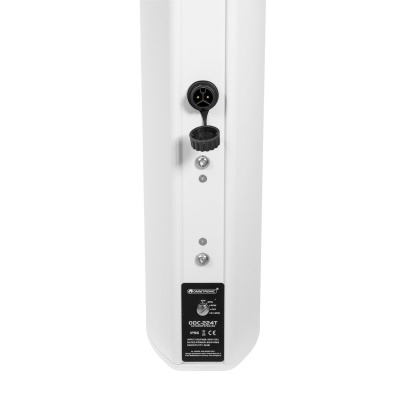

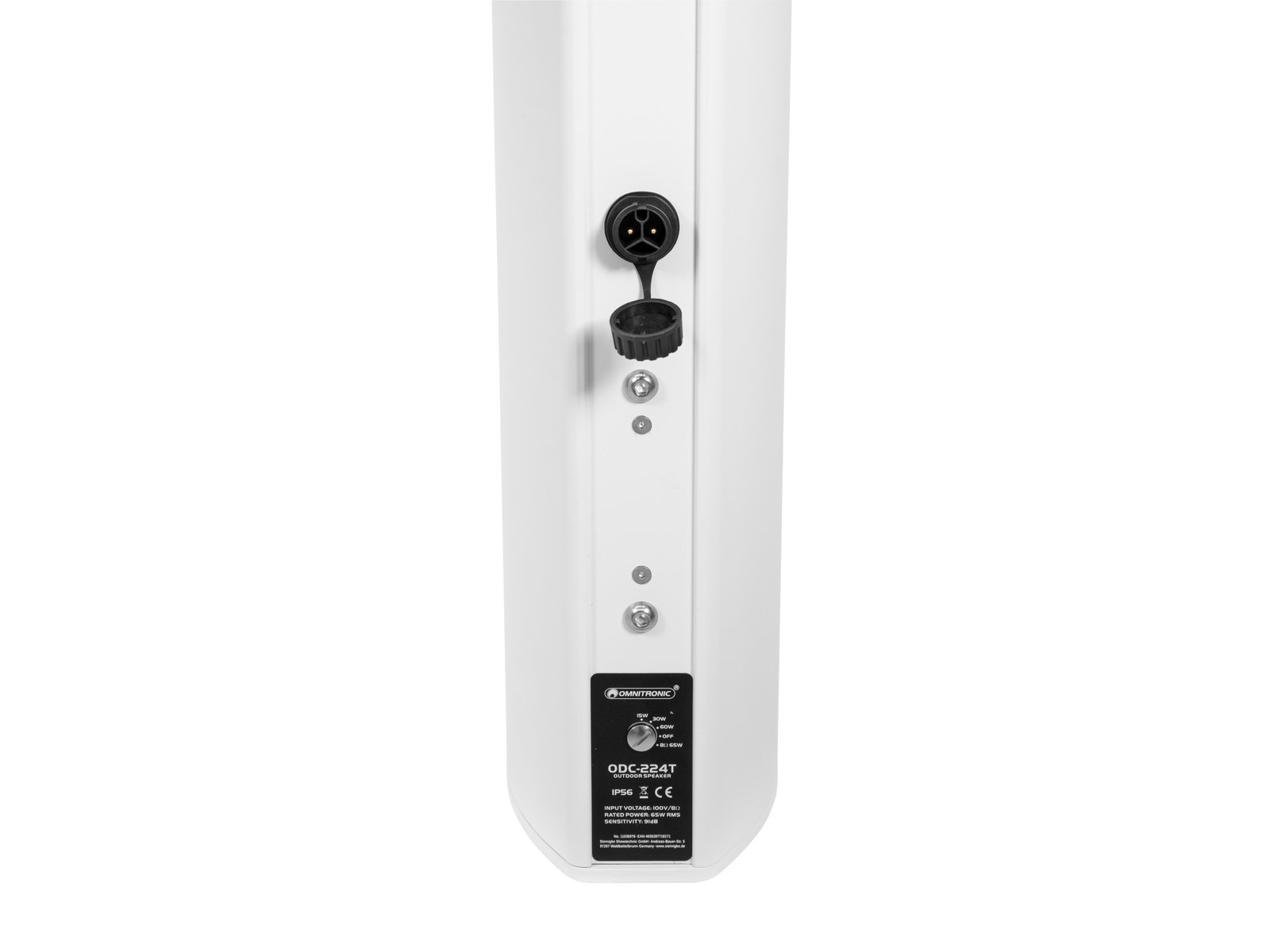

Connections:2-pin screw plug connector (M) mounting version IP
Crossover frequency:1800 Hz
Speaker:2 x woofer (4") approx. 10 cm with ferrit magnet
Basket material: aluminum
Voice coil lows (1") approx. 2.5 cm
Diaphragmmaterial: mylar
1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet
Voice coil compression tweeter highs (1.4") approx. 3.6 cm
Type of speaker:Column speaker
Type of construction:Closed Box
Material:Aluminum
Color:White
Dimensions:Width: 12,7 cm
Depth: 14,4 cm
Height: 44,6 cm
Weight:7,40 kg
