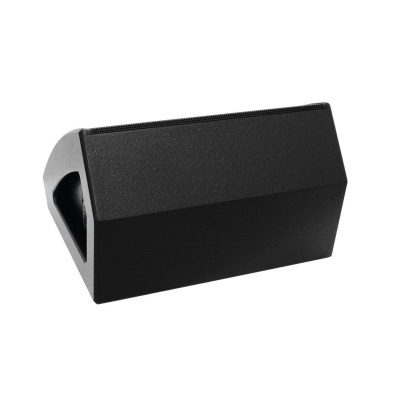

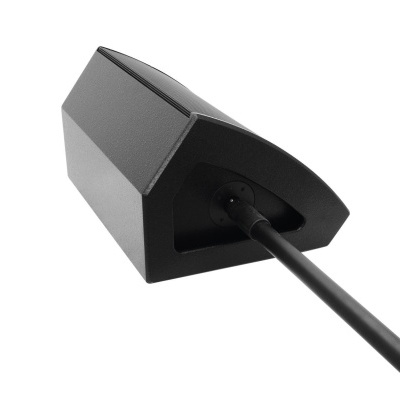

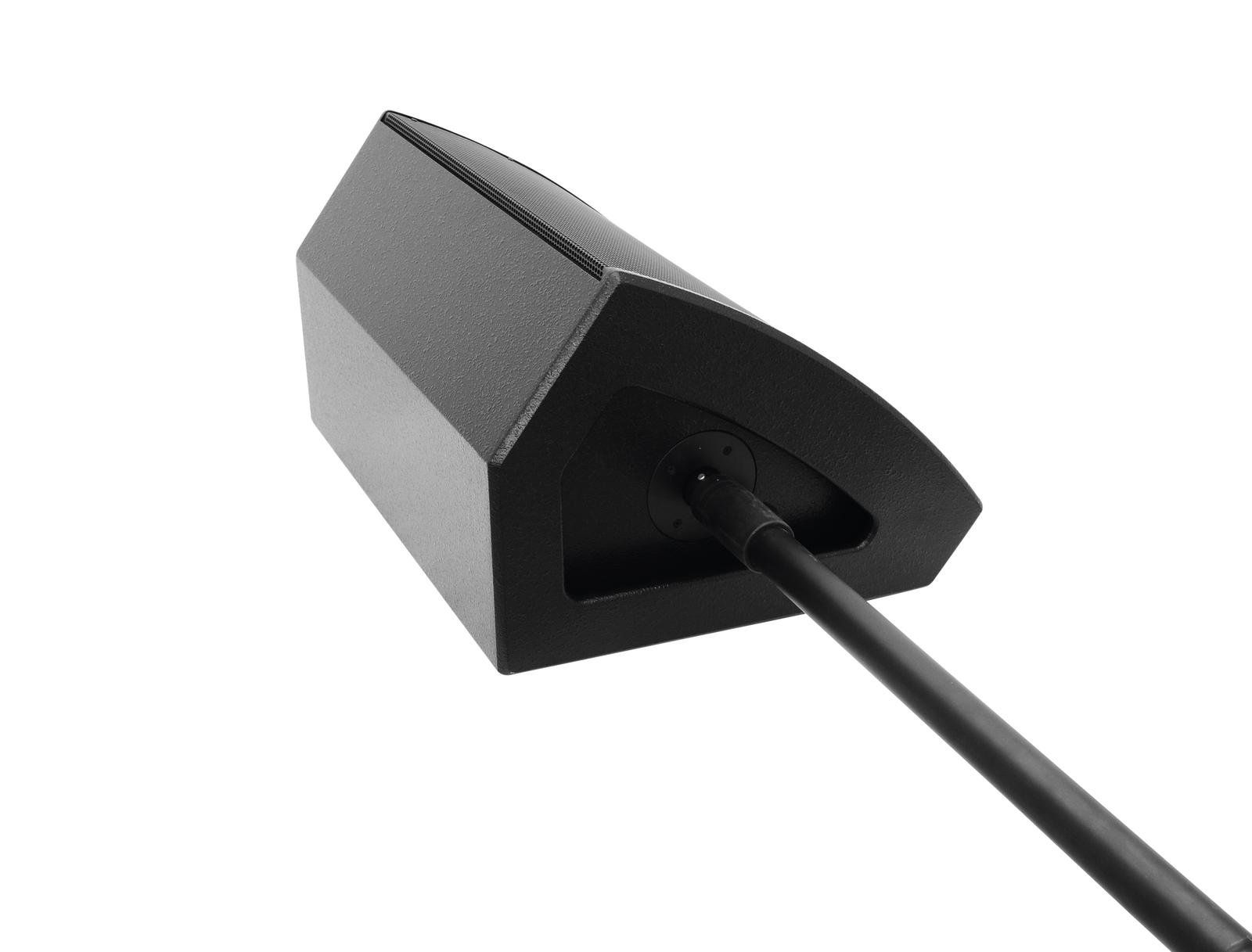

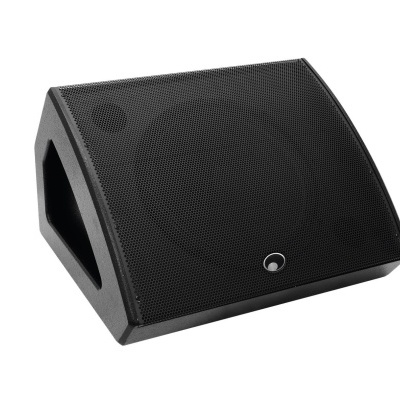

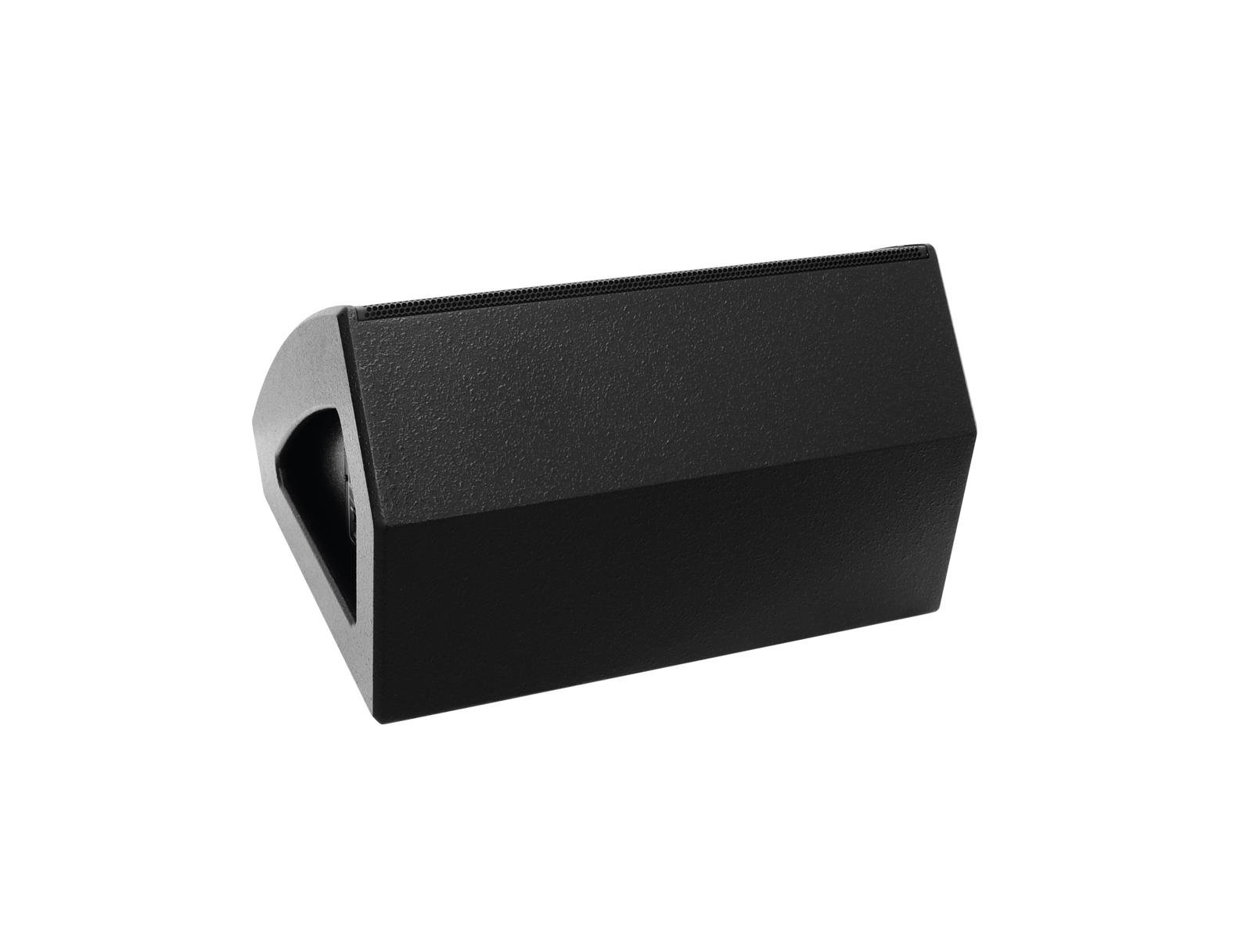

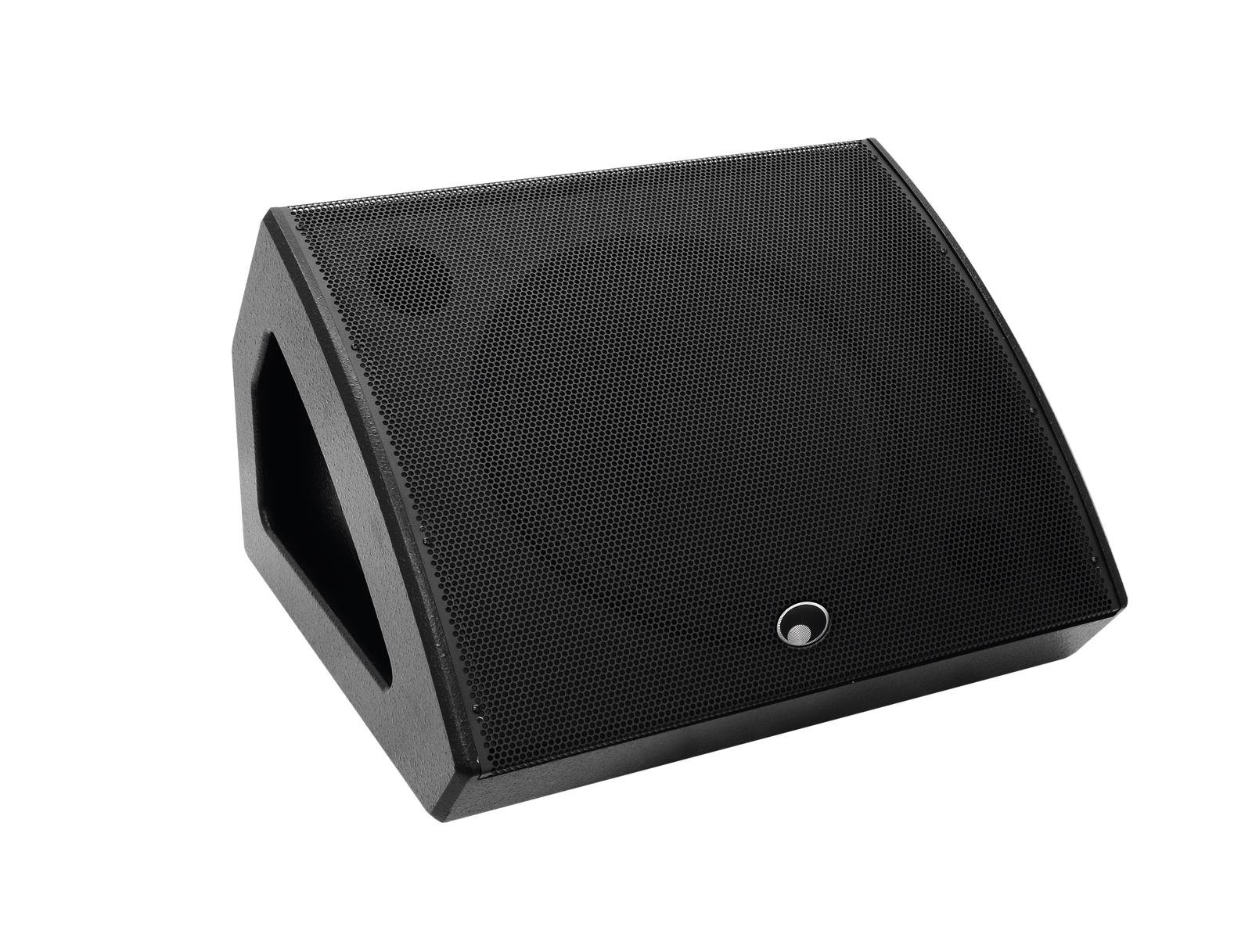

OMNITRONIC KM-115A Active Stage Monitor coaxial
OMNITRONIC KM-115A Active Stage Monitor coaxial
OMNITRONIC KM-115A Active Stage Monitor coaxial
OMNITRONIC KM-115A Active Stage Monitor coaxial
OMNITRONIC KM-115A Active Stage Monitor coaxial
OMNITRONIC KM-115A Active Stage Monitor coaxial

OMNITRONIC KM-115A Active Stage Monitor coaxial

SKU: 11038037

471,14 €
IVA included.
Contact

Add to wishlist



Monitor, 15" woofer, 1.35" driver, LF: 250 W RMS, HF: 50 W RMS

  • Active 2-way coaxial stage monitor for live and playback applications
  • Class D/AB biamp power amplifier
  • 38 cm bass speaker (15") and 3.5 cm compression driver (1.35")
  • Bassreflex cabinet provides deep bass and high SPL
  • Low cut, volume control
  • Black metal grille
  • Application possibility: Standing; monitoring; on tripod

Package contents

  • 1 x compact cabinet speaker, 1 x user manual, 1 x power cord


Power supply:115/230 V AC, 50/60 Hz
Power consumption:300 W
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:Program: 500W
Rated: 50W RMS HF
Rated: 250W RMS LF
Frequency range:45 - 20000 Hz
Max. SPL:124 dB
Dispersion angle:60° x 60°
Attachment system:Flange: Ø 35mm
Controls:Overload; limiter
Connections:Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR
Input channels:1 x mono via XLR or jack, channel control via Rotary dial
Speaker:1 x woofer (15") approx. 38 cm with ferrit magnet
1 x Voice coil compression tweeter highs (1.35") approx. 3.5 cm
Type of speaker:Compact cabinet speaker; Coaxial speaker; stage monitor
Material:MDF (Medium-density fiberboard)
Color:Black, textured coating, painted
Dimensions:Width: 60 cm
Depth: 37 cm
Height: 54 cm
Weight:22,90 kg
Brand Omnitronic
