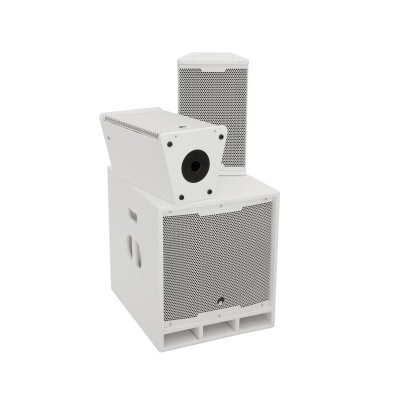

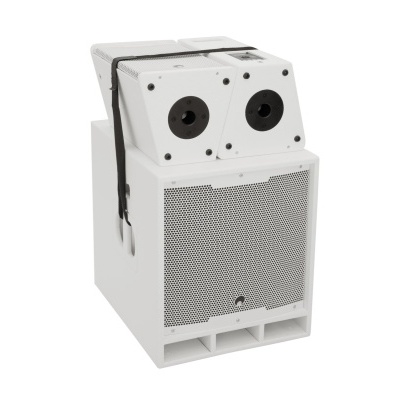

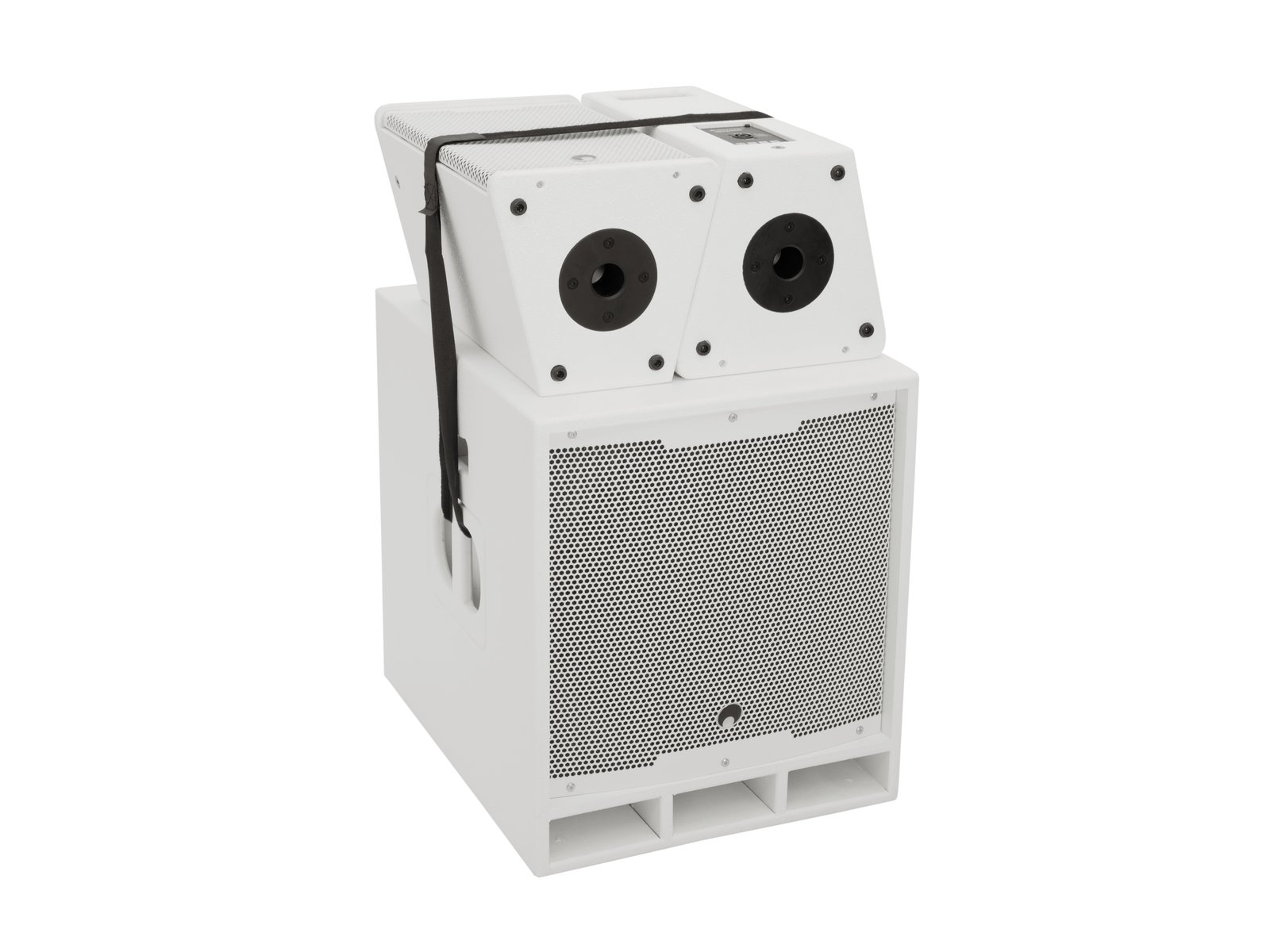

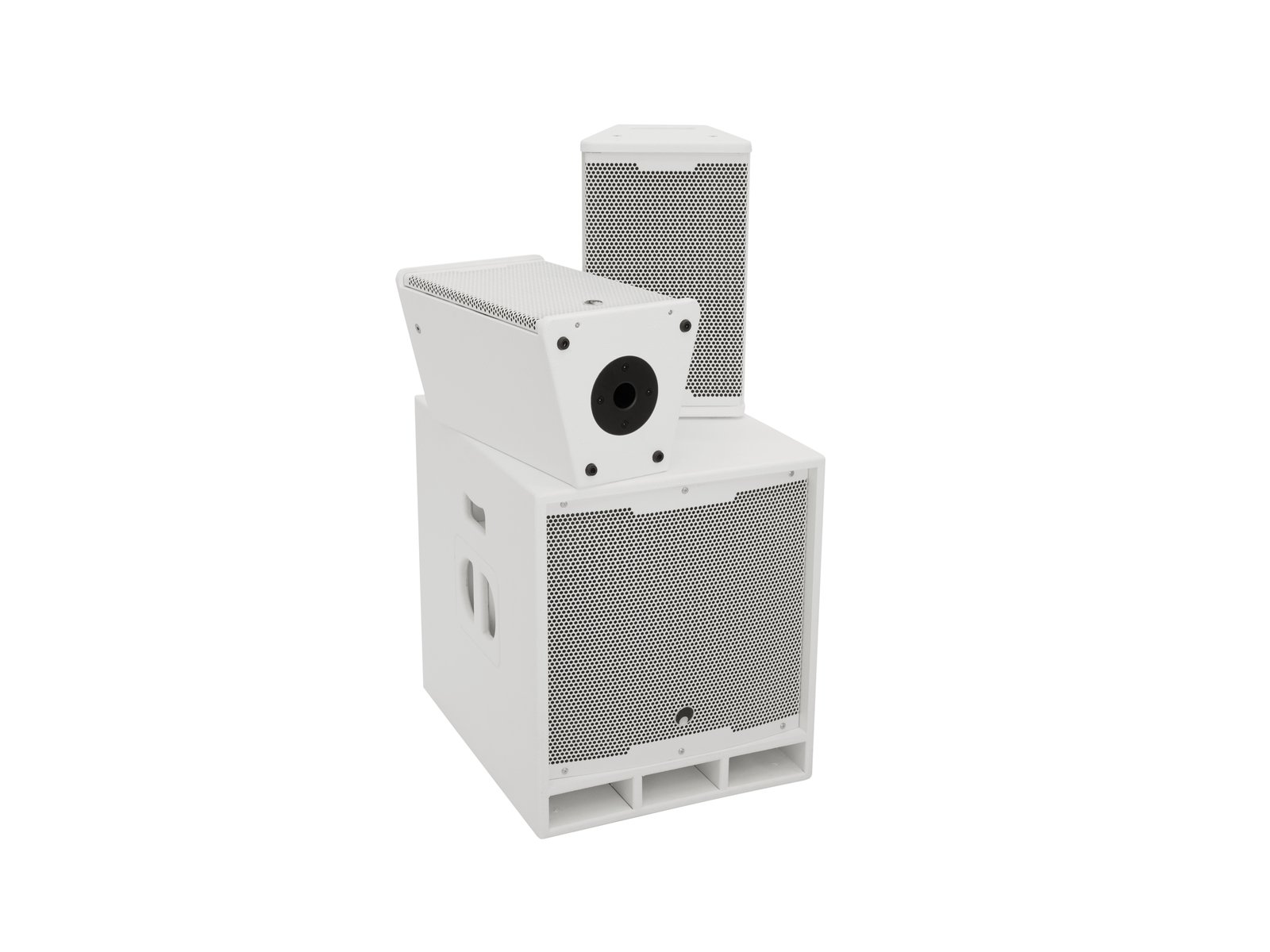

OMNITRONIC MAXX-1508DSP 2.1 Active System white
SKU: 11038846
Powerful active PA system with DSP, Bluetooth, 700 W (15" sub, 8" tops)
- For application areas such as: Mobile use

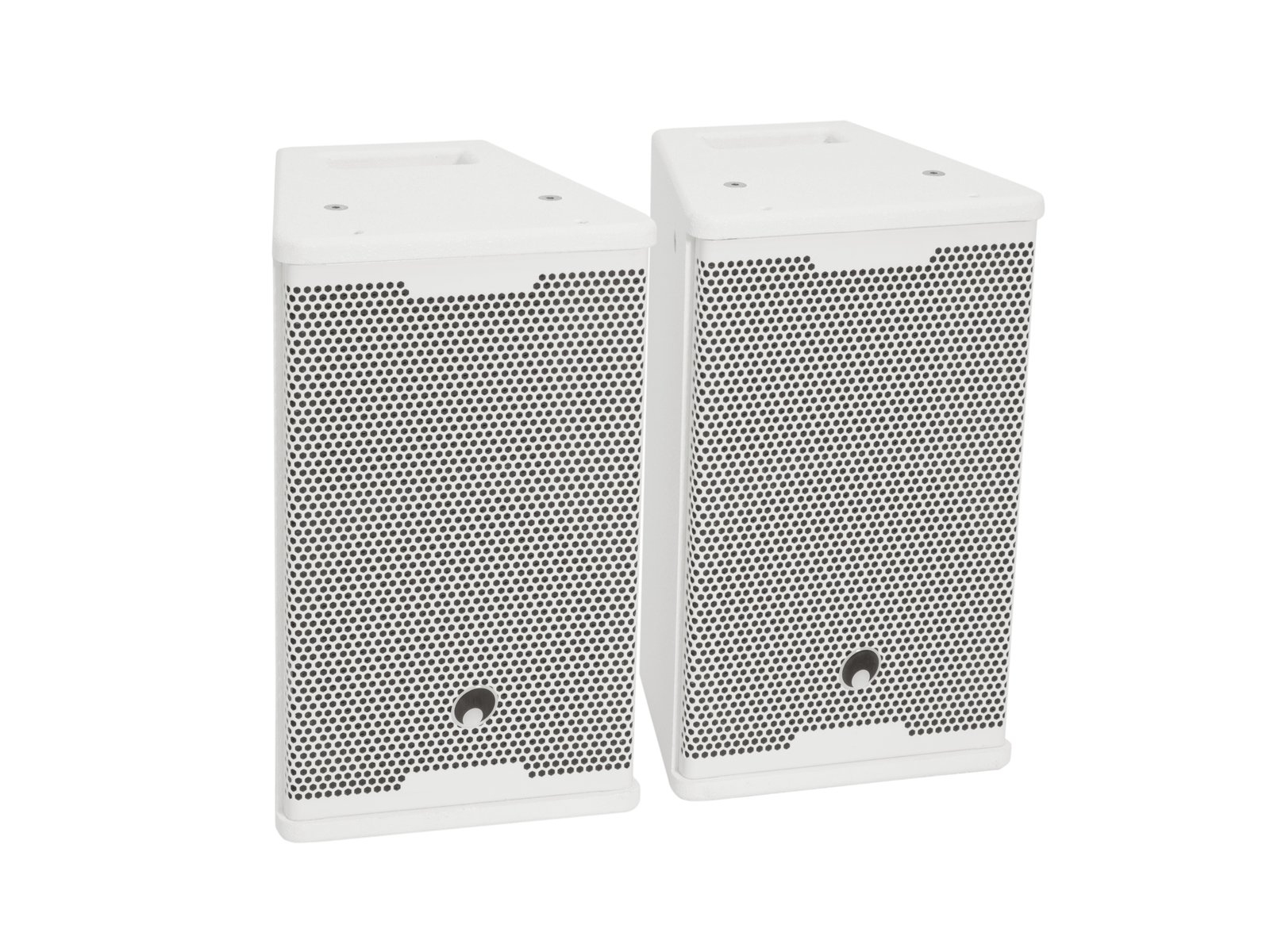

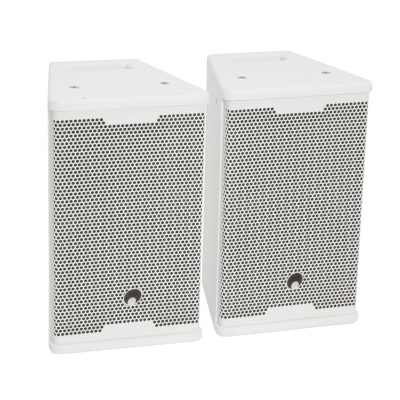

OMNITRONIC MAXX-1508 2-Way Top 2x white
2 x 8" passive full-range speaker, 150 W RMS
- 2-way bass-reflex system with 8" bass-midrange speaker and 1" compression driver
- Serve as a mobile 2.1 system together with the MAXX-1508 subwoofer
- With passive 2-way crossover, PTC tweeter protection
- With rigging points
- Black metal grille
- Application possibility: Standing; suspended; monitoring; on tripod
Package contents
- 2 x top, 2 x speaker cable
OMNITRONIC MAXX-1508DSP 2.1 Active Subwoofer white
Powerful 15" active subwoofer with DSP and Bluetooth, 700 watts
- 15" subwoofer with Class D amplifier in bassreflex cabinet
- Amplifier power: 400 W RMS + 2 x 150 W RMS for two satellites
- Serves as a mobile 2.1 system together with MAXX-1508 2-way tops
- Balanced signal input XLR/6.3 mm jack L/R
- Additional stereo RCA input, with level switch
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- Control via Bluetooth
- Wheels optional
- Black metal grille with acoustic foam
- DSP presets: FLAT; DJ; LIVE
- Application possibility: Standing
Package contents
- 1 x bass, 1 x user manual, 1 x power cord, 1 x strap, 1 x declaration of conformity
| Weight: | 46,60 kg |
| OMNITRONIC MAXX-1508 2-Way Top 2x white | |
| Power: | Program: 300W Rated: 150W RMS |
| Frequency range: | 120 - 18000 Hz |
| Sensitivity: | 92 dB |
| Max. SPL: | 116 dB |
| Dispersion angle: | 90° x 60° |
| Impedance: | 4 ohms |
| Attachment system: | Flange: Ø 35mm |
| Flying points: | 5 x M8 thread |
| Connections: | Input: speaker via 1 x speaker built-in socket (F) |
| Speaker: | 1 x woofer (8") approx. 20 cm 1 x compression tweeter highs (1") approx. 2.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Material: | , 16 mm; MDF (Medium-density fiberboard) |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 25,5 cm Depth: 24,1 cm Height: 42,1 cm |
| Weight: | 17,60 kg |
| OMNITRONIC MAXX-1508DSP 2.1 Active Subwoofer white | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 800 W |
| Power: | Rated: 400W RMS LF |
| Frequency range: | 35 - 120 Hz Bass |
| Sensitivity: | 95 dB |
| Max. SPL: | 120 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; DJ; LIVE |
| Control: | Bluetooth |
| Attachment system: | M20 thread |
| Circuitry: | Class D |
| Controls: | Limiter |
| Status LED: | Power, signal, limit, pairing, DSP presets |
| Connections: | Input: 1 x stereo RCA Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: | 1 x stereo via XLR or RCA or bluetooth, channel control via Rotary dial |
| Speaker: | 1 x woofer (15") approx. 38 cm with ferrit magnet |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Transport aid: | Wheels optional |
| Material: | Birch multiplex, 16 mm; MDF (Medium-density fiberboard) |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 45,4 cm Depth: 57 cm Height: 53,4 cm |
| Weight: | 30,00 kg |
