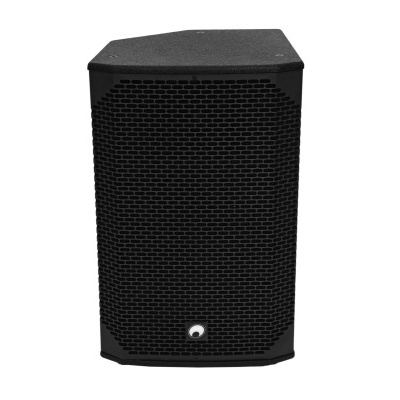

OMNITRONIC AZX-215A 2-way top active 350W
SKU: 11039034
Active speaker with 15" woofer, 1.75" titanium driver, LF 300 W RMS, HF 50 W RMS
- 2-way bass-reflex enclosure with 38 cm woofer and 4.5 cm titanium driver
- Master control with 2-band EQ
- HF adjustment -4 dB, -2 dB, 0 dB

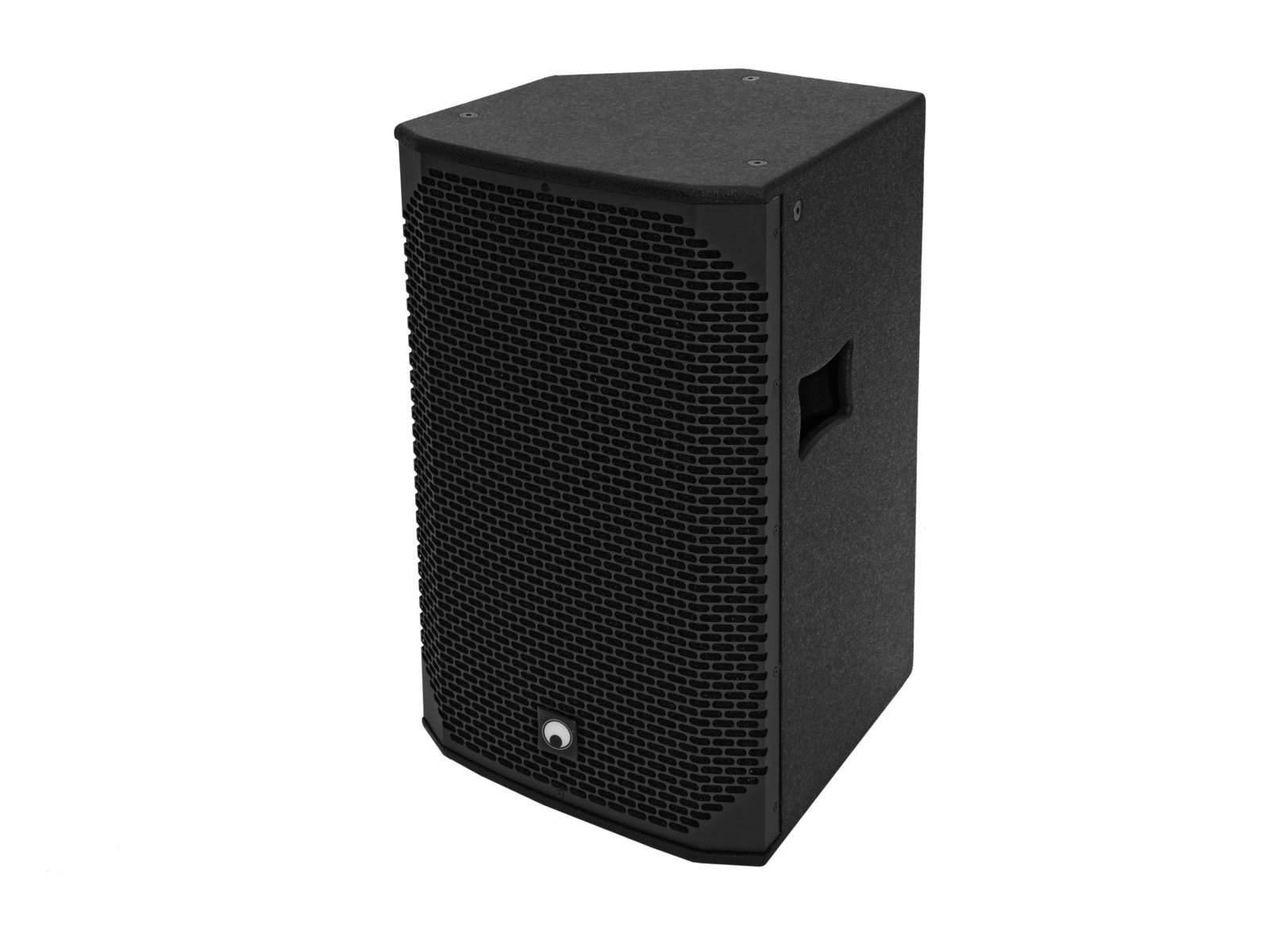

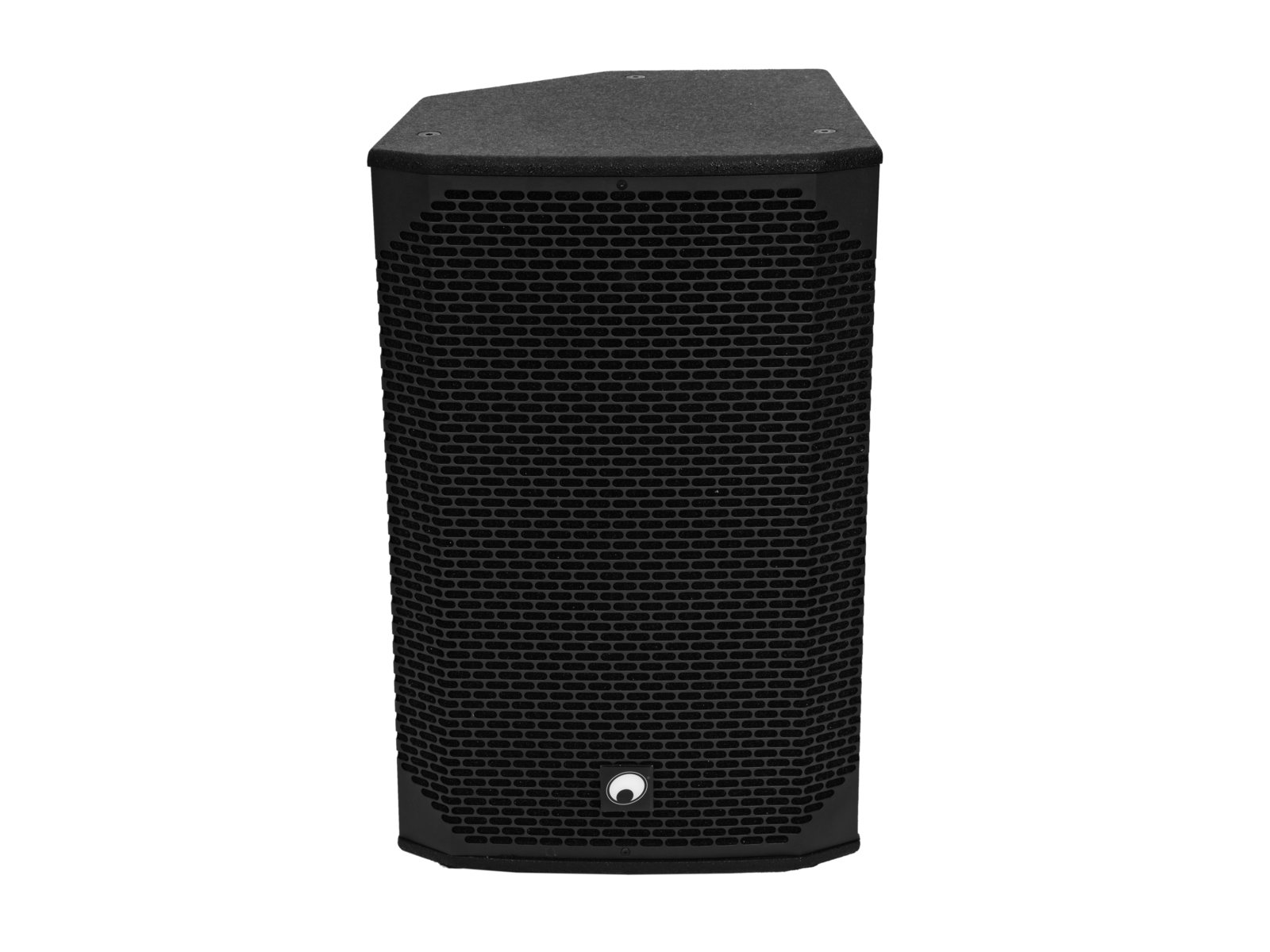

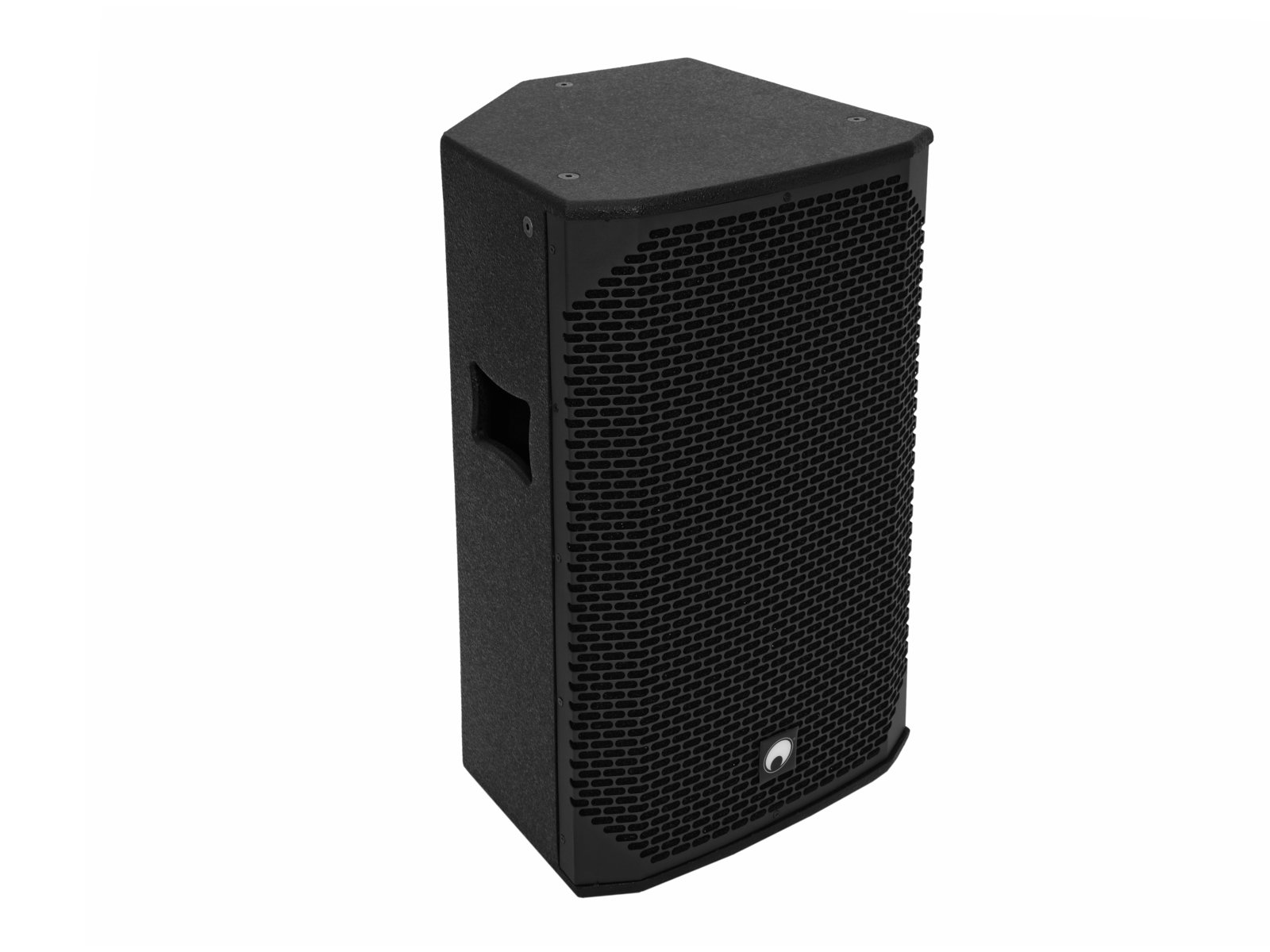

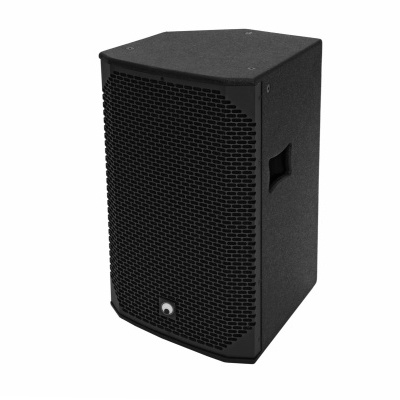

- Black metal grille with acoustic foam
- Rugged carrying handle
- With rigging points
- Application possibility: Standing; suspended; monitoring; on tripod
- Dual flange
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x power cord
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: | Rated: 300W RMS LF Rated: 50W RMS HF |
| Frequency range: | 50 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Attachment system: | Dual flange: Ø 35mm (0°/5°) |
| Flying points: | 7 x M10 thread |
| Circuitry: | Class D Biamp |
| Controls: | Limiter |
| Status LED: | Limit, power, signal |

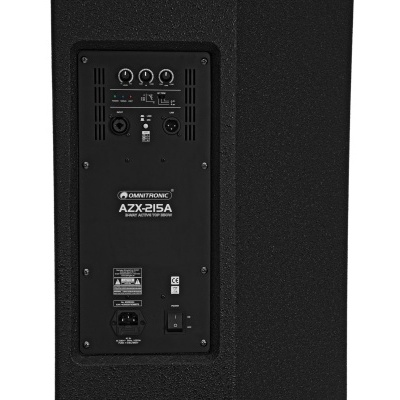

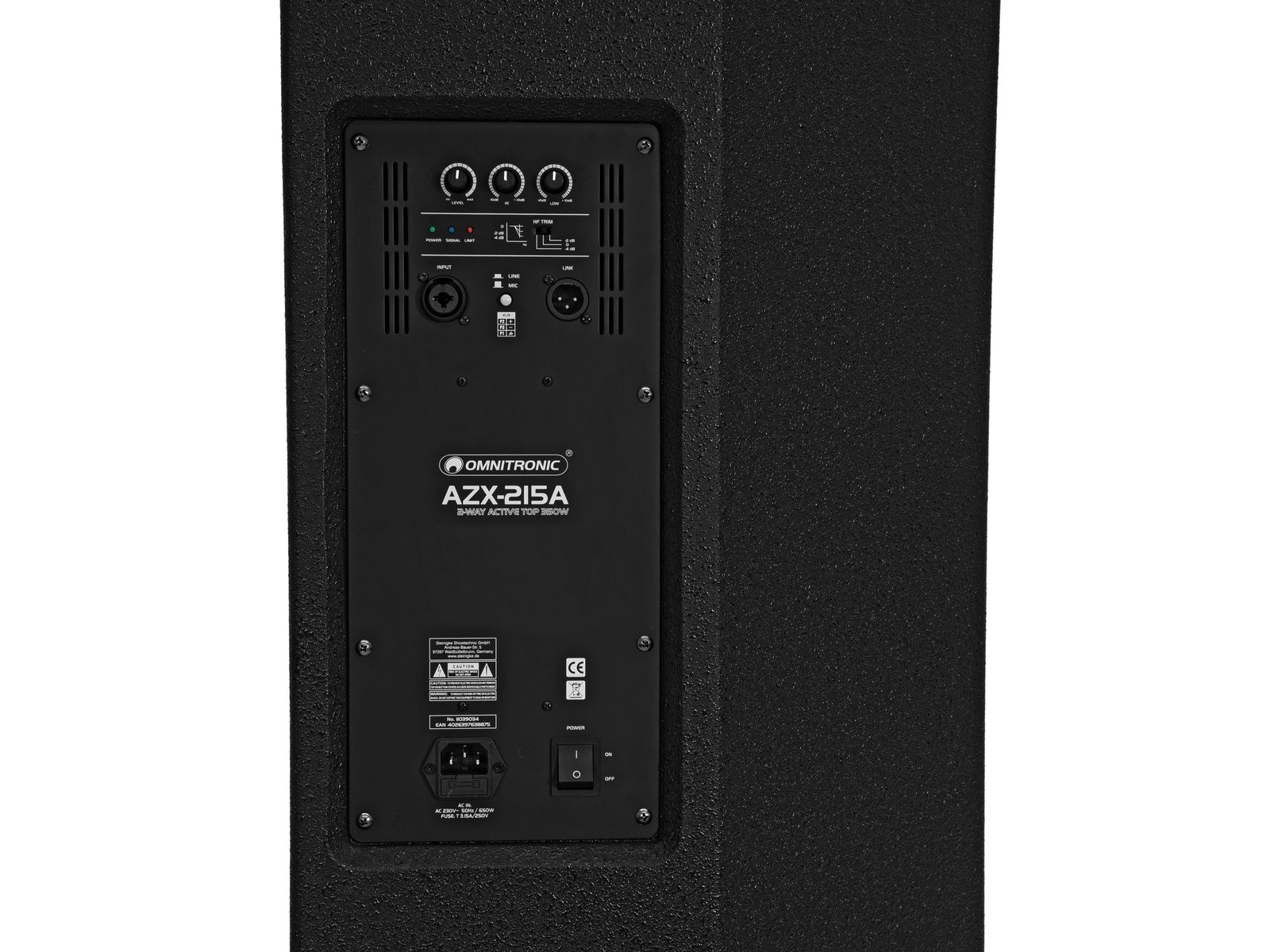

| Connections: | Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial |
| Equalizer: | Master: 1 x 2-band tone control |
| Speaker: | Woofer (15") approx. 38 cm with ferrit magnet Voice coil lows (3") approx. 8 cm Voice coil compression tweeter highs (1.75") approx. 4.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (Medium-density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 48,5 cm Depth: 48 cm Height: 75 cm |
| Weight: | 25,45 kg |
