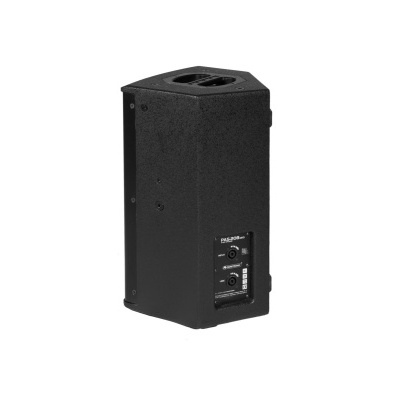

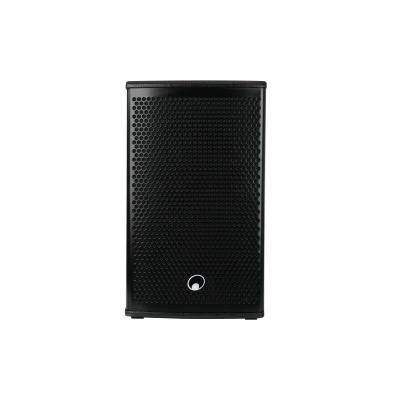

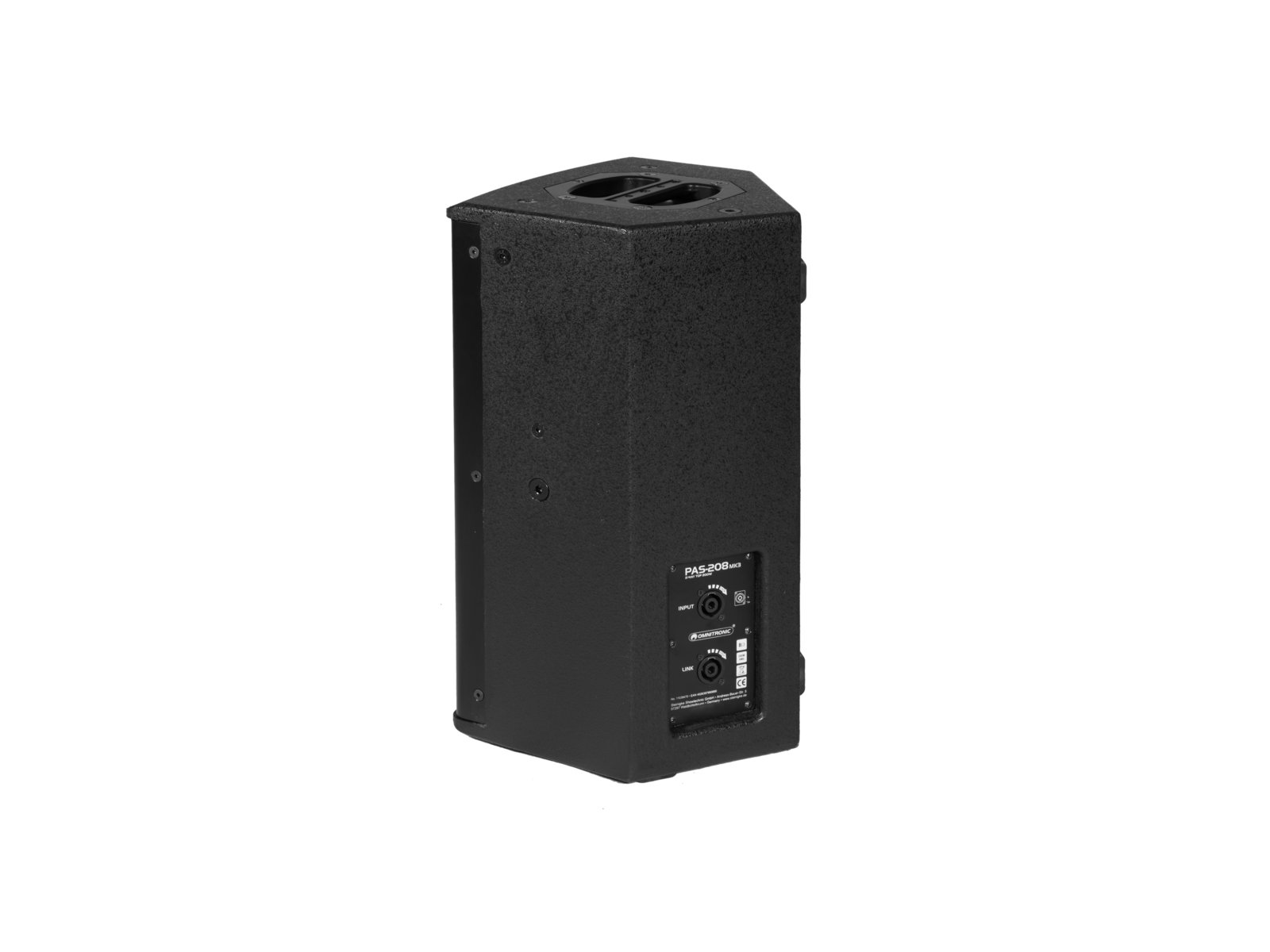

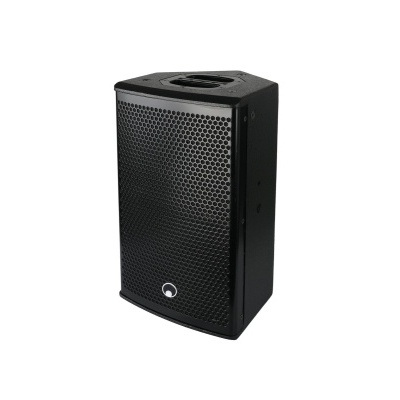

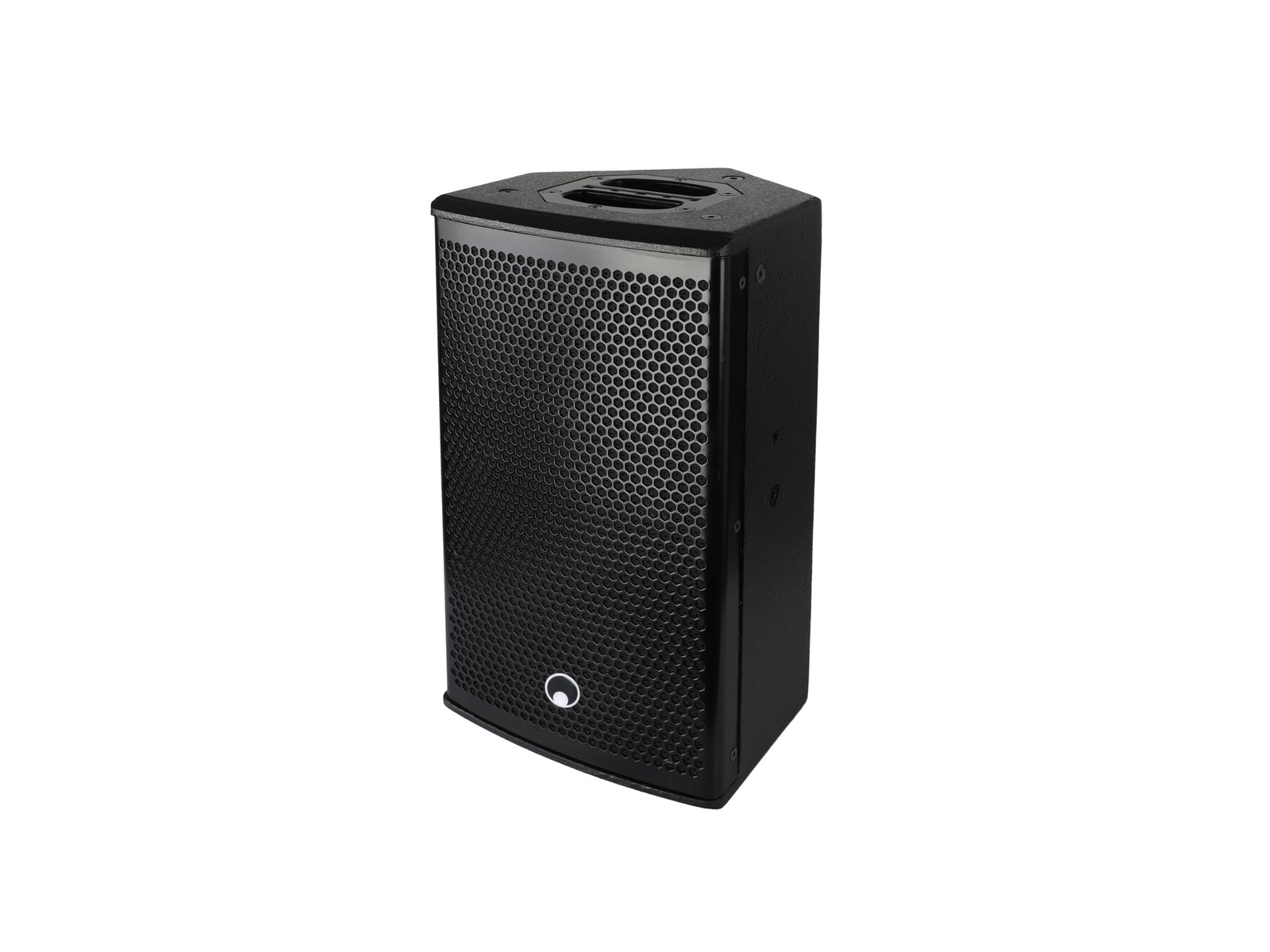

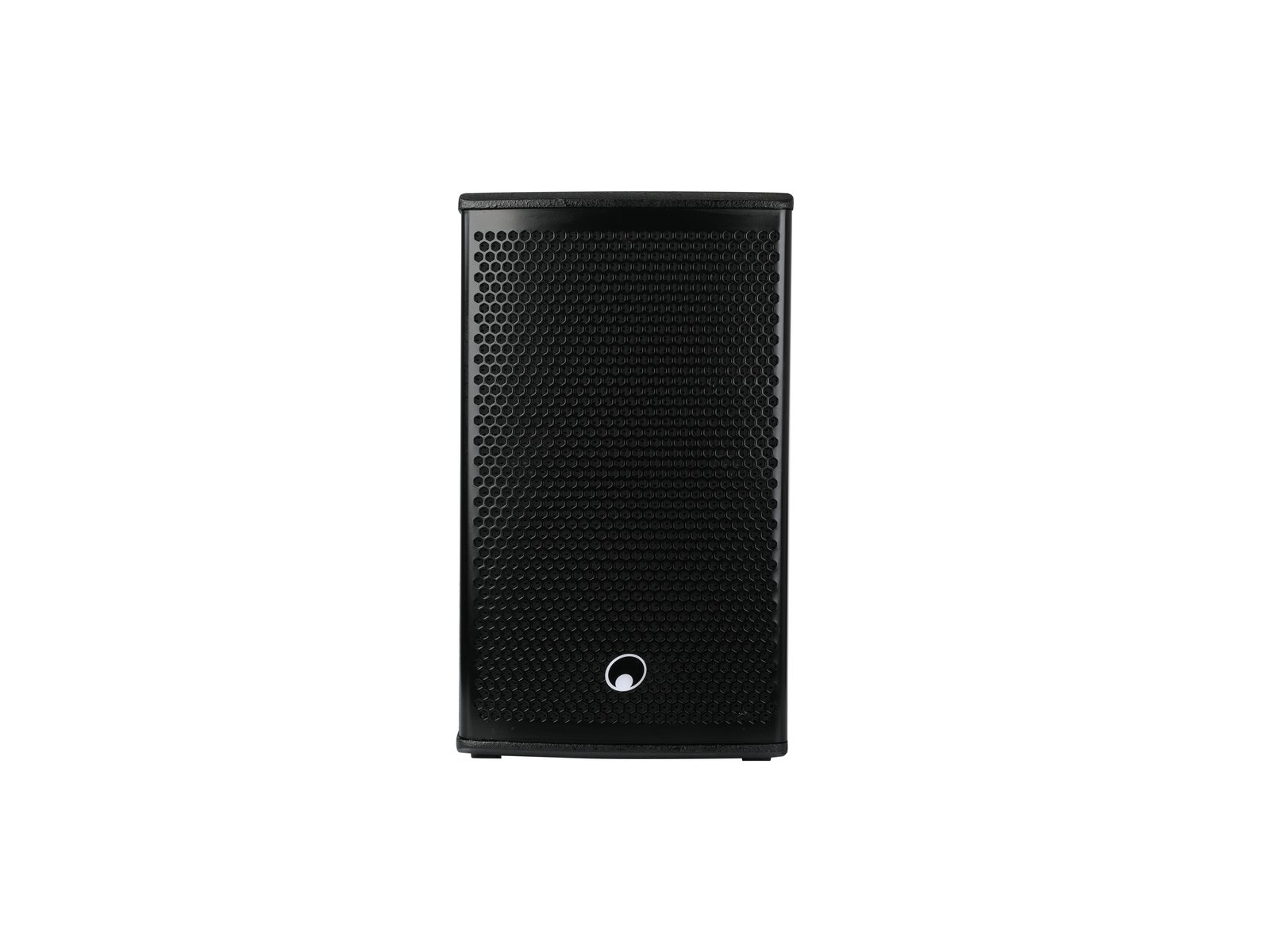

OMNITRONIC PAS-208 MK3 2-Way Top
OMNITRONIC PAS-208 MK3 2-Way Top
OMNITRONIC PAS-208 MK3 2-Way Top
OMNITRONIC PAS-208 MK3 2-Way Top
OMNITRONIC PAS-208 MK3 2-Way Top
OMNITRONIC PAS-208 MK3 2-Way Top

OMNITRONIC PAS-208 MK3 2-Way Top

SKU: 11039470

258,60 €
IVA included.
Contact

Add to wishlist



Passive speaker with 8" woofer, 1" driver and 200 W RMS

  • Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
  • 2-way bass-reflex system with 20 cm woofer and 2.5 cm compression driver
  • Optimized for combination with PAS subwoofers
  • Application possibility: Standing; suspended; monitoring; on tripod
  • Black metal grille with acoustic foam
  • Rugged carrying handle
  • With rigging points
  • Dual flange

Package contents

  • 1 x user manual, 1 x compact cabinet speaker


Power:Program: 400W
Rated: 200W RMS
Frequency range:75 - 20000 Hz
Sensitivity:95 dB (1W/1m)
Max. SPL:121 dB
Dispersion angle:90° x 60°
Impedance:8 ohms
Attachment system:Dual flange: Ø 35mm (0°/5°)
Flying points:5 x M8 thread; 4 x M10 thread
Connections:Input: speaker via 2 x speaker built-in socket (F)
Crossover frequency:3500 Hz
Speaker:1 x woofer (8") approx. 20 cm with ferrit magnet
Basket material: aluminum
Voice coil lows (2") approx. 5 cm
1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2.5 cm
Type of speaker:Compact cabinet speaker
Carrying handle:1 pc/pcs
Material:Birch multiplex
Color:Black, painted
Dimensions:Width: 27 cm
Depth: 46 cm
Height: 26,8 cm
Weight:11,30 kg
Brand Omnitronic
