SKU: 11039474

327,67 €
IVA included.
Contact

Add to wishlist

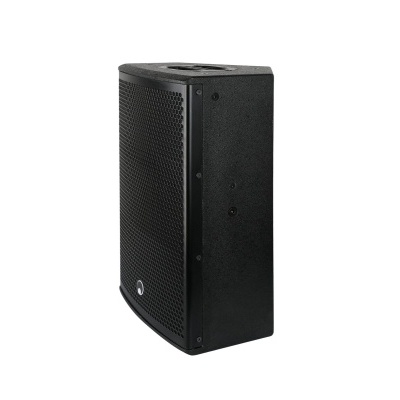

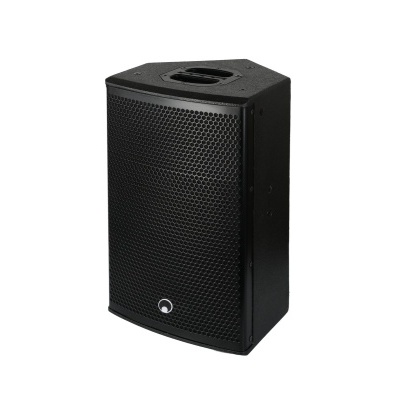

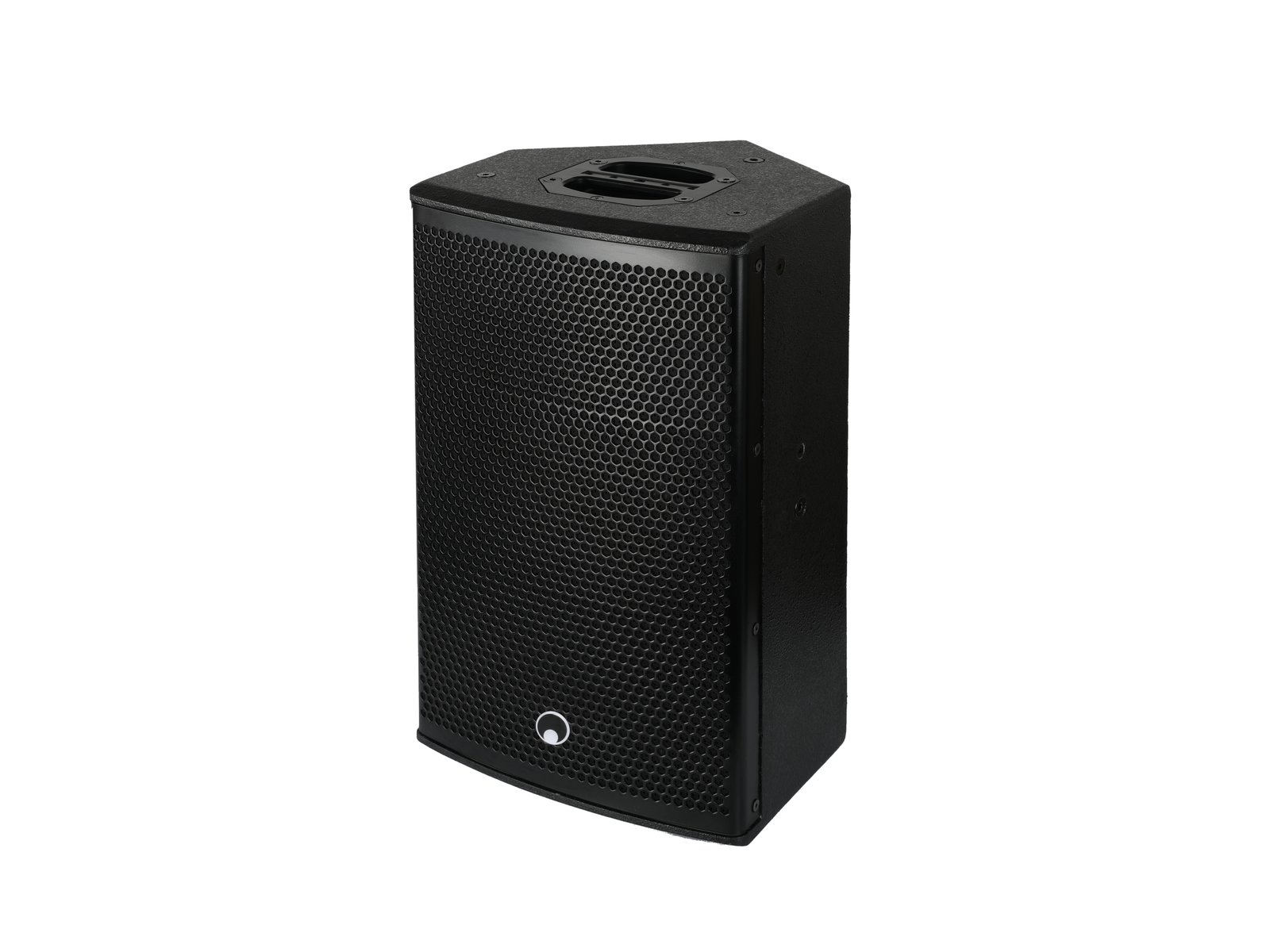

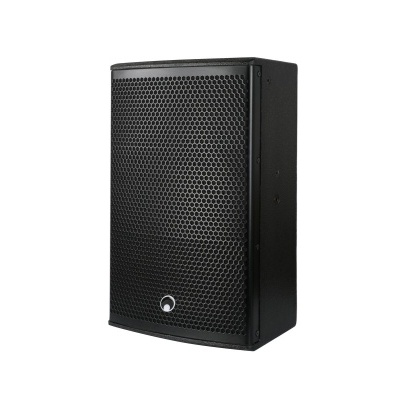

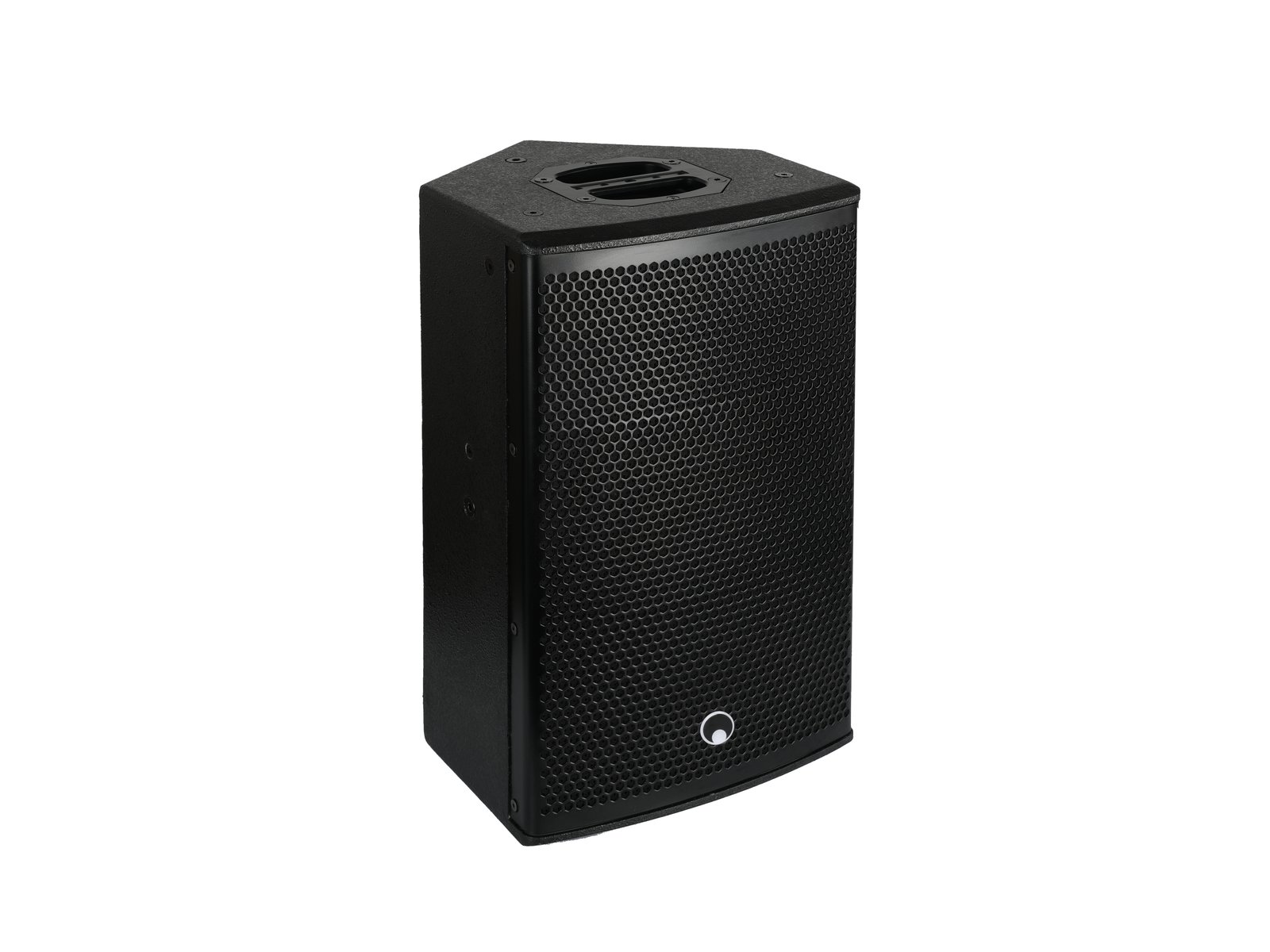

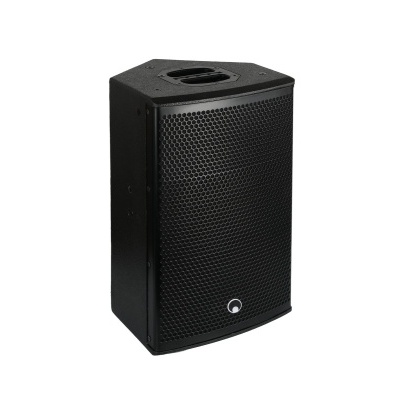

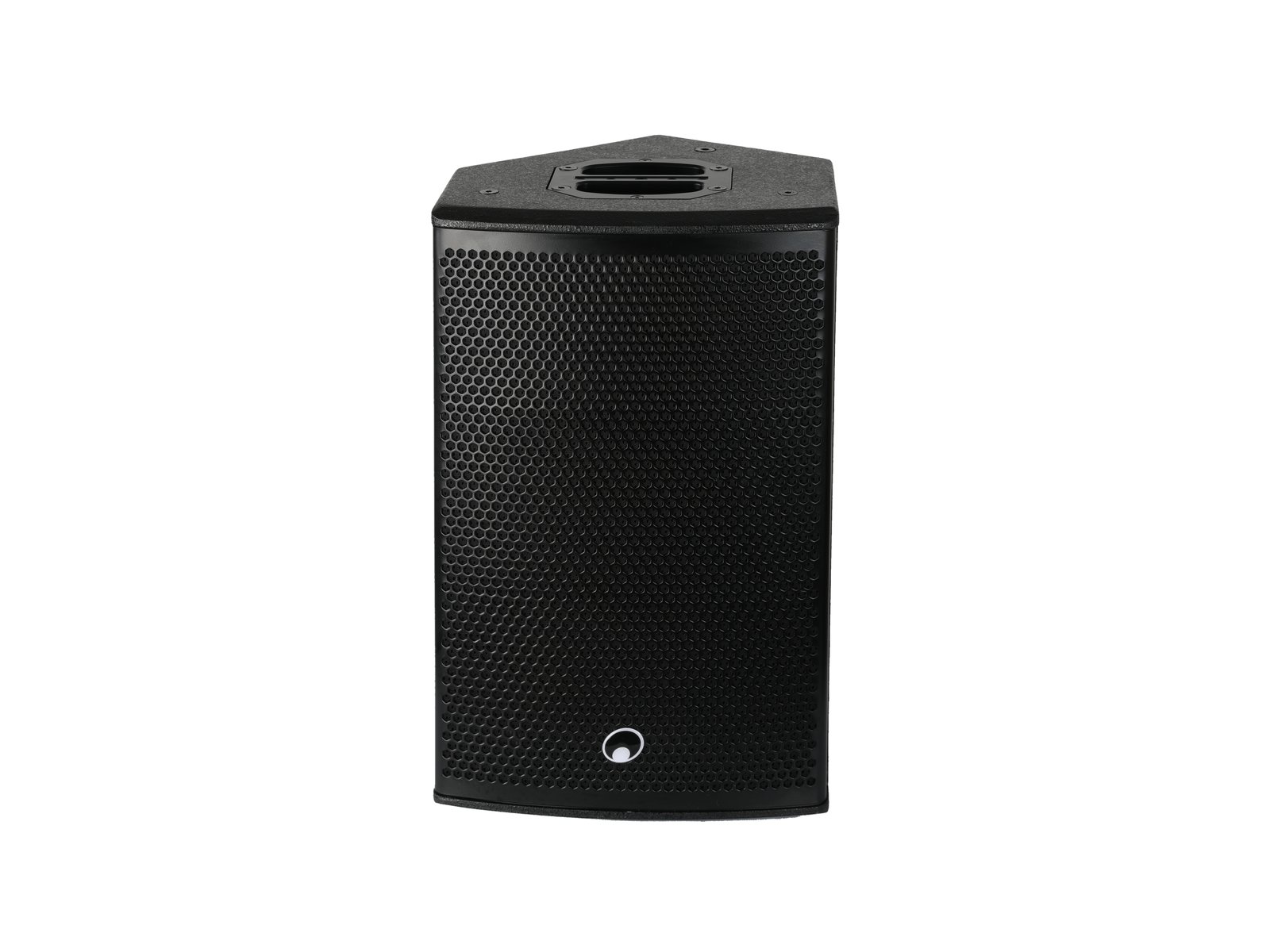

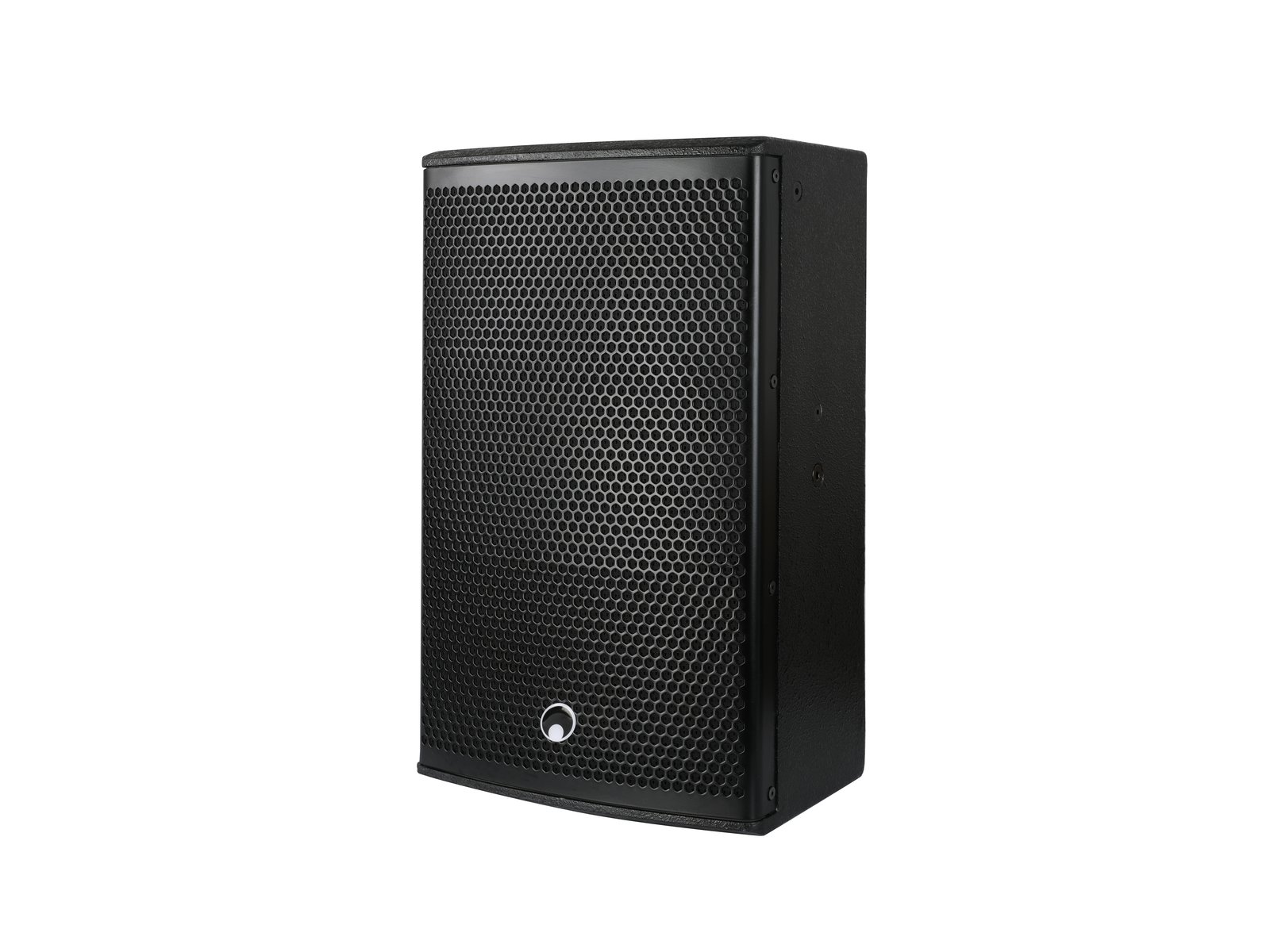

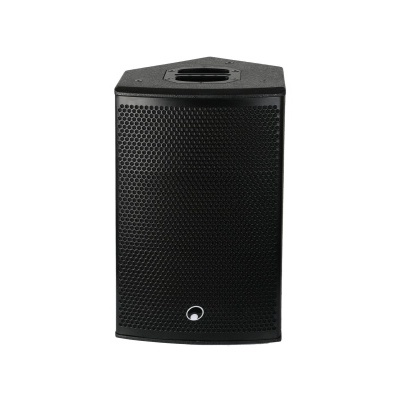

Passive speaker with 10" woofer, 1" driver and 250 W RMS

  • 2-way bass-reflex system with 25 cm woofer (8 cm voice coil)
  • 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
  • Optimized for combination with PAS subwoofers
  • With rigging points
  • Application possibility: Standing; suspended; monitoring; on tripod
  • Black metal grille with acoustic foam
  • 2 mould carrying handles
  • Dual flange

Package contents

  • 1 x user manual, 1 x compact cabinet speaker


Power:Program: 500W
Rated: 250W RMS
Frequency range:65 - 20000 Hz
Sensitivity:96 dB (1W/1m)
Max. SPL:123 dB
Dispersion angle:90° x 60°
Impedance:8 ohms
Attachment system:Dual flange: Ø 35mm (0°/5°)
Flying points:5 x M8 thread; 4 x M10 thread
Connections:Input: speaker via 2 x speaker built-in socket (F)
Crossover frequency:3200 Hz
Speaker:1 x woofer (10") approx. 25 cm
Basket material: aluminum
Voice coil lows (2.5") approx. 6.35 cm
1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2.5 cm
Type of speaker:Compact cabinet speaker
Mould carrying handle:2 pc/pcs
Material:Birch multiplex
Color:Black, textured coating, painted
Dimensions:Width: 32 cm
Depth: 52,5 cm
Height: 30 cm
Weight:12,95 kg
Brand Omnitronic
