SKU: 11039478

458,74 €
IVA included.
Contact

Add to wishlist

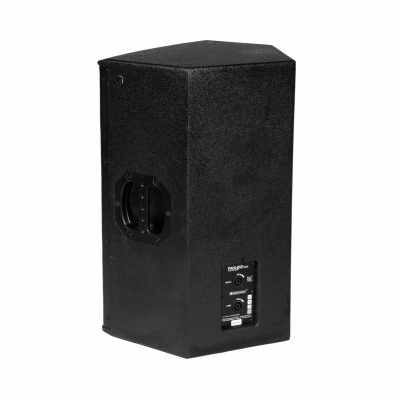

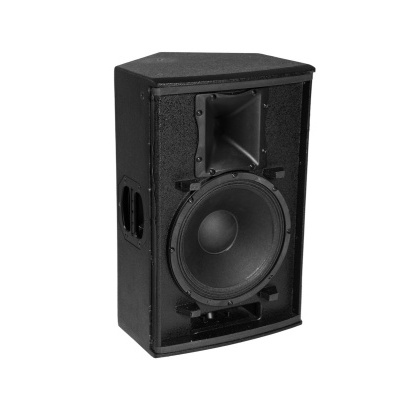

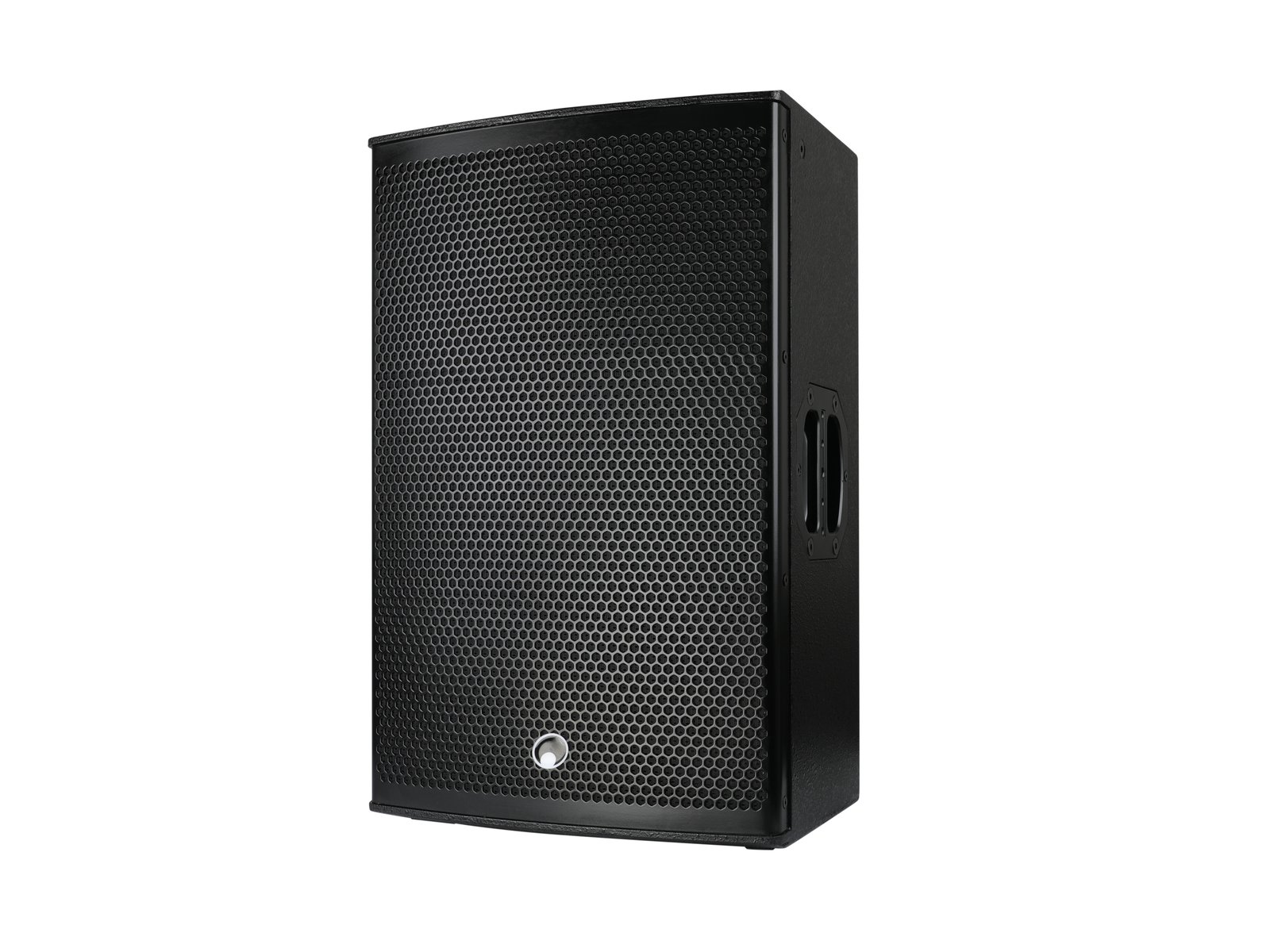

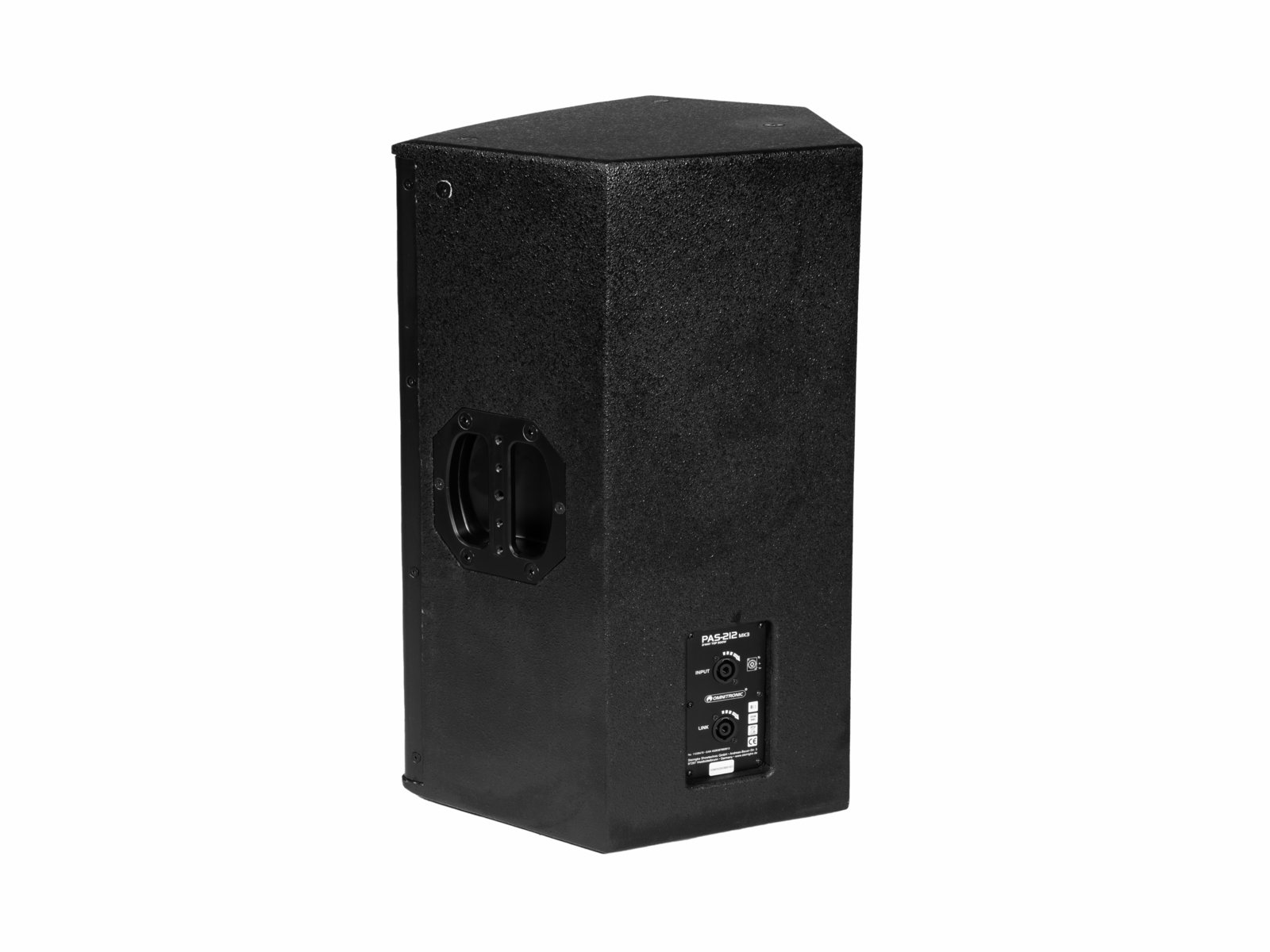

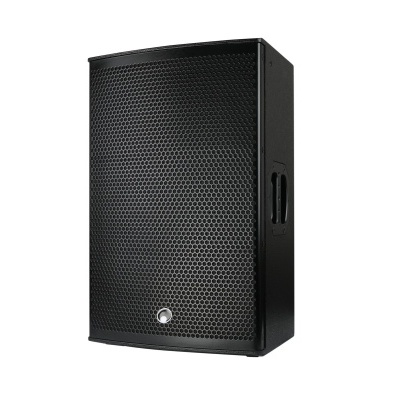

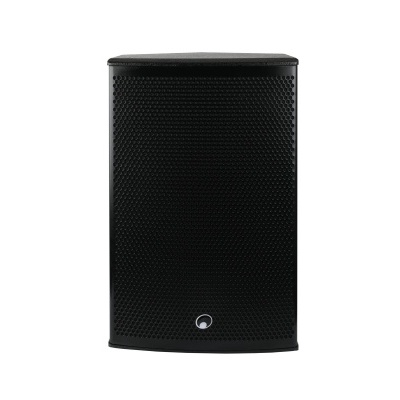

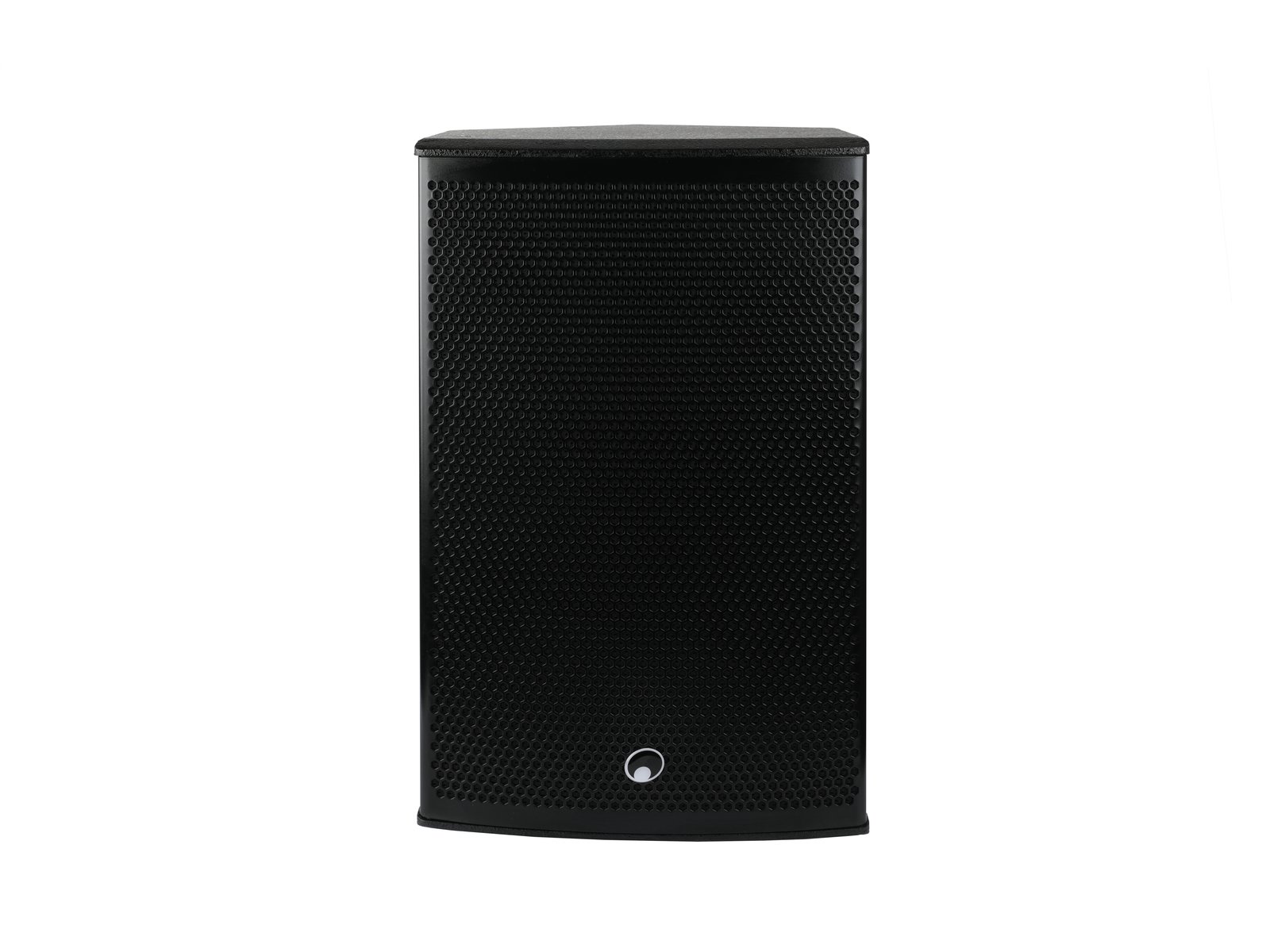

Passive speaker with 12" woofer, 1" driver and 300 W RMS

  • 2-way bass-reflex system with 30 cm woofer (8 cm voice coil)
  • 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
  • Optimized for combination with PAS subwoofers
  • With rigging points
  • Dual flange
  • Black metal grille with acoustic foam
  • 2 mould carrying handles
  • Application possibility: Standing; suspended; monitoring; on tripod

Package contents

  • 1 x user manual, 1 x compact cabinet speaker


Power:Program: 600W
Rated: 300W RMS
Frequency range:60 - 20000 Hz
Sensitivity:98 dB (1W/1m)
Max. SPL:126 dB
Dispersion angle:90° x 60°
Impedance:8 ohms
Attachment system:Dual flange: Ø 35mm (0°/5°)
Flying points:4 x M10 thread; 6 x M8 thread
Connections:Input: speaker via 2 x speaker built-in socket (F)
Crossover frequency:3000 Hz
Speaker:1 x compression tweeter highs (1") approx. 2.5 cm
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2.5 cm
1 x woofer (12") approx. 30 cm with ferrit magnet
Voice coil lows (3") approx. 8 cm
Type of speaker:Compact cabinet speaker
Mould carrying handle:2 pc/pcs
Material:Birch multiplex
Color:Black, textured coating, painted
Dimensions:Width: 39 cm
Depth: 61,5 cm
Height: 38 cm
Weight:20,60 kg
Brand Omnitronic
