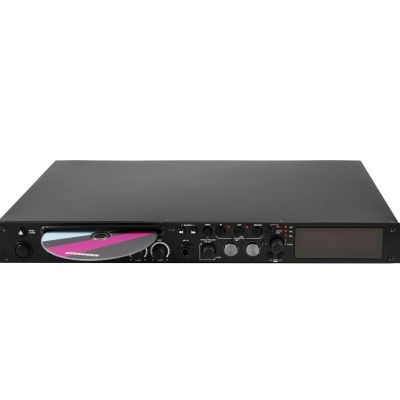

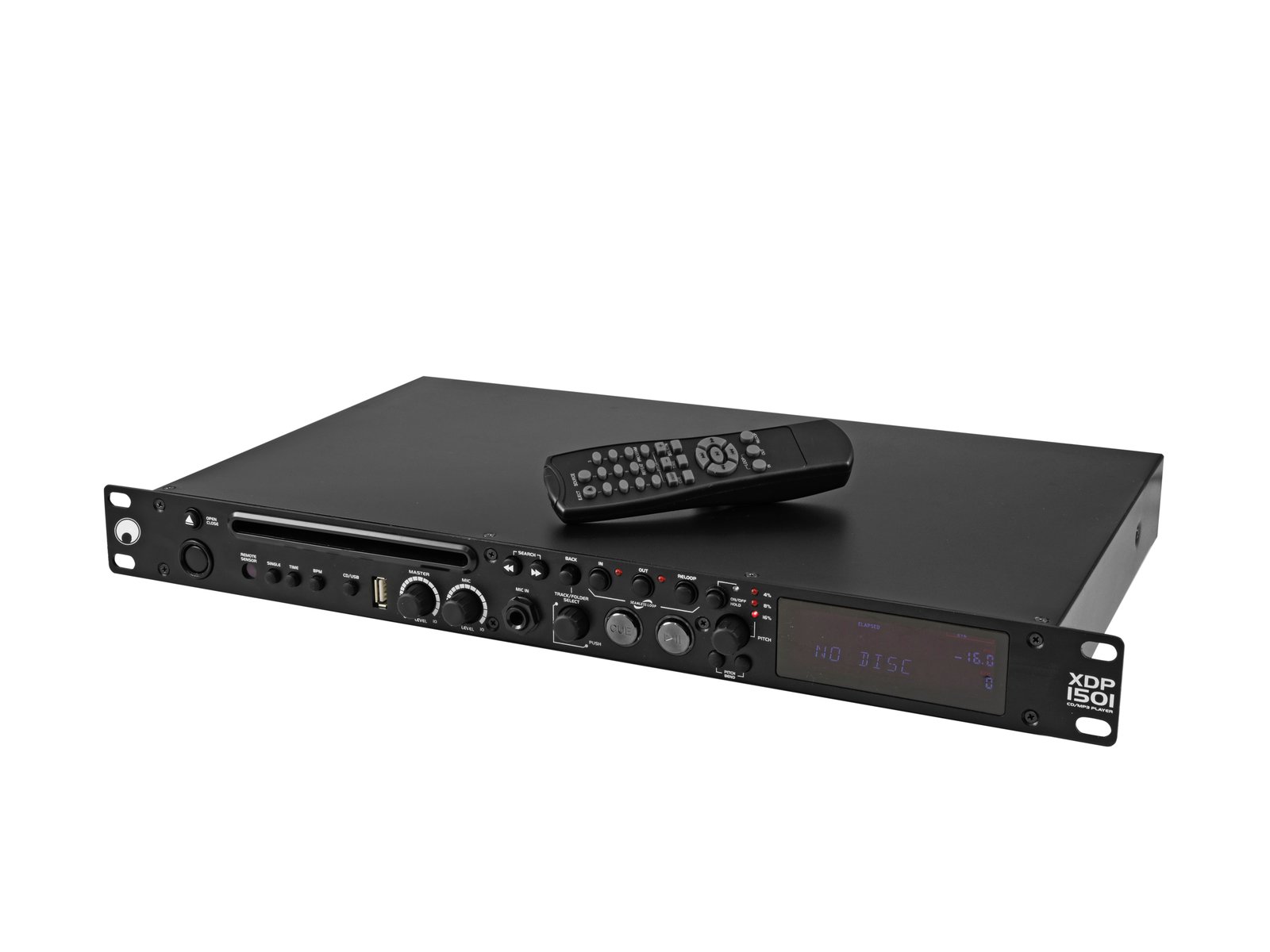

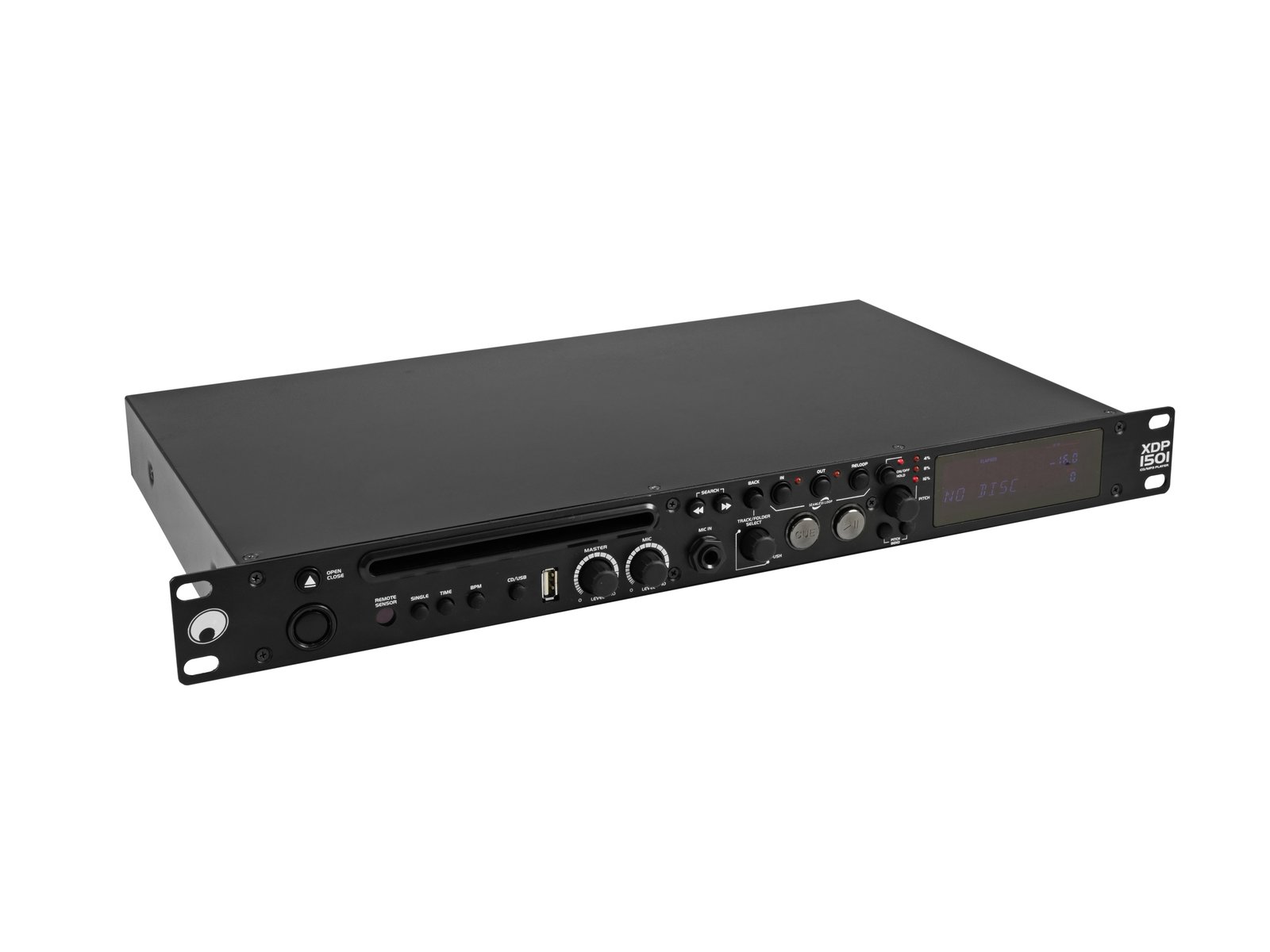

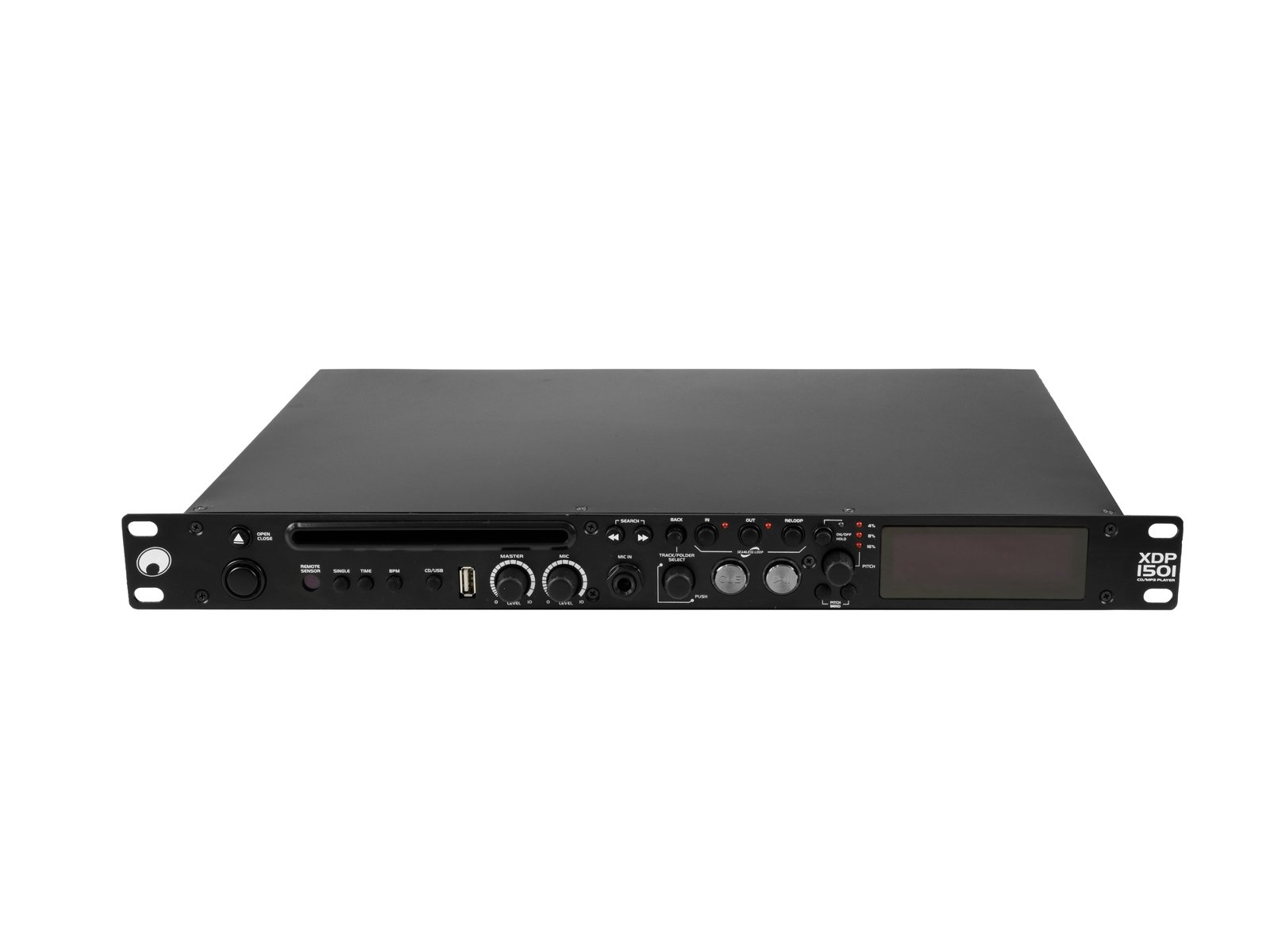

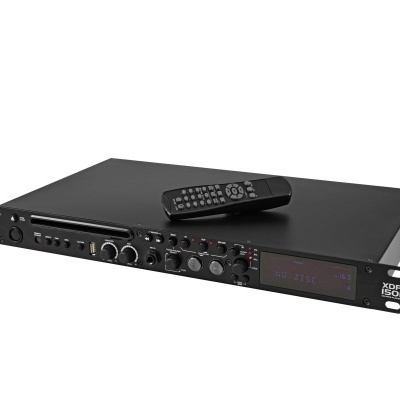

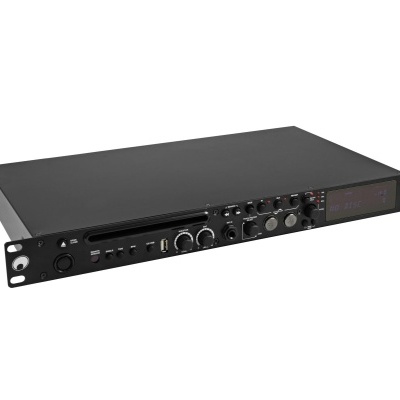

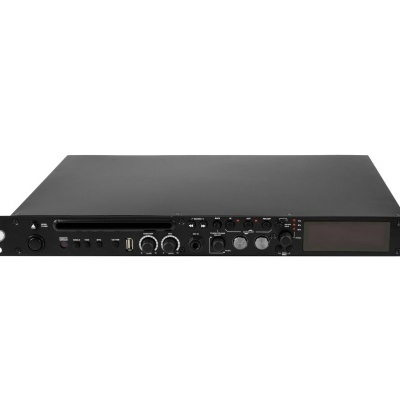

OMNITRONIC XDP-1501 CD/MP3 Player

Versatile media player for your DJ rackThe 1 U flat CD player XDP-1501 is particularly suitable for fixed installations in restaurants, dance studios and retail outlets where simple music control is required. It can play and control music from CDs and USB storage devices. It has professional connections for microphones and amplifier systems. The device has a whole range of advanced functions, such as pitch control, seamless loops, cueing and can be conveniently controlled via a remote control.

1 U flat CD/MP3 player with USB port, mic input and IR remote

• USB 2.0 port for USB storage media
• Adjustable microphone input (XLR/6.3mm jack)
• Adjustable master output (XLR/RCA)
• Slot-in drive
• Bright dot-matrix VFD display with ID3 tag support
• Pitch bend function
• Cue function
• Seamless loop/reloop
• Instant start
• Single or continuous play
• Folder navigation
• Repeat function
• Title programming
• Bargraph display
• Extra-large play/pause and cue buttons with color illumination
• Search buttons for fast forward and reverse
• Control via IR remote control
• VFD display
• (19") 48.3 cm rack installation 1 U
• Pitch range: ±4%, ±8%, ±16%

Package contents

• 1 x device, 1 x power cord, 1 x rCA cable, 1 x remote control, 1 x user manual, 4 x foot

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	Max. 9 W
Power connection:	Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range:	20 - 20000 Hz
Control:	IR remote control
Audio player:	USB + CD player, Anti-shock, Seamless loop; pitch,
CD player drive:	Slot in-Single CD drive
Display type:	VFD display
Display:	CD-DA play time elapsed , play time remaining , total play time remaining , Bargraph; MP3 play time remaining , play time elapsed , Bargraph , ID3-Tags
Control elements:	Source selector

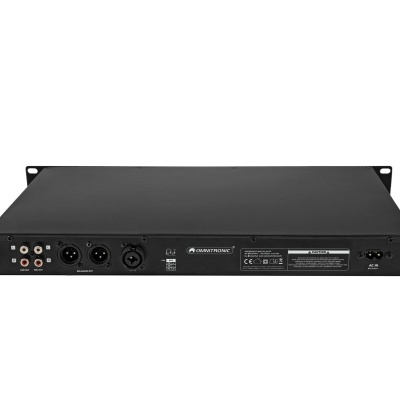

Connections:	Output: line via 3-pin XLR 3,4 V Output: line via 1 x stereo RCA 1,7 V Output: rec. via 1 x stereo RCA 0,55 V Input: Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: Microphone via 6.3 mm jack socket (mono) mounting version
Music format:	CD, CD-R, CD-RW, CD-DA, MP3
Available storage media:	USB devices max. 64GB
Pitch range:	±4%, ±8%, ±16%
Material:	Metal
Color:	Black
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48,2 cm Depth: 27 cm Height: 4,5 cm
Weight:	3,02 kg
Remote control
Power supply:	3 V DC
Battery:	2 x Mignon (AA) (not included)
