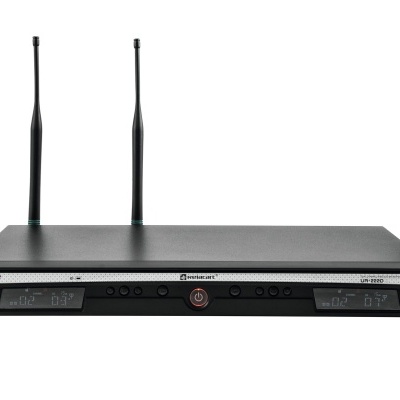

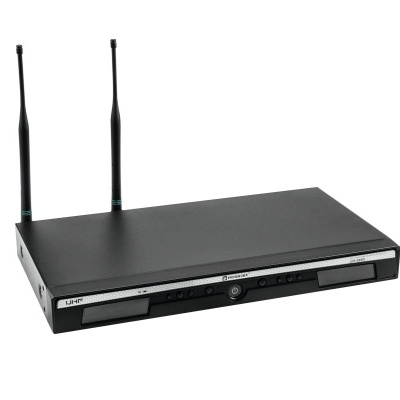

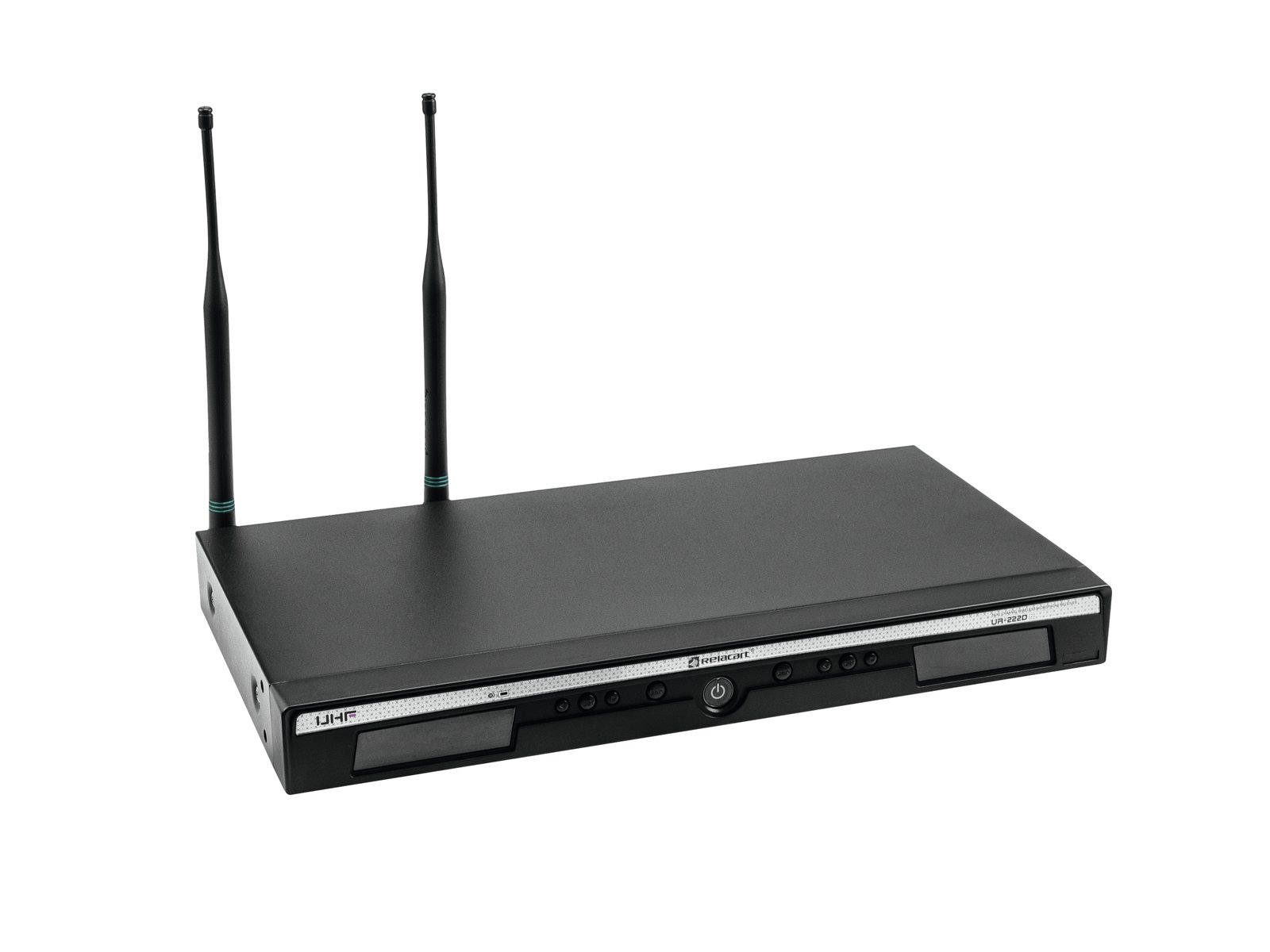

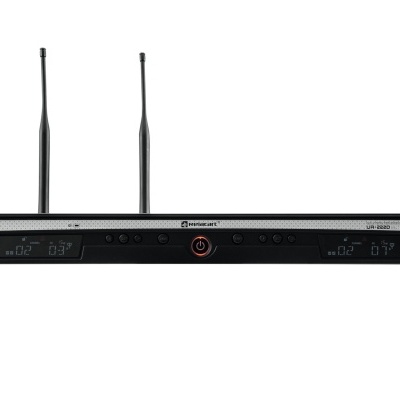

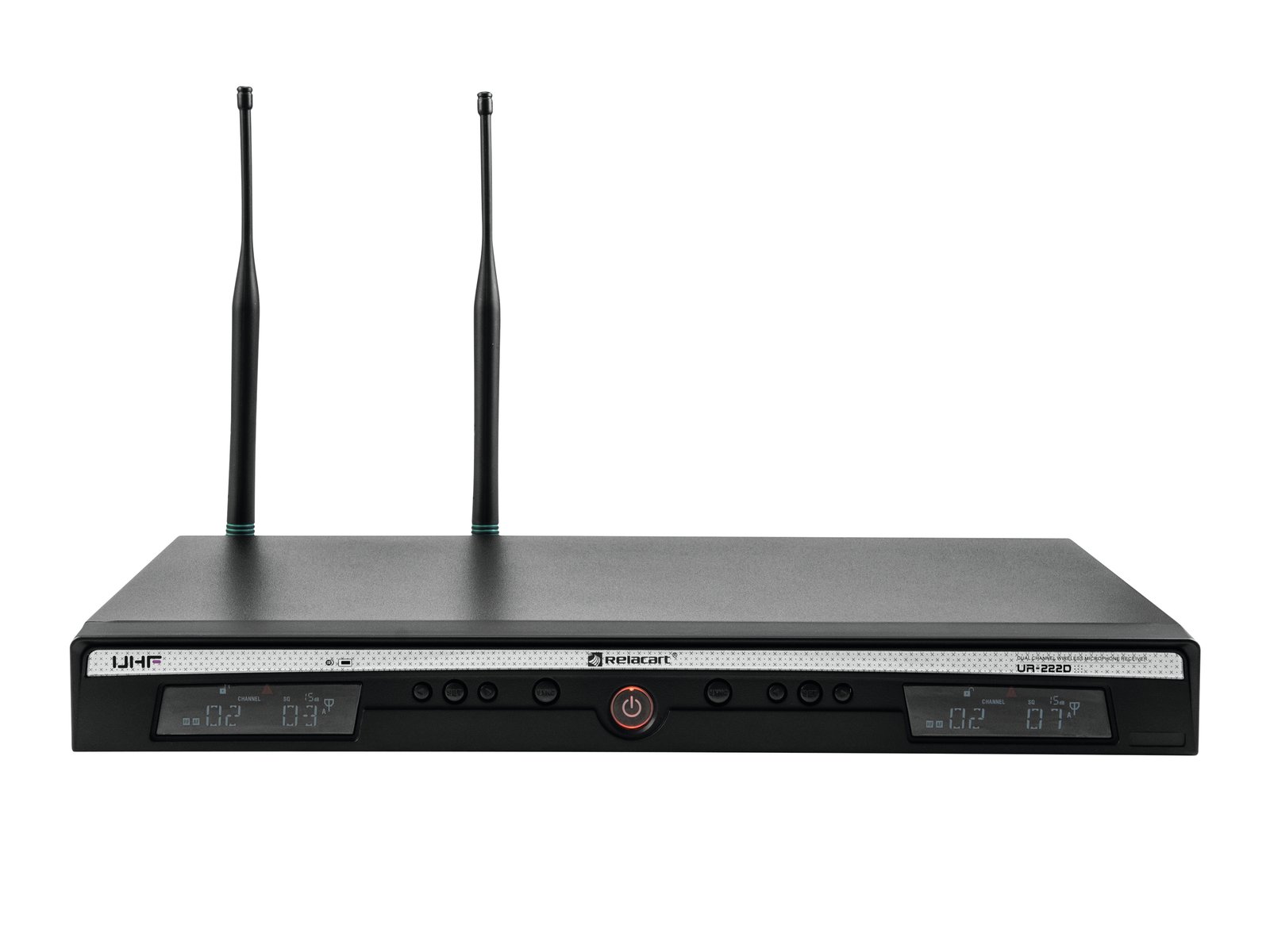

RELACART UR-222D 2-Channel UHF Receiver
SKU: 13055189
The UR-222D is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.
2-channel multifrequency wireless receiver with high-quality diversity reception
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Rugged metal housing

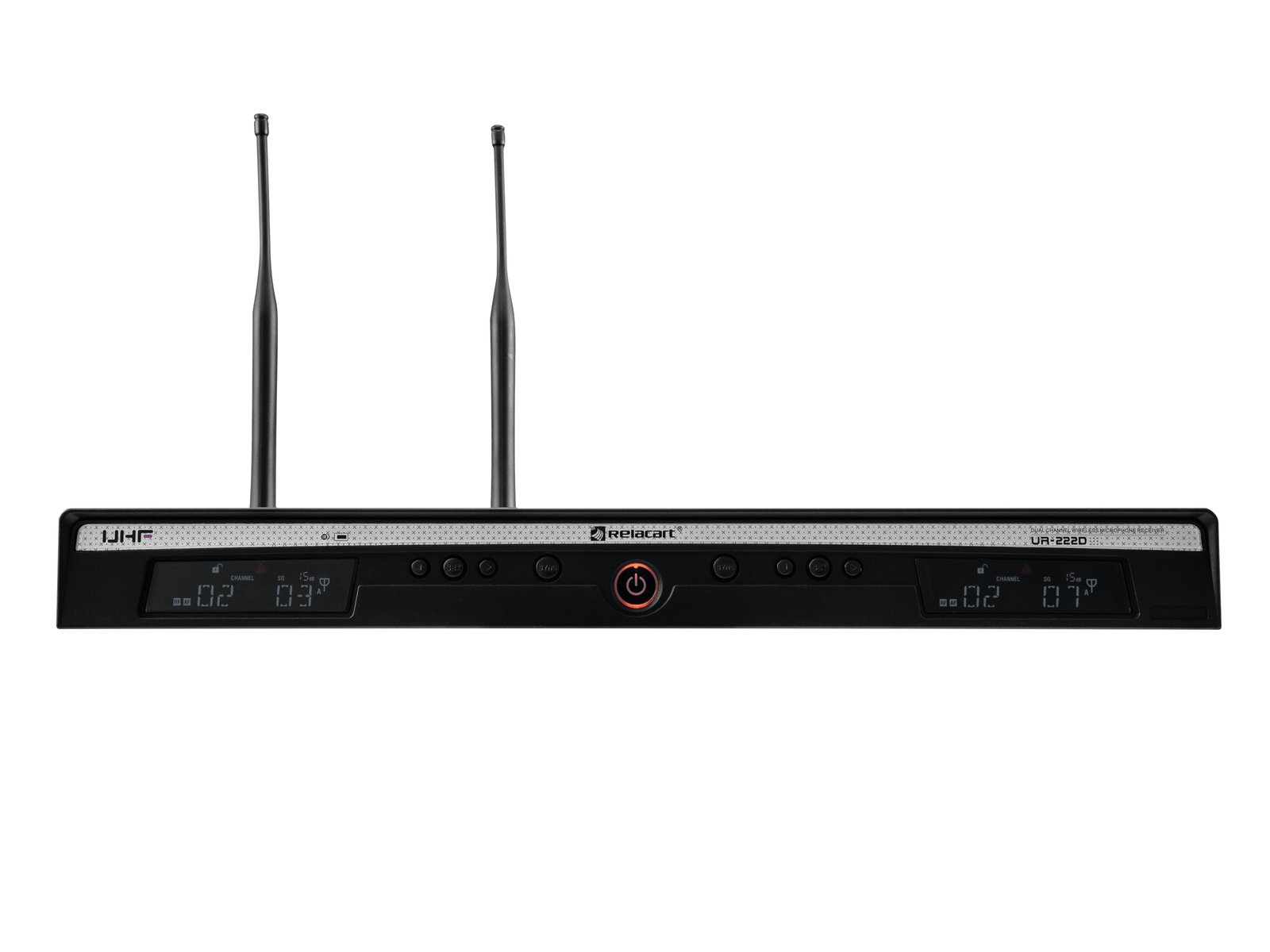

- Multicolor LCD display
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Operating range up to 80m with line-of-sight
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
- Charge status indicator
Package contents

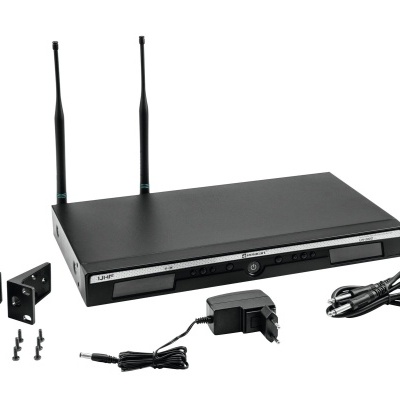

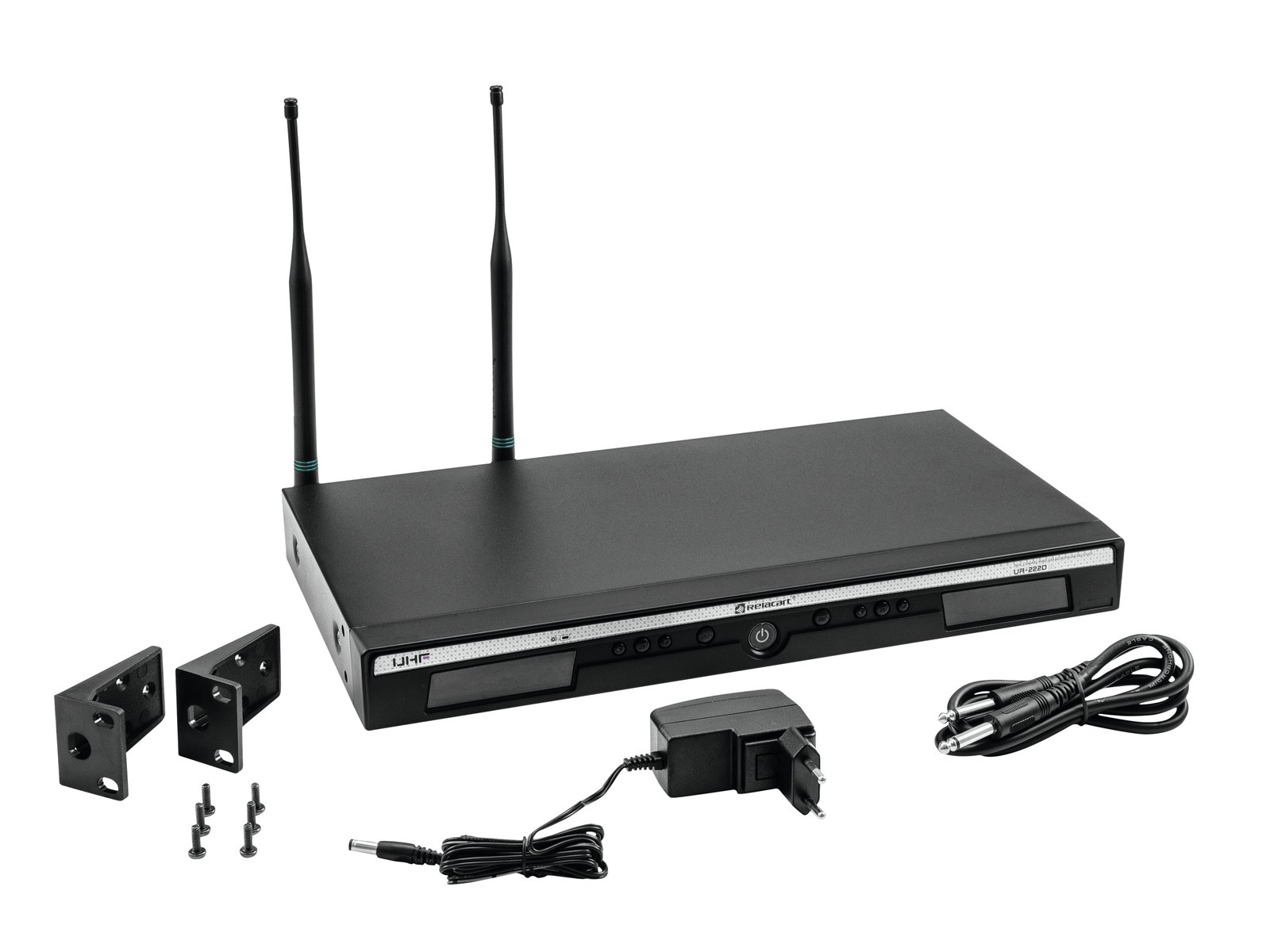

- 1 x receiver, 1 x external mains adapter, 2 x antenna, 2 x mounting bracket, 6 x screw, 2 x jack cable, 1 x user manual, 1 x declaration of conformity
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | 5 W |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| Display type: | Multicolor LCD display |
| Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency |
| Control elements: | Navigation keys, menu, groundlift selector |

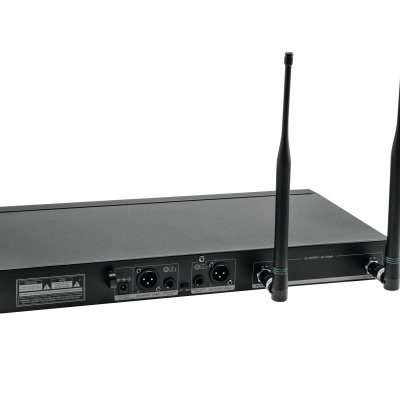

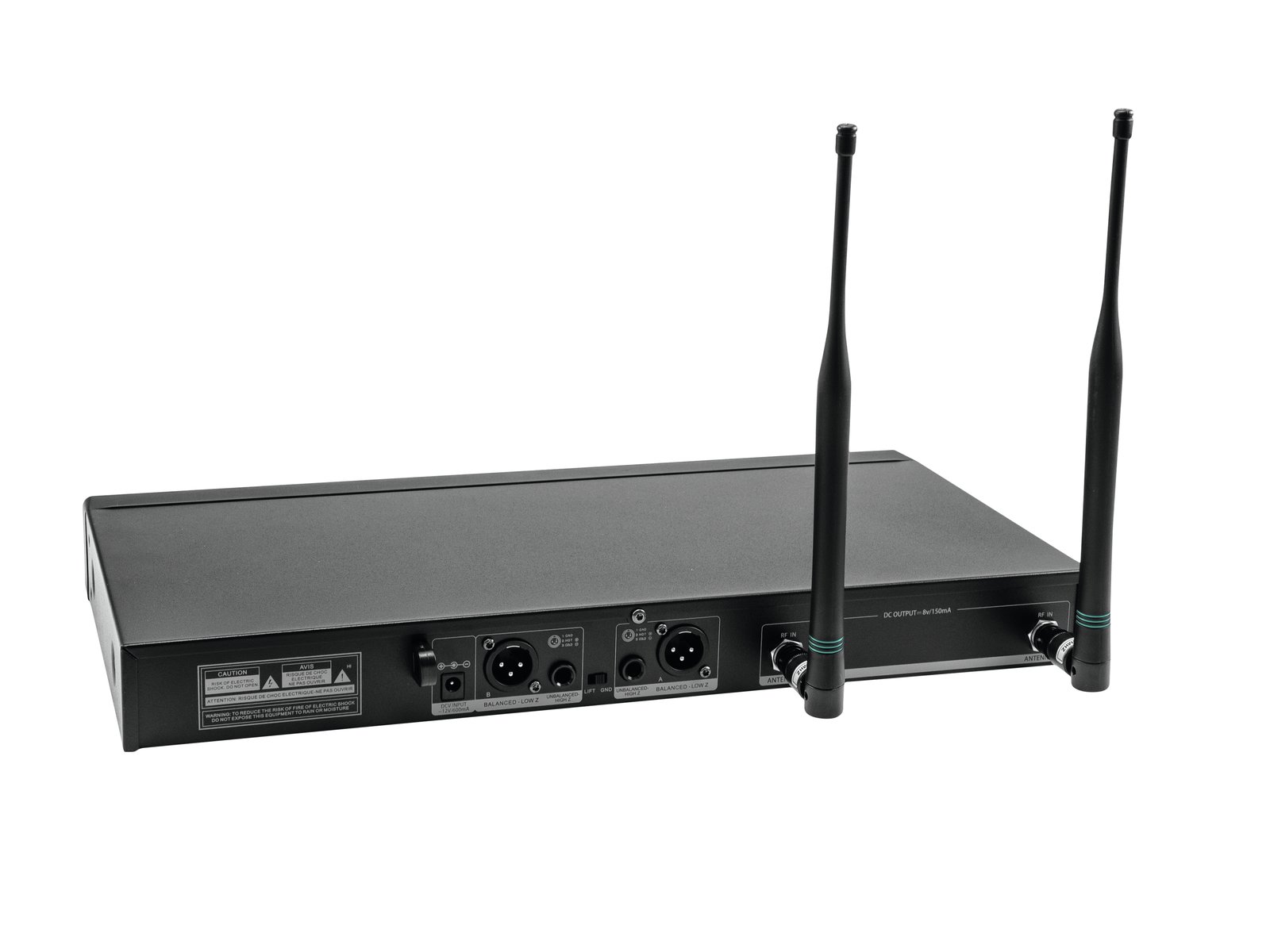

| Connections: | Output: line via 2 x 3-pin XLR Output: line via 2 x 6.3 mm plug (unbal.) Antenna via 2 x BNC (F) 8 V |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 Switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| Frequency stability: | ± 0,0005 % |
| Range: | Range up to 80m with line-of-sight |
| Switching bandwidth: | 11 MHz |
| Diversity: | Antenna diversity |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 41 cm Depth: 26 cm Height: 4,6 cm |
| Weight: | 2,32 kg |
