RELACART UR-222S 1-Channel UHF System
RELACART UR-222S 1-Channel UHF System
RELACART UR-222S 1-Channel UHF System
RELACART UR-222S 1-Channel UHF System
RELACART UR-222S 1-Channel UHF System

RELACART UR-222S 1-Channel UHF System

SKU: 13055207

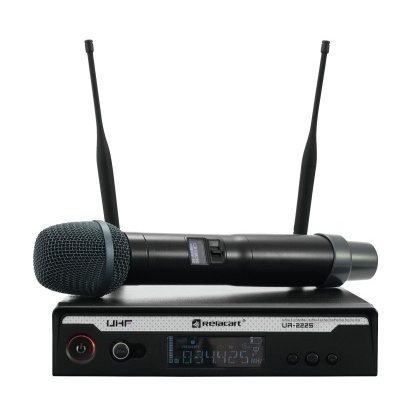

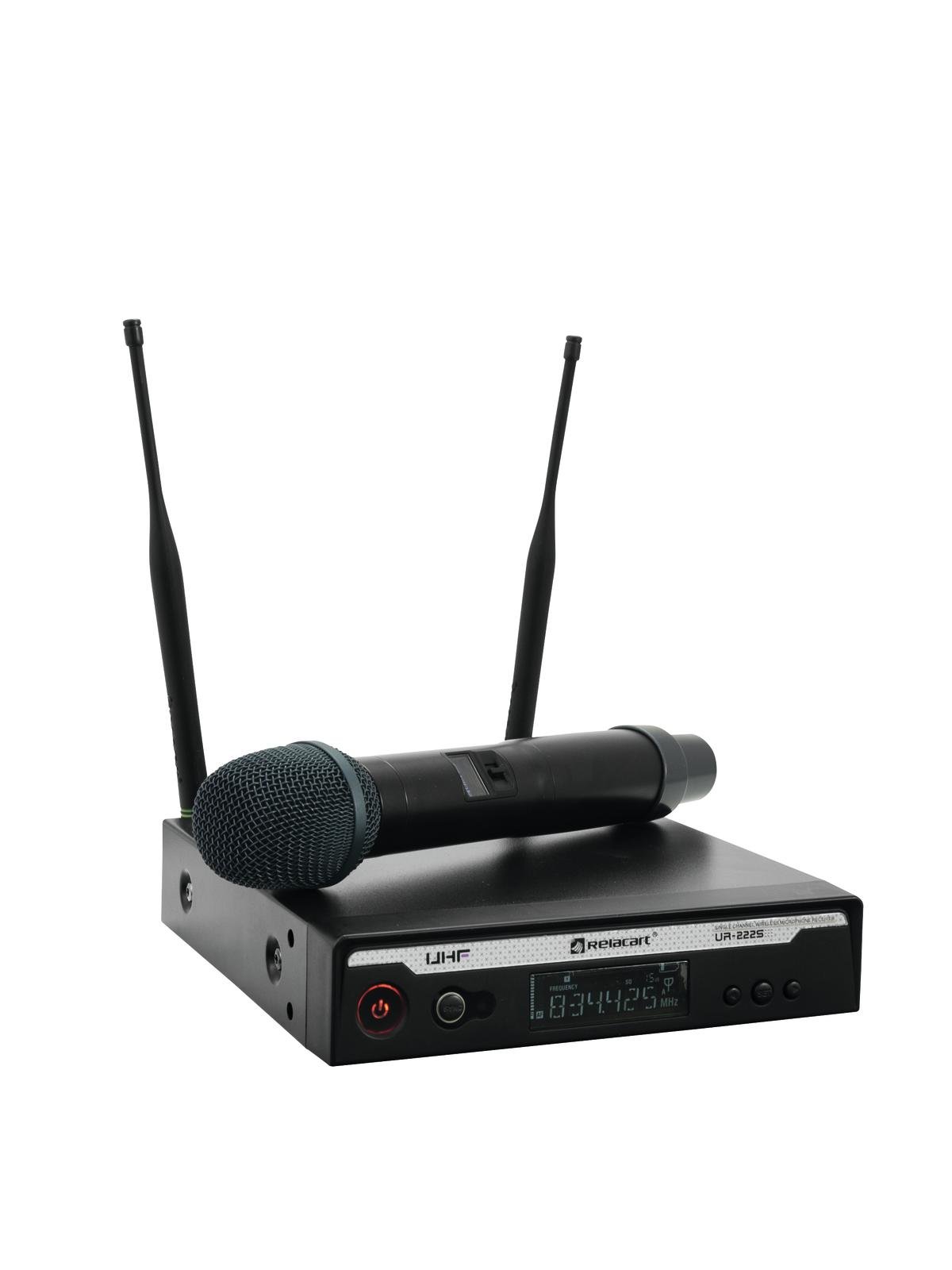

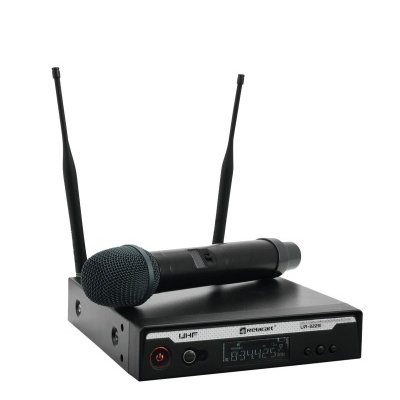

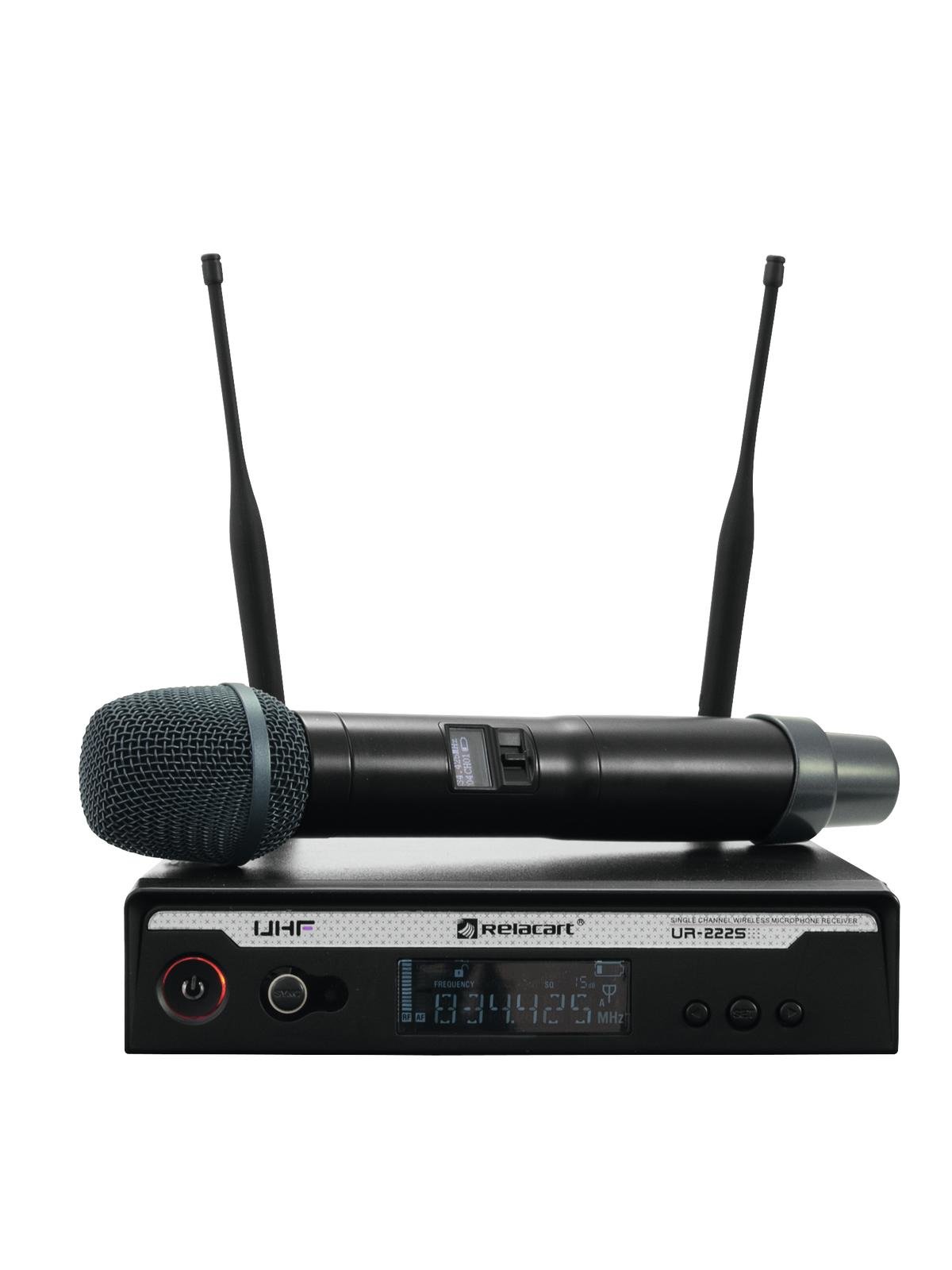

The UR-222S is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.

Diversity wireless microphone system, 823-832 MHz + 863-865 MHz

  • Charge status indicator

Package contents

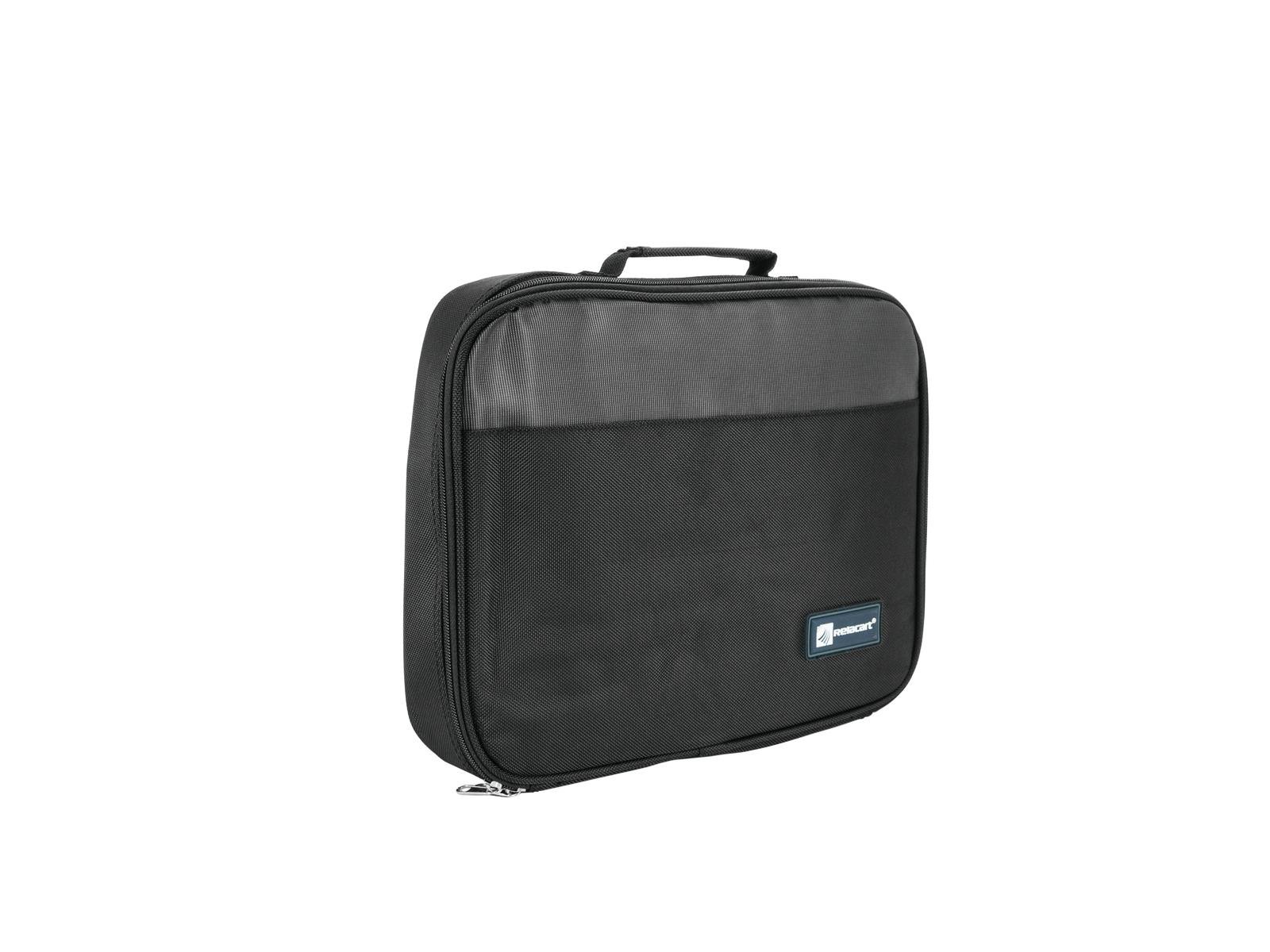

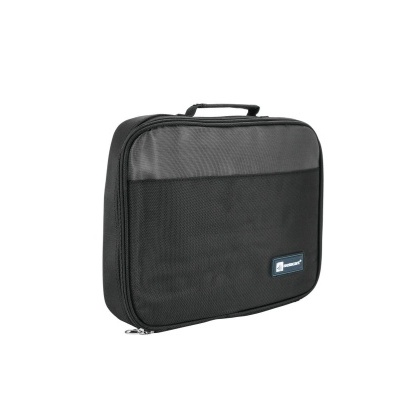

  • 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x microphone, 1 x jack cable, 1 x mounting bracket, 1 x user manual, 1 x declaration of conformity, 1 x bag

RELACART UR-222S 1-Channel UHF Receiver

Multifrequency wireless receiver with high-quality diversity reception

  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 systems is possible without any interference
  • Pilot frequency squelch technology delete wireless RF interference
  • Automatic frequency scan (AFS) finds interference-free channels
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Multicolor LCD display
  • UHF 863 - 865 MHz License-free and approved in Europe
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Operating range up to 80m
  • Desktop console housing
  • (19") 48.3 cm rack installation possible 1 U
  • Charge status indicator

Package contents

  • 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag

RELACART UH-222D Microphone

Hand-held microphone with PLL multifrequency transmitter

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Capsule M-022
  • Directly compatible with Shure's SM58 capsule
  • Polar pattern: Super cardoid
  • OLED display
  • Charge status indicator
  • UHF 863 - 865 MHz License-free and approved in Europe
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Operating range up to 80m

Package contents

  • 1 x microphone, 1 x user manual, 1 x declaration of conformity


Type:Wireless set
Display:Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency
Weight:2,24 kg
RELACART UR-222S 1-Channel UHF Receiver
Type:Receiver
Power supply:100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:3 W
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:1
Frequency range:45 - 18000 Hz
S/N ratio:>105 dB
THD:<0,7 % at 1 kHz
Display type:Multicolor LCD display
Display:Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency
Control elements:Groundlift selector, menu, navigation keys

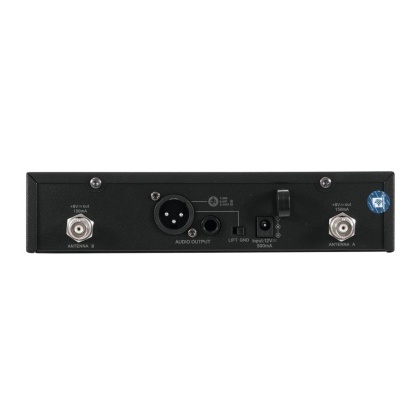

Connections:Antenna via 2 x BNC (F) 8 V
Output: Microphone via 1 x 3-pin XLR (M) mounting version
Output: Microphone via 1 x 6.3 mm plug (unbal.)
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each
Modulation:FM
Frequency stability:± 0,005 %
Range:Range up to 80m
Switching bandwidth:11 MHz
Switch:On/off switch
Diversity:Antenna diversity
Material:Metal
Color:Black
Housing design:Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions:Width: 20 cm
Depth: 26 cm
Height: 4,4 cm
Weight:1,95 kg
RELACART UH-222D Microphone
Type:Hand-held transmitter
Power supply:3 V DC
Capsule type:Dynamic
Polar pattern:Super cardoid
Battery:2 x Mignon (AA) (not included)
Frequency range:120 - 16000 Hz
Sensitivity:-53 dB
Max. SPL:145 dB
Display type:OLED display
Display:Charge status indicator , frequency , Chanal
Control elements:Gain-switch (high-mid-low), Transmitter power switch (high-low)
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each
Modulation:FM
RF power output:10 mW
Range:Range up to 80m
Switching bandwidth:11 MHz
Switch:On/off/mute switch
Material:Aluminum
Dimensions:Length: 26 cm
Diameter: Ø 5,4 cm
Weight:280 g
