OMNITRONIC UHF-302 2-Channel Wireless Mic System 823-832/863-865MHz
SKU: 13063302

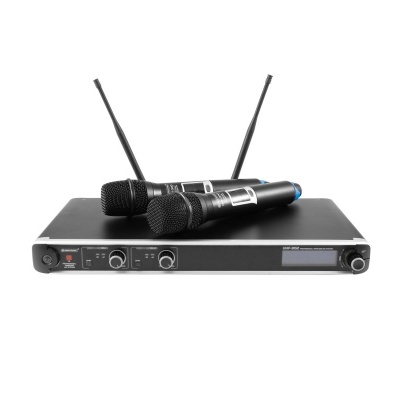

2-channel UHF PLL microphone system
- 2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
- 93 preset channels in 10 channel groups
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LEDs for carrier and audio signal
- 2 separate channels with volume controls
- Balanced XLR output per channel
- Detachable BNC antennas
- 2 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- Operating range up to 60m with line-of-sight

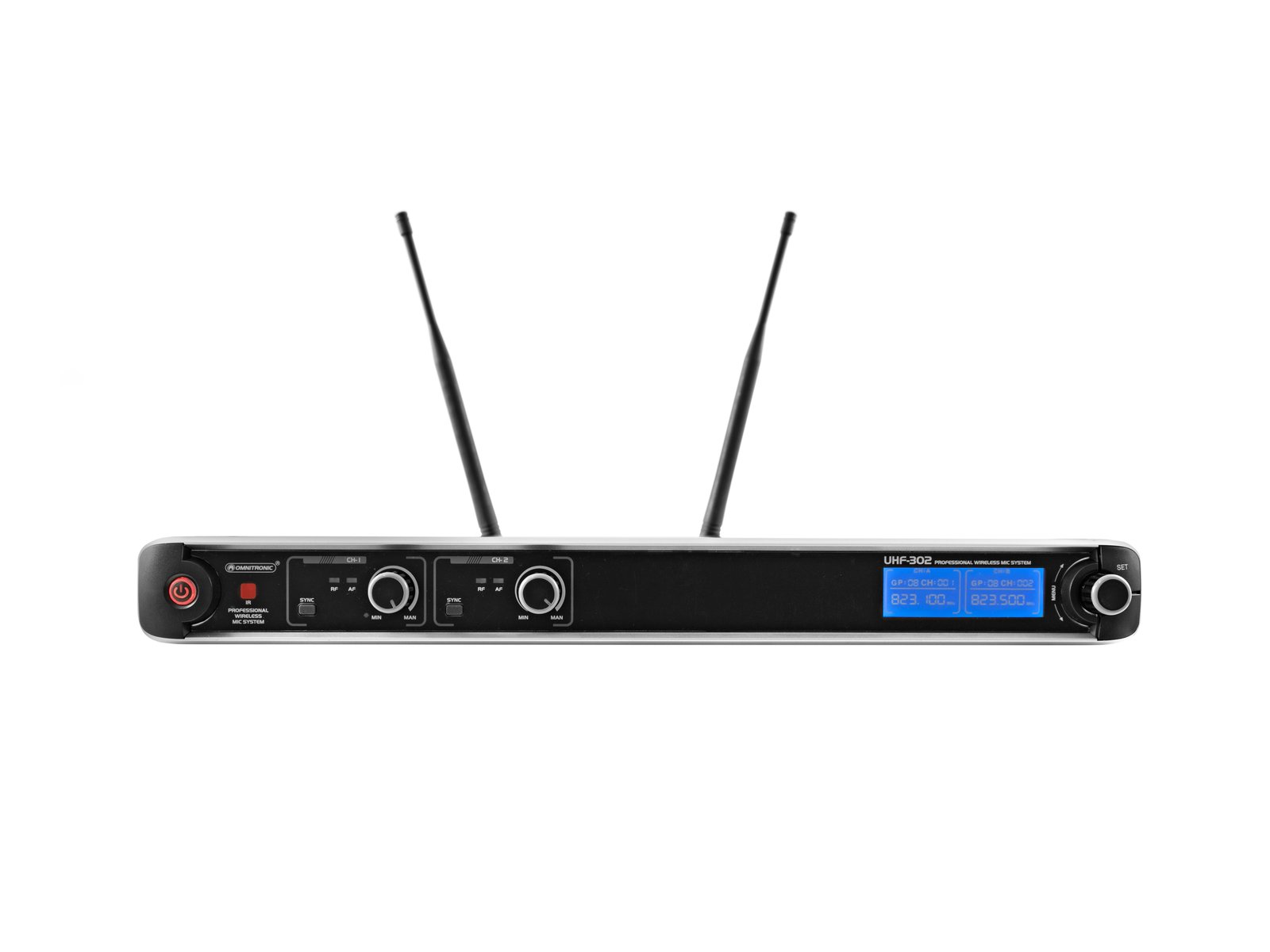

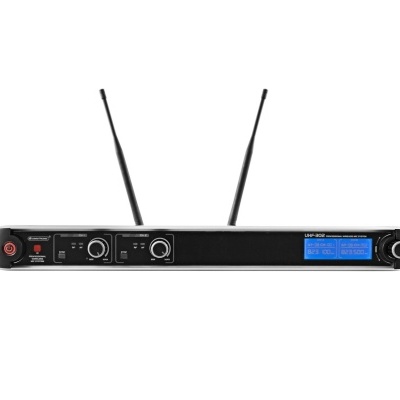

Receiver
- LCD display
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Microphone
- Polar pattern: Cardioid
- LCD display
- Charge status indicator
Package contents
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 2 x microphone, 1 x jack cable, 2 x holder, 2 x mounting bracket, 4 x screw, 1 x user manual, 1 x declaration of conformity
| Type: | Wireless set |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency selection: | 93 Switchable frequencies |
| Modulation: | FM; PLL technology |
| Frequency stability: | ± |
| Range: | Range up to 60m with line-of-sight |
| Weight: | 2,30 kg |
| Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 14 V DC 350 mA |
| Power consumption: | 4 W |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 50 - 18,000 Hz |
| S/N ratio: | >80 dB |
| THD: | <0,5 % at 1 kHz |
| Display type: | LCD display |
| Display: | Chanal , frequency , goup |
| Control elements: | Power switch, level control, encoder |

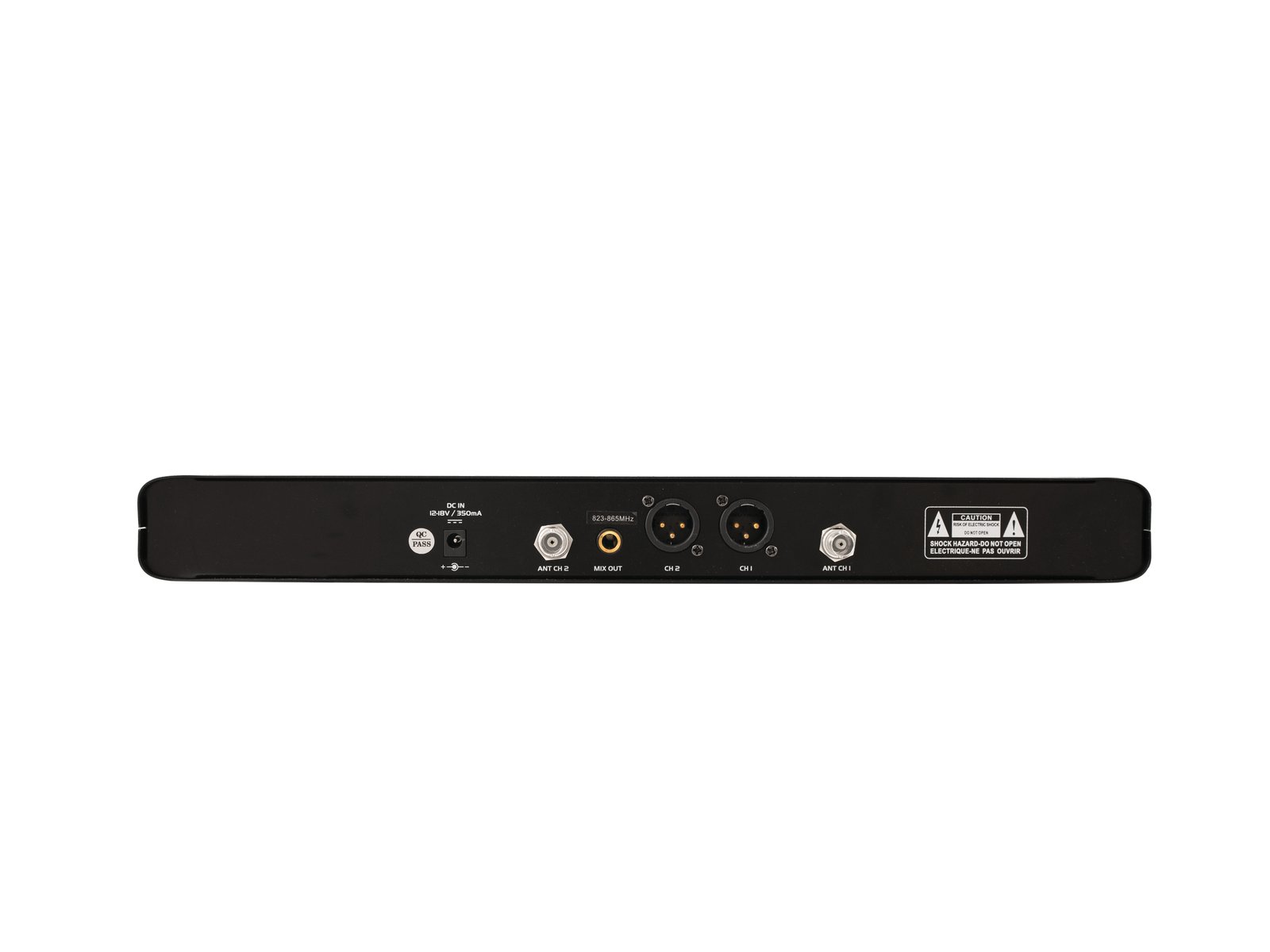

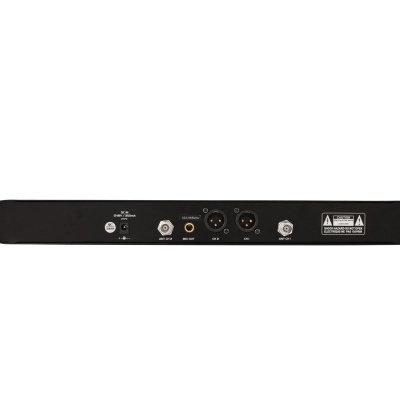

| Connections: | Input: antenna via 2 x BNC (F) Output: line via 1 x 6.3 mm plug (unbal.) Output: Microphone via 2 x 3-pin XLR |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 41 cm Depth: 23,5 cm Height: 4,7 cm |
| Microphone | |
| Type: | Hand-held transmitter |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Display type: | LCD display |
| Display: | Frequency , charge status indicator |
| RF power output: | 10 mW |
| Switch: | On/off switch |
| Material: | Plastic |
| Dimensions: | Length: 25 cm Diameter: Ø 5,2 cm |
| Weight: | 230 g |
