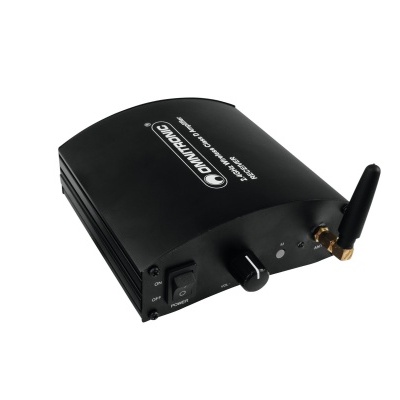

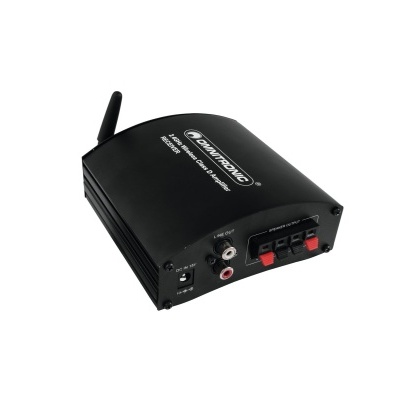

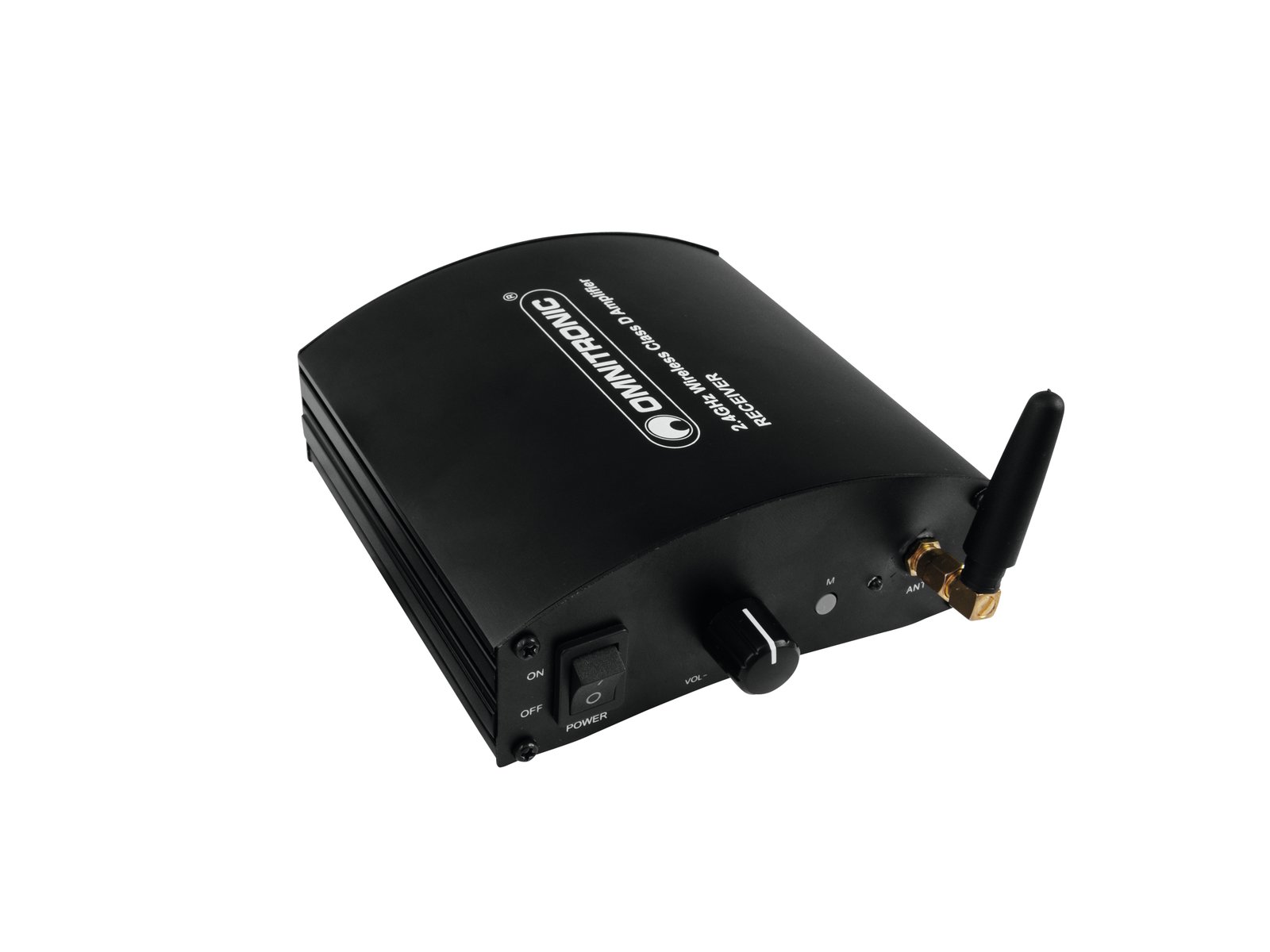

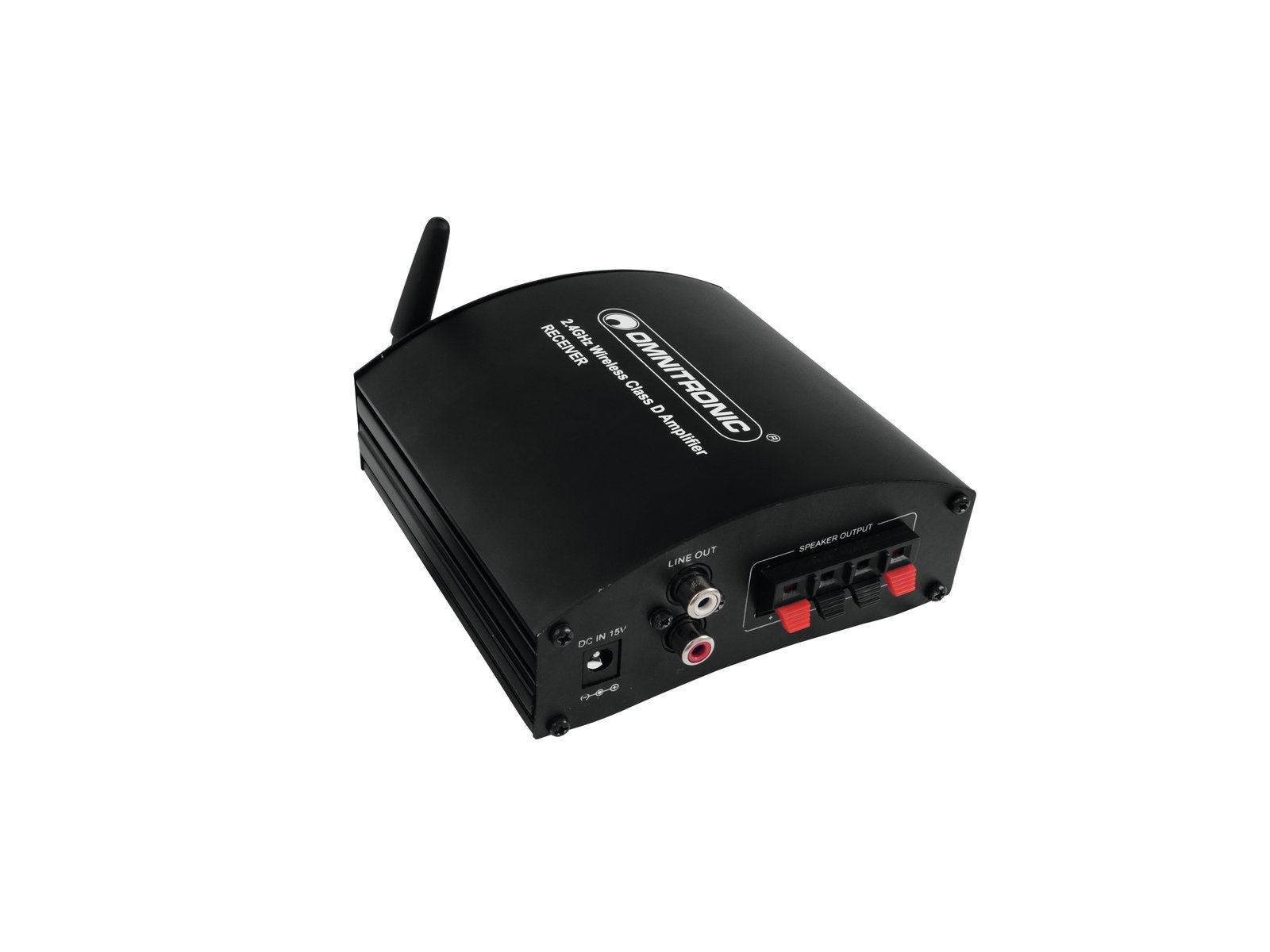

OMNITRONIC WS-1RA 2.4GHz Receiver, active
SKU: 13072212
Digital audio transmission system 2.4 GHz, 2 x 20 W/4 ohms
- Active, digital wireless receiver for reception of stereo audio signals with 2.4 GHz
- Transmit music via radio from your PC or MP3 player anywhere in your home with outstanding audio quality
- Simultaneous operation of an unlimited number of receivers possible
- Amplifier power 2 x 20 watts/4 ohms
- RCA output for connecting stereos or active speakers
- Digital transmission in the 2.4 GHz range provides for high resistance to interference and unique sound quality (16 bits/48 kHz)

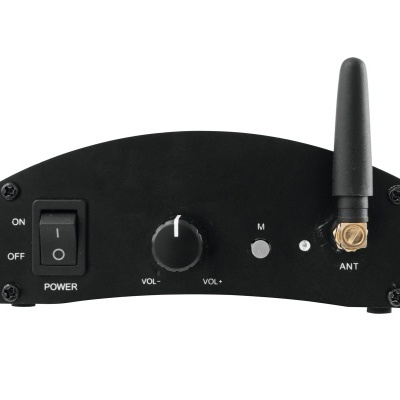

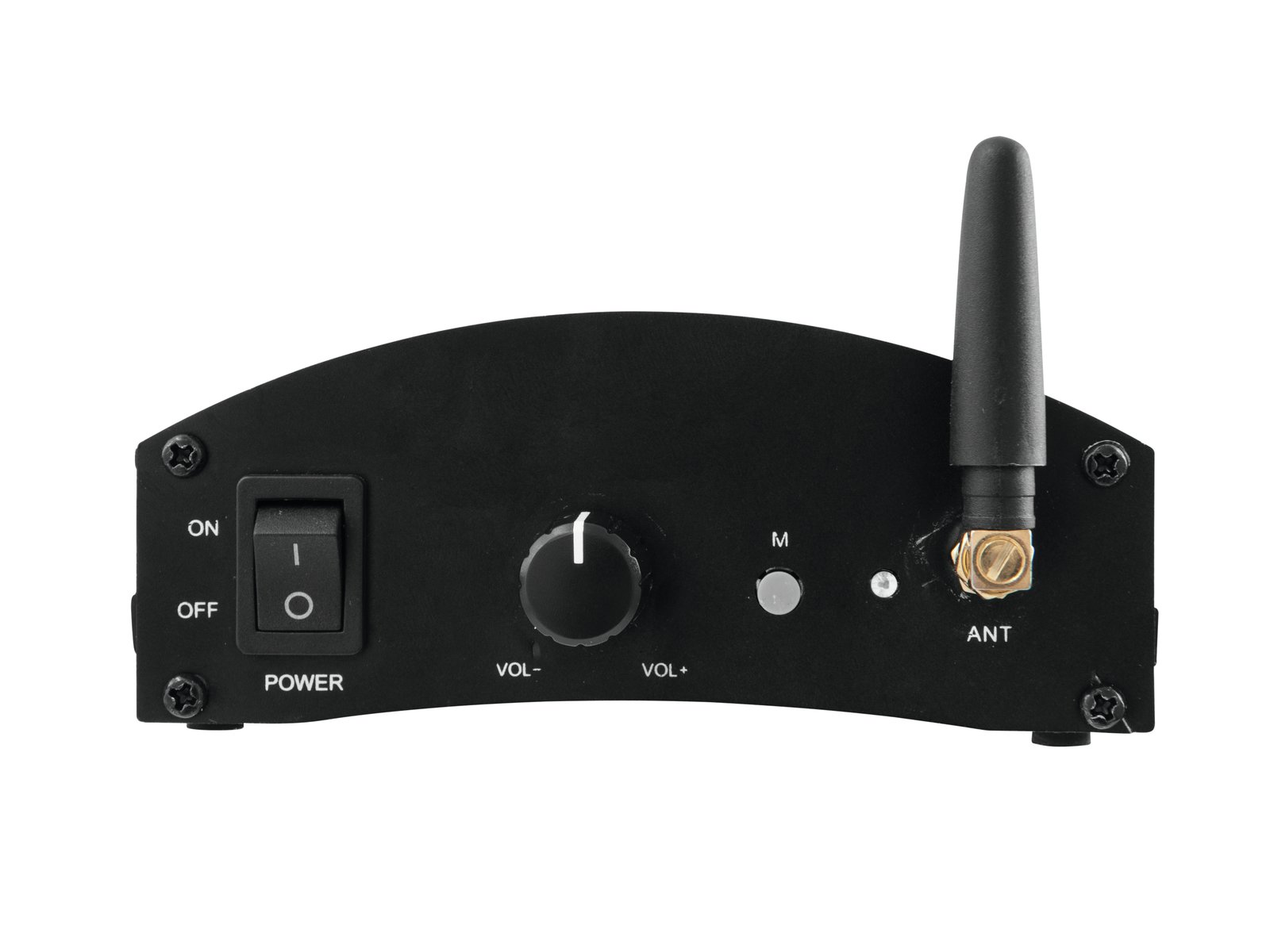

- Push button for pairing with the transmitter
- Detachable rod antenna
- Rugged, compact metal housing
- Control via Wi-Fi
- Sample rate: 48 kHz
- 2.4 GHz license-free worldwide
- Operating range up to 50m in the open air
- Operating range up to 30m in buildings
| Type: | Audio transmission |
| Power supply: | 100-240 V AC, 50/60 Hz 15 V DC |
| Pin configuration: | Inside + / outside - |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >96 dB |
| THD: | <0,03 % at 1 kHz |
| Control: | Wi-Fi |
| Sample rate: | 48 kHz |
| Crosstalk: | >-96 dB |
| Control elements: | Level control, power switch, connect; level control |
| Status LED: | Signal |

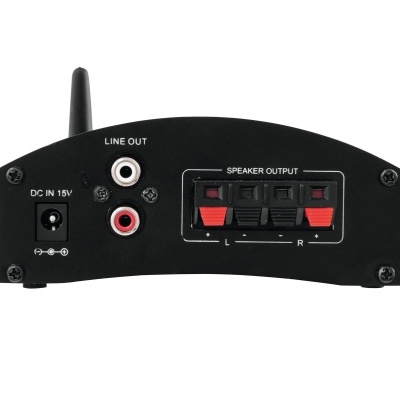

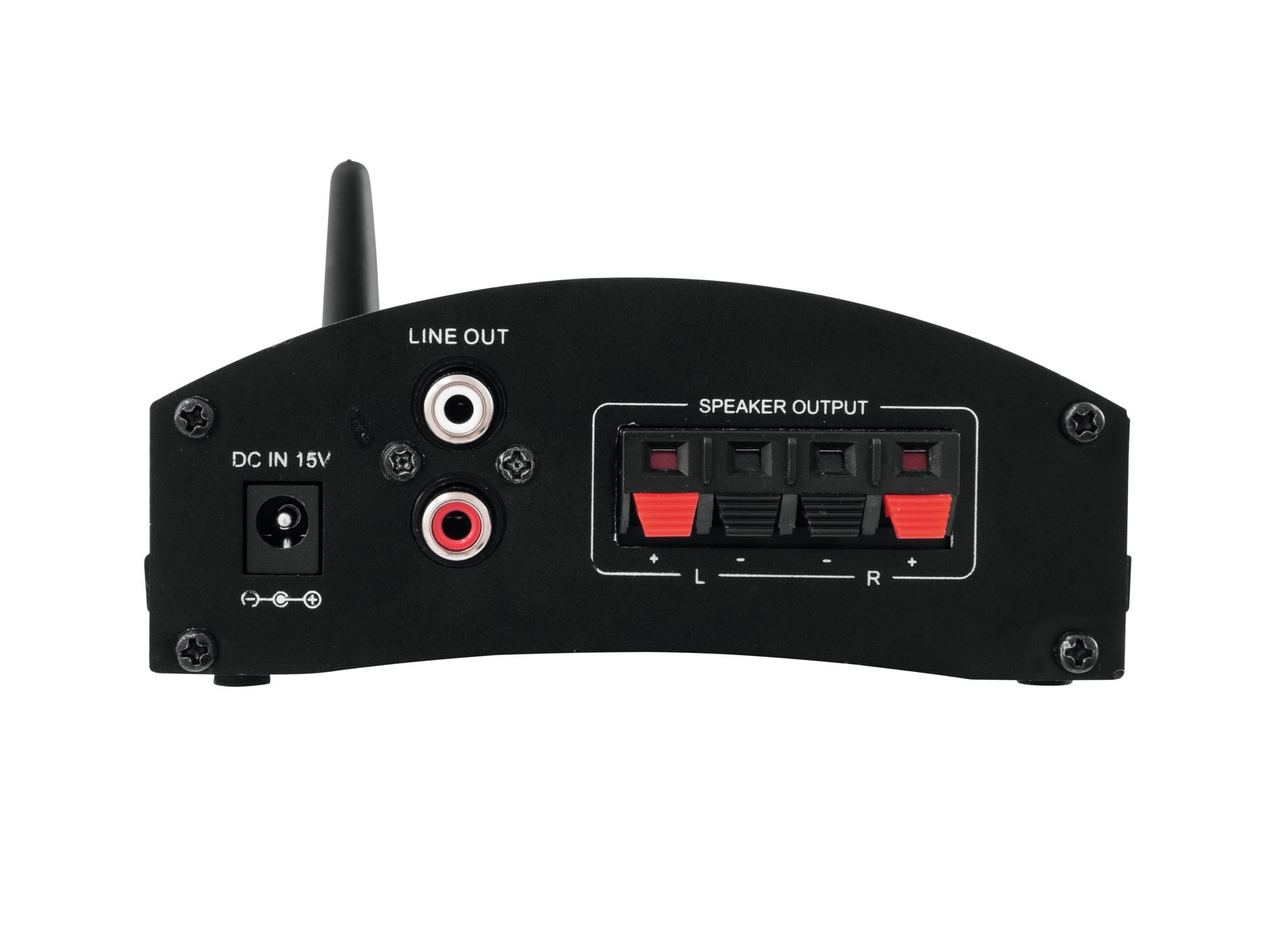

| Connections: | Antenna via 1 x SMA (F) mounting version Output: line via 1 x stereo RCA Output: speaker via Spring terminal |
| Frequency band: | 2.4 GHz |
| Frequency selection: | 32 |
| Modulation: | GFSK, stereo |
| Converter: | 16 bit |
| Range: | Range up to 50m in the open air Range up to 30m in buildings |
| Material: | Metal |
| Dimensions: | Width: 14,5 cm Depth: 12 cm Height: 7 cm |
| Weight: | 890 g |
