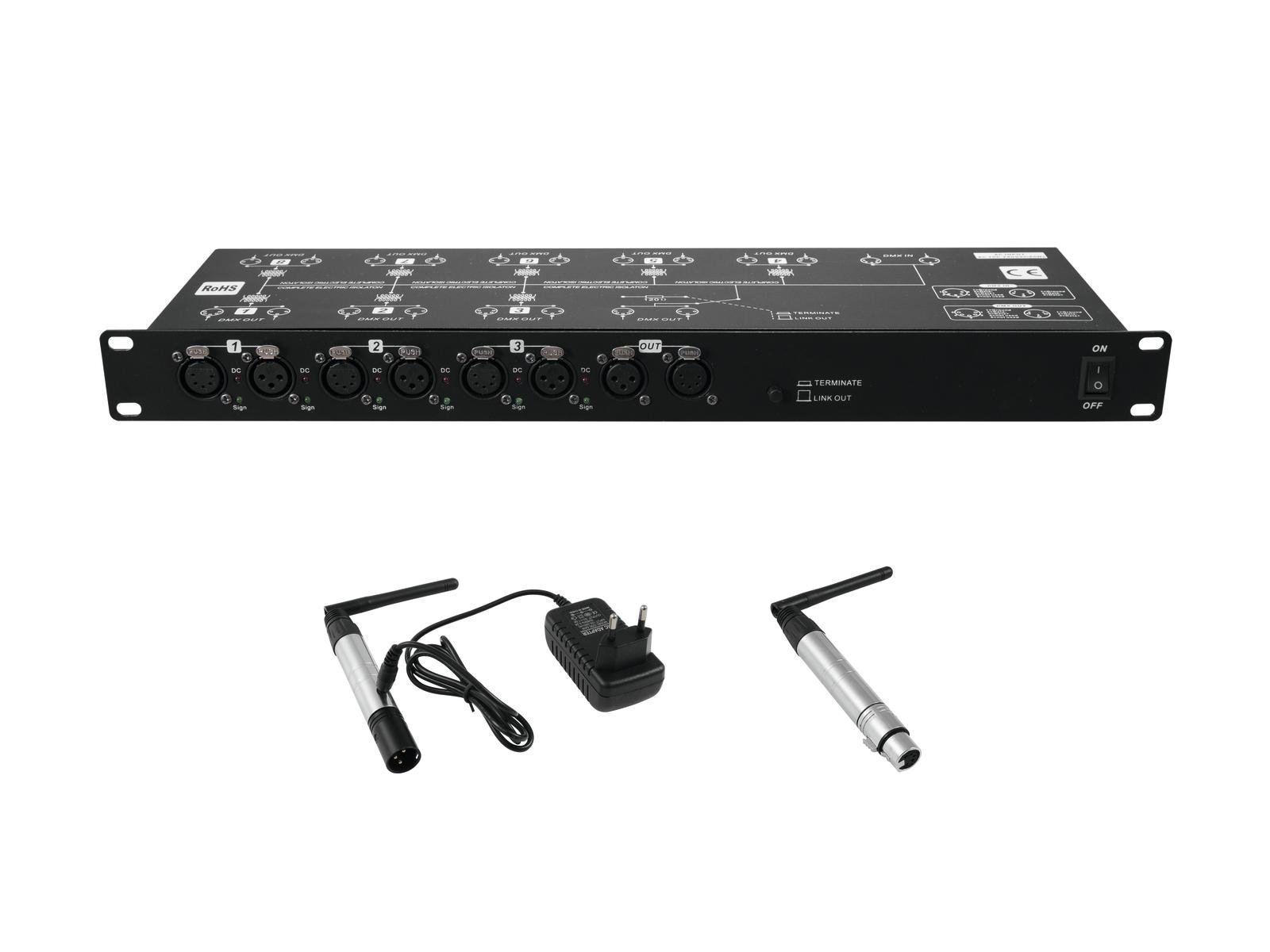

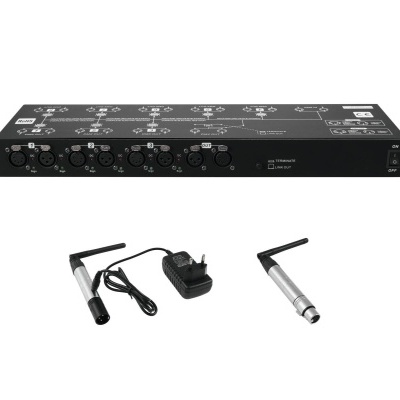

EUROLITE Set DMX Split 8X Splitter + transmitter + receiver

DMX splitter with one wireless DMX transmitter and a phantom powered wireless DMX receiver

EUROLITE DMX Split 8X Splitter

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets

• DMX splitter for splitting one DMX input signal to 8 DMX outputs
• Input and outputs XLR 3-pin and 5-pin each
• Each DMX output with independent driver and status indicator
• Input and outputs galvanically isolated
• Input and outputs with a set of respective power supply and internal fuse
• Switchable termination resistor
• Control via DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
• (19") 48.3 cm rack installation 1 U

Package contents

• 1 x device, 1 x user manual, 1 x power cord

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR adapter (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Can transmit up to 512 DMX channels
• Control via QuickDMX; DMX; plug and play
• Operating range up to 400m

Package contents

• 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable

EUROLITE QuickDMX Wireless receiver phantom-power

Compact wireless DMX receiver 2.4 GHz, phantom powered

• User-friendly 5-pin XLR adapter(female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• Can receive and process up to 512 DMX channels
• Control via DMX; QuickDMX; plug and play
• Operating range up to 400m

Package contents

• 1 x device, 1 x user manual, 1 x declaration of conformity
