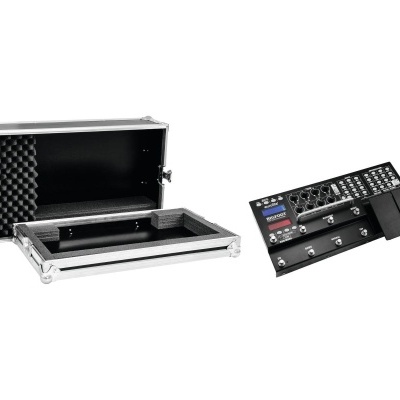

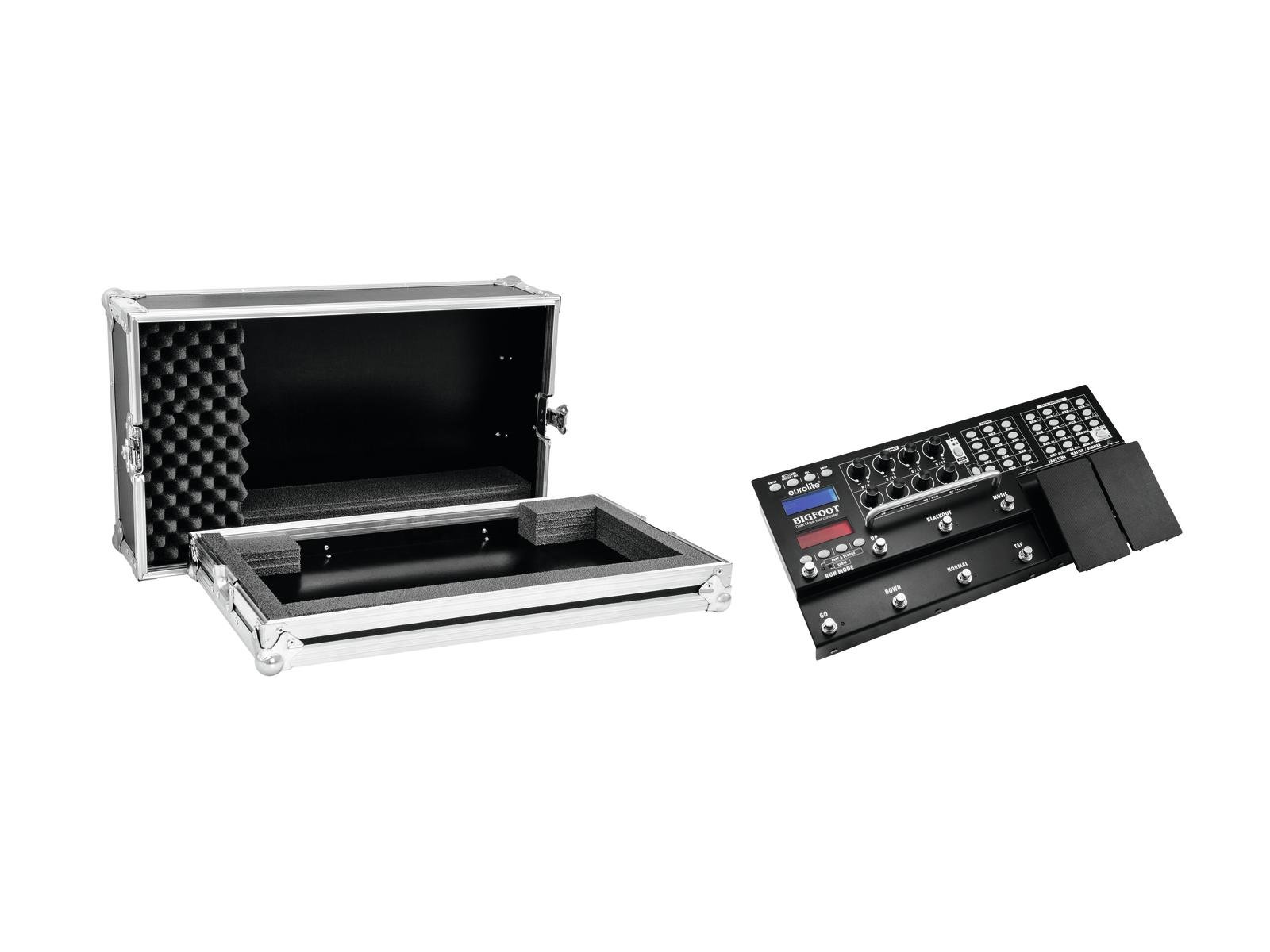

EUROLITE Set DMX Move Bigfoot + Case
SKU: 20000349
A full-fledged DMX light controller in a foot bar, with FX generator including PRO flightcase
EUROLITE DMX Move Bigfoot Foot Controller 192
A full-fledged DMX light controller in a foot bar, with FX generator
- Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
- For 12 fixtures with max. 16 control channels each
- USB port for storing program data
- Quick programming thanks to the integrated FX generator with movement patterns and color effects
- Several effects can be used simultaneously
- Programs can be freely named
- Simply preselect the desired program and trigger it with GO
- Sound control via audio signal or TAP button
- Convenient control of dimmer, fade time and other functions by foot
- 8 encoders on 2 levels for adjusting DMX values
- Blackout function
- Firmware update via USB
- Rugged metal housing
- Programmable 15 sequencens each with 100 scenes
- Can transmit up to 192 DMX channels
- Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
- Monochrome LCD display
- Non-slip pedal housing
- For application areas such as: Stage; mobile djs/entertainer; product presentations and lectures
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
ROADINGER Flightcase DMX Move Bigfoot
Hood case, PRO version
- With 1 Device compartment
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- Interior with foam padding
- Aluminum profile frames 25mm with rounded edges
- Rugged carrying handle
- 1 high-quality butterfly lock
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 8,77 kg |
| EUROLITE DMX Move Bigfoot Foot Controller 192 | |
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Mains input via 2-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 15 Sequences Each with 100 Scenes |
| DMX channels: | Output 192 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version |
| Housing color: | Black |
| Display type: | Monochrome LCD display |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| Housing design: | Non-slip pedal housing |
| Dimensions: | Width: 45 cm Depth: 24 cm Height: 10 cm |
| Weight: | 4,72 kg |
| Noise classification: | Class 0 (no noise at all) |
| ROADINGER Flightcase DMX Move Bigfoot | |
| Maximum load: | 25 kg |
| Aluminum profile frames: | 25 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Butterfly lock: 1 pc/pcs |
| Use of brands: | Branded hardware |
| Material: | Birch multiplex, 7 mm |
| Color: | Dark brown, laminated |
| Device compartment: | 45 cm x 19,5 cm x 40 cm |
| Dimensions: | Width: 42 cm Depth: 32 cm Height: 17,5 cm |
| Weight: | 4,05 kg |
