EUROLITE Set LED KLS Laser Bar FX Light Set + M-4 Speaker-System Stand
SKU: 20000451

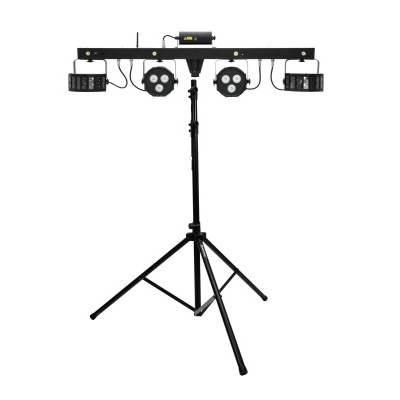

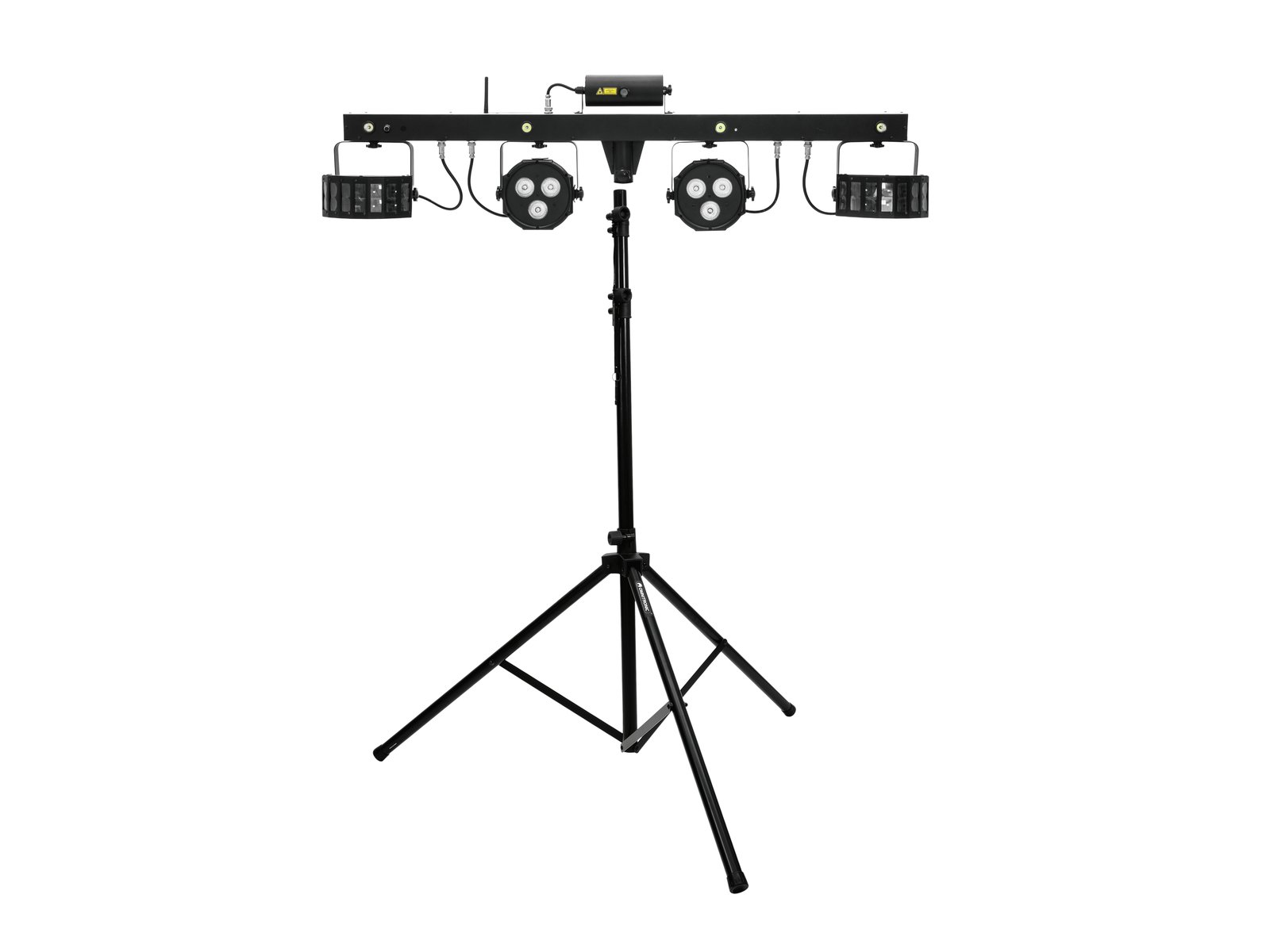

LED KLS Laser Bar FX Light Set including aluminum speaker stand
EUROLITE LED KLS Laser Bar FX Light Set
Bar with 2 derbies, 2 spots, white strobe LEDs, laser (RG, 2M), foot switch
- Crossbar with integrated DMX control unit and stand sleeve
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects
- For application areas such as: Wedding/gala/events; mobile use; Party room; mobile djs/entertainer; small rental
- When fog is used, this effect becomes especially attractive
- 37 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function
- With Mounting bracket
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- Laser; multi beam effect; Strobe effect; flower effect
- Application possibility: On tripod
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 3 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
2 spots controlled separately - With a beam angle of 13°
light effect
- 3 powerful LEDs 1 W high-power R/G/B
2 spots controlled separately
bar
- 4 powerful LEDs 1 W high-power cold white (CW)
LEDs controlled separately
Package contents
- 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x foot control, 1 x remote control, 2 x battery, 2 x mounting bracket, 2 x knurled screw, 1 x bag, 2 x washer
OMNITRONIC M-4 Speaker-System Stand
Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg
- Durable aluminum version
- Tube diameter: Ø 35 mm
- Adjustable height
Package contents
- 1 x user manual
| EUROLITE LED KLS Laser Bar FX Light Set | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Device fuse: | 5 x 20 mm, F 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| Flash rate: | 0 - 30 Hz |
| DMX channels: | 3; 5; 9; 27 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3 |
| Housing color: | Black |
| Attachment system: | 2x Mounting bracket |
| Dimensions: | Width: 1,09 m Depth: 14,5 cm Height: 37 cm |
| Weight: | 9,05 kg |
| Noise classification: | Class 2 (slight noise) |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
| Spotlight | |
| LED: | 3 x 3 W high-power 3in1 TCL RGB (homogenous color mix) |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Beam angle (1/10 peak): | 20° |
| Light effect | |
| LED: | 3 x 1 W high-power R/G/B |
| Bar | |
| LED: | 4 x 1 W high-power cold white (CW) |
| Beam angle (1/2 peak): | 7° |
| Foot control | |
| Battery: | 1 x 9.0 V E block 6LR61 alkaline manganese included |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| OMNITRONIC M-4 Speaker-System Stand | |
| Maximum carrying capacity: | 18 kg |
| Tube diameter sector: | 38 - 35 mm |
| Height: | Maximum: 345 cm Minimum: 140 cm Adjustable in 10 steps with locking pin |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Aluminum |
| Color: | Black |
| Transport dimensions: | 1,4 m x 13,5 cm |
| Weight: | 3,30 kg |
