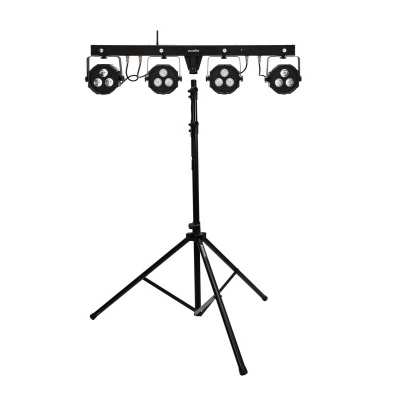

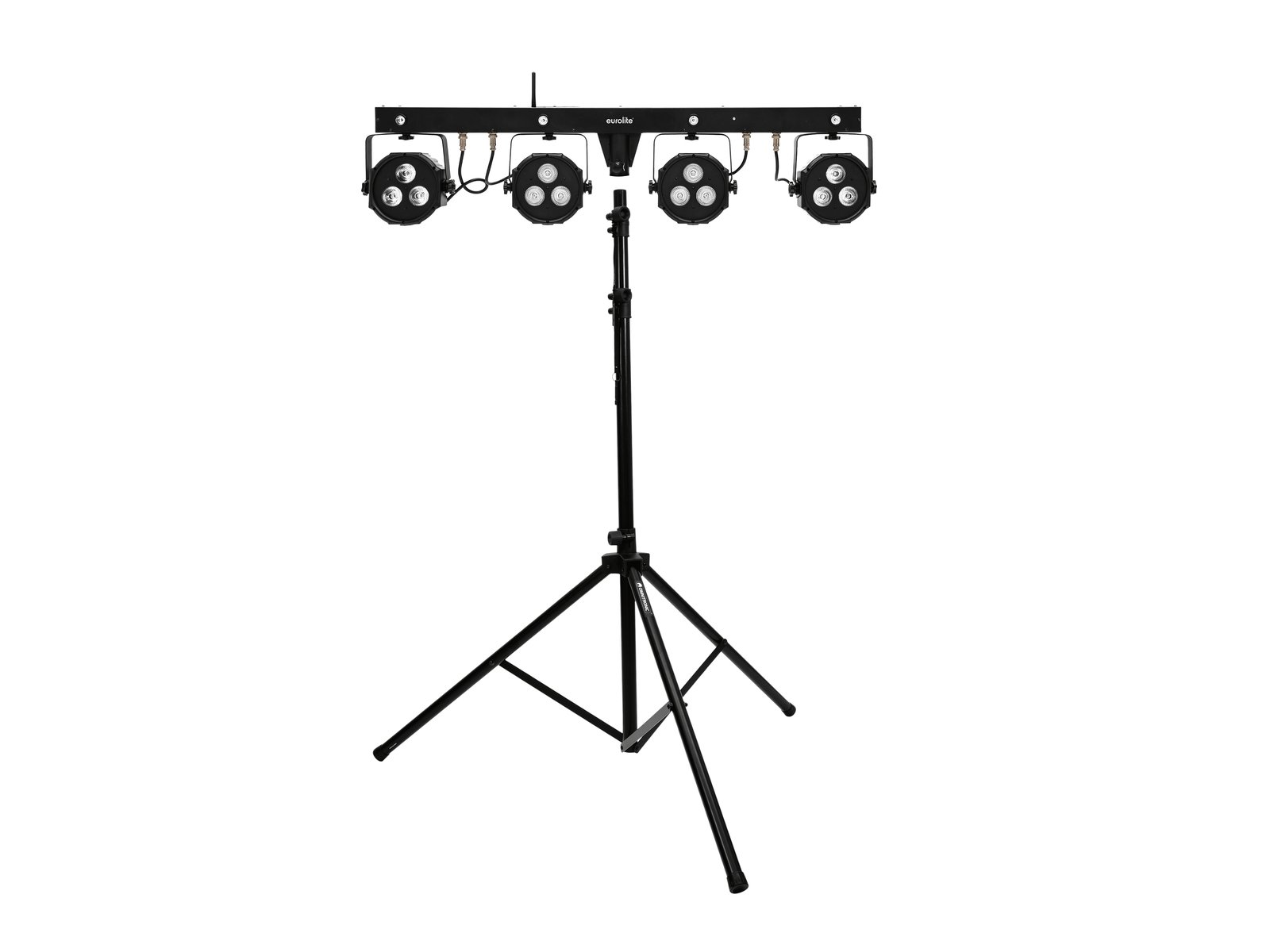

EUROLITE Set LED KLS-170 Compact Light Set + M-4 Speaker-System Stand
SKU: 20000453
LED KLs-170 Compact Light Set including aluminum speaker stand
EUROLITE LED KLS-170 Compact Light Set
Bar with 4 RGB spots, cold white + UV strobe LEDs, foot switch and carrying bag
- Compact lightweight
- Crossbar with integrated DMX control unit and stand sleeve
- Silent operation
- 31 integrated show programs
- Control via stand-alone; DMX; Wireless footswitch; IR remote control; Sound to light via Microphone; Master/slave function
- Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
- With Mounting bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Party room; mobile use; mobile djs/entertainer; small rental
- Application possibility: On tripod
spotlight
- 3 powerful LEDs 9 W high-power 3in1 TCL RGB (homogenous color mix)
spots controlled separately
bar
- 4 powerful LEDs 2 W high-power 2in1 BCL CW/UV (homogenous color mix)
LEDs controlled separately
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x bag, 1 x foot control, 1 x remote control, 2 x battery, 2 x mounting bracket, 2 x knurled screw, 2 x washer
OMNITRONIC M-4 Speaker-System Stand
Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg
- Durable aluminum version
- Tube diameter: Ø 35 mm
- Adjustable height
Package contents
- 1 x user manual
| Weight: | 9,55 kg |
| EUROLITE LED KLS-170 Compact Light Set | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| DMX channels: | 3; 6; 16; 25 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; Wireless footswitch; IR remote control; Sound to light via Microphone; Master/slave function |
| Preprogrammed in: | EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Beam angle (1/10 peak): | 25° |
| Housing color: | Black |
| Attachment system: | 2x Mounting bracket |
| Dimensions: | Width: 1,03 m Depth: 55 cm Height: 24 cm |
| Weight: | 6,25 kg |
| Noise classification: | Class 0 (no noise at all) |
| Spotlight | |
| LED: | 3 x 9 W high-power 3in1 TCL RGB (homogenous color mix) |
| Bar | |
| LED: | 4 x 2 W high-power 2in1 BCL CW/UV (homogenous color mix) |
| Flash rate: | 0 - 30 Hz |
| Foot control | |
| Battery: | 1 x 9.0 V E block 6F22 zinc carbon included |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| OMNITRONIC M-4 Speaker-System Stand | |
| Maximum carrying capacity: | 18 kg |
| Tube diameter sector: | 38 - 35 mm |
| Height: | Maximum: 345 cm Minimum: 140 cm Adjustable in 10 steps with locking pin |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Aluminum |
| Color: | Black |
| Transport dimensions: | 1,4 m x 13,5 cm |
| Weight: | 3,30 kg |
