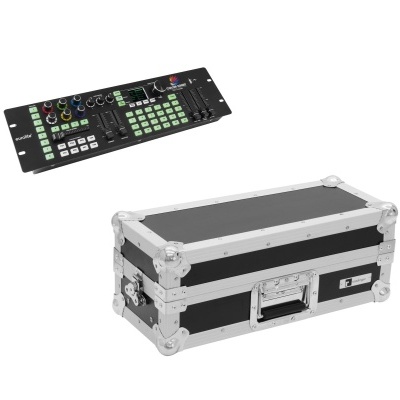

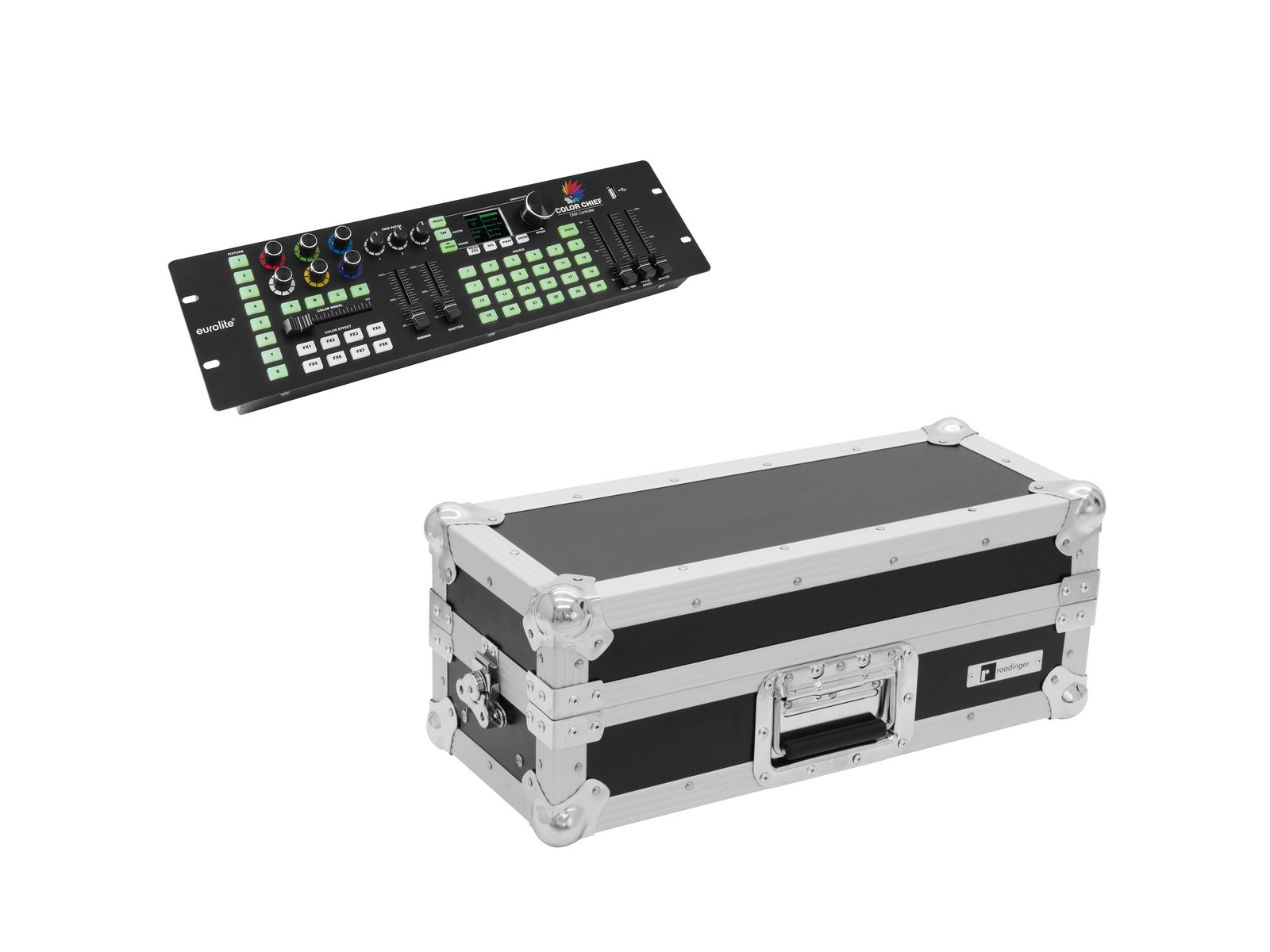

EUROLITE Set DMX LED Color Chief + Case
SKU: 20000484
DMX lighting desk with innovative control concept for LED spotlights including flightcase
EUROLITE DMX LED Color Chief Controller
DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Each device can occupy up to 30 channels
- Quick and easy programming
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases can be run simultaneously
- USB port for storing program data
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- Firmware update via USB
- Programmable 24 sequencens
- Can transmit up to 240 DMX channels
- Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
- (19") 48.3 cm rack installation 3 U
- Desktop console housing
- For application areas such as: Clubs/dancing school; Party room; Trade fair and shop fitting; mobile djs/entertainer; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
ROADINGER Mixer Case Pro MCA-19-N, 3U, black
Rack case
- Upward tilted profile rails for top-operated units
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
- Removable cover
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 2 high-quality butterfly locks
- Rubber feet
- With profile rails suitable for (19") approx. 48 cm units
- 3 U
Package contents
- 1 x case
| Weight: | 7,35 kg |
| EUROLITE DMX LED Color Chief Controller | |
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 24 Sequences |
| DMX channels: | Output 240 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 3 U Desktop console housing |
| Dimensions: | Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm |
| Weight: | 2,25 kg |
| Noise classification: | Class 0 (no noise at all) |
| ROADINGER Mixer Case Pro MCA-19-N, 3U, black | |
| Maximum load: | 25 kg |
| Removable covers: | 1 pc/pcs |
| Aluminum profile frames: | 30 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Transport aid: | Rubber feet |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated; dark brown, laminated |
| Inside dimensions: | 45 cm x 20 cm x 10,5 cm |
| Front panel width: | (19") approx. 48 cm |
| Mounting height: | Approx. 13.5 cm (3 U) |
| Mounting depth: | 105 mm |
| Housing design: | 3 U |
| Dimensions: | Width: 55 cm Depth: 24 cm Height: 23,5 cm |
| Weight: | 5,10 kg |
