OMNITRONIC PA Set AZX active M
SKU: 20000527

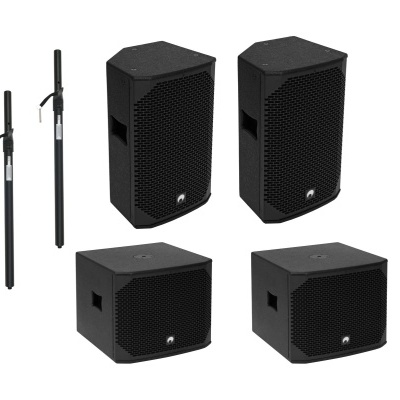

2x AZX-115A PA Subwoofer active 400W, 2x AZX-212A 2-Way Top active 250W and 2x Distance Tube
OMNITRONIC AZX-115A PA Subwoofer active 400W
Active 15" PA bassreflex subwoofer, 400 W
- 38 cm (15") bass speaker with 63 mm voice coil
- Class D amplifier with 400 W
- XLR inputs and parallel outputs L/R
- XLR output L/R with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Rugged carrying handle
- Black metal grille with acoustic foam
Package contents
- 1 x bass, 1 x user manual, 1 x power cord
OMNITRONIC AZX-212A 2-Way Top active 250W
Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS
- 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- HF adjustment -4 dB, -2 dB, 0 dB
- Black metal grille with acoustic foam
- Rugged carrying handle
- Application possibility: Standing; suspended; monitoring; on tripod
- With rigging points
- Dual flange
Package contents
- 1 x user manual, 1 x power cord, 1 x compact cabinet speaker
OMNITRONIC Distance Tube Subwoofer/Satellite M20
Variable distance tube
- Connecting tube for satellite systems
- Locking screw and bolt
- Powder-coated steel version
- Adjustable height
- M20 thread
Package contents
- 1 x distance tube, 1 x user manual
| Weight: | 92,40 kg |
| OMNITRONIC AZX-115A PA Subwoofer active 400W | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: | Rated: 400W RMS |
| Frequency range: | 40 - 250 Hz |
| Sensitivity: | 94 dB (1W/1m) |
| Attachment system: | M20 thread |
| Circuitry: | Class D |
| Control elements: | Phase reversal switch |
| Controls: | Limiter |
| Status LED: | Limit, power, signal |
| Connections: | Input: line via 2 x 3-pin XLR Output: line via 2 x 3-pin XLR Output: high-pass via 2 x 3-pin XLR |
| Crossover frequency: | 80-200 Hz |
| Speaker: | 1 x woofer (15") approx. 38 cm Basket material: Steel Voice coil lows (2.5") approx. 6.35 cm |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (Medium-density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 58 cm Depth: 60 cm Height: 52 cm |
| Weight: | 26,15 kg |
| OMNITRONIC AZX-212A 2-Way Top active 250W | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: | Rated: 200W RMS LF Rated: 50W RMS HF |
| Frequency range: | 55 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Attachment system: | Dual flange: Ø 35mm (0°/5°) |
| Flying points: | 7 x M10 thread |
| Circuitry: | Class D Biamp |
| Control elements: | Power switch, Input sensitivity switch, tone control, level control |
| Controls: | Limiter |
| Status LED: | Limit, power, signal |
| Connections: | Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial |
| Equalizer: | Master: 1 x 2-band tone control |
| Speaker: | Woofer (12") approx. 30 cm with ferrit magnet Basket material: Steel Conematerial: Cardboard/paper Voice coil lows (2") approx. 5 cm Voice coil compression tweeter highs (1.35") approx. 3.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (Medium-density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 43 cm Depth: 40,5 cm Height: 67 cm |
| Weight: | 19,15 kg |
| OMNITRONIC Distance Tube Subwoofer/Satellite M20 | |
| Maximum carrying capacity: | 30 kg |
| Tube diameter sector: | 41 - 35 mm |
| Height: | Maximum: 130 cm Minimum: 75 cm |
| Attachment system: | Ø 35mm |
| Type (general stands): | Distance tube |
| Color: | Black |
| Thread: | M20 thread |
| Weight: | 900 g |
