OMNITRONIC PA Set AZX passive M
SKU: 20000528

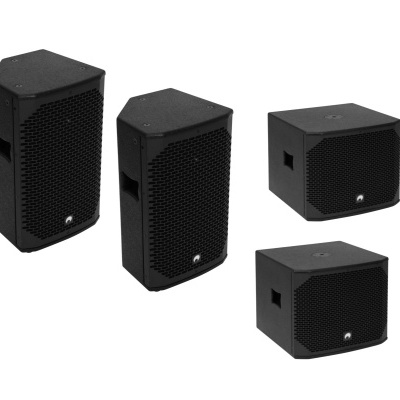

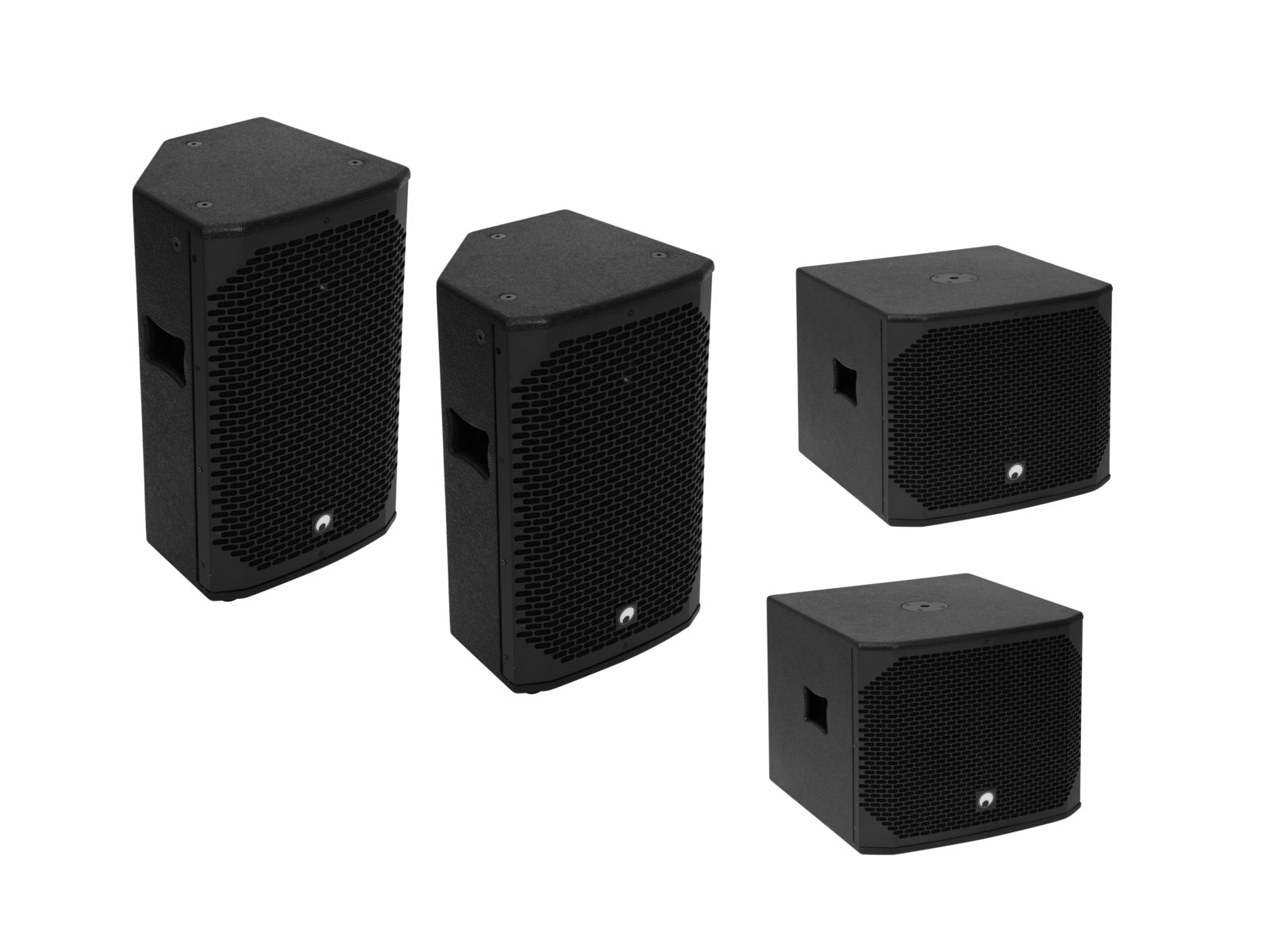

2x AZX-210 2-Way Top 200W including 2x AZX-112 PA Subwoofer 350W
OMNITRONIC AZX-210 2-Way Top 200W
Passive speaker with 10" woofer, 1" driver and 200 W RMS
- 2-way bass-reflex system with 25 cm woofer and 2.5 cm titan driver
- Dual flange
- With rigging points
- Black metal grille with acoustic foam
- Rugged carrying handle
- Application possibility: Standing; suspended; monitoring; on tripod
Package contents
- 1 x compact cabinet speaker, 1 x user manual
OMNITRONIC AZX-112 PA Subwoofer 350W
12" bassreflex subwoofer with 350 W RMS, 8 ohms
- 30 cm (12") bass speaker with 63 mm voice coil
- Black metal grille with acoustic foam
- 2 mould carrying handles
Package contents
- 1 x user manual, 1 x bass
| Weight: | 62,80 kg |
| OMNITRONIC AZX-210 2-Way Top 200W | |
| Power: | Program: 400W Rated: 200W RMS |
| Frequency range: | 60 - 18000 Hz |
| Sensitivity: | 93 dB (1W/1m) |
| Max. SPL: | 116 dB |
| Impedance: | 8 ohms |
| Attachment system: | Dual flange: Ø 35mm (0°/5°) |
| Flying points: | 7 x M10 thread |
| Connections: | Input: speaker via 2 x speaker built-in socket (F) |
| Speaker: | 1 x woofer (10") approx. 25 cm Voice coil lows (2") approx. 5 cm 1 x compression tweeter highs (1") approx. 2.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (Medium-density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 37 cm Depth: 36 cm Height: 58,5 cm |
| Weight: | 12,40 kg |
| OMNITRONIC AZX-112 PA Subwoofer 350W | |
| Power: | Program: 700W Rated: 350W RMS |
| Frequency range: | 40 - 250 Hz |
| Sensitivity: | 93 dB (1W/1m) |
| Impedance: | 8 ohms |
| Attachment system: | Flange: M20 thread |
| Connections: | Speaker via 2 x speaker built-in socket (F) |
| Speaker: | 1 x woofer (12") approx. 30 cm Voice coil lows (2.5") approx. 6.35 cm |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Mould carrying handle: | 2 pc/pcs |
| Material: | MDF (Medium-density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 50 cm Depth: 57,5 cm Height: 45 cm |
| Weight: | 19,00 kg |
| Brand | Omnitronic |
|---|---|
