OMNITRONIC PA Set AZX passive XL
SKU: 20000531

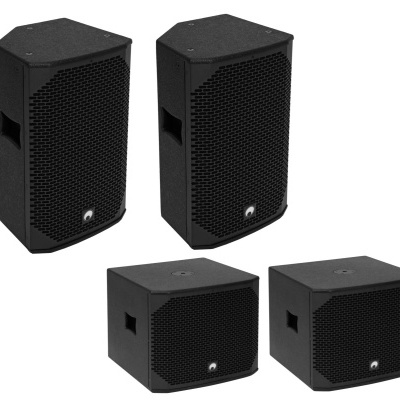

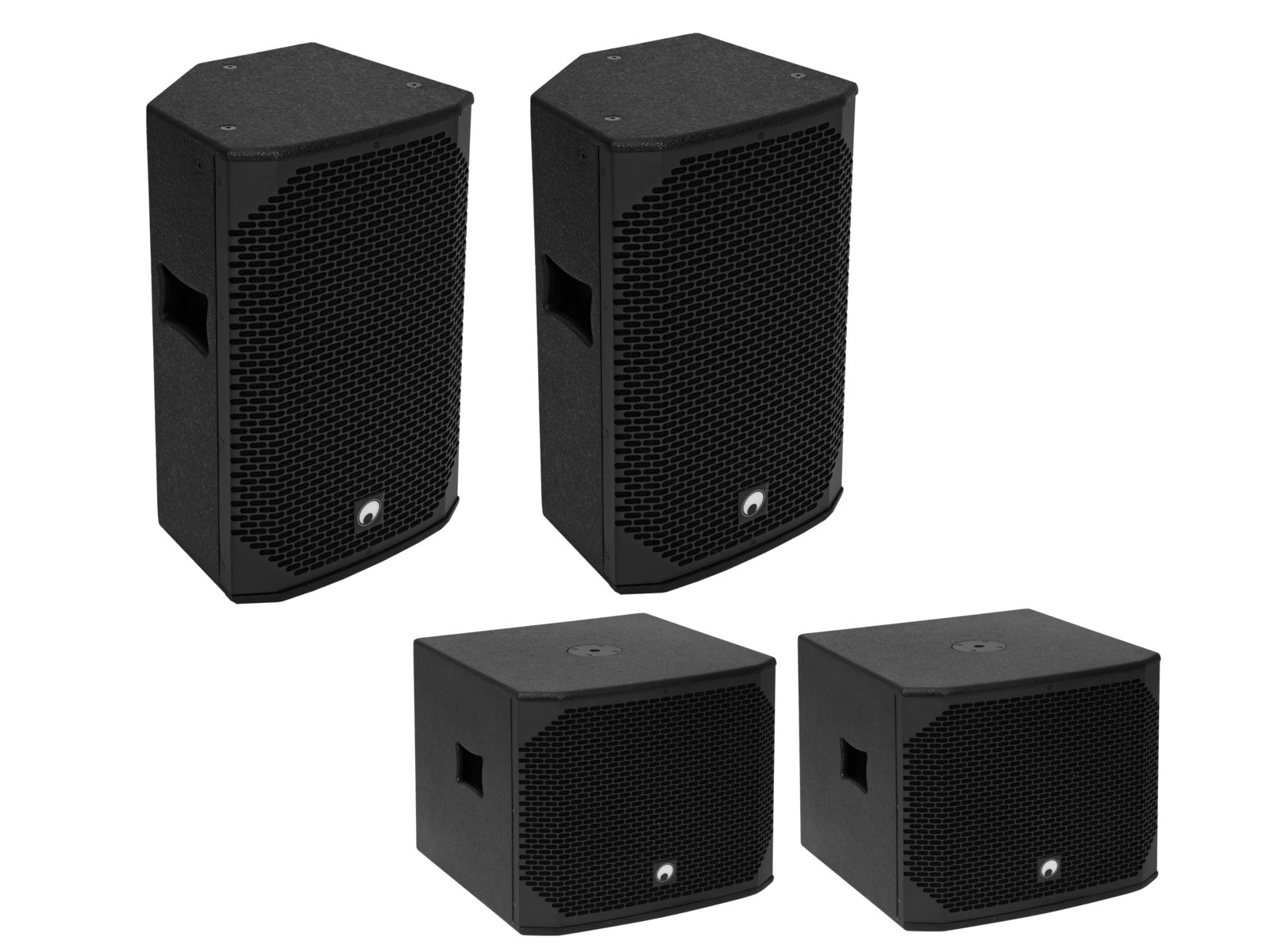

2x AZX-215 2-Way Top 300W including 2x AZX-118 PA Subwoofer 450W
OMNITRONIC AZX-215 2-Way Top 300W
Passive speaker with 15" woofer, 1.75" titan driver and 300 W RMS
- 2-way bass-reflex enclosure with 38 cm woofer and 4.5 cm titanium driver
- With rigging points
- Black metal grille with acoustic foam
- 2 Rugged carrying handles
- Application possibility: Standing; suspended; monitoring; on tripod
- Dual flange
Package contents
- 1 x user manual, 1 x top
OMNITRONIC AZX-118 PA Subwoofer 450W
18" bassreflex subwoofer with 450 W RMS, 8 ohms
- 46 cm (18") bass speaker with 63 mm voice coil
- Black metal grille with acoustic foam
- 2 mould carrying handles
- Application possibility: Standing
Package contents
- 1 x user manual, 1 x bass
| Weight: | 107,00 kg |
| OMNITRONIC AZX-215 2-Way Top 300W | |
| Power: | Program: 600W Rated: 300W RMS |
| Frequency range: | 50 - 20000 Hz |
| Sensitivity: | 94 dB (1W/1m) |
| Impedance: | 8 ohms |
| Attachment system: | Dual flange: Ø 35mm (0°/5°) |
| Flying points: | 7 x M10 thread |
| Connections: | Input: speaker via 2 x speaker built-in socket (F) |
| Speaker: | 1 x woofer (15") approx. 38 cm Voice coil lows (3") approx. 8 cm 1 x compression tweeter highs (1.75") approx. 4.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 2 pc/pcs |
| Material: | MDF (Medium-density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 48,5 cm Depth: 48 cm Height: 75 cm |
| Weight: | 23,40 kg |
| OMNITRONIC AZX-118 PA Subwoofer 450W | |
| Power: | Program: 900W Rated: 450W RMS |
| Frequency range: | 40 - 250 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Impedance: | 8 ohms |
| Attachment system: | Flange: M20 thread |
| Connections: | Input: speaker via 2 x speaker built-in socket (F) |
| Speaker: | 1 x woofer (18") approx. 45 cm Basket material: Steel Voice coil lows (2.5") approx. 6.35 cm |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Mould carrying handle: | 2 pc/pcs |
| Material: | MDF (Medium-density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 61,3 cm Depth: 61,3 cm Height: 54 cm |
| Weight: | 30,10 kg |
