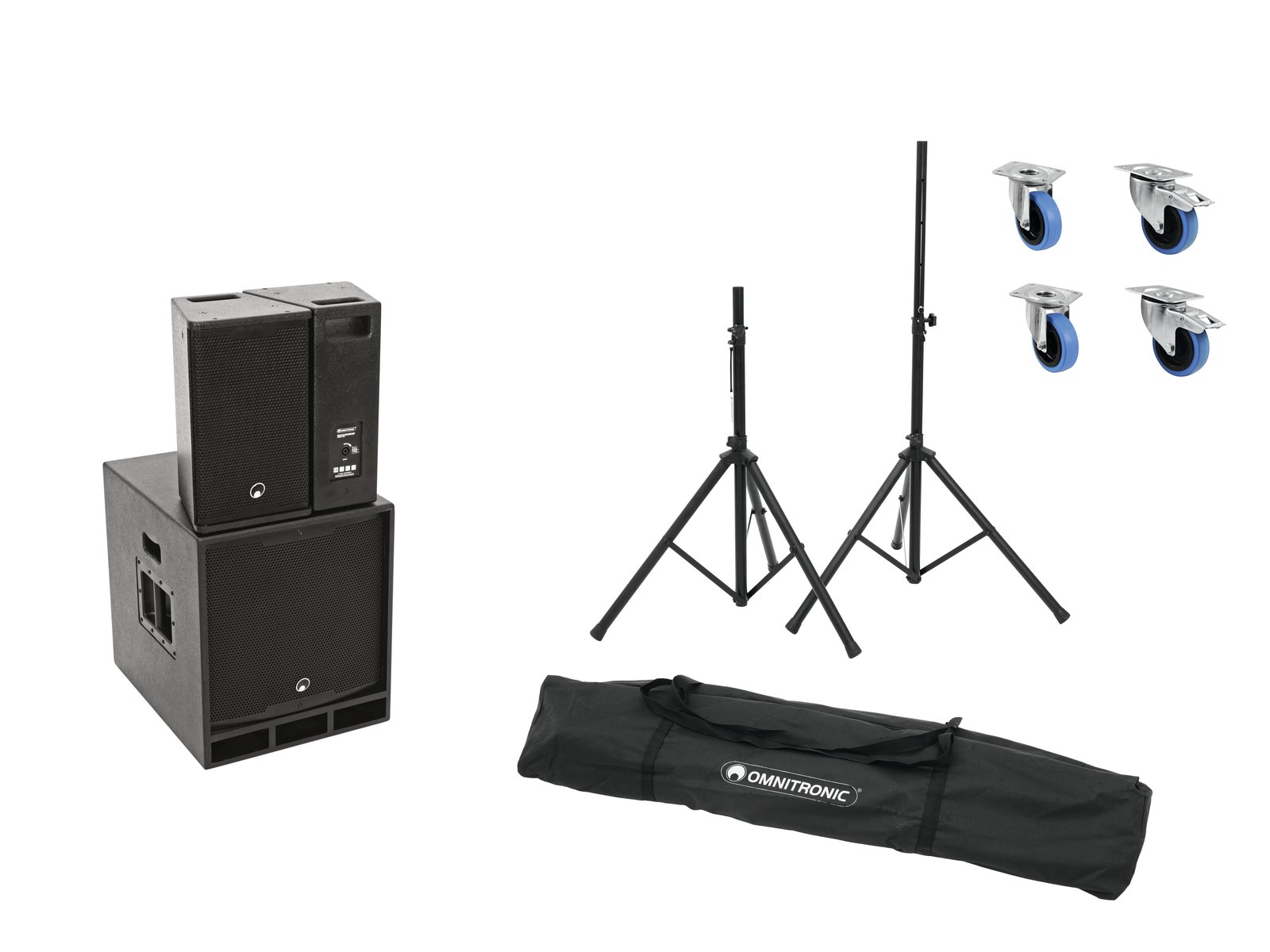

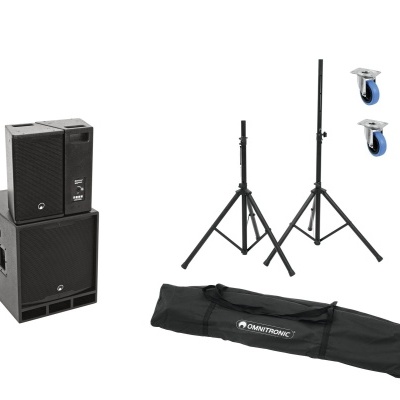

OMNITRONIC Set MAXX-1508DSP 2.1 Aktiv-System + Speaker stands
SKU: 20000588
Active speaker set inkluding speaker stand and swivel castors
OMNITRONIC MAXX-1508 2-Way Top 2x
2 x 8" passive full-range speaker, 150 W RMS
- 2-way bass-reflex system with 8" bass-midrange speaker and 1" compression driver
- Serve as a mobile 2.1 system together with the MAXX-1508 subwoofer
- With passive 2-way crossover, PTC tweeter protection
- Black metal grille with acoustic foam
- Application possibility: Standing; suspended; monitoring; on tripod
- With rigging points
- Rugged carrying handle
Package contents
- 2 x top, 2 x speaker cable
OMNITRONIC MAXX-1508DSP 2.1 Active Subwoofer
Powerful 15" active subwoofer with DSP and Bluetooth, 700 watts
- 15" subwoofer with Class D amplifier in bassreflex cabinet
- Amplifier power: 400 W RMS + 2 x 150 W RMS for two satellites
- Serves as a mobile 2.1 system together with MAXX-1508 2-way tops
- Balanced signal input XLR/6.3 mm jack L/R
- Additional stereo RCA input, with level switch
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- Control via Bluetooth
- Wheels optional
- Black metal grille with acoustic foam
- Application possibility: Standing
- DSP presets: FLAT; DJ; LIVE
Package contents
- 1 x bass, 1 x user manual, 1 x power cord, 1 x strap, 1 x declaration of conformity
OMNITRONIC Speaker Stand MOVE MK2 set
2 speaker stands, extendible up to 185 cm, maximum load 30 kg + carrying bag
- Height adjustable, with locking pin
- Tube diameter: Ø 35 mm
- Adjustable height
Package contents
- 1 x bag
ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
100 mm swivel castor
- Double ball race
- Housing made of steel, zinc-plated
- Roller race hub bearing
- Replaceable bolt-on wheel
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
100 mm swivel castor
- Double-action brake (wheel and swivel)
- Double ball race
- Housing made of steel, zinc-plated
- Roller race hub bearing
- Replaceable bolt-on wheel
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 54,83 kg |
| OMNITRONIC MAXX-1508 2-Way Top 2x | |
| Power: | Program: 300W Rated: 150W RMS |
| Frequency range: | 120 - 18000 Hz |
| Sensitivity: | 92 dB |
| Max. SPL: | 116 dB |
| Dispersion angle: | 90° x 60° |
| Impedance: | 4 ohms |
| Flying points: | 5 x M8 thread |
| Connections: | Input: speaker via 1 x speaker built-in socket (F) |
| Speaker: | 1 x woofer (8") approx. 20 cm 1 x compression tweeter highs (1") approx. 2.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (Medium-density fiberboard), 16 mm |
| Dimensions: | Width: 25,5 cm Depth: 24,1 cm Height: 42,1 cm |
| Weight: | 17,25 kg |
| OMNITRONIC MAXX-1508DSP 2.1 Active Subwoofer | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 800 W |
| Power: | Rated: 400W RMS LF |
| Frequency range: | 35 - 120 Hz Bass |
| Sensitivity: | 95 dB |
| Max. SPL: | 120 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; DJ; LIVE |
| Control: | Bluetooth |
| Attachment system: | M20 thread |
| Circuitry: | Class D |
| Controls: | Limiter |
| Status LED: | Power, signal, limit, pairing, DSP presets |
| Connections: | Input: 1 x stereo RCA Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR (M) mounting version Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: | 1 x stereo via XLR or RCA or bluetooth, channel control via Rotary dial |
| Speaker: | 1 x woofer (15") approx. 38 cm with ferrit magnet |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Transport aid: | Wheels optional |
| Material: | Birch multiplex, 16 mm; MDF (Medium-density fiberboard) |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 45,4 cm Depth: 57 cm Height: 53,4 cm |
| Weight: | 29,30 kg |
| OMNITRONIC Speaker Stand MOVE MK2 set | |
| Maximum carrying capacity: | 30 kg |
| Tube diameter sector: | 35 |
| Height: | Maximum: 183 cm Minimum: 100 cm |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel; Steel |
| Color: | Black |
| Weight: | 5,10 kg |
| ROADINGER Swivel Castor 100mm BLUE WHEEL light blue | |
| Color: | Light blue |
| Dimensions: | Height: 12,8 cm Diameter: Ø 10 cm |
| Weight: | 660 g |
| ROADINGER Swivel Castor 100mm BLUE WHEEL with brake | |
| Color: | Light blue |
| Dimensions: | Height: 12,8 cm Diameter: Ø 10 cm |
| Weight: | 930 g |
