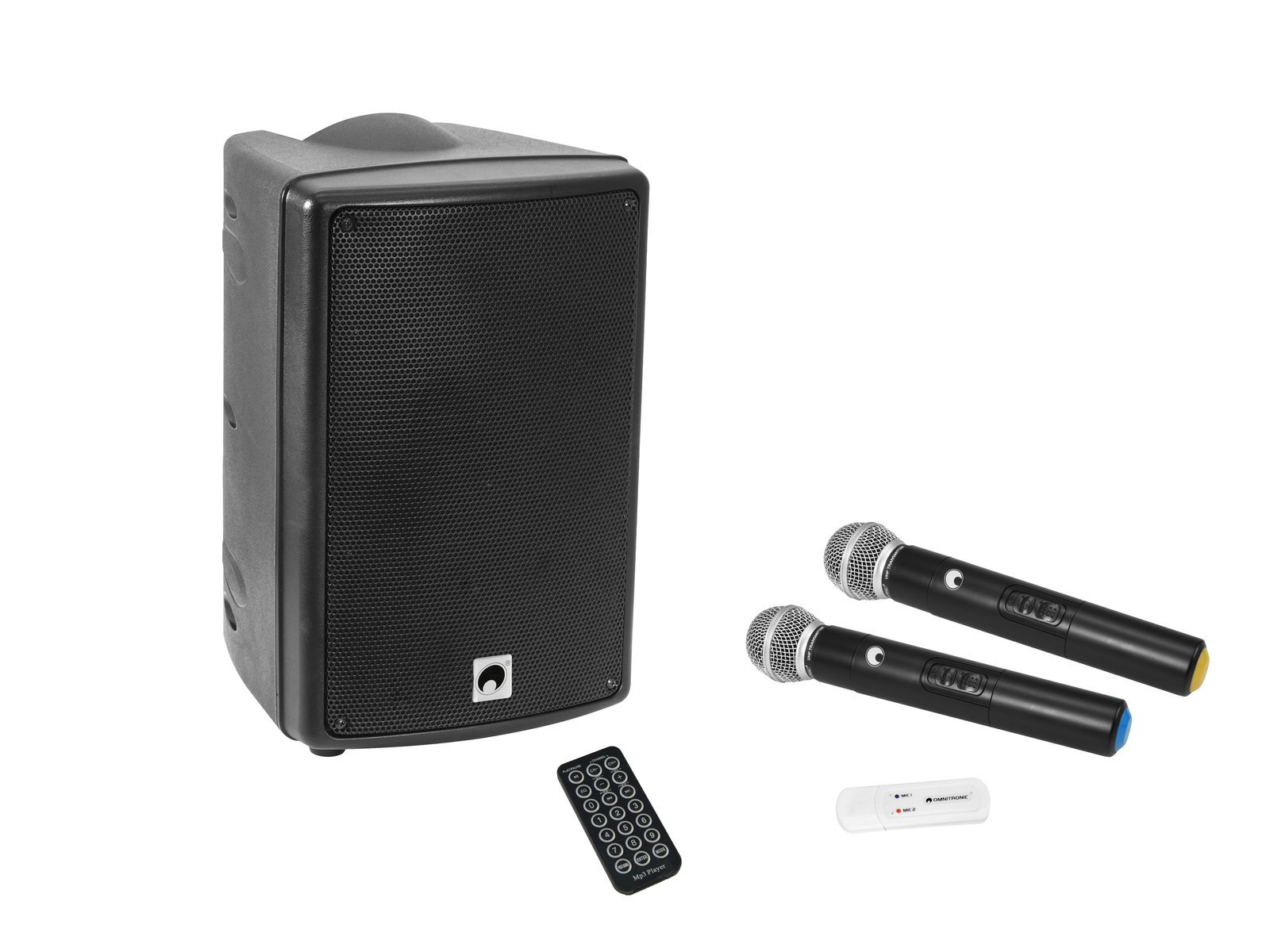

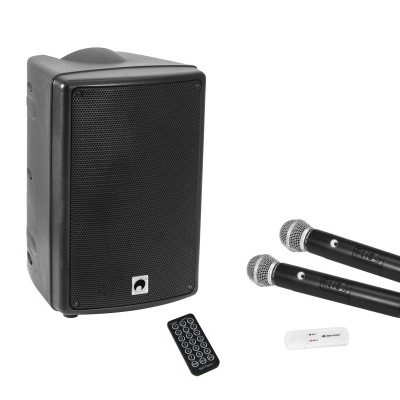

OMNITRONIC Set WAMS-08BT MK2 wireless PA system + UWM-2HH USB Wireless mic set
OMNITRONIC Set WAMS-08BT MK2 wireless PA system + UWM-2HH USB Wireless mic set

OMNITRONIC Set WAMS-08BT MK2 wireless PA system + UWM-2HH USB Wireless mic set

SKU: 20000635



Mobile 8" PA system with battery operation including compatible wirelles Mic Set

OMNITRONIC WAMS-08BT MK2 Wireless PA System

Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)

  • Portable all-in-one PA system with 40 watts output power
  • 3-channel power mixer
  • 2-way bass-reflex system
  • UWM-2HH USB dongle with 2 wireless microphones available as accessory
  • USB port can also be used for charging mobile devices
  • 1 additional battery can be retrofitted for up to 8 hours operating time
  • 2 mono input channels mic/hi-Z instrument with adjustable echo effect
  • 1 stereo input channel for line signal sources e.g. CD players and notebooks
  • Common 2-band EQ for highs and lows
  • For application areas such as: Theater; mobile use; Wedding/gala/events; product presentations and lectures
  • Black metal grille
  • Mould carrying handle
  • Application possibility: Standing; on tripod
  • Battery pack tool-free replacement
  • Integrated automatic charging of the battery and status indicator
  • The device is cooled by passive convection cooling

Battery pack

  • Battery operation up to 4h depending on program used
  • Cordless, flexible and versatile

Audio player

  • Control via IR remote control; Bluetooth
  • 2.4 GHz license-free worldwide
  • Bluetooth: Operating range up to 10m

Remote control

  • Operating range up to 10m

Package contents

  • 1 x compact cabinet speaker, 1 x power cord, 1 x battery pack, 1 x remote control, 1 x battery, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UWM-2HH USB Wireless Mic Set with two Handheld Microphones

Accessory kit for compatible Omnitronic products

  • Operation with fixed UHF frequencies
  • Automatic pairing
  • UHF 863 - 865 MHz License-free and approved in Europe
  • Operating range up to 30m

Package contents

  • 1 x receiver, 2 x microphone, 1 x user manual, 1 x declaration of conformity


Weight:8,08 kg
OMNITRONIC WAMS-08BT MK2 Wireless PA System
Power supply:100-240 V AC, 50/60 Hz
Or
12 V DC
Power consumption:65 W
IP classification:IP20
Protection class:Protection class I
Output power:40 W RMS
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack
Frequency range:50 - 18000 Hz
THD:<0,1 % at 1 kHz
Sensitivity:90 dB (1W/1m)
Max. SPL:106 dB
Cooling:Passive convection cooling
Housing color:Black
Attachment system:Flange: Ø 35mm
Control elements:Echo effect control, Audio player
Status LED:Power, peak, Microphone, charge status indicator, pairing
Connections:Input: Mic/Hi.Z. via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x stereo RCA
Input: stereo via 1 x 3.5 mm jack (stereo) mounting version
Input: 1 x USB A (F) mounting version
Channels:Microphon chanal: 2 x mono with Mic-Hi.Z. switch via Combination socket (XLR/jack), channel control via Rotary dial
Input chanel: 1 x stereo via RCA or jack plug or player, channel control via Rotary dial
Input chanel: 2 x mono via Radio, channel control via Rotary dial
Master output: mono, channel control via Rotary dial, 2-band tone control EQ
Speaker:1 x woofer (8") approx. 20 cm
Basket material: Steel
Conematerial: Cardboard/paper
1 x Tweeter
USB port:Typ A
Type of speaker:Compact cabinet speaker; Wireless PA system
Mould carrying handle:1 pc/pcs
Material:ABS Acrylonitrile butadiene styrene
Color:Black
Dimensions:Width: 27 cm
Depth: 29 cm
Height: 42 cm
Weight:7,75 kg
Battery pack
Battery pack type:1 x lithium ion 11,1 V, 4000 mAh, 44,4 Wh
Battery pack:Battery operation up to 4h depending on program used
Recharging time 4h
Audio player
Control:IR remote control; Bluetooth
Bluetooth device name:WAMS-08BT MK2
Audio player:USB + SD + Bluetooth,
Music format:MP3, WMA; WAV
Frequency band:2.4 GHz
Available storage media:USB devices/SD cards max. 32GB (FAT 32)
Range:Bluetooth: range up to 10m
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
Range:Range up to 10m
OMNITRONIC UWM-2HH USB Wireless Mic Set with two Handheld Microphones
Type:Wireless set
Frequency band:UHF 863 - 865 MHz
Frequency selection:Fixed frequencies
RF power output:10 mW
Frequency stability:± 0,01 %
Range:Range up to 30m
Weight:330 g
Receiver
Power supply:5 V DC 500 mA
Power connection:Mains input via USB, type A
Status LED:Signal
Material:Plastic
Color:White
Dimensions:Length: 10 cm
Width: 3,1 cm
Height: 1,3 cm
Weight:20 g
Microphone
Power supply:3 V DC
Power connection:Battery/battery pack
Capsule type:Dynamic
Battery:2 x Mignon (AA) (not included)
Carrier frequency:863,3 MHz; 865 MHz
Color code:CH A= blue, CH B= orange,
Switch:On/off switch
Material:Plastic
Color:Black
Dimensions:Length: 25 cm
Diameter: Ø 5 cm
Weight:170 g
