OMNITRONIC PAS MK3 Party Set
SKU: 20000744

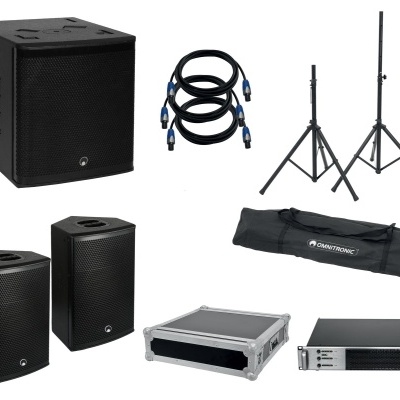

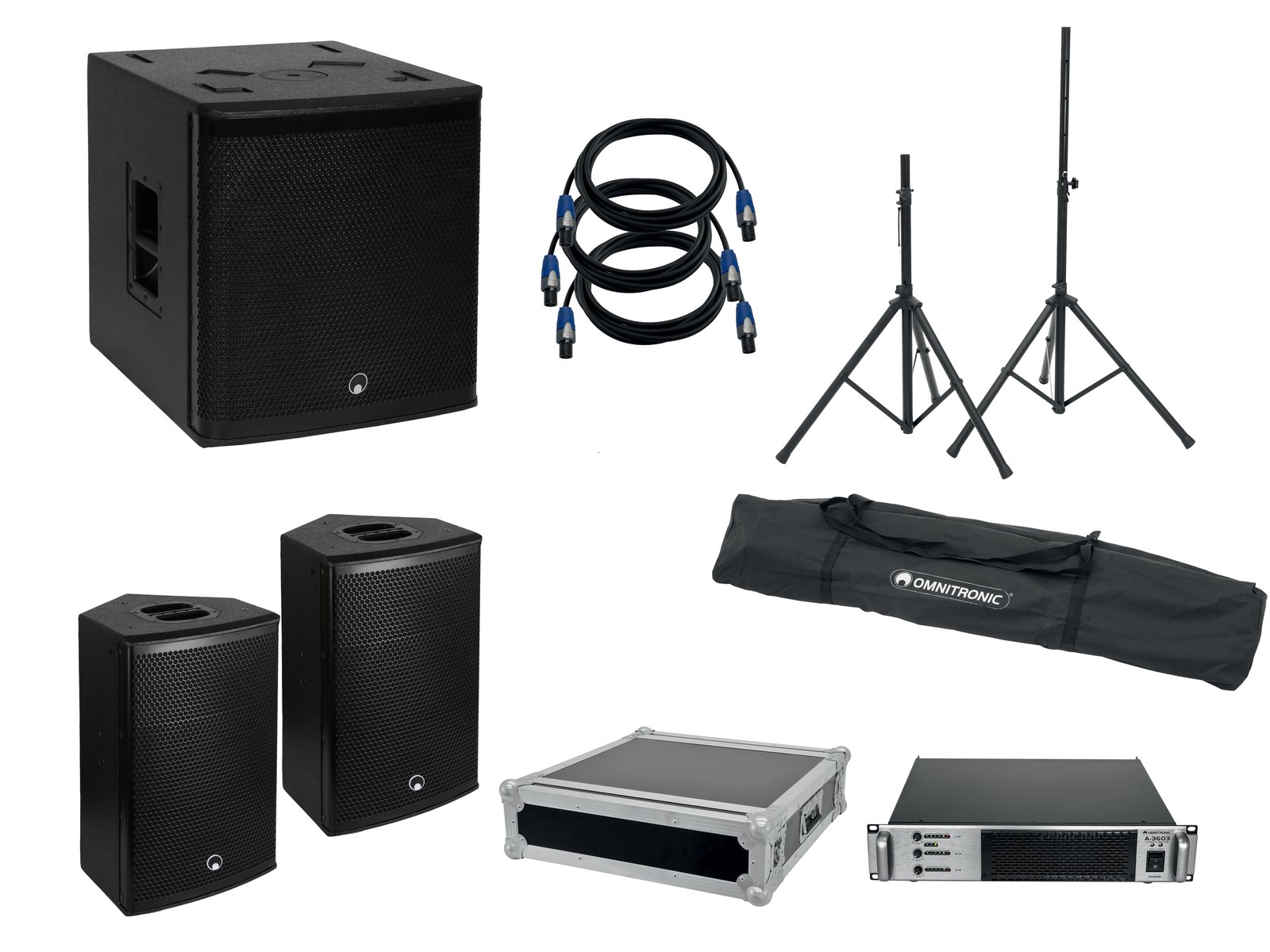

Subwoofer, 2x 2-Way Top, 2x Speaker Stand, Aplifier, PRO flightcase and 3x speaker cable
OMNITRONIC PAS-151 MK3 Subwoofer
Passive 15" bassreflex subwoofer with 700 W RMS, 8 ohms
- Rugged Pro PA subwoofer
- Wheels optional
- Black metal grille with acoustic foam
- 2 mould carrying handles
- Application possibility: Standing
Package contents
- 1 x user manual, 1 x bass
OMNITRONIC PAS-210 MK3 2-Way Top
Passive speaker with 10" woofer, 1" driver and 250 W RMS
- 2-way bass-reflex system with 25 cm woofer (8 cm voice coil)
- 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
- Optimized for combination with PAS subwoofers
- With rigging points
- Application possibility: Standing; suspended; monitoring; on tripod
- Black metal grille with acoustic foam
- 2 mould carrying handles
- Dual flange
Package contents
- 1 x user manual, 1 x compact cabinet speaker
OMNITRONIC Speaker Stand MOVE MK2 set
2 speaker stands, extendible up to 185 cm, maximum load 30 kg + carrying bag
- Height adjustable, with locking pin
- Tube diameter: Ø 35 mm
- Adjustable height
Package contents
- 1 x bag
OMNITRONIC A-3603 Class-D 2.1 Amplifier
3-channel PA amplifier with crossover network - 4 ohms: 1 x 2000 W, 2 x 800 W
- 3-channel PA amplifier with class D circuitry and switch mode power supply
- Adjustable crossover frequency for satellites and subwoofer
- 2.1 operation or 3-channel operation selectable
- 3 level controls
- LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x user manual, 1 x power cord, 4 x foot, 4 x screw
ROADINGER Rack Profi 2U 45cm
PRO flightcase for 483 mm devices (19")
- High-quality workmanship with birch multiplex 9 mm, dark brown, laminated
- Aluminum profile frames 20mm with rounded edges
- 4 hinged, chromium plated case handles
- 4 high-quality spring locks
- 4 rubber feet
- Branded hardware
- With profile rails suitable for (19") approx. 48 cm units
- 2 U
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
PSSO Speaker cable Speakon 2x2.5 5m bk
High-quality speaker cable
- Built with NEUTRIK connector
- Made in Germany
Package contents
- 1 x speaker cable
| Weight: | 80,57 kg |
| OMNITRONIC PAS-151 MK3 Subwoofer | |
| Power: | Program: 1400W Rated: 700W RMS |
| Frequency range: | 40 - 200 Hz |
| Sensitivity: | 97 dB (1W/1m) |
| Max. SPL: | 127 dB |
| Impedance: | 8 ohms |
| Attachment system: | Flange: M20 thread |
| Connections: | Input: speaker via 2 x speaker built-in socket (F) |
| Speaker: | 1 x woofer (15") approx. 38 cm with ferrit magnet Basket material: aluminum Voice coil lows (4") approx. 10 cm |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Mould carrying handle: | 2 pc/pcs |
| Transport aid: | Wheels optional |
| Material: | Birch multiplex |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 46 cm Depth: 56 cm Height: 52 cm |
| Weight: | 31,25 kg |
| OMNITRONIC PAS-210 MK3 2-Way Top | |
| Power: | Program: 500W Rated: 250W RMS |
| Frequency range: | 65 - 20000 Hz |
| Sensitivity: | 96 dB (1W/1m) |
| Max. SPL: | 123 dB |
| Dispersion angle: | 90° x 60° |
| Impedance: | 8 ohms |
| Attachment system: | Dual flange: Ø 35mm (0°/5°) |
| Flying points: | 5 x M8 thread; 4 x M10 thread |
| Connections: | Input: speaker via 2 x speaker built-in socket (F) |
| Crossover frequency: | 3200 Hz |
| Speaker: | 1 x woofer (10") approx. 25 cm Basket material: aluminum Voice coil lows (2.5") approx. 6.35 cm 1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet Voice coil compression tweeter highs (1.5") approx. 4 cm Horn vent (1") approx. 2.5 cm |
| Type of speaker: | Compact cabinet speaker |
| Mould carrying handle: | 2 pc/pcs |
| Material: | Birch multiplex |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 32 cm Depth: 52,5 cm Height: 30 cm |
| Weight: | 12,95 kg |
| OMNITRONIC Speaker Stand MOVE MK2 set | |
| Maximum carrying capacity: | 30 kg |
| Tube diameter sector: | 35 |
| Height: | Maximum: 183 cm Minimum: 100 cm |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel; Steel |
| Color: | Black |
| Weight: | 5,10 kg |
| OMNITRONIC A-3603 Class-D 2.1 Amplifier | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 685 W 1/8 power |
| Output power: | 2 x 800 W RMS (4 ohms) 2 x 400 W RMS (8 ohms) 1 x 2000 W RMS (4 ohms) 1 x 1000 W RMS (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,003 % at 1 kHz |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Gain: | Chanal 1 26 dB Chanal 2 26 dB Chanal 3 32 dB |
| Circuitry: | Class D |
| Slew rate: | >10 V/µs |
| Damping factor: | >500 |
| Control elements: | Power switch, level control per channel, mode switch (2/3 channels), crossover frequency |
| Status LED: | Protect, clip, level meter, bridged |
| Connections: | Input: line via 3 x 3-pin XLR Link: line via 3 x 3-pin XLR Output: speaker via 3 x speaker built-in socket (F) |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 41 cm Height: 8,9 cm |
| Weight: | 9,10 kg |
| ROADINGER Rack Profi 2U 45cm | |
| Maximum load: | 50 kg |
| Aluminum profile frames: | 20 mm |
| Case handle: | 4 pc/pcs |
| Lock: | Spring lock: 4 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Use of brands: | Branded hardware |
| Material: | Birch multiplex, 9 mm |
| Color: | Dark brown, laminated |
| Front panel width: | (19") approx. 48 cm |
| Mounting height: | Approx. 9 cm (2 U) |
| Mounting depth: | 450 mm |
| Housing design: | 2 U |
| Dimensions: | Width: 55,5 cm Depth: 59,5 cm Height: 17 cm |
| Weight: | 7,55 kg |
| PSSO Speaker cable Speakon 2x2.5 5m bk | |
| Cable construction: | 2 x 2,5 mm² speaker cable |
| Cable length: | 5 m |
| Plug A: | 1 x 2-pin SpeakON (M) |
| Plug B: | 1 x 2-pin SpeakON (M) |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| Weight: | 560 g |
