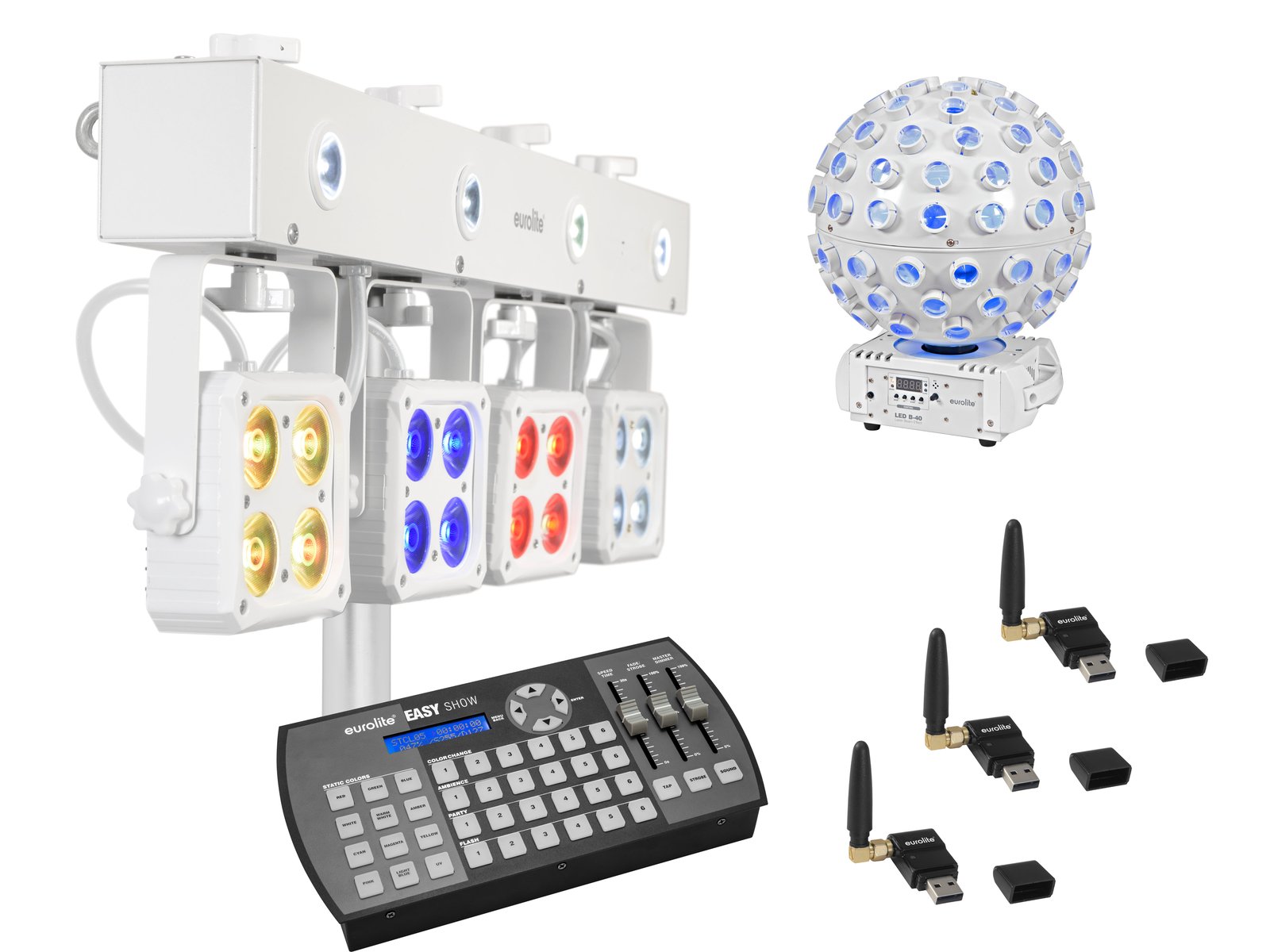

EUROLITE Set LED KLS-180 wh + LED B-40 wh + USB QuickDMX + Easy Show
SKU: 20000866
EUROLITE LED KLS-180 Compact Light Set wh
Bar with 4 RGBW spots and 4 white strobe LEDs, with QuickDMX connector (XLR)
- Crossbar with integrated DMX control unit and stand sleeve
- Compact lightweight
- Movable and tiltable spotlights
- With a beam angle of 9°
- Dimmer electronic; color blend stepless; color change adjustable; colors preset
- Strobe effect
- Flicker-free
- With Mounting bracket
- Control via IR remote control; stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- For application areas such as: Party room; mobile use; mobile djs/entertainer; small rental
- Preprogrammed in EASY SHOW 1; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
- Mains input and output for power linking up to 8 units
- Silent operation
- Application possibility: Suspended; on tripod
spotlight
- 4 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
4 spots controlled separately
bar
- 4 powerful LEDs 1 W high-power cold white (CW)
LEDs controlled separately
Package contents
- 1 x device, 1 x bag, 1 x remote control, 1 x battery, 1 x power cord, 1 x user manual
EUROLITE LED B-40 Laser Beam Effect wh
LED beam effect with RGBW color mixing and RG laser
- 2 laser diodes project hundreds of red and green laser beams
- 5 powerful LEDs 8 W high-power 4in1 QCL RGBW
3 segments controlled separately - For application areas such as: Clubs/dancing school; Wedding/gala/events; mobile djs/entertainer; Rental
- Laser; multi beam effect; Strobe effect
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer - Rotation speed stepless; color blend stepless; Dimmer electronic
- 7 integrated show programs
- The device is cooled by cooling fan at the Head; cooling fan at the Base
- Control via IR remote control; stand-alone; Sound to light via Microphone; DMX; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With Mounting bracket
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
- Mains input and output for power linking up to 8 units
- Application possibility: Standing; suspended; on tripod
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x mounting bracket, 4 x screw, 4 x washer
EUROLITE EASY Show
Programmed DMX controller for over 200 spotlights from EUROLITE
- Easy-to-use DMX controller and DMX recorder
- Designed for DMX beginners with 200 programmed fixtures
- DMX recording function for your own projects, ideal for installations or rental companies
- Ideal for colored LED spotlights, KLS systems, moving lights and lighting effects
- No programming required, simply connect your spotlights and get started
- All spotlights can be freely combined to a show
- Data storage on USB flash drives
- A list of all preset devices is available at www.steinigke.de
- Program speed adjustable; color fade adjustable; Dimmer
- Strobe effect
- 24 integrated show programs
- Direct color selection for 12 preset colors
- Control via DMX; Sound to light via Microphone; QuickDMX via USB (optional)
- Desktop console housing
- Monochrome LCD display
- For application areas such as: Clubs/dancing school; Party room; mobile djs/entertainer; restaurants, bars and hotels; Installation
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter, 2 x uSB cable, 2 x mounting bracket, 4 x screw
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m with line-of-sight
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity
| Weight: | 10,79 kg |
| EUROLITE LED KLS-180 Compact Light Set wh | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 80 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | IEC connector (F) mounting version |
| Fuse: | T 1 A |
| Lamp type: | LED lamp |
| DMX channels: | 3; 4; 8; 21 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | IR remote control; stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | EASY SHOW 1; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J |
| Beam angle: | 9° |
| Beam angle (1/2 peak): | 9° |
| Housing color: | White |
| Attachment system: | Mounting bracket |
| Dimensions: | Width: 60,5 cm Depth: 14 cm Height: 23 cm |
| Weight: | 5,10 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Spotlight | |
| LED: | 4 x 8 W high-power 4in1 QCL RGBW (homogenous color mix) |
| Bar | |
| LED: | 4 x 1 W high-power cold white (CW) |
| Flash rate: | 1 - 20 Hz |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE LED B-40 Laser Beam Effect wh | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 65 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 5 x 8 W high-power 4in1 QCL RGBW |
| Flash rate: | 0 - 20 Hz |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Green (G) 40 mW 532nm Red (R) 100 mW 650nm |
| DMX channels: | 3; 10; 22 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan at the Head Cooling fan at the Base |
| Control: | IR remote control; stand-alone; Sound to light via Microphone; DMX; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J |
| Housing color: | White |
| Attachment system: | Mounting bracket |
| Dimensions: | Width: 31 cm Depth: 31 cm Height: 39 cm |
| Weight: | 4,30 kg |
| Noise classification: | Class 2 (slight noise) |
| EUROLITE EASY Show | |
| Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 250 mA |
| Power consumption: | 1,25 W |
| IP classification: | IP20 |
| Power connection: | Mains input via USB C (W) mounting version power supply cord with AC adapter |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via Microphone; QuickDMX via USB (optional) |
| Housing color: | Black |
| Display type: | Monochrome LCD display |
| Available storage media: | USB devices |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 28,0 cm Depth: 14,5 cm Height: 6,0 cm |
| Weight: | 1,35 kg |
| Noise classification: | Class 0 (no noise at all) |
| EUROLITE QuickDMX USB Wireless Transmitter/Receiver | |
| Power supply: | 5 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input via USB A (M) connectable version |
| DMX channels: | Input 512 Output 512 |
| DMX output: | 1 x USB, type A |
| Control: | DMX; QuickDMX; plug and play |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | Range up to 400m with line-of-sight |
| Color: | Black |
| Dimensions: | Width: 8,6 cm Depth: 4 cm Height: 1,1 cm |
| Weight: | 10 g |
