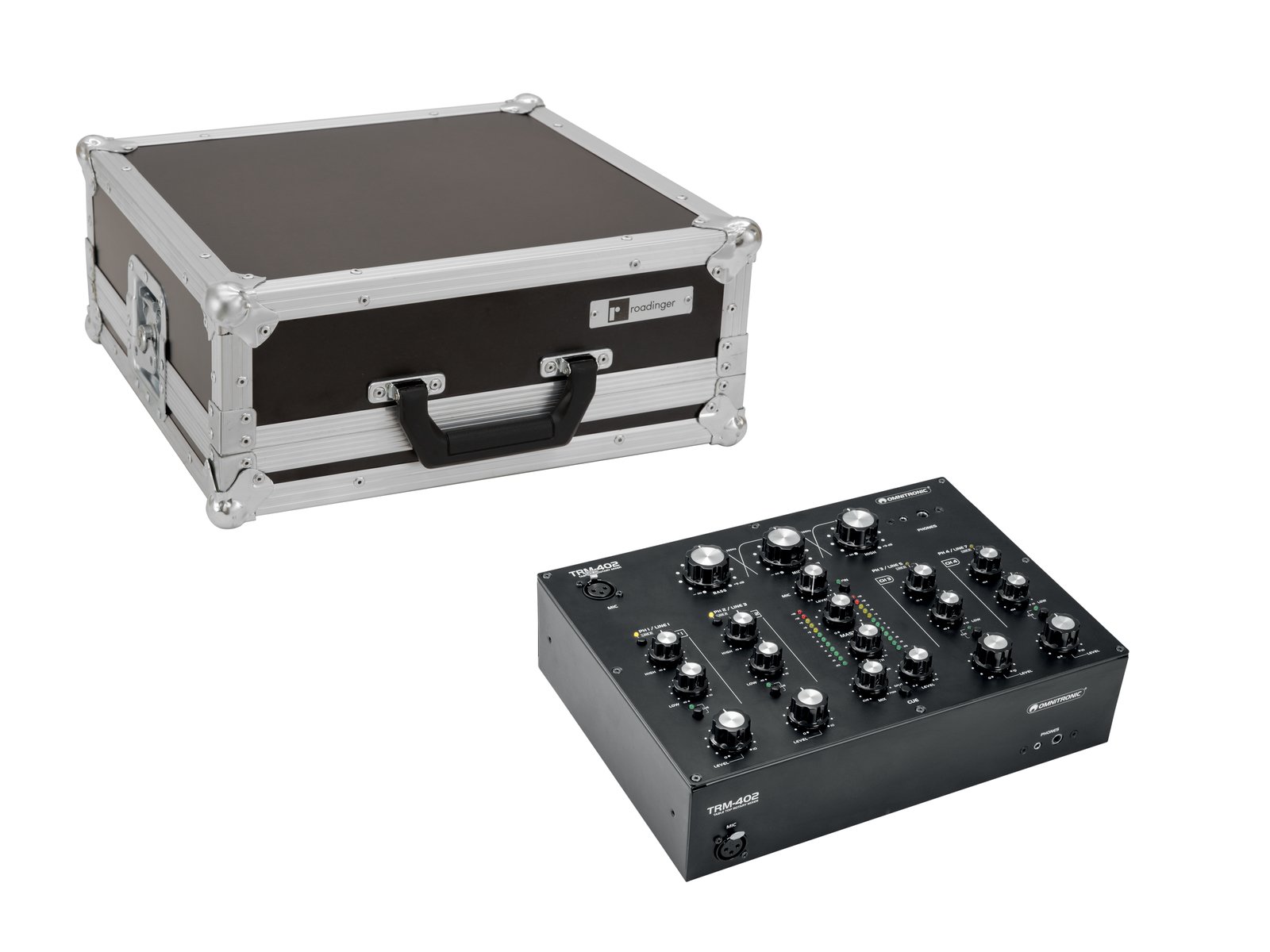

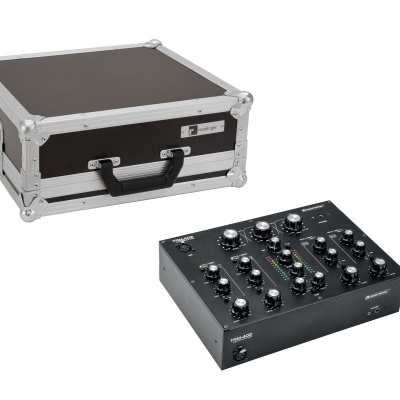

OMNITRONIC Set TRM-402 + Case
SKU: 20000896
OMNITRONIC TRM-402 4-Channel Rotary Mixer
4-channel rotary mixer with 3-band frequency isolator for DJs
- Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
- Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
- Dedicated boost and kill cut
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Classic ALPS potentiometers (Blue Velvet RK27)
- High-grade components ensure long life and excellent sound quality
- DJ microphone input with separate level control
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 12-digit stereo LED level meter and master level control
- Booth output with separate level control
- Dual inputs for DJ microphone and headphones on the top and front panel
- Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
- Desktop console housing
Package contents
- 1 x device, 1 x power cord, 1 x user manual
ROADINGER Flightcase TRM-402
Carrying case, PRO version
- High-quality workmanship with birch multiplex 6,5 mm, dark brown, laminated
- Interior with foam padding
cover with foam padding - Removable cover
- Aluminum profile frames 22mm with rounded edges
- Rugged carrying handle
- 2 high-quality spring locks
- Rubber feet
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 7,90 kg |
| OMNITRONIC TRM-402 4-Channel Rotary Mixer | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 7,2 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz Microphone 20 - 20000 Hz line 40 - 18000 Hz phono |
| S/N ratio: | >77 dB phono >80 dB Microphone >85 dB line |
| THD: | Line <0,03 % at 1 kHz Phono <0,1 % at 1 kHz |
| Gain: | Microphone 44 dB Line 20 dB Phono 60 dB to +75 dB |
| Isolators: | Master Gain:- ? bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth |
| Control elements: | Power switch, source selector, Cue mix split function, tone control |
| Status LED: | Power, master level meter, chanal source, CUE, Microphone |
| Connections: | Input: line via 4 x stereo RCA Input: line/phono via 4 x stereo RCA Input: Microphone via 2 x 3-pin XLR Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 2 x 3.5 mm jack (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA |
| Channels: | Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, gain control, Phono gain rotery, CUE switch, source selector Microphon chanal: 1 x mono via XLR, channel control via Rotary dial, ON AIR switch, Booth output: 1 x stereo via XLR or RCA, channel control via Rotary dial Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial Headphones output: 1 x stereo via Jack, channel control via Rotary dial, Cue mix split function, |
| Max. level: | Output: +22 dBu |
| Material: | Metal |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 33 cm Depth: 24,7 cm Height: 10,7 cm |
| Weight: | 4,05 kg |
| ROADINGER Flightcase TRM-402 | |
| Maximum load: | 25 kg |
| Removable covers: | 1 pc/pcs |
| Aluminum profile frames: | 22 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Spring lock: 2 pc/pcs |
| Transport aid: | Rubber feet |
| Use of brands: | Branded hardware |
| Material: | Birch multiplex, 6,5 mm |
| Color: | Dark brown, laminated |
| Device compartment: | 33 cm x 23,5 cm x 4 cm |
| Accessory compartment: | 37 cm x 6,5 cm x 4,5 cm |
| Inside dimensions: | 37 cm x 30 cm x 4,5 cm |
| Dimensions: | Width: 40 cm Depth: 37 cm Height: 17,5 cm |
| Weight: | 3,85 kg |
