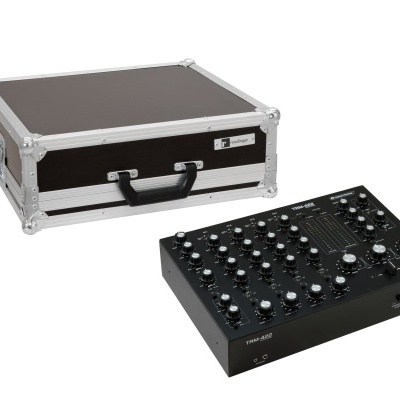

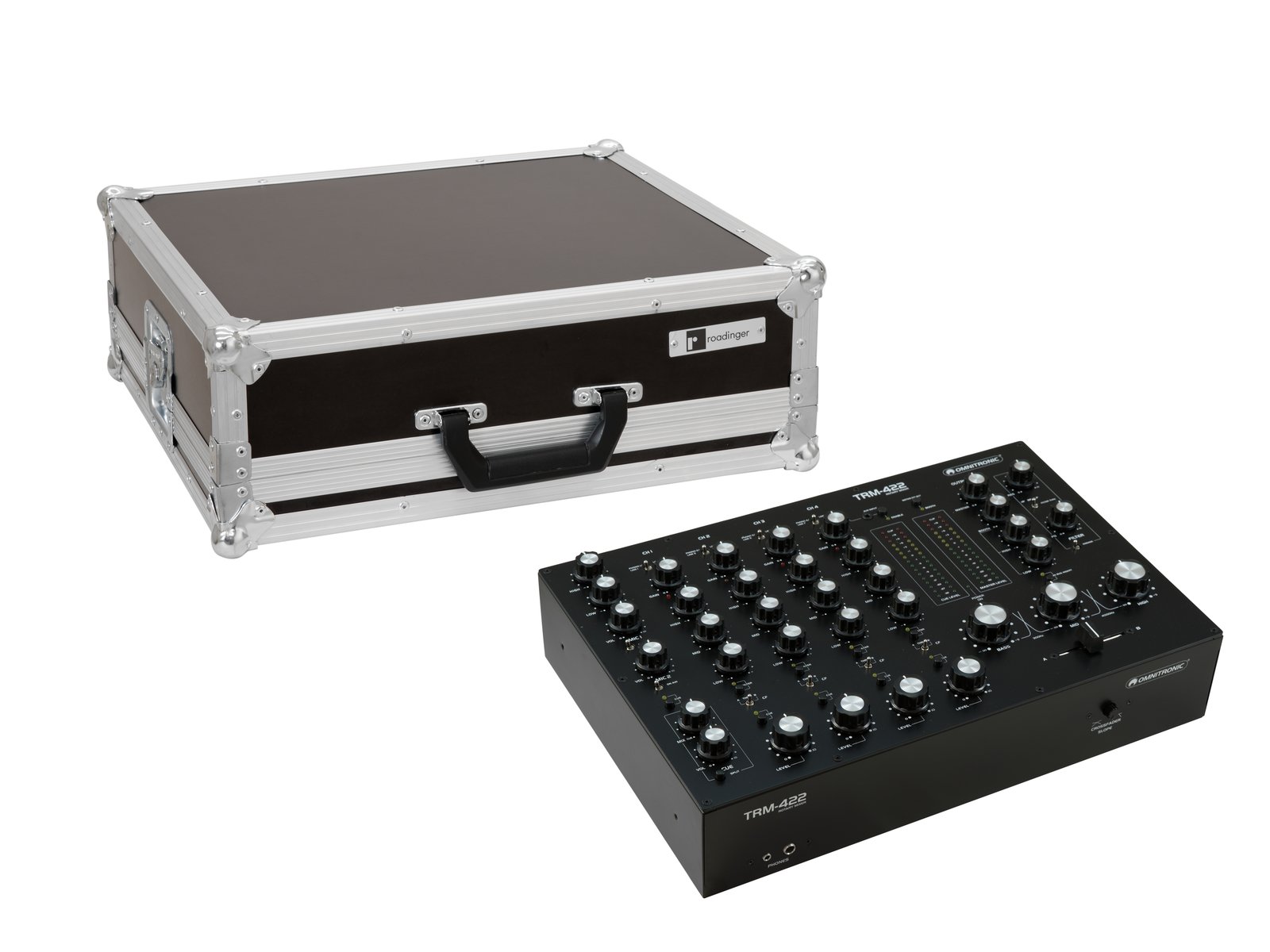

OMNITRONIC Set TRM-422 + Case
OMNITRONIC Set TRM-422 + Case

OMNITRONIC Set TRM-422 + Case

SKU: 20000897

1.060,95 €
IVA incluído.
Contactar

Adicionar à wishlist



OMNITRONIC TRM-422 4-Channel Rotary Mixer

4-channel rotary mixer with 3-band frequency isolator and filter section for DJs

  • 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
  • Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
  • Filter section with resonance and sweep control for creative sound shaping
  • 4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching
  • 2 microphone input channels with gain control, 2-way equalizer on air switch
  • High-grade components ensure long life and excellent sound quality
  • 16-digit stereo LED level meter, switchable between master and booth outputs
  • Booth output with separate 2-way equalizer and level control
  • PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option
  • Fully assignable VCA crossfader with adjustable curve
  • 2 effects send/return paths
  • Direct outputs for Timecode applications
  • Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
  • Desktop console housing
  • (19") 48.3 cm rack installation possible

Package contents

  • 1 x mixer, 1 x power cord, 2 x mounting bracket, 6 x screw, 8 x rCA cable, 1 x user manual

ROADINGER Flightcase TRM-422

Carrying case, PRO version

  • High-quality workmanship with birch multiplex 6,5 mm, dark brown, laminated
  • Interior with foam padding
    cover with foam padding
  • Removable cover
  • Aluminum profile frames 22mm with rounded edges
  • Rugged carrying handle
  • 2 high-quality spring locks
  • Rubber feet
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"


Weight:10,39 kg
OMNITRONIC TRM-422 4-Channel Rotary Mixer
Power supply:100-240 V AC, 50/60 Hz
Power consumption:24 W
Protection class:Protection class I
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:20 - 20000 Hz Microphone
20 - 20000 Hz line
40 - 18000 Hz phono
S/N ratio:>97,2 dB line
>91,7 dB Microphone
THD:Line <0,04 % at 1 kHz
Phono <0,13 % at 1 kHz
Microphone <0,008 % at 1 kHz
Gain:Microphone 44 dB
Line -16,5 dB to +8,5 dB
Phono -48,5 dB to +23,5 dB
DJ filter:Routable: LPF, BPF, HPF
Isolators:Master Gain:- ? bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth
Crosstalk:>-68 dB
Control elements:Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control
Status LED:Power, master level meter, clip, CUE
Connections:Input: line via 4 x stereo RCA
Input: line/phono via 4 x stereo RCA
Input: Microphone via 2 x 3-pin XLR
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: AUX sends via 1 x 6.3 mm jack socket (stereo) mounting version
Output: AUX returns via 1 x 6.3 mm jack socket (stereo) mounting version
Output: Timecode via 4 x stereo RCA
Channels:Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch,
Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch,
Master output: 2 x stereo via XLR, channel control via Rotary, Cue mix split function,
Booth output: 2 x stereo via XLR, channel control via Rotary
Rec. output: 1 x stereo via RCA
Headphones output: 1 x stereo via Jack, channel control via Rotary dial
Max. level:Output: +18 dBu
Material:Metal
Housing design:Desktop console housing
(19") 48.3 cm rack installation possible
Dimensions:Width: 41 cm
Depth: 28,5 cm
Height: 10,5 cm
Weight:5,74 kg
ROADINGER Flightcase TRM-422
Maximum load:25 kg
Removable covers:1 pc/pcs
Aluminum profile frames:22 mm
Carrying handle:1 pc/pcs
Lock:Spring lock: 2 pc/pcs
Transport aid:Rubber feet
Use of brands:Branded hardware
Material:Birch multiplex, 6,5 mm
Color:Dark brown, laminated
Device compartment:41 cm x 27,5 cm x 10,5 cm
Dimensions:Width: 48 cm
Depth: 43 cm
Height: 17,5 cm
Weight:4,65 kg
