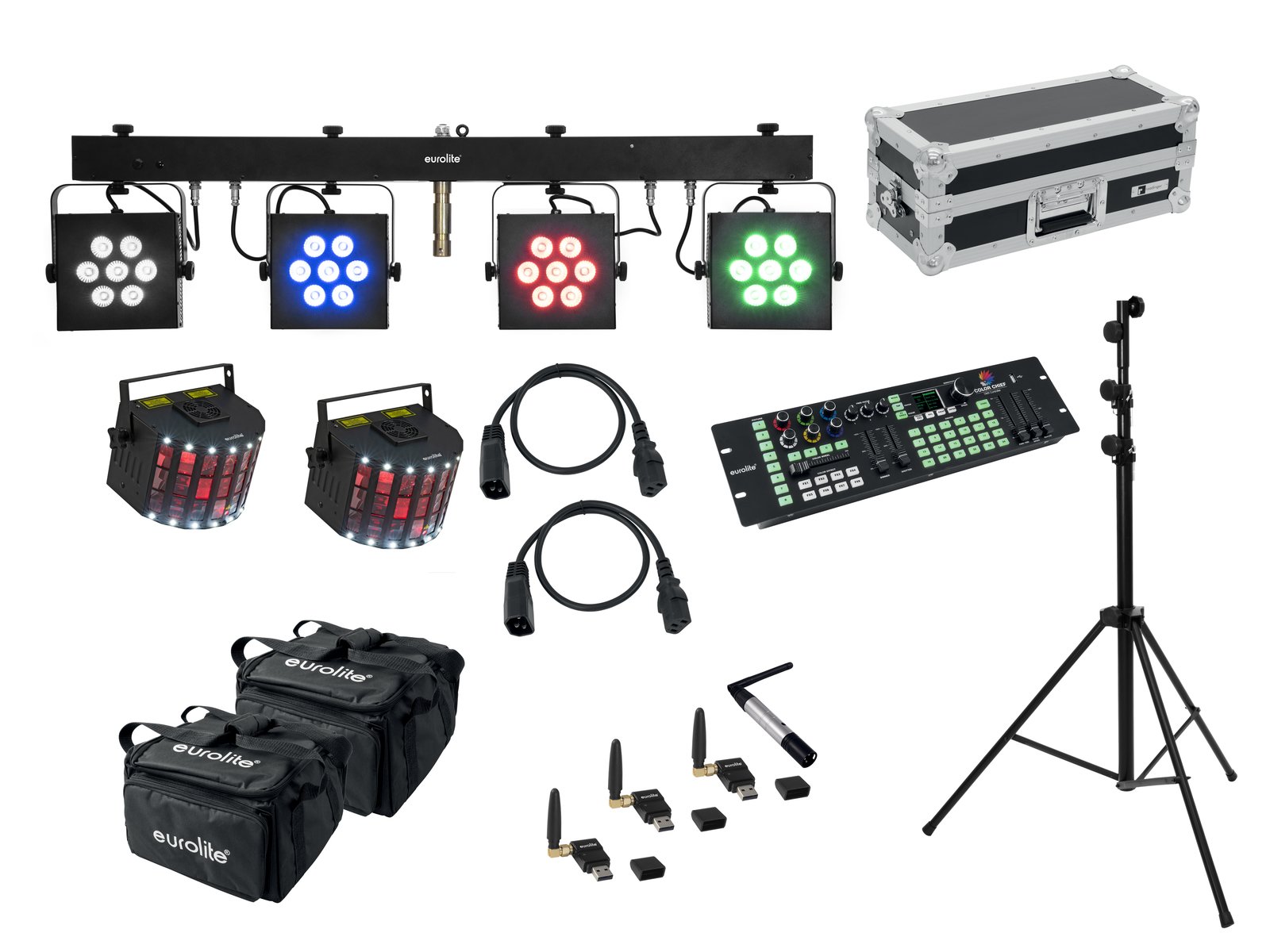

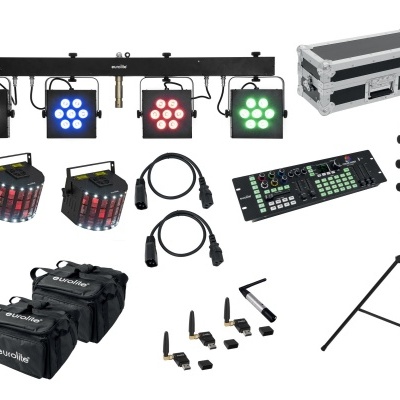

EUROLITE Set LED KLS-3002 + Laser Derby Mobile Bundle
SKU: 20000912
EUROLITE LED KLS-3002 Next Compact Light Set
Bar with 4 powerful RGBAW/UV spots, QuickDMX support, IR remote control and carrying bag
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- 7 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
spots controlled separately - With a beam angle of 19°
- 20 integrated show programs
- Direct color selection for 21 preset colors
- Dimmer electronic; color blend stepless; color selection; program selection
- UV effect
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- For application areas such as: Mobile use; Stage; mobile djs/entertainer; Rental
- Mounting points and power outlets for additional fixtures
- Mains input and output for power linking up to 8 units
- Silent operation
- Application possibility: Suspended; on tripod
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x bag, 2 x omega bracket, 4 x knurled screw, 4 x washer, 1 x battery, 1 x terminating plug (power)
EUROLITE LED Laser Derby MK2
DMX light effect with RG laser (2M), rotating LED derby, stroboscope and IR remote control
- 2 laser diodes project hundreds of red and green laser beams
- 7 integrated show programs
- Dimmer electronic; color macros adjustable
- Control via IR remote control; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- The device is cooled by cooling fan
- With Mounting bracket
- 4 digit 7-segment LED display
- Laser; multi beam effect; Strobe effect
- Preprogrammed in Light Captain; EASY SHOW 2
- For application areas such as: Clubs/dancing school; Party room; mobile djs/entertainer; small rental
- Application possibility: Suspended; on tripod
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
light effect
- 4 powerful LEDs 10 W SMD 5050 R/G/B/W
strobes
- 16 powerful LEDs 0,6 W SMD 2835 cold white (CW)
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x mounting bracket, 2 x knurled screw, 4 x washer
EUROLITE DMX LED Color Chief Controller
DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Each device can occupy up to 30 channels
- Quick and easy programming
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases can be run simultaneously
- USB port for storing program data
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- Firmware update via USB
- Programmable 24 sequencens
- Can transmit up to 240 DMX channels
- Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
- (19") 48.3 cm rack installation 3 U
- Desktop console housing
- For application areas such as: Clubs/dancing school; Party room; Trade fair and shop fitting; mobile djs/entertainer; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
EUROLITE STV-60-WOT EU Steel Stand black
Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm
- Stable lighting stand for mobile use
- TV pin
- Available in various colors
- Made in Europe
- For application areas such as: Mobile use
- Adjustable height
Package contents
- 1 x tripod, 1 x user manual
EUROLITE SB-4 Soft Bag L
Black soft bag for up to 4 devices, 320 x 320 x 200 mm
- Practical transport bag offers enough space for several lighting effects and accessories
- With Dividers
- With 2 Outside pockets
- With 4 Device compartments
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding
cover with foam padding - 2 carrying straps
Package contents
- 1 x bag
OMNITRONIC IEC Extension 3x0.75 0.6m bk
Package contents
- 1 x network cable
ROADINGER Mixer Case Pro MCA-19-N, 3U, black
Rack case
- Upward tilted profile rails for top-operated units
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
- Removable cover
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 2 high-quality butterfly locks
- Rubber feet
- With profile rails suitable for (19") approx. 48 cm units
- 3 U
Package contents
- 1 x case
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m with line-of-sight
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity
EUROLITE QuickDMX Wireless Transmitter
Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
| Weight: | 29,89 kg |
| EUROLITE LED KLS-3002 Next Compact Light Set | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 225 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 3 m |
| Power output: | 2 x IEC connector (F) mounting version fused 1 x P-Con (gray), mounting version Bypass |
| Device fuse: | 5 x 20 mm, T 2,5 A Fuse replaceable |
| Power output fuse per channel: | 5 x 20 mm, T 5 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 7 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) |
| DMX channels: | 2; 4; 6; 10; 24; 28 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 19° |
| Beam angle (1/2 peak): | 19° |
| Beam angle (1/10 peak): | 35° |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm Omega bracket |
| Dimensions: | Width: 1,28 m Depth: 8 cm Height: 29 cm |
| Weight: | 11,14 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE LED Laser Derby MK2 | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 60 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) power supply cord with safety plug |
| Power output: | IEC connector (F) mounting version Bypass |
| Fuse: | 5 x 20 mm, T 1,6 A Fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 2; 4; 5; 6; 8; 7; 9 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | IR remote control; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 2 |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Control elements: | Navigation keys, sensitivity rotary dial |
| Status LED: | DMX, slave mode, auto mode, sound mode |
| Dimensions: | Width: 26 cm Depth: 19 cm Height: 19 cm |
| Weight: | 2,17 kg |
| Power cord | |
| Cable length: | 1,5 m |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Green (G) 35 mW 515 nm Red (R) 100 mW 650nm |
| Light effect | |
| LED: | 4 x 10 W SMD 5050 R/G/B/W |
| Strobes | |
| LED: | 16 x 0,6 W SMD 2835 cold white (CW) |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| EUROLITE DMX LED Color Chief Controller | |
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 24 Sequences |
| DMX channels: | Output 240 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 3 U Desktop console housing |
| Dimensions: | Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm |
| Weight: | 2,25 kg |
| Noise classification: | Class 0 (no noise at all) |
| EUROLITE STV-60-WOT EU Steel Stand black | |
| Maximum carrying capacity: | 30 kg |
| Height: | Maximum: 320 cm Minimum: 150 cm |
| Attachment system: | TV spigot Ø 28mm |
| Type (general stands): | Light stand/manual |
| Material: | Steel/magnesium; Steel/magnesium |
| Color: | Black |
| Transport dimensions: | 1,26 m x 12 cm x 15 cm |
| Weight: | 5,65 kg |
| EUROLITE SB-4 Soft Bag L | |
| Maximum load: | 25 kg |
| Carrying strap: | 2 pc/pcs |
| Material: | Nylon |
| Color: | Black, water repellent |
| Compartment dimensions: | 15 cm x 15 cm x 20 cm |
| Inside dimensions: | 31 cm x 34 cm x 20 cm |
| Dimensions: | Width: 32 cm Depth: 41 cm Height: 20 cm |
| Weight: | 520 g |
| OMNITRONIC IEC Extension 3x0.75 0.6m bk | |
| Cable construction: | 3 x 0,75 mm² Power cable |
| Cable length: | 0,6 m |
| Plug A: | 1 x IEC (M) |
| Plug B: | 1 x IEC (F) |
| Color: | Black |
| Weight: | 80 g |
| ROADINGER Mixer Case Pro MCA-19-N, 3U, black | |
| Maximum load: | 25 kg |
| Removable covers: | 1 pc/pcs |
| Aluminum profile frames: | 30 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Transport aid: | Rubber feet |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated; dark brown, laminated |
| Inside dimensions: | 45 cm x 20 cm x 10,5 cm |
| Front panel width: | (19") approx. 48 cm |
| Mounting height: | Approx. 13.5 cm (3 U) |
| Mounting depth: | 105 mm |
| Housing design: | 3 U |
| Dimensions: | Width: 55 cm Depth: 24 cm Height: 23,5 cm |
| Weight: | 5,10 kg |
| EUROLITE QuickDMX USB Wireless Transmitter/Receiver | |
| Power supply: | 5 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input via USB A (M) connectable version |
| DMX channels: | Input 512 Output 512 |
| DMX output: | 1 x USB, type A |
| Control: | DMX; QuickDMX; plug and play |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | Range up to 400m with line-of-sight |
| Color: | Black |
| Dimensions: | Width: 8,6 cm Depth: 4 cm Height: 1,1 cm |
| Weight: | 10 g |
| EUROLITE QuickDMX Wireless Transmitter | |
| Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 1 A |
| IP classification: | IP20 |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) |
| Control: | QuickDMX; DMX; plug and play |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | Range up to 400m |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm Diameter: Ø 1,8 cm |
| Weight: | 150 g |
