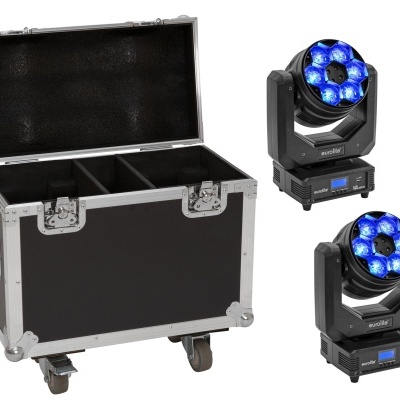

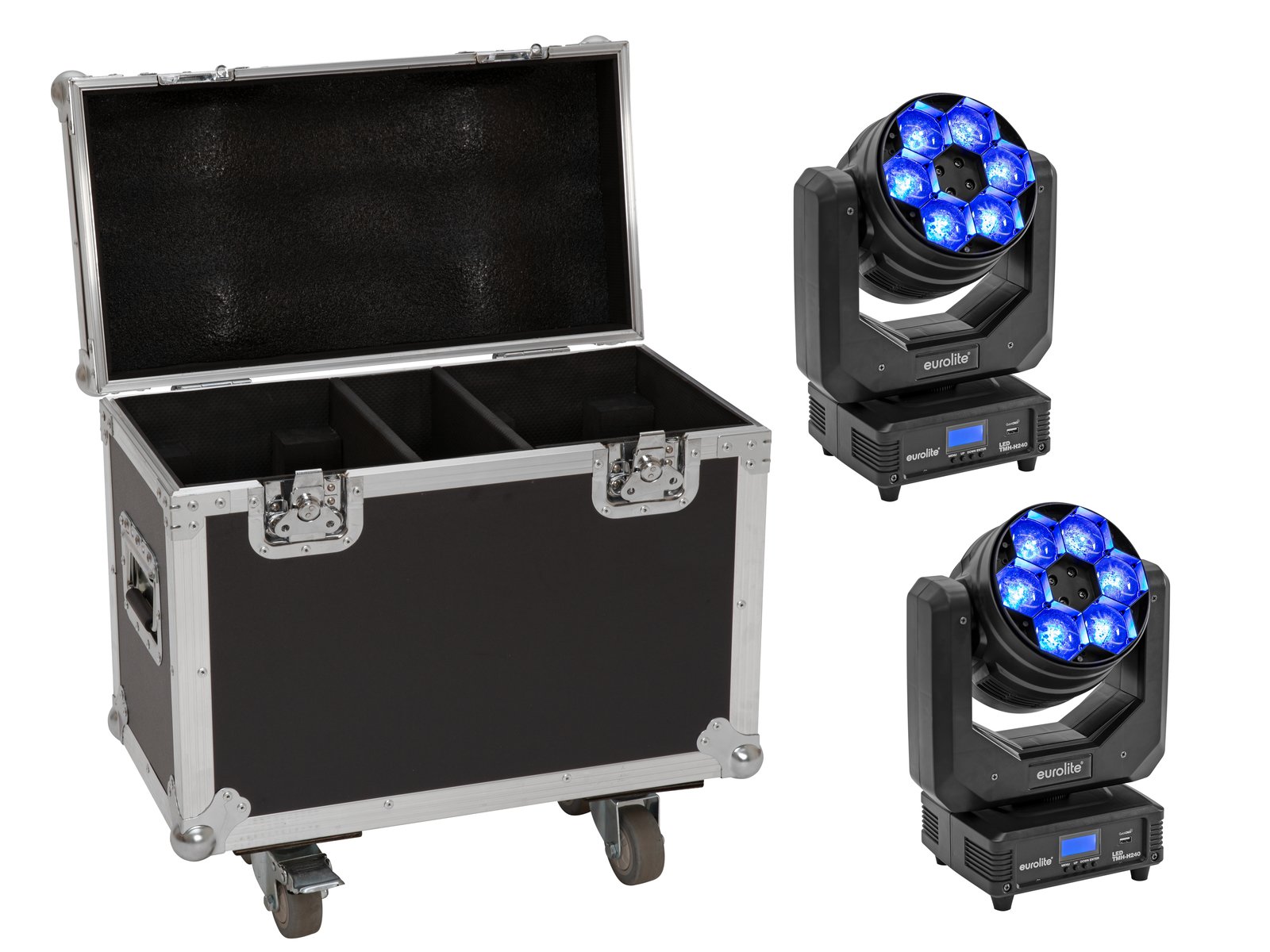

EUROLITE Set 2x LED TMH-H240 Beam/Wash/Flower Effect + Case
SKU: 20000968
EUROLITE LED TMH-H240 Beam/Wash/Flower Effect
Hybrid moving head with RGBW LEDs, zoom, macros, patterns and color temperature presets
- 3in1 moving head beam, wash and flower effect in one device
- 6 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately - Positioning within 540° PAN and 240° TILT
- PAN angle switchable between 540° and 360°
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor-driven; lens rotation
- Color blend stepless; color change; colors preset; patterns preset; background color adjustable; Dimmer speed (step response) adjustable
- Strobe effect; fan effect; flower effect; multi beam effect
- Integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function
- Flicker-free
- With a beam angle of 2° - 40°
- With Omega bracket
- LCD display
- Preprogrammed in Light Captain; EASY SHOW 3; Light´J
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Party room; mobile djs/entertainer; Stage
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x xLR cable
ROADINGER Flightcase 2x TMH-S90/H90/B90
Trunk case with castors
- For optimal security
- With 2 Device compartments
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- Castors
| Weight: | 25,35 kg |
| EUROLITE LED TMH-H240 Beam/Wash/Flower Effect | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 190 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 3 A |
| Lamp type: | LED lamp |
| LED: | 6 x 40 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | 240° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: | 540°, 360° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate: | 1 - 25 Hz |
| Equipment: | Zoom motor-driven; lens rotation |
| DMX channels: | 16; 21; 24; 32; 56 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function |
| Preprogrammed in: | Light Captain; EASY SHOW 3; Light´J |
| Beam angle: | 2° - 40° |
| Beam angle (1/2 peak): | 2 - 25° |
| Beam angle (1/10 peak): | 8 - 40° |
| Illuminance in Lux (lx): | Narrow red (R) 1m: 11423 lx, 3m: 5703 lx, 6m: 1423 lx Narrow green (G) 1m: 28573 lx, 3m: 11882 lx, 6m: 2992 lx Narrow blue (B) 1m: 3089 lx, 3m: 1835 lx, 6m: 513 lx Narrow cold white (CW) 1m: 35392 lx, 3m: 15489 lx, 6m: 3899 lx Narrow all 1m: 67721 lx, 3m: 30843 lx, 6m: 7807 lx |
| Housing color: | Black |
| Attachment system: | 2x Omega bracket |
| Display type: | LCD display |
| Dimensions: | Width: 26 cm Depth: 18 cm Height: 33 cm |
| Weight: | 6,10 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 2x TMH-S90/H90/B90 | |
| Maximum load: | 50 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 2 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Transport aid: | Castors |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Device compartment: | 20 cm x 26 cm x 37 cm |
| Accessory compartment: | 9,5 cm x 26 cm x 37 cm |
| Dimensions: | Width: 57 cm Depth: 31 cm Height: 54 cm |
| Weight: | 13,15 kg |
