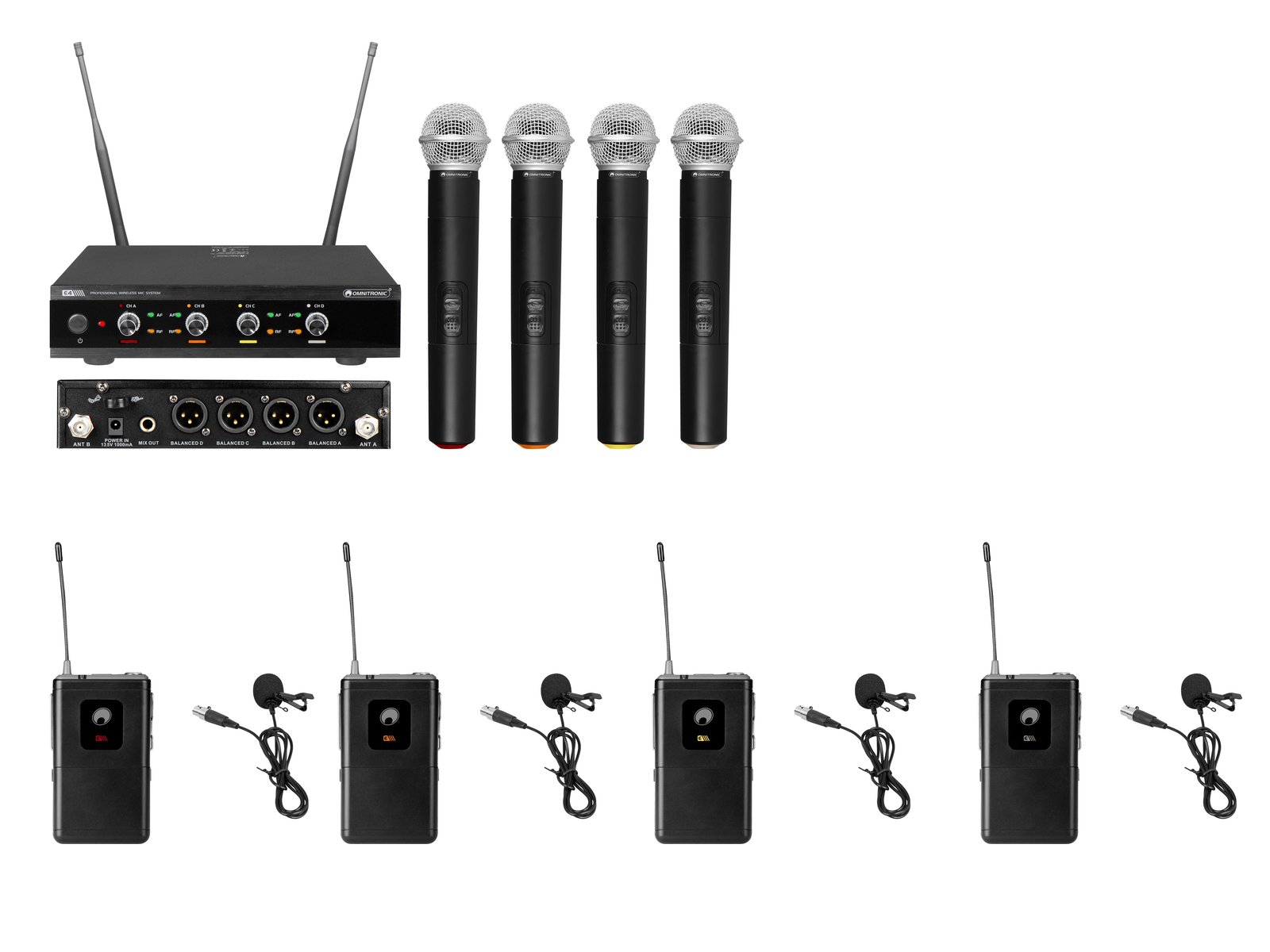

OMNITRONIC Set UHF-E4 Wireless Mic System + 4x BP + 4x Lavalier Microphone 823.6/826.1/828.6/831.1MHz
OMNITRONIC Set UHF-E4 Wireless Mic System + 4x BP + 4x Lavalier Microphone 823.6/826.1/828.6/831.1MHz

OMNITRONIC Set UHF-E4 Wireless Mic System + 4x BP + 4x Lavalier Microphone 823.6/826.1/828.6/831.1MHz

SKU: 20000976



OMNITRONIC UHF-E4 Wireless Mic System 823.6/826.1/828.6/831.1MHz

License-free 4-channel wireless microphone system

  • 4-channel receiver and 4 hand-held microphones with UHF PLL technology
  • Parallel operation of up to 12 transmission channels is possible without any interference
  • Easy handling
  • 4 separate channels with volume controls and LEDs for carrier signal and audio signal
  • Balanced XLR output per channel
  • 6.3 mm jack for mixed signal output
  • Microphones with color indication
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Operating range up to 60m with line-of-sight

Receiver

  • Desktop console housing
  • (19") 48.3 cm rack installation possible 1 U

Microphone

  • Polar pattern: Cardioid

Package contents

  • 1 x receiver, 2 x antenna, 1 x external mains adapter, 4 x microphone, 1 x jack cable, 3 x mounting bracket, 3 x screw, 4 x foot, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UHF-E Series Bodypack 823.6MHz + Lavalier Microphone

Bodypack transmitter with lavalier microphone for UHF-E receivers

  • Sensitivity adjustable
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Operating range up to 60m with line-of-sight

Microphone

  • Polar pattern: Cardioid

Package contents

  • 1 x transmitter, 1 x microphone, 2 x battery, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UHF-E Series Bodypack 826.1MHz + Lavalier Microphone

Bodypack transmitter with lavalier microphone for UHF-E receivers

  • Sensitivity adjustable
  • Polar pattern: Cardioid
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Operating range up to 60m with line-of-sight

Package contents

  • 1 x transmitter, 1 x microphone, 2 x battery, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UHF-E Series Bodypack 828.6MHz + Lavalier Microphone

Bodypack transmitter with lavalier microphone for UHF-E receivers

  • Sensitivity adjustable
  • Polar pattern: Cardioid
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Operating range up to 60m with line-of-sight

Package contents

  • 1 x transmitter, 1 x microphone, 2 x battery, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UHF-E Series Bodypack 831.1MHz + Lavalier Microphone

Bodypack transmitter with lavalier microphone for UHF-E receivers

  • Sensitivity adjustable
  • Polar pattern: Cardioid
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Operating range up to 60m with line-of-sight

Package contents

  • 1 x transmitter, 1 x microphone, 2 x battery, 1 x user manual, 1 x declaration of conformity


Weight:3,62 kg
OMNITRONIC UHF-E4 Wireless Mic System 823.6/826.1/828.6/831.1MHz
Type:Wireless set
Frequency band:UHF 823 - 832 MHz
Carrier frequency:823,6; 826,1; 828,6; 831,1
Frequency selection:Fixed frequencies
Modulation:FM
Range:Range up to 60m with line-of-sight
Weight:2,16 kg
Receiver
Power supply:100-240 V AC, 50/60 Hz
13,5 V DC 150 mA
Power consumption:6 W
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:4
Frequency range:20 - 20000 Hz
S/N ratio:>96 dB
THD:<0,1 % at 1 kHz
Housing color:Black
Control elements:Power switch, level control
Connections:Output: line via 1 x 6.3 mm plug (unbal.)
Output: Microphone via 4 x 3-pin XLR
Material:Metal
Housing design:Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Weight:1 kg
Microphone
Type:Hand-held transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Capsule type:Dynamic
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
Frequency range:50 - 20000 Hz
Housing color:Black
RF power output:10 mW
Switch:Mute control
Material:Plastic
Dimensions:Length: 25 cm
Diameter: Ø 5,2 cm
Weight:205 g
OMNITRONIC UHF-E Series Bodypack 823.6MHz + Lavalier Microphone
Type:Bodypack with microphone
Power supply:3 V DC
Power connection:Battery/battery pack
Battery:2 x Mignon (AA) (not included)
THD:<0,1 % at 1 kHz
Connector type:Mini XLR (M) 3-pin mounting version
Housing color:Black
Status LED:Charge status indicator
Frequency band:UHF 823 - 832 MHz
Carrier frequency:823,6 MHz
Frequency selection:Fixed frequencies
Modulation:FM
RF power output:10 mW
Range:Range up to 60m with line-of-sight
Color code:CH A= red,
Switch:On/off switch
Material:Plastic
Dimensions:Width: 6,8 cm
Depth: 2,3 cm
Height: 10 cm
Weight:140 g
Microphone
Type:Lavalier microphone
Cable length:0,95 m
Capsule type:Condenser
Polar pattern:Cardioid
Material:Metal
Color:Black
OMNITRONIC UHF-E Series Bodypack 826.1MHz + Lavalier Microphone
Type:Pocket transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Capsule type:Condenser
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
THD:<0,1 % at 1 kHz
Connector type:Mini XLR (M) 3-pin mounting version
Status LED:Charge status indicator
Frequency band:UHF 823 - 832 MHz
Frequency selection:Fixed frequencies
Modulation:FM
RF power output:10 mW
Range:Range up to 60m with line-of-sight
Switch:On/off switch
Material:Plastic
Color:Black
Dimensions:Width: 6,8 cm
Depth: 2,3 cm
Height: 10 cm
Weight:140 g
OMNITRONIC UHF-E Series Bodypack 828.6MHz + Lavalier Microphone
Type:Pocket transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Capsule type:Condenser
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
THD:<0,1 % at 1 kHz
Connector type:Mini XLR (M) 3-pin mounting version
Status LED:Charge status indicator
Frequency band:UHF 823 - 832 MHz
Frequency selection:Fixed frequencies
Modulation:FM
RF power output:10 mW
Range:Range up to 60m with line-of-sight
Switch:On/off switch
Material:Plastic
Color:Black
Dimensions:Width: 6,8 cm
Depth: 2,3 cm
Height: 10 cm
Weight:140 g
OMNITRONIC UHF-E Series Bodypack 831.1MHz + Lavalier Microphone
Type:Pocket transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Capsule type:Condenser
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
THD:<0,1 % at 1 kHz
Connector type:Mini XLR (M) 3-pin mounting version
Status LED:Charge status indicator
Frequency band:UHF 823 - 832 MHz
Frequency selection:Fixed frequencies
Modulation:FM
RF power output:10 mW
Range:Range up to 60m with line-of-sight
Switch:On/off switch
Material:Plastic
Color:Black
Dimensions:Width: 6,8 cm
Depth: 2,3 cm
Height: 10 cm
Weight:140 g
