ROADINGER Amplifier Rack PR-1, 2U, 47cm deep
SKU: 30109782

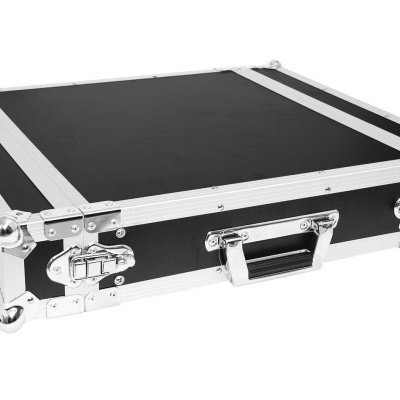

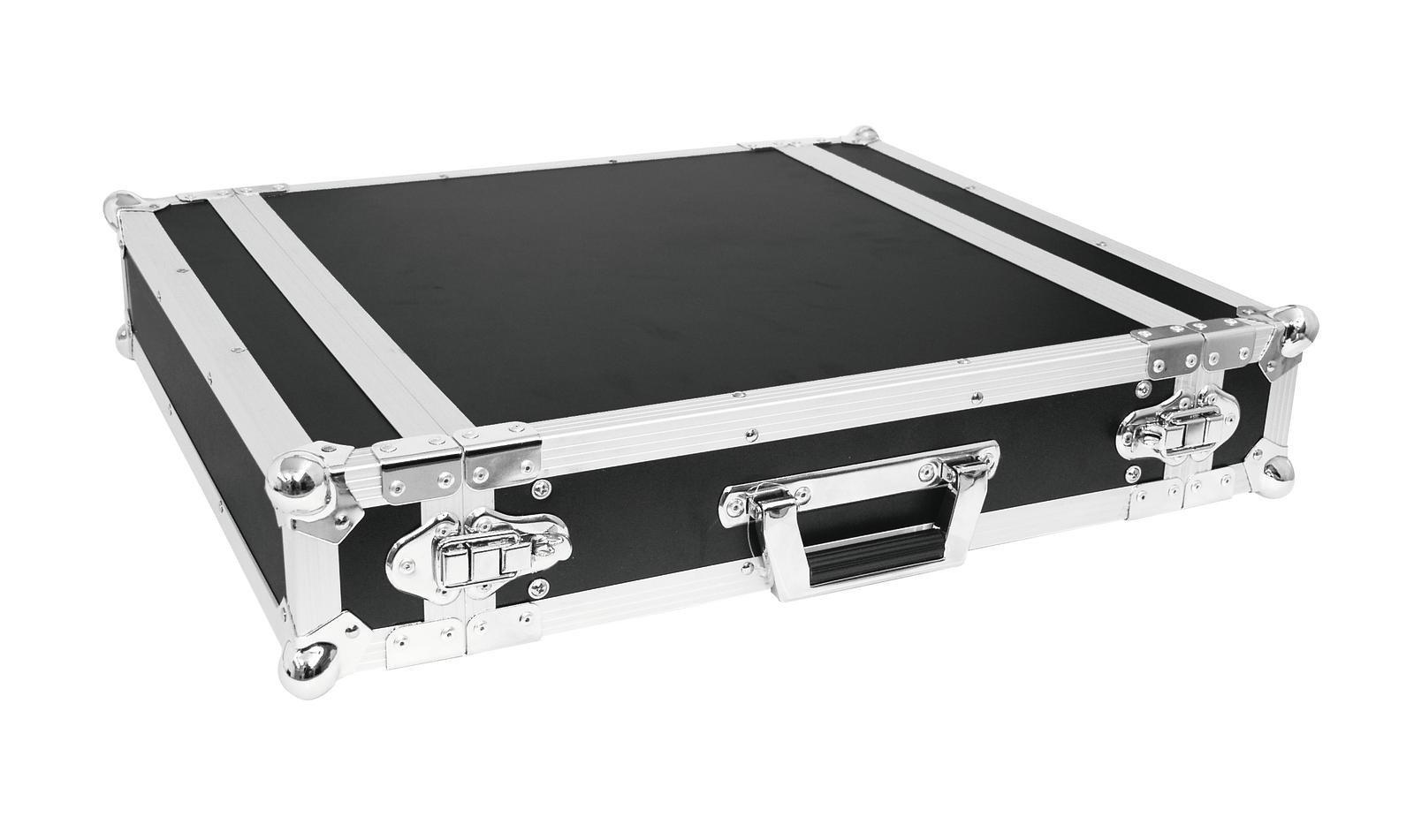

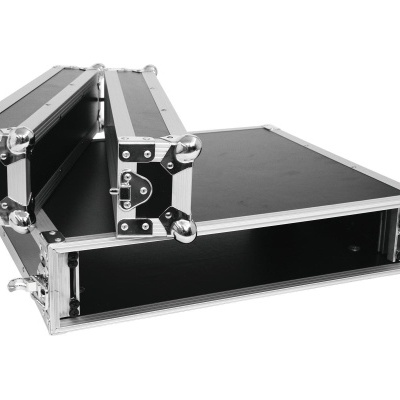

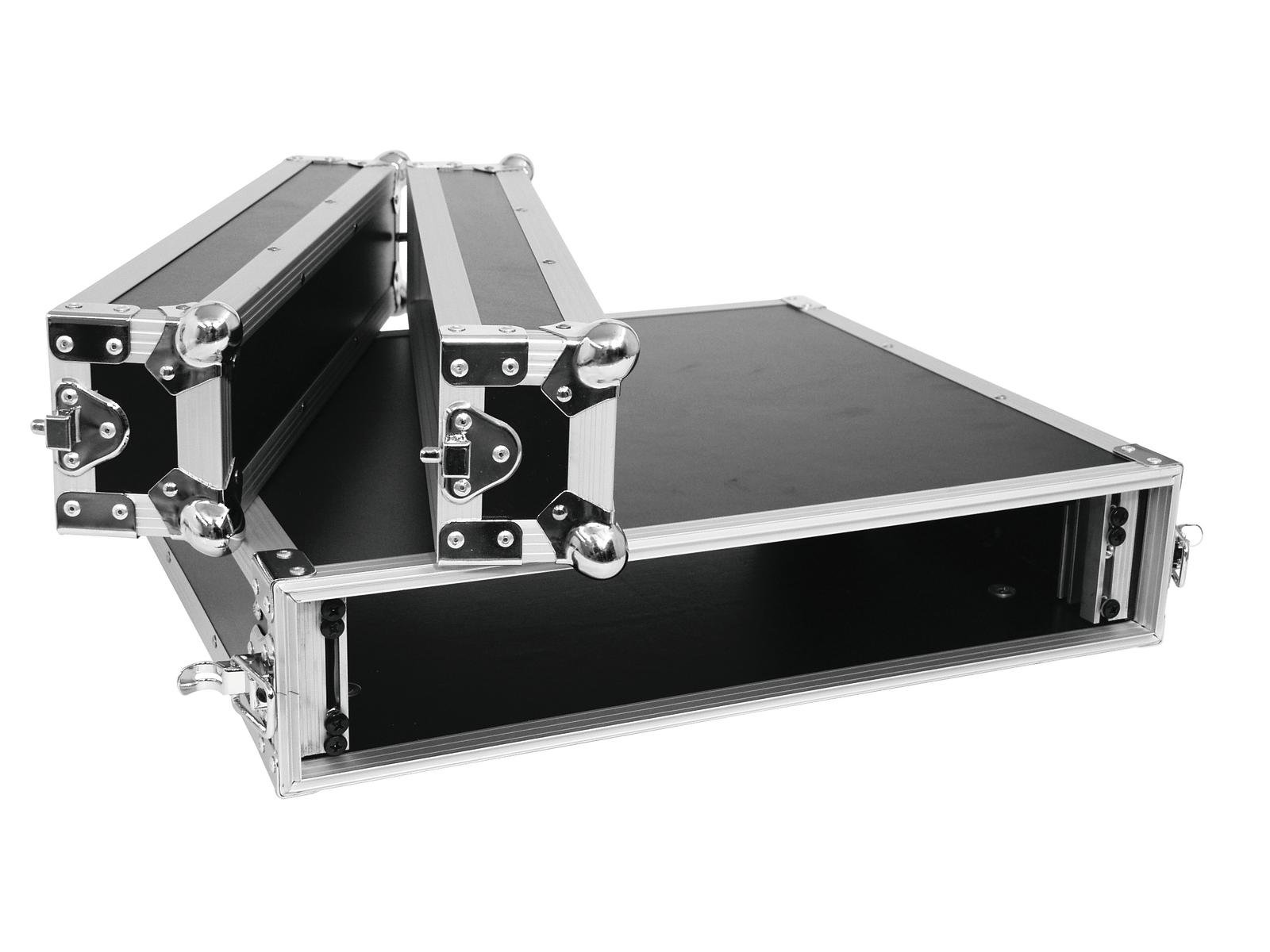

Flightcase for 483 mm devices (19")The ROADINGER amplifier rack PR-1 with 2 U is optimally suited for your 19" equipment such as power amplifiers and other accessories. The maximum installation depth is 420 mm plus 90 mm per cover. The high-quality workmanship with a wall thickness of 7 mm and the aluminium profile frame with rounded corners as well as the three-legged, medium-sized steel ball corners give the case stability. The amplifier rack is equipped with four snap locks, a robust carrying handle and two wooden slide rails on the bottom. Both lids are removable (double door version).The maximum load is 25 kg.
Rack case
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 4 high-quality spring locks
- Wooden slide rails on the bottom
- Available in different height units (1 U = 44 mm)
- With profile rails suitable for (19") approx. 48 cm units
- 2 U
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Maximum load: | 25 kg |
| Aluminum profile frames: | 30 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Spring lock: 4 pc/pcs |
| Transport aid: | Wooden slide rails on the bottom |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Front panel width: | (19") approx. 48 cm |
| Mounting height: | Approx. 9 cm (2 U) |
| Mounting depth: | 420 mm |
| Housing design: | 2 U |

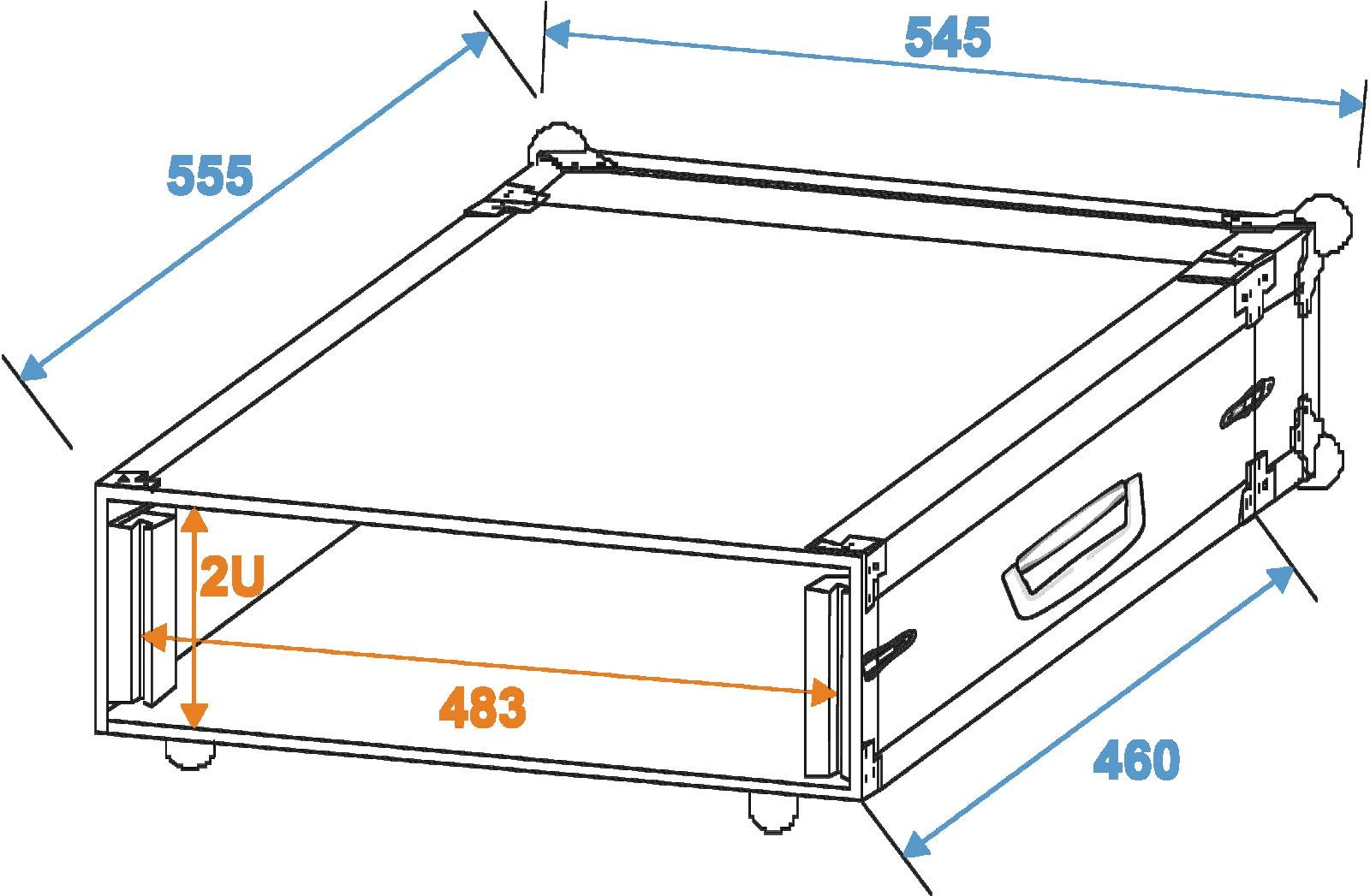

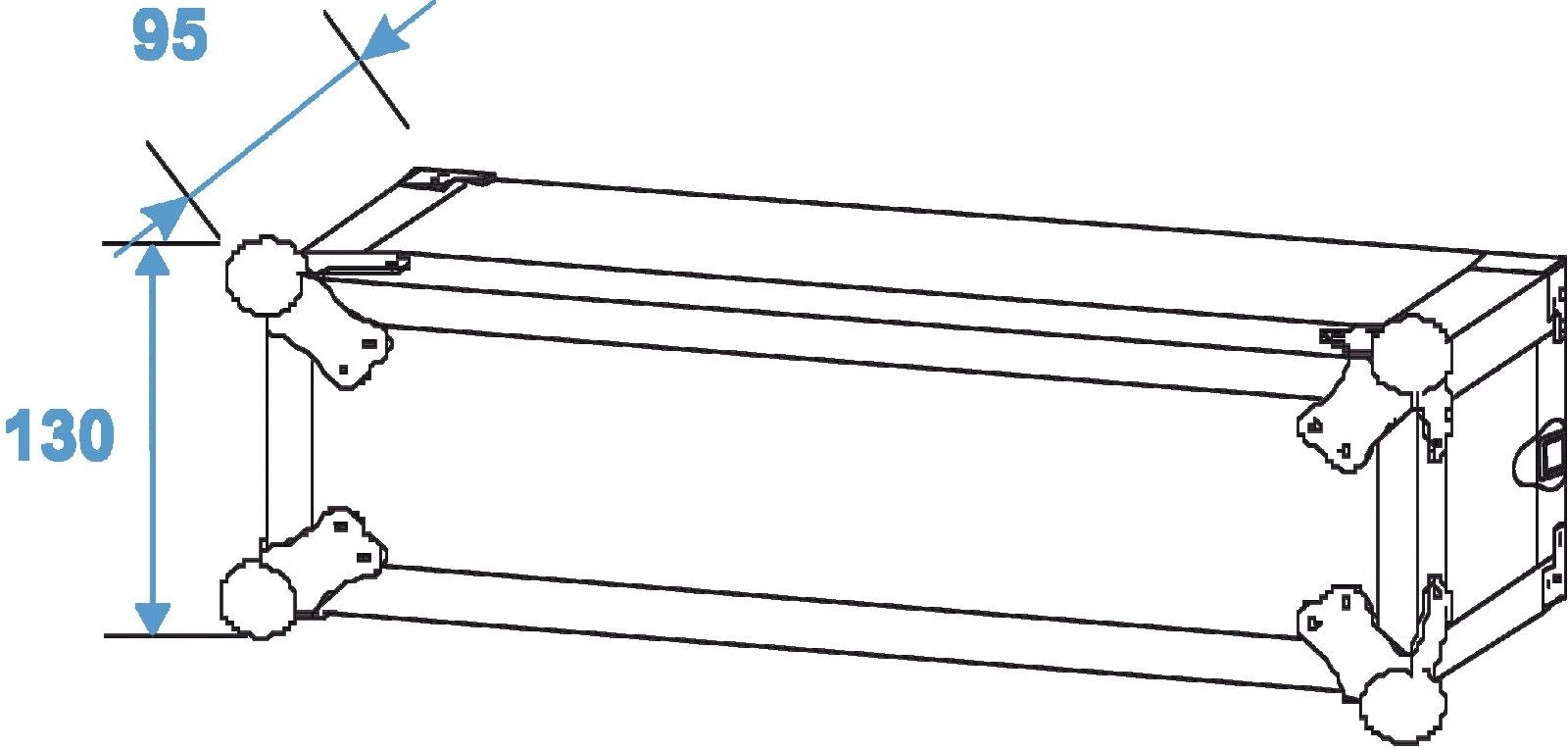

| Dimensions: | Width: 54,5 cm Depth: 65 cm Height: 13,5 cm |
| Weight: | 6,80 kg |
