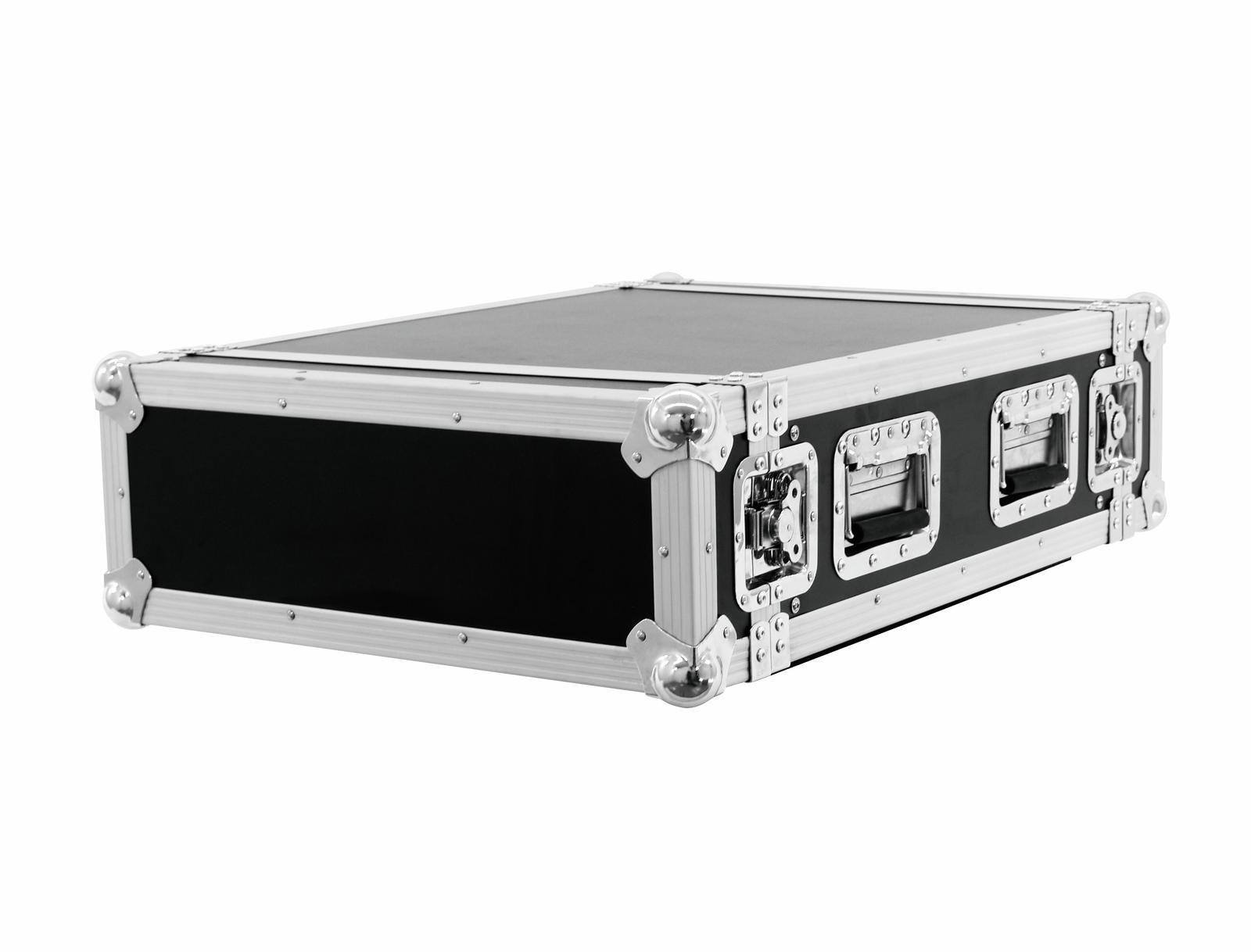

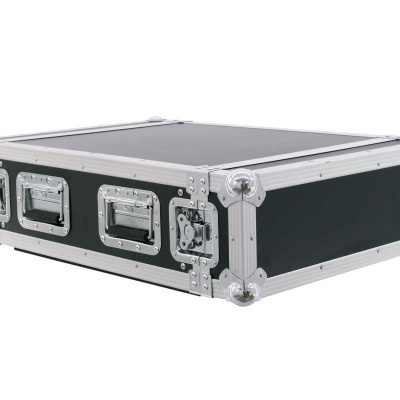

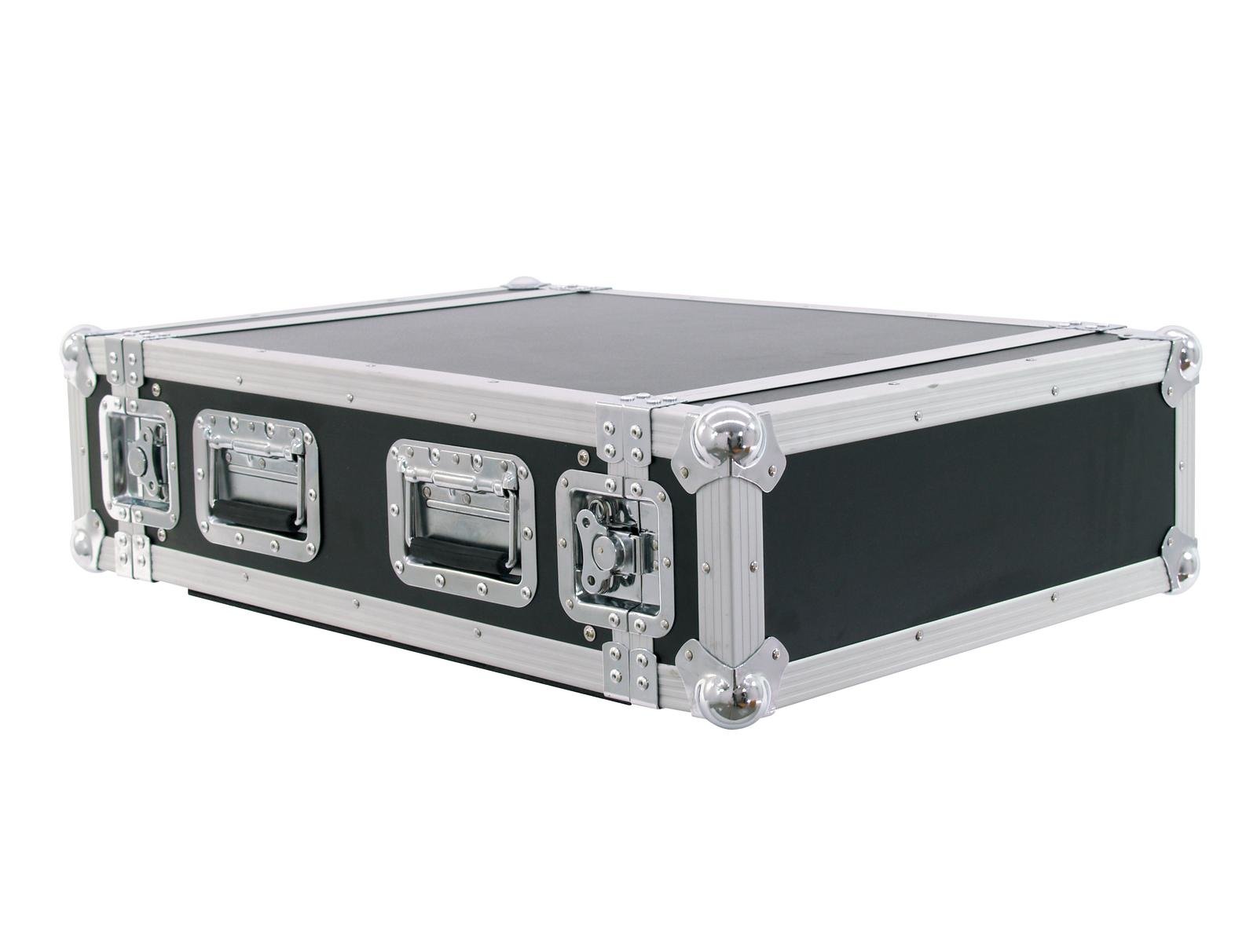

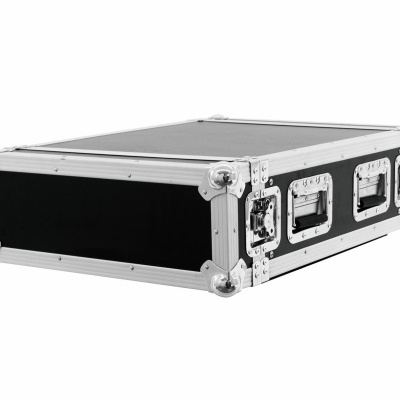

ROADINGER Amplifier Rack PR-2ST, 4U, 57cm deep

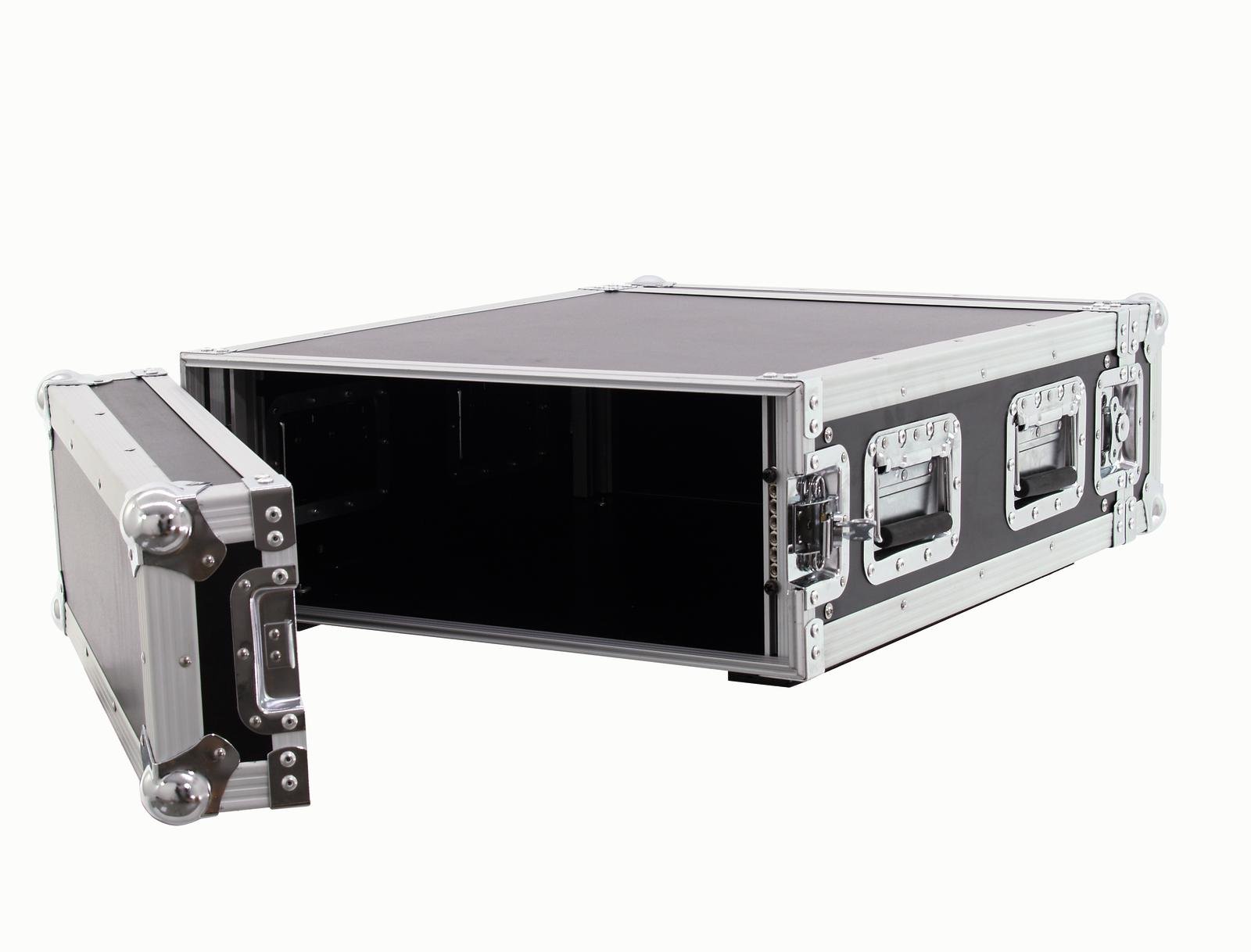

Flightcase for 483 mm devices (19")The ROADINGER amplifier rack PR-2ST including rack rails with 4 U is ideally suited for your 19" equipment such as power amplifiers and other additional equipment. The maximum installation depth is 550 mm plus 90 mm per cover. The high-quality workmanship with multi-layer glued wood and the aluminium profile frame with rounded corners as well as the three-legged, medium-sized steel ball corners provide stability. The amplifier rack is equipped with four high-quality butterfly locks, four chrome-plated case folding handles and two wooden sliding rails on the bottom. Both lids are removable (double door version).The maximum load is 50 kg.

Rack case

• Front and rear rack rails
• High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated

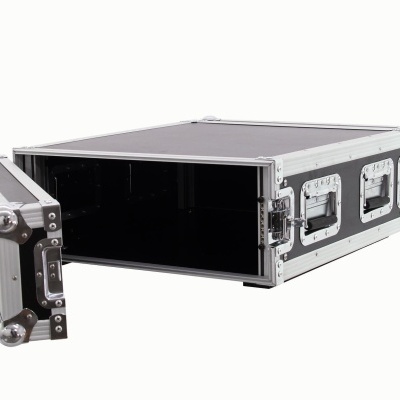

• 2 removable covers (double-Door-Version)
• Aluminum profile frames 30mm with rounded edges
• 4 hinged, chromium plated case handles
• 4 high-quality butterfly locks

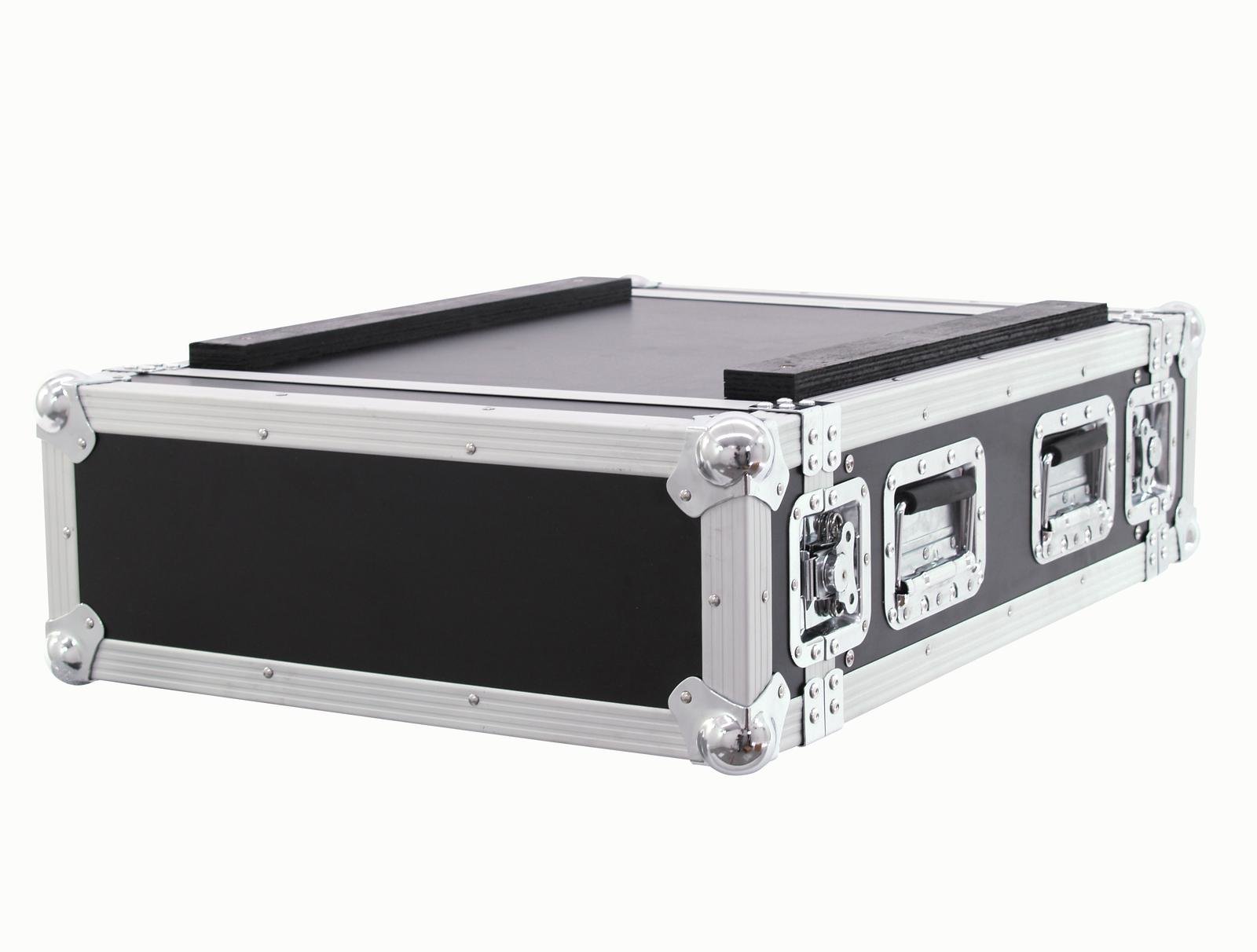

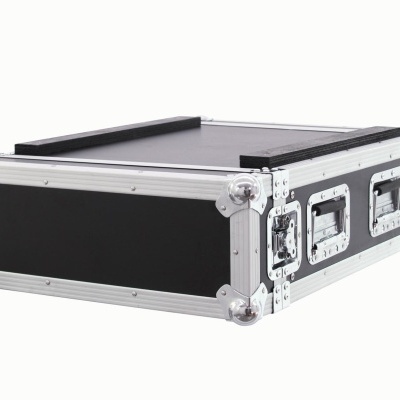

• 2 wooden slide rails on the bottom
• Available in different height units (1 U = 44 mm)
• With profile rails suitable for (19") approx. 48 cm units
• With extra large installation depth
• 4 U
• For further information about this product, please refer to the Data Sheet under "Downloads"

Maximum load:	50 kg
Removable covers:	2 pc/pcs
Aluminum profile frames:	30 mm
Case handle:	4 pc/pcs
Lock:	Butterfly lock: 4 pc/pcs
Transport aid:	2 x wooden slide rails on the bottom
Material:	Plywood multi-layer glued, 7 mm
Color:	Black, laminated

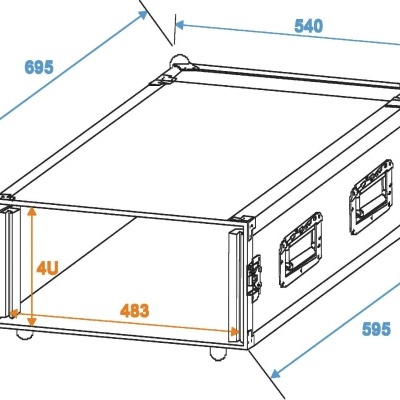

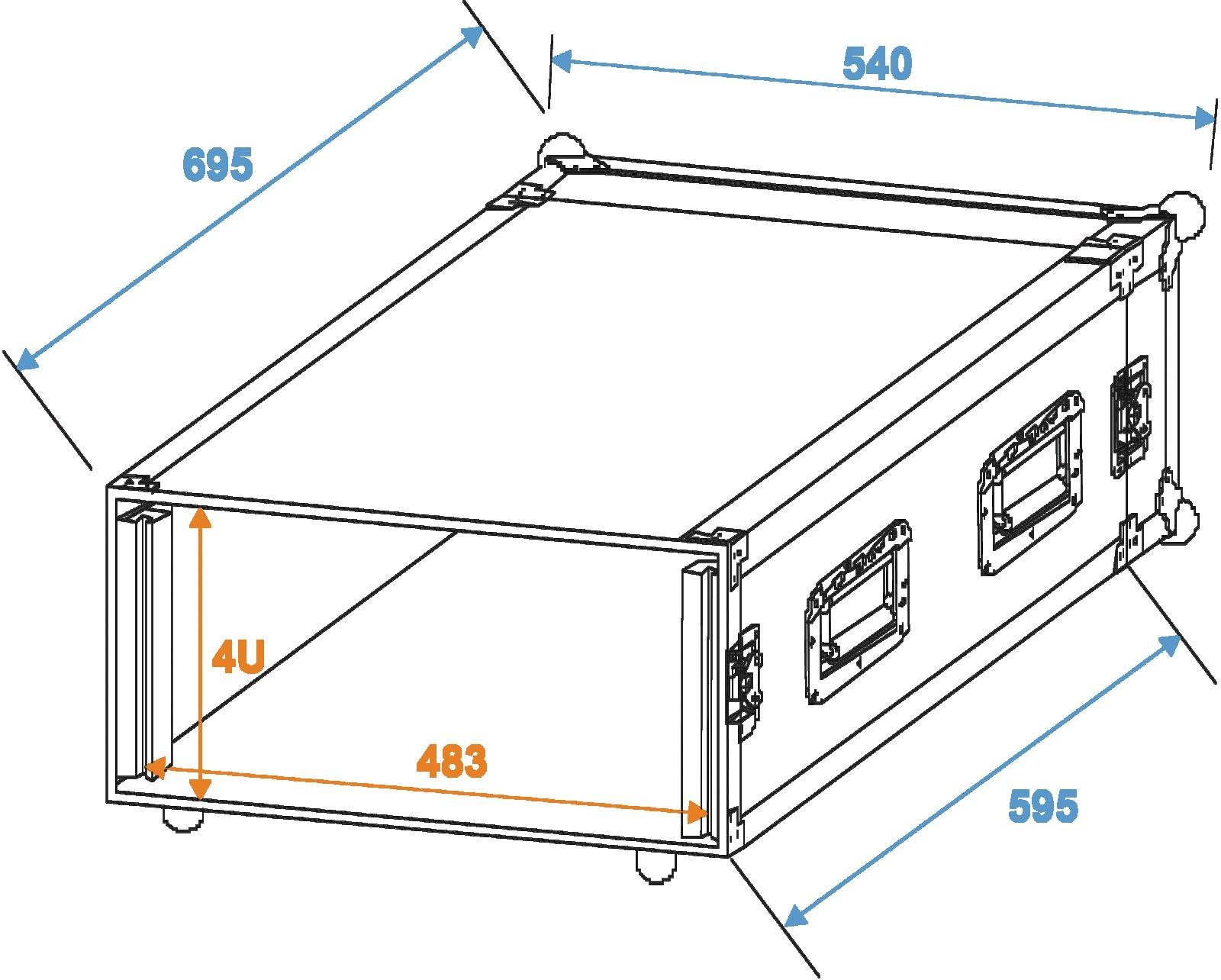

Front panel width:	(19") approx. 48 cm
Mounting height:	Approx. 18 cm (4 U)
Mounting depth:	550 mm
Housing design:	4 U
Dimensions:	Width: 54,5 cm Depth: 80 cm Height: 22 cm
Weight:	11,25 kg
